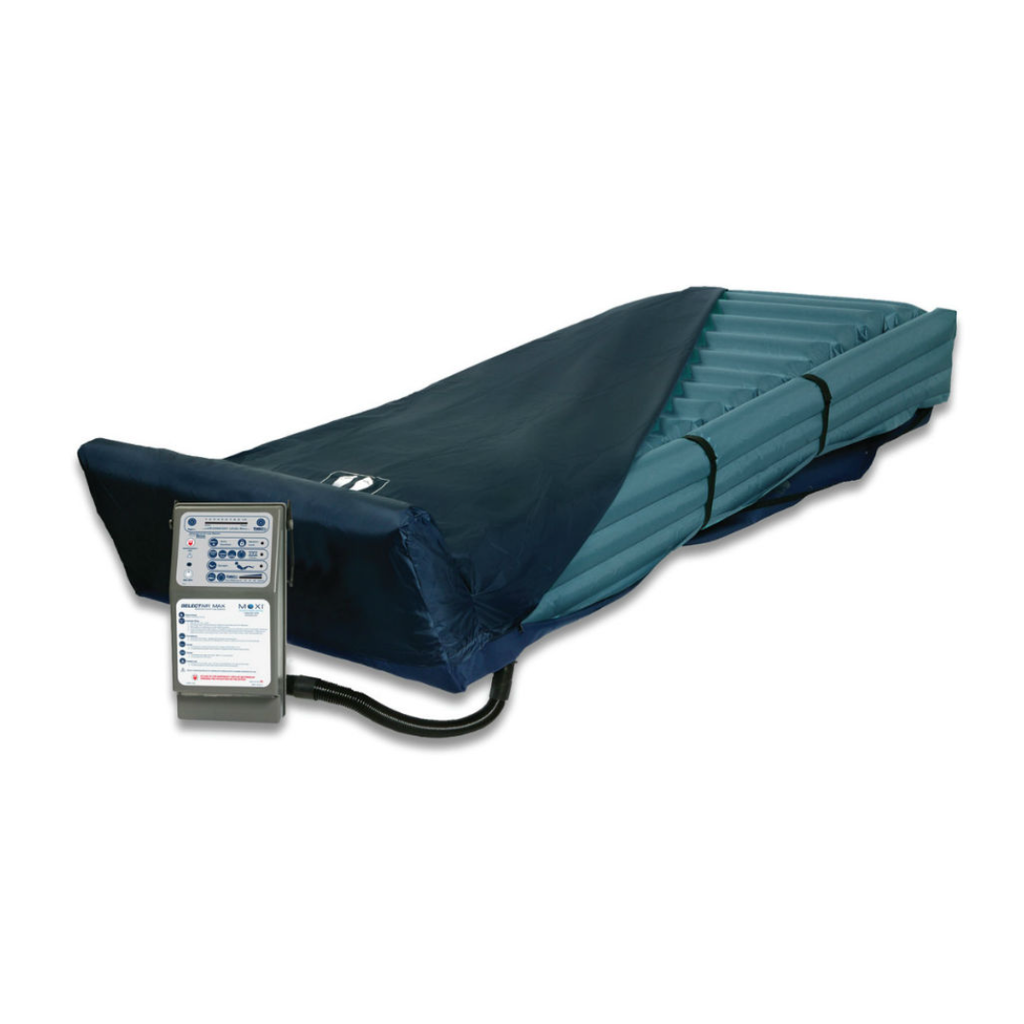

Select Air Max True Low Air Loss Mattress System

The Select Air Max is Blake Medical's true low air loss mattress with Auto Comfort and an optional foot pillow. Westin Healthcare sells it, delivers it, and sets it up for homes in Brampton and the Greater Toronto Area. Official codes are SAMAXSYSK010120-B (36 by 80, no foot pillow) and SAMAXSYSK004120-B (36 by 84, with foot pillow). Westin stores SAMAXSYSK010120.

Blake lists a 400 lb / 182 kg weight capacity and an 8-inch height. Blake states it is for the prevention and treatment of stage I-IV pressure injuries. The clinician who knows the person's skin still decides if this class is right.

Who this mattress is for

This mattress is for a person on a 36-inch hospital bed who needs true low air loss, Auto Comfort, and side air bolsters. If you need 42 or 48 inches, look at the Fusion 4K XL. If you want a Drive blower with 36, 42, and 48 inch pickers, see the Harmony True Low Air Loss.

• Home care on a 36-inch by 80-inch or 84-inch deck
• A therapist request for true low air loss with Auto Comfort
• Anyone within Blake's 400 lb rating who wants side air bolsters

Construction and how it works

This is a mattress replacement. Eighteen 8-inch cells sit in three sections (head, seat, foot) with integrated side air bolsters. Pulsation slightly raises then lowers airflow. Static mode is true low air loss with no cell movement. Auto Comfort sets pressure from the person's weight distribution. Auto Firm is for care. Upright mode adds support under the buttocks when the head of the bed is raised. The 84-inch version adds a foot pillow to limit migration. System Lock stops accidental changes.

The top cover is anti-microbial, fluid-resistant, and breathable nylon. Blake also lists the cover as water-resistant, vapour-permeable, flame-resistant, and biocompatible.

Select Air Max specifications

These figures are from Blake's Select Air Max page. The specification tab holds the stored values. Height is 8 inches. Standard sizes are 36 by 80 inches without a foot pillow and 36 by 84 inches with a foot pillow. Custom sizes are available. Weight capacity is 400 lbs / 182 kg.

Warranty for the original purchaser is 2 years on the mattress and 1 year on the cover.

Choose Mattress Length

The picker is labelled Choose Mattress Length. The option text currently says 80" WIDTH and 84" WIDTH. Those values are lengths, not widths. The mattress width is 36 inches on both.

• 80" without foot pillow (SAMAXSYSK010120-B)
• 84" with foot pillow (SAMAXSYSK004120-B)

Confirm the bed deck is long enough before you pick 84 inches.

Funding help for a therapeutic mattress in Ontario

Ontario's Assistive Devices Program (ADP) does not cover hospital beds or mattresses, so plan around other routes. Funding that may help instead: ODSP, March of Dimes Canada, Veterans Affairs Canada (VAC), hardship funding programs, and community programs. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through before you buy.

Delivery and setup in Brampton and the GTA

Westin's own team delivers and sets up this mattress across Brampton and the Greater Toronto Area. We bring it in, place it on the bed, connect the control unit, and show you the pump before we leave.

We have three stores in the Brampton and Toronto area if you would rather see a mattress first. For a scheduled in-home setup, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service; purchased mattresses are delivered and set up on a scheduled date.

Hospital-bed mattresses are oversized. The Canada-wide free ground-shipping offer on smaller goods does not apply. If the mattress is going outside the GTA, ask us for a freight quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.

Which Westin beds this mattress fits

The sleep surface is 36 inches wide. It belongs on a matching 36-inch homecare deck. The 84-inch length needs a deck that extends to 84 inches.

• Drive Delta 1000
• Drive Delta 15235 hi-low
• Drive 15005LP

Service and warranty

When the pump or a cell needs work, you call the shop that set it up. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.

Blake Medical manufacturer warranty

Blake's Select Air Max page covers the original purchaser for 2 years on the mattress and 1 year on the cover. We handle the warranty claim with you.

Frequently asked questions

How is Select Air Max different from Fusion 4K XL?

Select Air Max is 36 inches wide, 8 inches high, 400 lbs, with side air bolsters and an optional foot pillow. Fusion 4K XL is 42 or 48 inches wide, 8 inches high, and 500 lbs, with a foam crib instead of air bolsters.

Is this an overlay or a replacement?

An 8-inch replacement. The existing mattress comes off.

How do I clean the cover?

The nylon cover wipes down. Follow the Select Air 2022 manual. Do not immerse the pump.

What is the weight rating?

Blake lists 400 lbs / 182 kg. Near that limit, do not stretch this 36-inch surface.

What size bed does it fit?

36 inches wide by 80 or 84 inches long by 8 inches high. Choose Mattress Length sets the length. The 84-inch option includes the foot pillow.

How loud is the pump?

Blake does not print a decibel rating on the Select Air Max page.

What is the warranty?

2 years on the mattress and 1 year on the cover. Westin Healthcare processes the claim.

Does funding cover this mattress in Ontario?

Some Ontario routes can help with a therapeutic support surface. Eligibility depends on the person's situation and assessment. Call (905) 451-7743 or use the funding page before you buy.

Can I rent a powered mattress before I buy?

Westin Healthcare rents hospital-bed packages that include a therapeutic mattress. See current packages on the hospital bed rentals page. Ask us whether this Select Air Max can be added to a rental.

What happens if the power goes out?

Blake does not print a cell-on-cell hold time on the Select Air Max page. The side air bolsters are there for entrapment risk, not as an outage mattress. Ask us about a foam-base or cell-on-cell sibling if outage hold is the main need.
