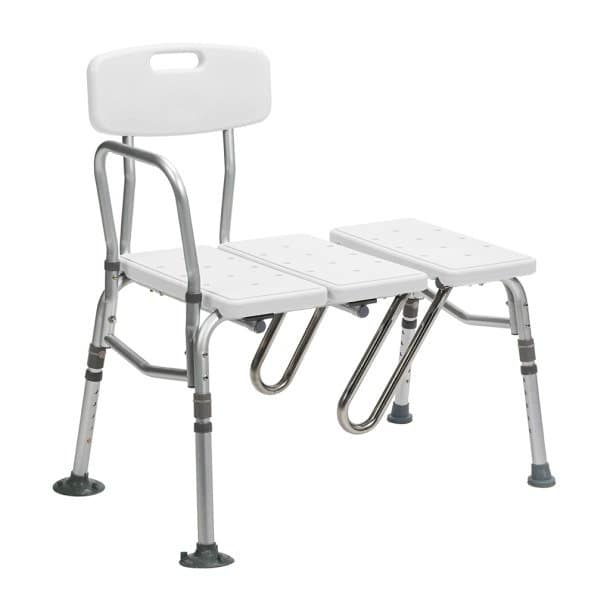

Drive Splash Defense Transfer Bench with Curtain Guard

The Drive Splash Defense Transfer Bench with Curtain Guard is Drive item RTL12032KDR, a 400 lb (181 kg) bath transfer bench with a U-shaped seat cut-out. Westin Healthcare sells it and delivers it for homes in Brampton and the Greater Toronto Area. The cut-out lets the shower curtain liner stay inside the tub.

Drive rates RTL12032KDR at 400 lb (181 kg). Seat height is 17.5 in to 22.5 in (44 cm to 57 cm) in 1/2 in Dual Column clicks. The bench is reversible. Assembly of the back, legs, and arm is tool-free.

Who this transfer bench is for

This Splash Defense transfer bench is for a person who stays at or under the 400 lb rating and who wants the curtain liner to drop through the U-cut so water stays in the tub. Families usually call us when a standard bench pushes the curtain outside the tub and wets the floor.

If you do not need the U-cut, start with the Drive Transfer Tub Bench. If you want a cushion, see the Drive Padded Transfer Bench.

• U-shaped cut-out for the shower curtain liner
• Reversible 400 lb A-frame
• Tool-free setup and a pinch-free height lever

Seat height and tub fit

Sit on the bench with your feet flat. Drive prints Dual Column clicks in 1/2 in increments and a 17.5 in to 22.5 in (44 cm to 57 cm) seat-to-floor range on RTL12032KDR. Match every leg to the same hole before you sit.

Drive prints that this bench fits tubs with a maximum height of 15.5 in (39 cm), a minimum bottom width of 18.5 in (47 cm), a minimum top width of 23 in (58 cm), and a maximum edge width of 5.5 in (14 cm). Drive's current sheet does not print a seat width or seat depth. Come into a Brampton or Toronto store if you want to sit on the bench before you order.

Curtain guard, frame, and assembly

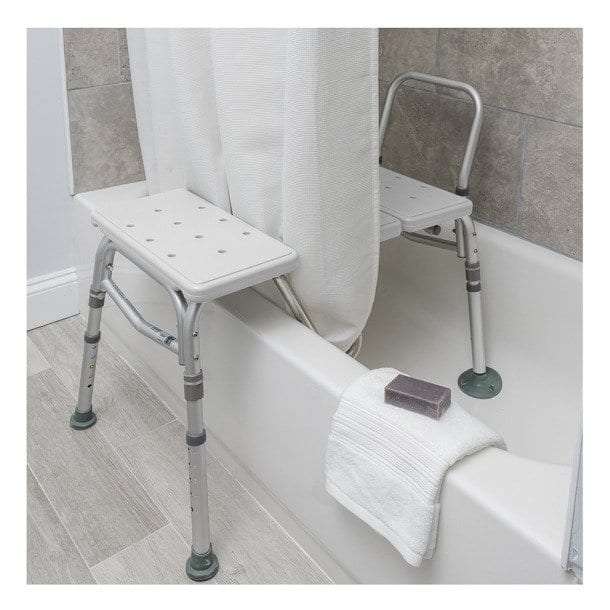

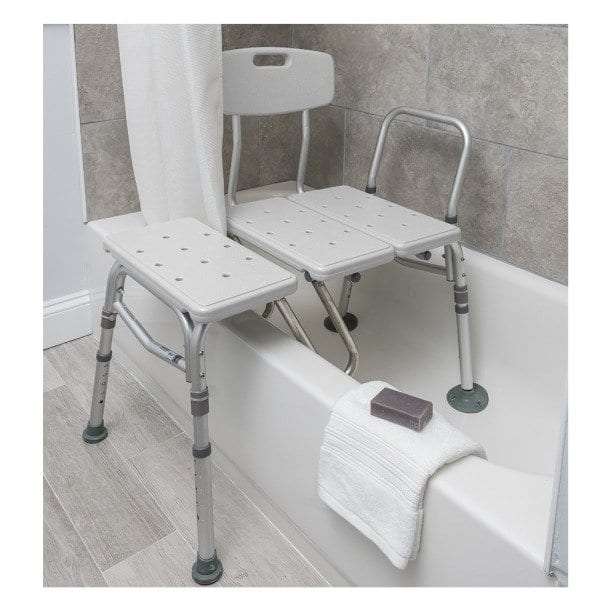

The U-shaped cut-out is the Splash Defense feature. Drive prints that it lets the shower curtain liner stay inside the bathtub so water does not spill onto the floor. The bench and backrest are blow-molded plastic on an A-frame. The bench is reversible.

Assembly is tool-free: back, legs, and arm. Drive prints a pinch-free lever for the push pins, and that the plastic parts use recycled materials. We can put it together at delivery.

Drive Splash Defense Transfer Bench specifications

These figures are for Drive RTL12032KDR as printed on the current one-pager. The specification tab holds the stored values. Use 17.5 in to 22.5 in, not the stored 18 in to 22 in line.

Capacity 400 lb (181 kg). Seat to floor 17.5 in to 22.5 in (44 cm to 57 cm). Height clicks 1/2 in. Tub fit: max height 15.5 in, min bottom 18.5 in, min top 23 in, max edge 5.5 in. Warranty for a Canadian purchaser follows Drive's printed term: limited lifetime.

Which transfer bench fits this bathroom

A shower chair sits inside the tub. A transfer bench bridges the wall. Splash Defense is the Drive bench whose U-cut keeps the curtain liner in the tub.

Stay on RTL12032KDR when floor splash from the curtain is the problem you want to solve. Use the 12011KD-1 if you want the same 400 lb plastic family without the U-cut. Use the RTL12075 sliding bench if the person wants the seat to roll along the frame.

Funding help for bathroom safety equipment in Ontario

Ontario's Assistive Devices Program (ADP) does not fund bathroom safety equipment, so plan around other routes. Funding that may help instead: March of Dimes Canada's Home and Vehicle Modification Program, Veterans Affairs Canada (VAC), extended health plans, and community programs. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through before you buy.

Delivery and setup in Brampton and the GTA

Westin's own team delivers this transfer bench across Brampton and the Greater Toronto Area. We bring it in, assemble the back, legs, and arm if you want that, set the Dual Column height, and show you how the curtain liner drops through the U-cut before we leave.

We have three stores in the Brampton and Toronto area if you would rather see a transfer bench first. For a scheduled in-home setup, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service; purchased benches are delivered on a scheduled date.

This is a mid-size carton. The Canada-wide free ground-shipping offer on smaller goods can apply when it ships on its own. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.

Related bathroom safety products from Westin

• Drive Transfer Tub Bench, the 400 lb plastic bench without the U-cut
• Drive Padded Transfer Bench, the cushioned 400 lb bench
• Drive Folding Universal Sliding Transfer Bench, the sliding seat

Service and warranty

When something on the bench needs work, you call the shop that set it up. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.

Drive manufacturer warranty

Drive prints a limited lifetime warranty on the RTL12032KDR one-pager. We handle the warranty claim with you. Ask us if an extended warranty is offered for your order.

Frequently asked questions

How High Should a Transfer Bench Be?

The Drive Splash Defense Transfer Bench RTL12032KDR adjusts from 17.5 in to 22.5 in (44 cm to 57 cm) in 1/2 in Dual Column clicks. Sit with your feet flat and pick the hole that keeps your hips and knees at a comfortable bend. Set every leg to the same hole.

What Does the Splash Defense U-Cut Do?

The Drive RTL12032KDR has a U-shaped cut-out. Drive prints that the cut-out lets the shower curtain liner stay inside the bathtub so water does not spill onto the bathroom floor.

Will This Bench Fit My Tub?

Drive prints that the Splash Defense bench fits tubs with a maximum height of 15.5 in (39 cm), a minimum bottom width of 18.5 in (47 cm), a minimum top width of 23 in (58 cm), and a maximum edge width of 5.5 in (14 cm). Bring those four numbers if you call us.

Transfer Bench or Shower Chair: Which Should I Pick?

The Drive RTL12032KDR is a transfer bench. It bridges the tub wall. A shower chair sits inside the tub or the stall. Pick Splash Defense if the person cannot step over the wall and you want the curtain liner to stay in the tub.

What Is the Weight Capacity of the Drive RTL12032KDR?

The Drive Splash Defense Transfer Bench is rated at 400 lb (181 kg). Stay at or under that rating.

Is the Splash Defense Bench Reversible for a Left or Right Tub?

Yes. Drive prints that RTL12032KDR is reversible to accommodate any bathroom. We set the back and arm for your tub at delivery.

Is Assembly Tool-Free?

Yes. Drive prints tool-free assembly of the back, legs, and arm on RTL12032KDR, plus a pinch-free lever. We can assemble it at delivery.

Does ADP Cover Transfer Benches?

Funding for bathroom safety equipment in Ontario depends on the person and the program. Talk to us before you buy. Call (905) 451-7743 or use the funding page and we will point you to the right path for your case.

What Is the Warranty on the Drive RTL12032KDR?

Drive prints a limited lifetime warranty on the RTL12032KDR one-pager. We run the manufacturer claim with you.
