Blake Rhythm Turn Mattress - Lateral Rotation Therapy

The Blake Rhythm Turn is a 10 inch powered mattress replacement that combines low air loss with continuous lateral rotation at 20 or 40 degrees. Westin Healthcare sells it, delivers it, and hangs the control unit on the footboard for homes in Brampton and the Greater Toronto Area. The default code on this page is RHYTURN3680 (36 by 80 inches). 42 and 48 inch sizes sit on the same picker.

Blake's current Rhythm Turn page says this system is used for the maintenance of skin health and the prevention and treatment of stage I-IV pressure injuries. Blake also writes that the turn helps mobilize secretions during pulmonary care related to immobility. If the person needs alternation and pulsation rather than a turn, see the Blake Rhythm Multi. Another lateral-rotation surface on our floor is the PreserveTech LS9500.

Who this mattress is for

This mattress is for a person who needs a powered surface that turns them from side to side on a schedule, plus low air loss for moisture, at a 600 lb safe working load. Blake names at-risk users and step-down intensive care. It also suits home care when a clinician has asked for rotation that a family cannot keep up with by hand.

Families usually call us when pneumonia or secretion management is part of the care plan, when turning in bed has become unsafe for the caregiver, or when a static low air loss surface is not enough. This is a full replacement, not an overlay. The existing mattress comes off.

• 36 inch homecare decks such as the Drive Delta 1000
• 42 inch bariatric decks such as the Drive 15300LW
• 48 inch bariatric decks such as the Drive 15302LW

Construction and how it works

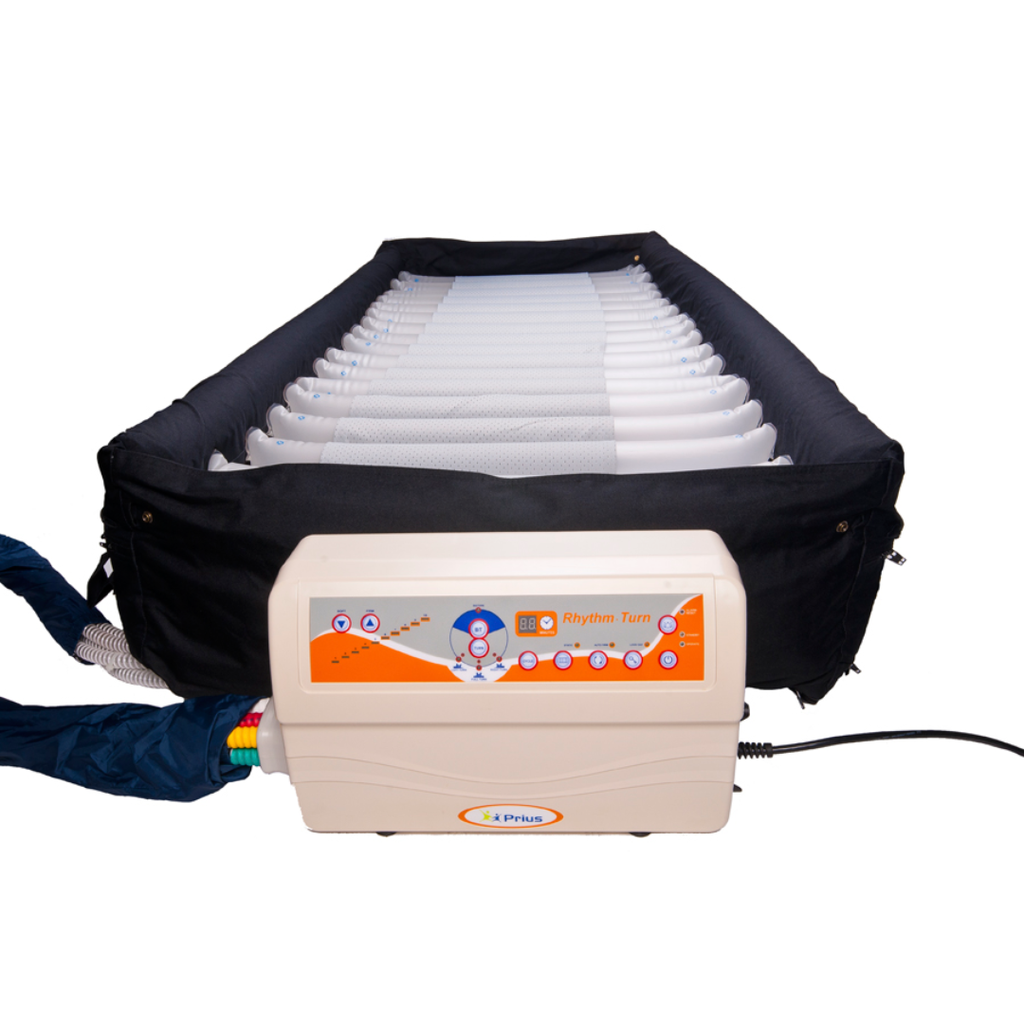

The Rhythm Turn is a powered lateral-rotation and low air loss system. Blake's current page and brochure describe 18 air cells, each 8 inches, over a 2 inch convoluted foam base, inside a high vapor-permeable quilted nylon zipper cover. A glide sheet sits on the base. The blower is printed at up to 1,200 litres per minute. The Prius user manual Blake hosts also names permanently inflated side bolsters on the mattress for the turning surface.

Rotation is 20 degrees or 40 degrees, left, right, or full. Static mode stops the turn and leaves true low air loss. Auto Firm gives a hard surface for care and transfers. The brochure lists 10 digital comfort settings, keypad lockout, visual and audio alarms, and CPR deflation in under 20 seconds. Cycle time on the brochure is 3 to 95 minutes.

The Prius manual describes the case as double-insulated for maximum silent operation and still requires periodic repositioning. A power-failure alarm sounds if the wall power drops. The 2 inch foam base is the backup surface if the cells go down.

Blake Rhythm Turn specifications

These figures are for Westin SKU RHYTURN3680 and the 42 and 48 inch sister codes. The specification tab holds the stored values. Blake's current page lists a 10 inch height, standard sizes 36, 42, and 48 by 80 inches, product code RHYTHMTURN(WxD), a 600 lb / 272 kg capacity, and a warranty of 2 years on the mattress and 1 year on the cover.

The Blake-hosted brochure lists mattress weight 37.4 lbs, control unit 17.7 by 6.8 by 10.8 inches at 13.8 lbs, cycle time 3 to 95 minutes, operating pressure 10 +/- 3 to 61 +/- 4 mmHg, AC 110-120 V, 60 Hz, 5 A, and the same IEC / CSA lines as the Rhythm Multi. Official Blake size codes use RHYTHMTURN; our picker uses RHYTURN.

Size options

Use Choose Mattress Size. Every option is 80 inches long and 10 inches high:

• 36” X 80” X 10" (RHYTURN3680)
• 42” X 80” X 10" (RHYTURN4280)
• 48” X 80” X 10" (RHYTURN4880)

Match the width to the sleep deck. A turning surface needs a deck that can take a 10 inch mattress, rails that stay safe at that height, and a footboard for the control unit. Blake says custom sizes are available on request.

Funding help for a therapeutic mattress in Ontario

Ontario's Assistive Devices Program (ADP) does not cover hospital beds or mattresses, so plan around other routes. Funding that may help instead: ODSP, March of Dimes Canada, Veterans Affairs Canada (VAC), hardship funding programs, and community programs. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through before you buy.

Delivery and setup in Brampton and the GTA

Westin's own team delivers and sets up this mattress across Brampton and the Greater Toronto Area. We bring it in, place it on the bed, hang the control unit on the footboard, and show you the turn and static buttons before we leave.

We have three stores in the Brampton and Toronto area if you would rather see a mattress first. For a scheduled in-home setup, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service; purchased mattresses are delivered and set up on a scheduled date.

Hospital mattresses are oversized. The Canada-wide free ground-shipping offer on smaller goods does not apply. If the mattress is going outside the GTA, ask us for a freight quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.

Which Westin beds this mattress fits

A 36 inch Rhythm Turn fits Westin's 36 inch homecare frames, including the Drive Delta 1000 and the Joerns Care 100 when the deck is 36 by 80. A 42 inch system fits the Drive 15300LW. Confirm the footboard can hold the blower and that the rails still work at 10 inches of mattress height.

Service and warranty

When something on the mattress or blower needs work, you call the shop that set it up. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.

Blake Medical manufacturer warranty

Blake's current Rhythm Turn page states 2 years on the mattress and 1 year on the cover. The Prius user manual Blake hosts prints a 12-month equipment line. We handle the claim with you under the Blake-branded terms on the live page. Ask us if an extended warranty is offered for your order.

Frequently asked questions

What is lateral rotation therapy on this mattress?

The cells inflate so the person rolls to 20 or 40 degrees and back. Blake says that shift of pressure points is for stage I-IV pressure-injury care and for mobilizing secretions during pulmonary treatment related to immobility. Static mode turns the rotation off and leaves low air loss.

How is the Rhythm Turn different from the Rhythm Multi?

The Multi alternates and pulsates. The Turn rotates the person left and right. Both are 10 inch low air loss replacements at 600 lbs. Choose the therapy the clinician named.

How loud is the pump?

The Prius user manual Blake hosts describes a double-insulated case for maximum silent operation. It is still a blower in the room.

What happens if the power goes out?

The control unit sounds a power-failure alarm. The 2 inch foam base is the backup surface. The manual asks for an immediate caregiver response when that alarm sounds.

How do I clean the cover?

Blake specifies a quilted nylon zipper cover. The Prius manual allows a weekly wipe with mild detergent and a thermal wash of an overly soiled cover, and it says never use phenol-based cleaners. Ask us before the first wash.

What is the weight rating?

Blake's current page and brochure list 600 lbs / 272 kg. That is the number we use. A 2022 catalogue line that reads 600-1000 lbs is not used in this copy.

What size should I pick?

Match the deck: 36, 42, or 48 by 80 by 10 inches. RHYTURN3680 is the 36 inch code on this page.

What is the warranty?

Blake's current page states 2 years on the mattress and 1 year on the cover. Westin Healthcare processes the warranty work.

Can funding help pay for this mattress in Ontario?

Several Ontario funding routes can help with a therapeutic support surface. Eligibility depends on the person's situation and assessment. Call (905) 451-7743 or use the funding page before you buy.

Can I try a Rhythm Turn before I buy?

Blake invites distributors to arrange a trial. Ask us when you call.

What is included?

You get the Rhythm Turn mattress replacement and its control unit in the size you pick, with the quilted nylon cover and foam base. The bed frame is sold separately.
