Description

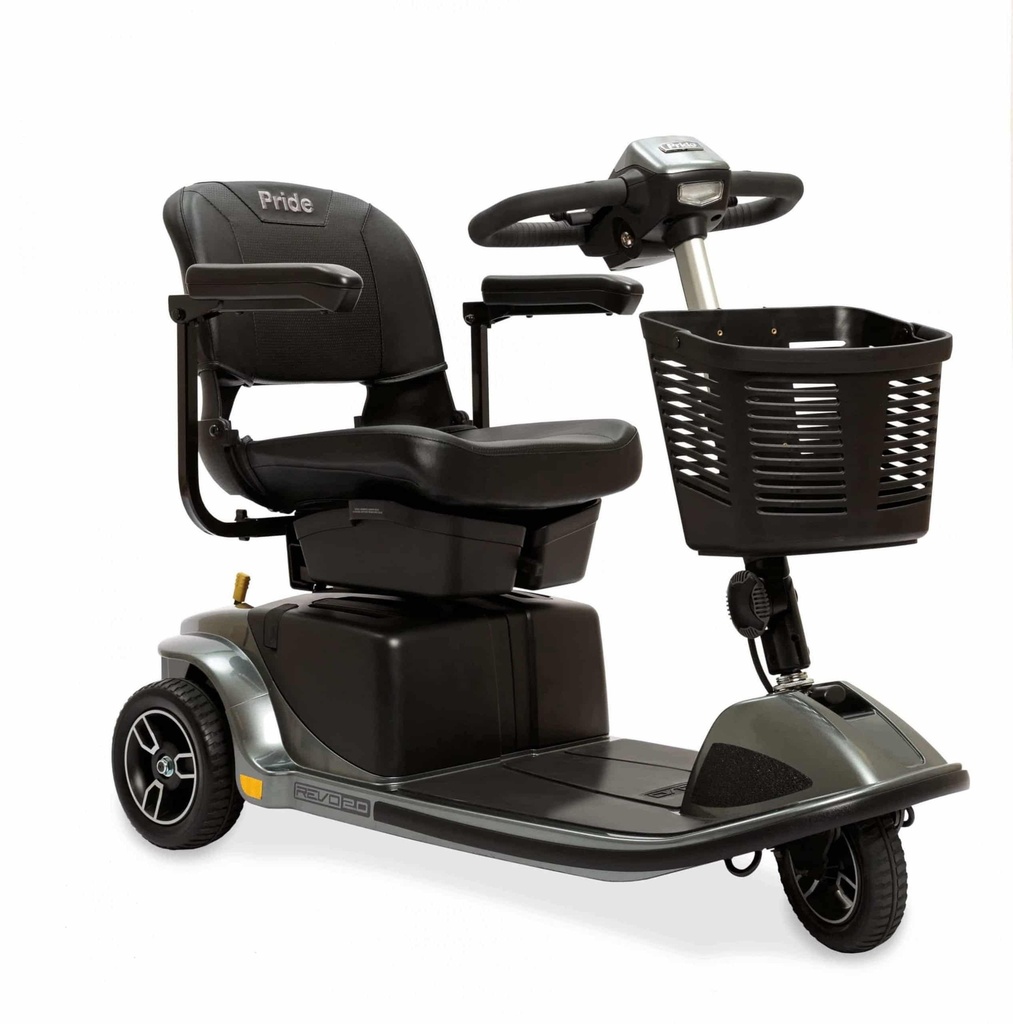

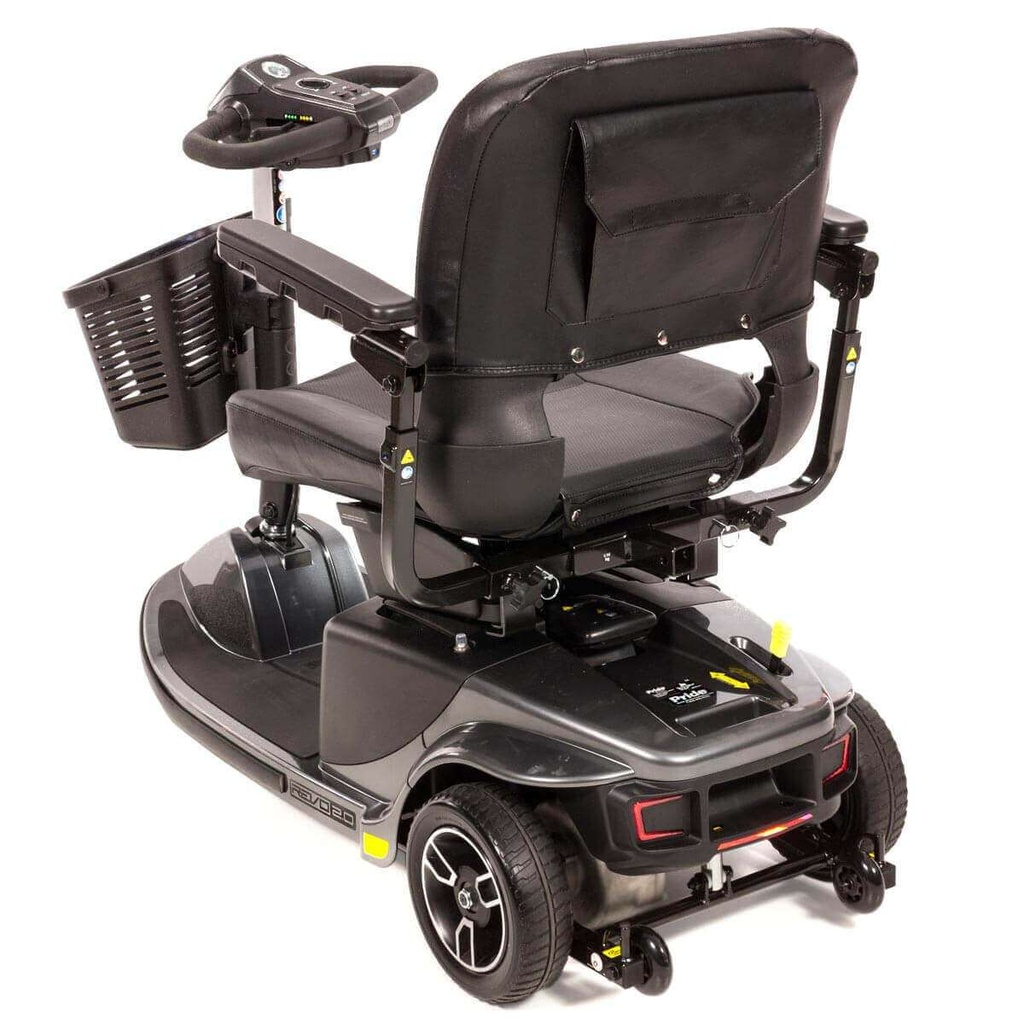

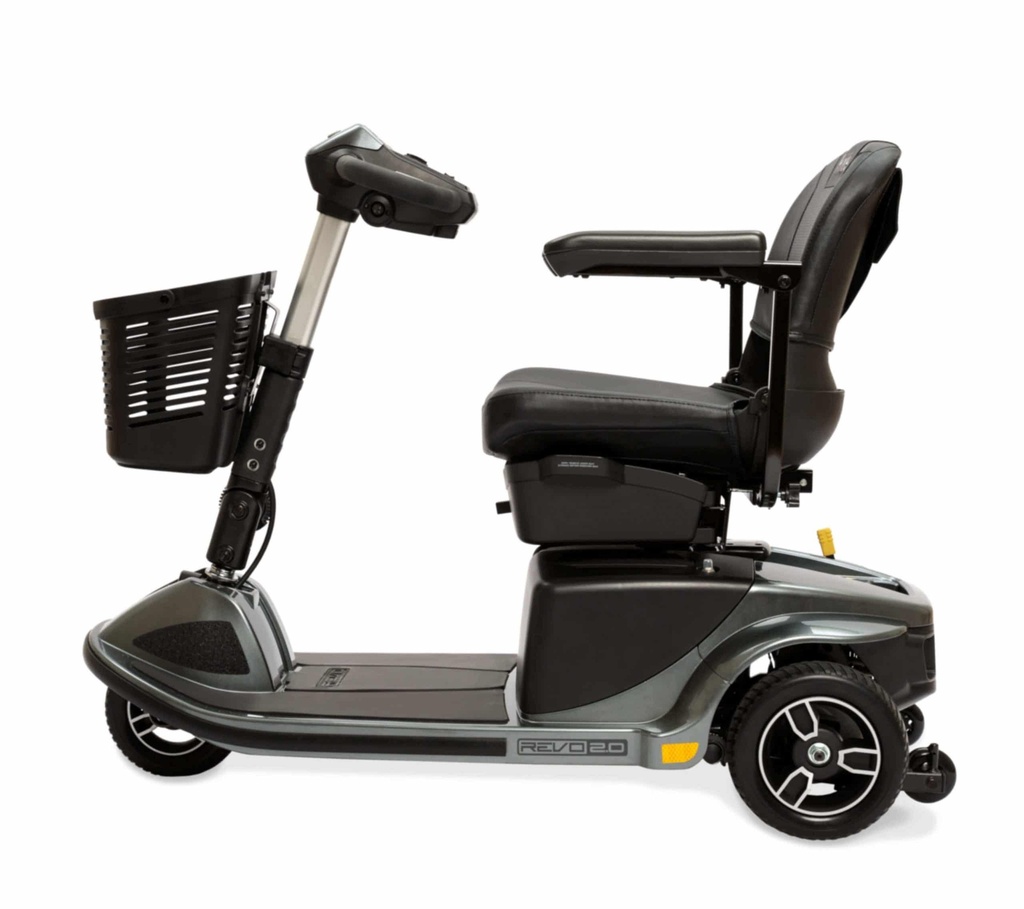

The Pride Revo 2.0 3-wheel scooter is a mid-size mobility scooter from Pride Mobility with a 400 lb (181 kg) rating, a top speed of 5.2 mph (8.4 km/h), and a per-charge range of up to 17.4 miles (28.0 km) at 200 lb. Westin Healthcare delivers and sets it up across Brampton and the Greater Toronto Area.

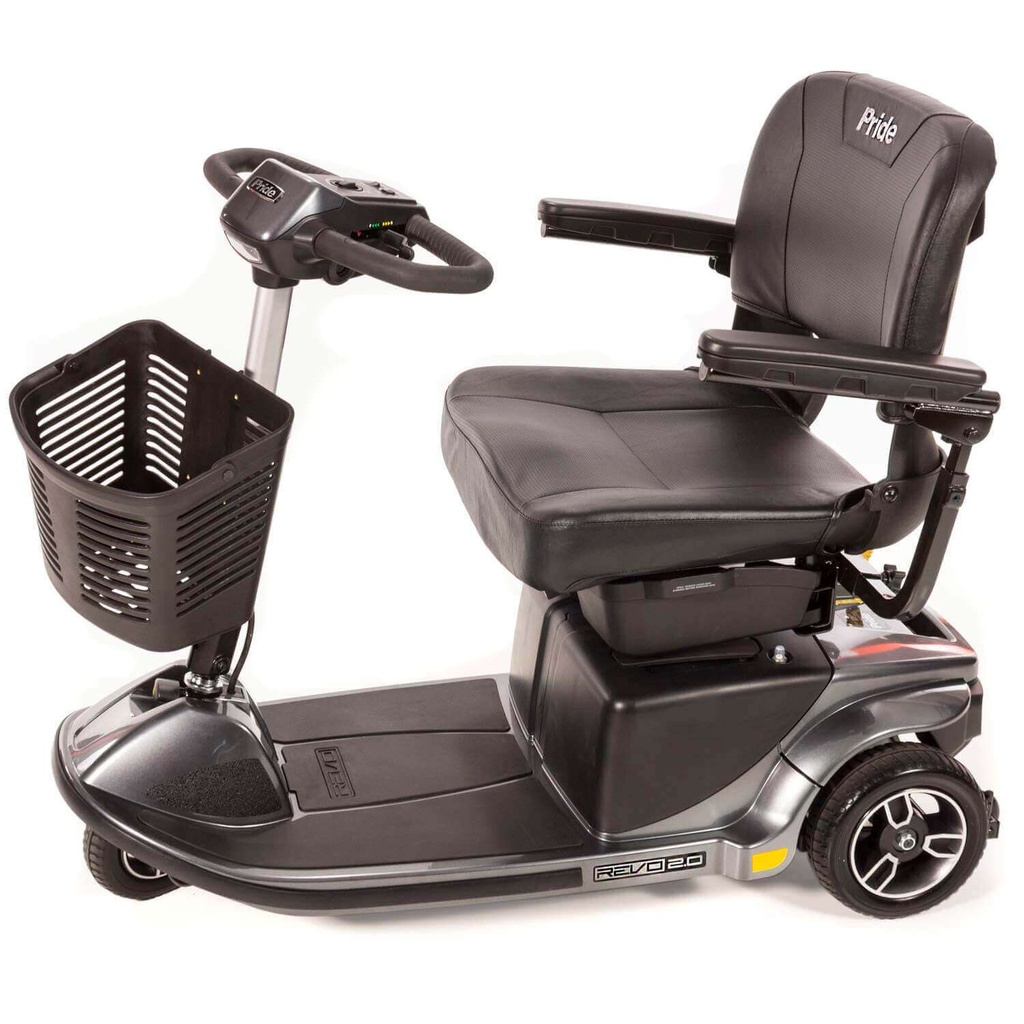

Pride builds the Revo 2.0 3-Wheel (model S66) with Comfort-Trac front and rear suspension, a 20 in by 18 in foldable seat, and a 40 in (102 cm) turning radius for aisles and elevators. Feather-touch disassembly splits the frame for a car trunk. The heaviest piece is the 48 lb (22 kg) rear section, not the 57 lb front used on the 4-wheel.
Who this scooter is for
This scooter is for a person who wants a mid-size 3-wheel platform, a 400 lb rating, and a tighter indoor turn than a 4-wheel Revo, and who will still take the scooter outside on hard, reasonably even ground. Families usually call us when a folding travel scooter feels light on capacity, but a 52 in 4-wheel turn will not fit the hallway.
If four-wheel stability matters more than the tight turn, start with the Pride Revo 2.0 4-Wheel Scooter. If you want the Victory lighting package on three wheels, see the Pride Victory 10.2 3-Wheel Scooter. The Revo 2.0 3-Wheel is not a folding lithium travel scooter.
- 400 lb (181 kg) rating and a 20 in by 18 in seat
- 40 in (102 cm) turning radius
- Feather-touch disassembly; heaviest piece 48 lb (22 kg) rear
Range, speed, and batteries
Pride rates the Revo 2.0 3-Wheel at up to 5.2 mph (8.4 km/h). On solid tires the official range is up to 17.4 miles (28.0 km) at 200 lb and up to 12.8 miles (20.6 km) at 400 lb. Those figures vary with rider weight, terrain, battery condition, and tire type. Do not use the 4-wheel 17.8 / 14.8 mile pair on this model.
The Revo 2.0 3-Wheel ships with two U1 sealed lead-acid batteries (about 25 lb / 11 kg each) and a 3.5 amp off-board charger. You can charge the packs on the scooter or off it. Pride tells daily riders to charge 8 to 14 hours after the day, and not to leave the charger on for more than 14 hours.
Portability and transport

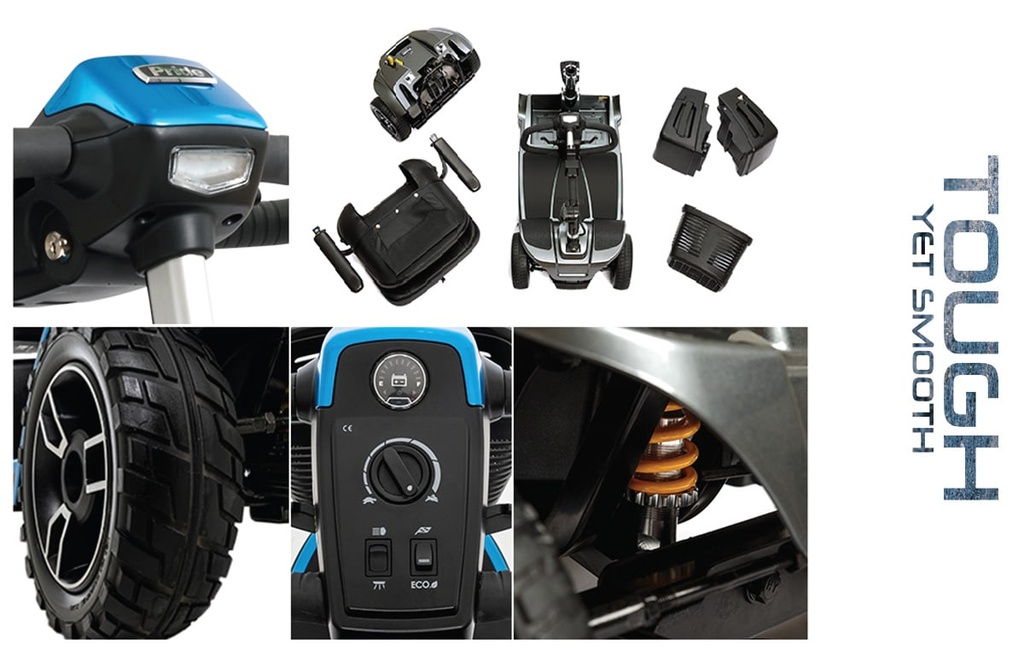

Pride's feather-touch disassembly splits the Revo 2.0 3-Wheel into five pieces for a car trunk. The heaviest piece is the 48 lb (22 kg) rear section. The assembled scooter weighs 120 lb (54 kg) without batteries and 170 lb (77 kg) with them. That is still a two-person lift for many households. Pride does not print an airline-compliant claim for these U1 batteries. Ask the airline or cruise line before you travel.
Pride Revo 2.0 3-Wheel Scooter specifications
These figures are for Pride's Revo 2.0 3-Wheel, model S66, as printed on Pride's current spec table and the 042826 brochure. They are not the 4-wheel numbers.
Weight capacity 400 lb (181 kg). Top speed up to 5.2 mph (8.4 km/h). Turning radius 40 in (102 cm). Length 46 in (117 cm). Width 20.75 in (53 cm). Ground clearance 1.25 in (32 mm) at the transaxle and 3.25 in (83 mm) at mid-frame. Seat-to-ground 22 to 23.5 in. Seat-to-deck 15 to 16.5 in. Standard seat 20 in wide by 18 in deep. Front tire 3 in by 8 in. Rear tires 3 in by 9 in solid. Batteries two U1. Charger 3.5 amp off-board. Incline rating 6 degrees (10.5 percent). Colours True Blue and Grey Street.
Warranty for a Canadian purchaser follows Pride Canada's scooter card: lifetime limited on the frame, 2 years on electronics, 2 years on drive motors, and 13 months on batteries.
Colour, tires, and accessories
Use Color (Options) to pick True Blue or Grey Street. Use Wheels if you want Pride's solid flat-free tires or the pneumatic option. Use Lap Belts, Accessories, and Cane/Crutch Holder only for extras you actually need. The front basket is standard. Under-seat storage is an optional Pride accessory, not part of the base scooter.
3-wheel or 4-wheel mobility scooter

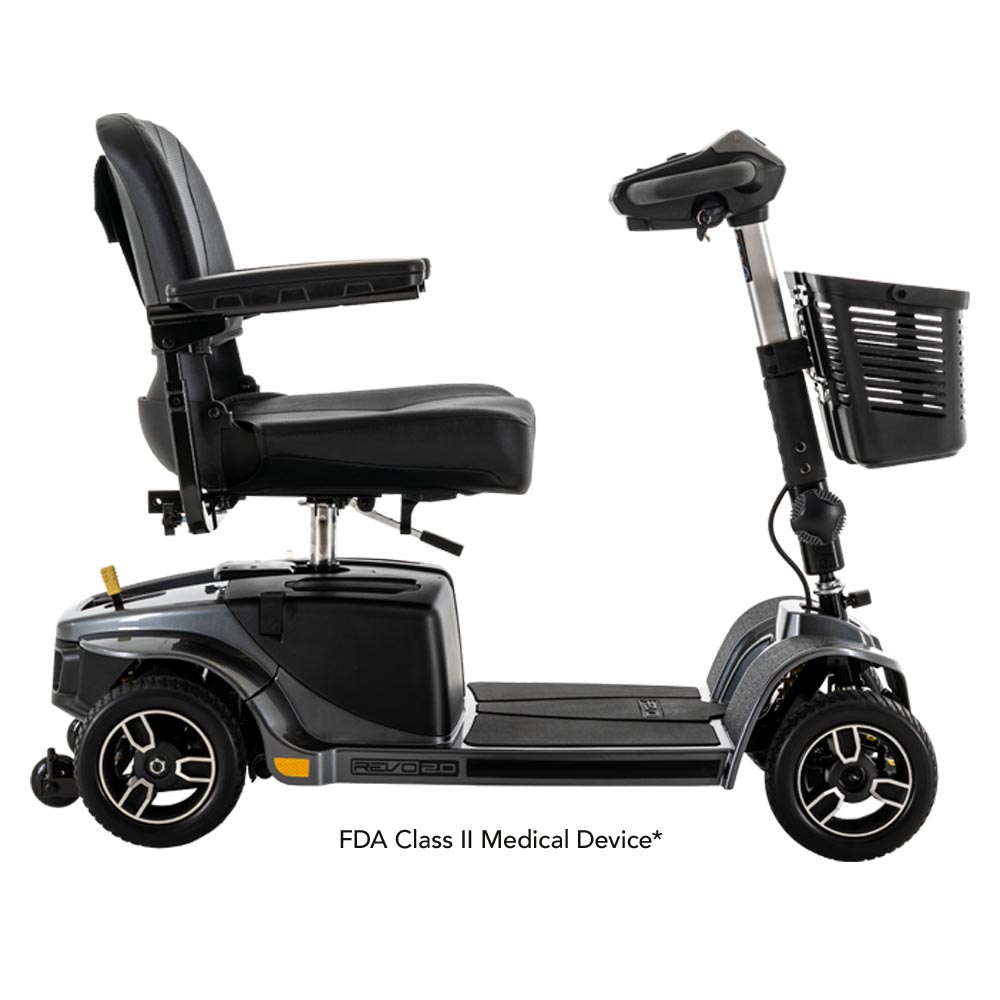

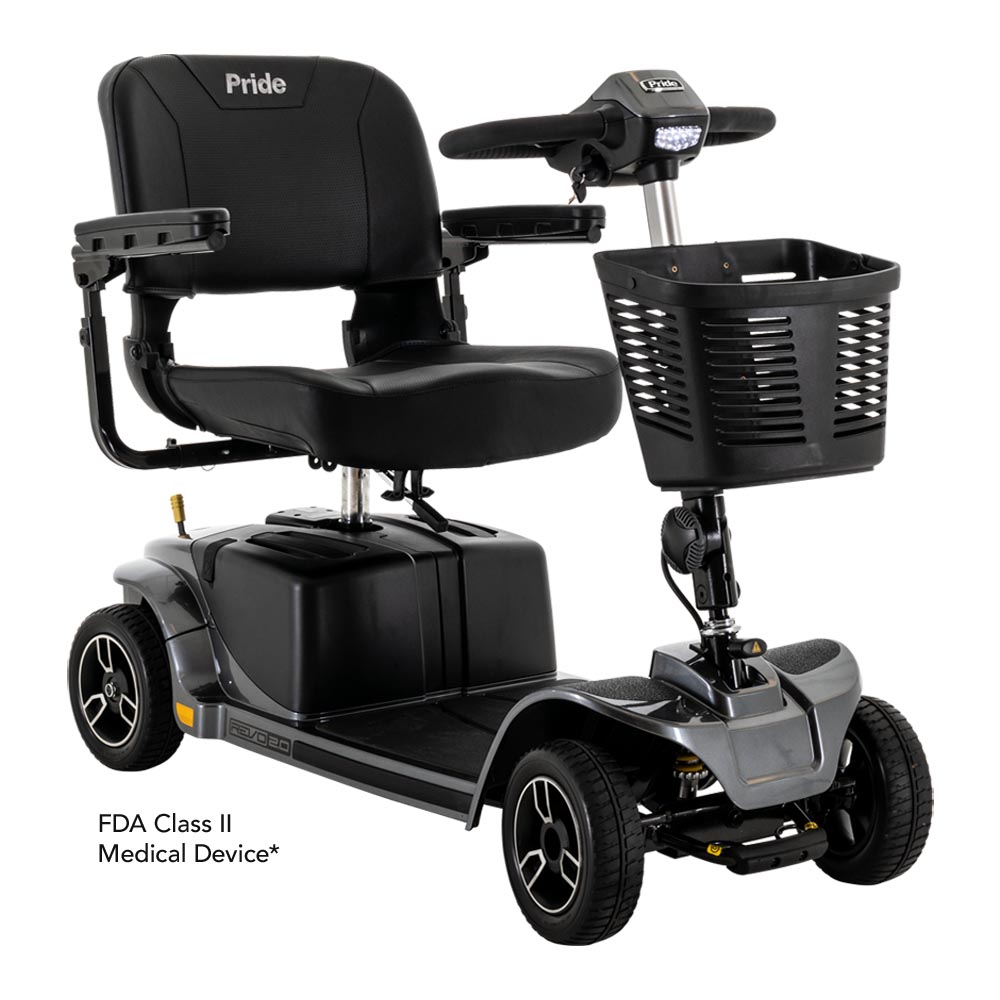

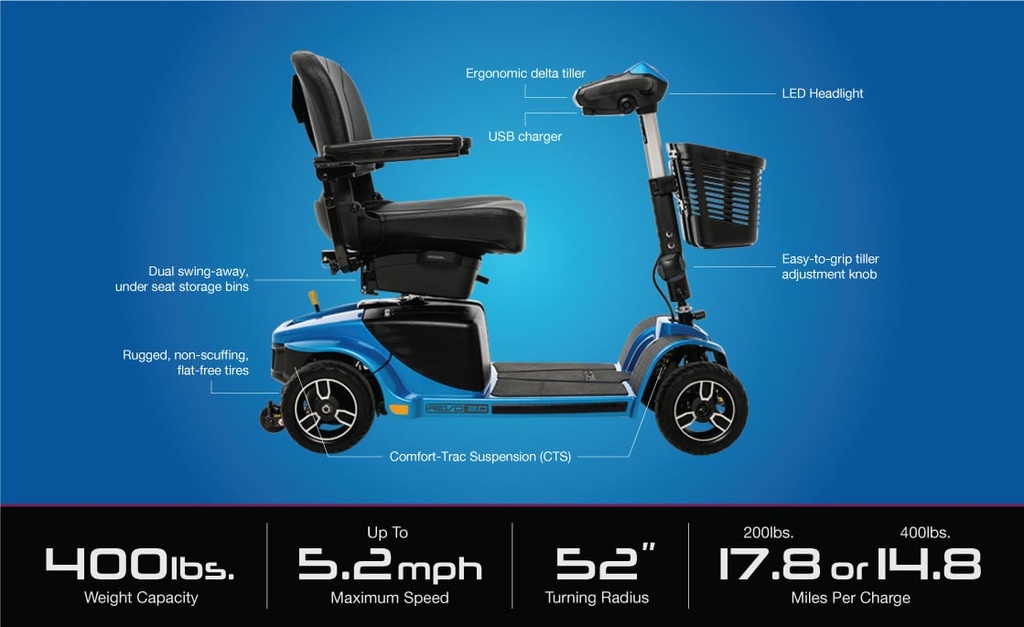

A 3-wheel mobility scooter turns in a smaller circle and is easier to thread through a kitchen or pharmacy aisle. The Revo 2.0 3-Wheel turns in 40 in (102 cm). The Revo 2.0 4-Wheel turns in 52 in (132 cm), weighs more, and uses a 57 lb front section. Choose three wheels for indoor space. Choose four wheels if you want a wider stance on sidewalks and gravel edges.
If you want a 3-wheel mid-size scooter with frosted LED headlights and an optional 40 Ah pack instead of Comfort-Trac, compare the Victory 10.2 3-Wheel.
Funding help for a mobility scooter in Ontario
Ontario's Assistive Devices Program (ADP) can fund 75% of the cost of a mobility scooter when the need is long-term and the scooter is prescribed through an assessment by an ADP-registered occupational therapist or physiotherapist, and some income-support programs cover the full cost. Not every scooter qualifies, so talk to us before you buy. March of Dimes Canada, Veterans Affairs Canada (VAC), and community programs can also help. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through.
Delivery and setup in Brampton and the GTA

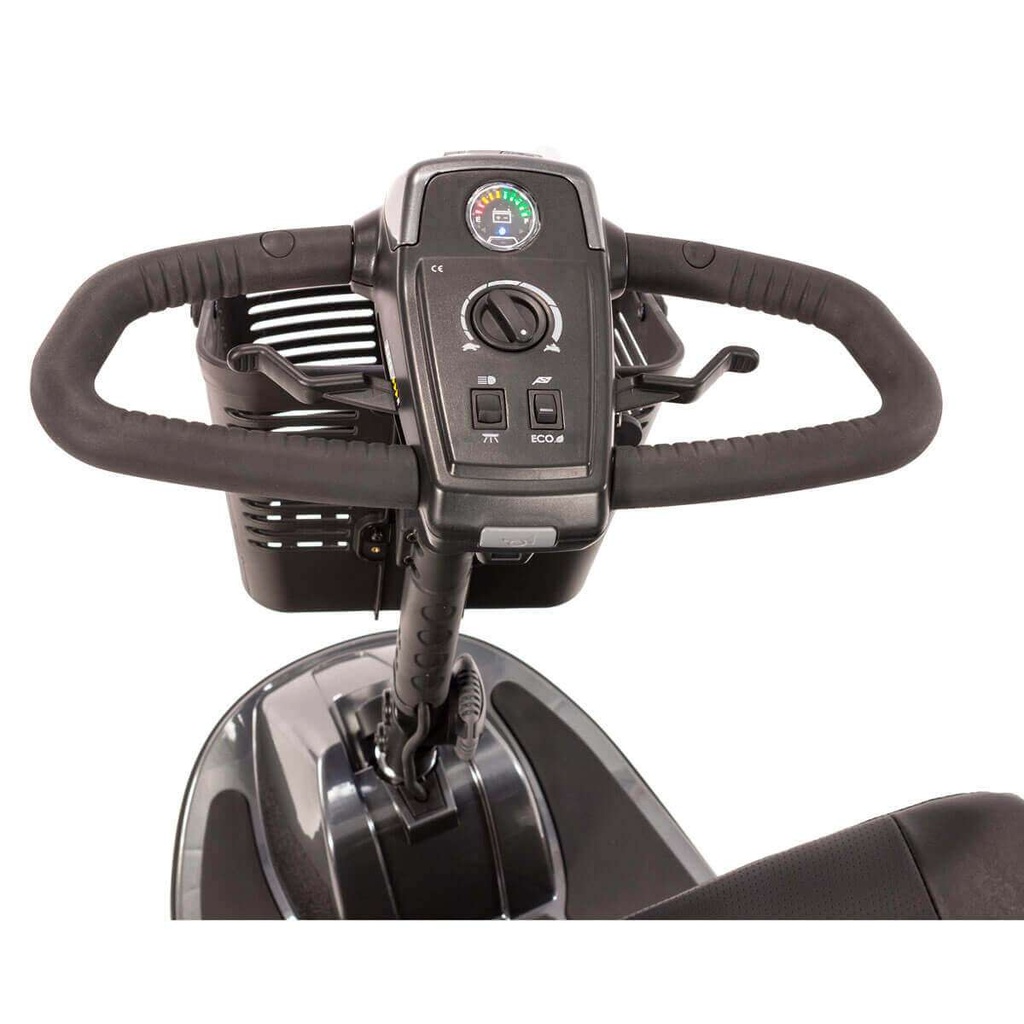

Westin's own team delivers and sets up this scooter across Brampton and the Greater Toronto Area. We bring it in, assemble it, and show you the tiller, charger, and how the frame comes apart before we leave.
We have three stores in the Brampton and Toronto area if you would rather see a scooter first. For a scheduled in-home setup, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our mobility scooter rental service; purchased scooters are delivered and set up on a scheduled date.
This mobility scooter is oversized. The Canada-wide free ground-shipping offer on smaller goods does not apply. If the scooter is going outside the GTA, ask us for a freight quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.
Related mobility scooters from Westin
- Pride Revo 2.0 4-Wheel Scooter, the wider-stance Revo
- Pride Victory 10.2 3-Wheel Scooter, the mid-size Victory on three wheels
- Pride Victory 10.2 4-Wheel Scooter, the 4-wheel Victory sibling
Service and warranty
When something on the scooter needs work, you call the shop that set it up, not a distant parts desk. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.
Pride manufacturer warranty
Pride Canada's current scooter card is lifetime limited on the frame, 2 years on electronics, 2 years on drive motors, and 13 months on batteries. Wear items such as tires and upholstery sit outside that term. Batteries wear with charge cycles; Pride does not print a kilometre life for the U1 packs. We handle the claim with you.
Frequently asked questions
How far can a mobility scooter go?
The Pride Revo 2.0 3-Wheel travels up to 17.4 miles (28.0 km) per charge at 200 lb and up to 12.8 miles (20.6 km) at 400 lb on solid tires. Range shortens with hills, cold weather, stop-and-go riding, and worn batteries.
How long does it take to charge a mobility scooter?
Pride tells Revo 2.0 riders to charge the two U1 batteries for 8 to 14 hours after a day of use, and not to leave the 3.5 amp charger connected for more than 14 hours. Occasional riders should give the packs an 8 to 14 hour charge twice a week.
Can I take a mobility scooter on a plane?
The Pride Revo 2.0 3-Wheel is not an airline folding scooter. It uses two sealed lead-acid U1 batteries and its heaviest piece is 48 lb (22 kg). Pride does not print an airline-compliant claim for this model. Ask the airline before you book.
Can I use a mobility scooter in the rain?
Pride tells Revo 2.0 riders not to operate or store the scooter in rain, snow, mist, ice, or below-freezing conditions, and not to ride on salted surfaces. Bring it in when the weather turns.
Does ADP cover scooters?
Depending on the person's situation and assessment, funding support may be available for a mobility scooter in Ontario. Westin Healthcare's staff work with funding programs every week and can point you to the right route. Visit our funding page or call (905) 451-7743 before you buy.
3 wheel vs 4 wheel scooter?
The Pride Revo 2.0 3-Wheel turns in 40 in (102 cm) and lifts as a 48 lb rear section. The Revo 2.0 4-Wheel turns in 52 in (132 cm) and lifts as a 57 lb front section. Choose three wheels for aisles. Choose four wheels for a wider stance outdoors.
What is the turning radius of a mobility scooter?
The Pride Revo 2.0 3-Wheel has a 40 in (102 cm) turning radius. That is a foot tighter than the 4-wheel Revo. A typical interior door is wider than the 20.75 in (53 cm) body, so the turn is the indoor limit to watch.
How much does a Pride Revo 2.0 weigh?
The Pride Revo 2.0 3-Wheel weighs 120 lb (54 kg) without batteries and 170 lb (77 kg) with them. The heaviest piece after disassembly is the 48 lb (22 kg) rear section.
Can a mobility scooter go in a car trunk?
The Pride Revo 2.0 3-Wheel uses Pride's feather-touch disassembly so the frame, seat, and battery box pack into most car trunks. The 48 lb rear section is the piece to measure against the trunk opening.
What is the weight capacity of a Pride Revo 2.0?
The Pride Revo 2.0 3-Wheel is rated at 400 lb (181 kg), including the rider and anything carried in the basket.
Specifications
| Seat Height | Seat-to-ground 22-23.5 in; seat-to-deck 15-16.5 in |
|---|---|
| Model | Revo 2.0 3-Wheel (S66) |
| Seat Width | 18" |
| Seat Depth | 18" |
| Brands | Pride |
| Warranty | Lifetime frame; 2 yr electronics and motors; 13 mo batteries (Canada) |
| Weight Capacity | 400 lb (181 kg) |
| Compatible Batteries | (2) U1, about 25 lb each |
| Drive Terrain Type | Rear Wheel Drive |
| Driving Range | Up to 17.4 mi (28.0 km) at 200 lb; 12.8 mi (20.6 km) at 400 lb, solid tires |
| Foldable | No; feather-touch disassembly into five pieces |
| Ground Clearance | 1.25 in at transaxle; 3.25 in at mid-frame |
| Top Speed | Up to 5.2 mph (8.4 km/h) |
| Turning Radius | 40 in (102 cm) |
| Wheel Size | Front 3 in x 8 in; rear 3 in x 9 in solid |
| Scooter Type | 3 Wheel Scooter |
| Scooter Weight | 120 lb (54 kg) without batteries; 170 lb (77 kg) with batteries |
| Overall Length | 46 in (117 cm) |
| Overall Width | 20.75 in (53 cm) |
| Battery Charger | Off-board, 3.5 A |
| Color Options | True Blue, Grey Street |
| Suspension | Comfort-Trac front and rear |
| Weight Of Heaviest Piece | 48 lb (22 kg) rear section |
| ADP Device Code | WP0001573 Category 1 (3-wheel and 4-wheel) |
| Incline Rating | 6 degrees (10.5 percent) |
