Description
The Span America Geo-Matt PRT is a 3 inch high-density foam wheelchair seat cushion. Span America is a Savaria company. Westin Healthcare quotes it and delivers it for homes and care sites in Brampton and the Greater Toronto Area.
This page is the Geo-Matt PRT seat cushion only. Span cuts it from premium high-density foam and uses the Geo-Matt segmented top so each cell can follow the person. The 3 inch height gives a lower, firmer base for wheelchair transfers, propulsion, and fit in the wheelchair and cushion system. Span lists a 250 lb weight limit on the 3 inch sizes and a 500 lb limit on the 4 inch bariatric sizes. If a clinician has named the Geo-Matt overlay, the 4 inch Geo-Matt cushion, Geo-Matt Contour, or Gel-T, ask us for that product. Those are separate Span articles.
Who this cushion is for
This cushion is for a wheelchair user who needs a wipeable, non-powered foam seat and whose weight is within Span's rating for the size you pick. Span writes it for more active wheelchair users who need a lower, firmer base than a taller cushion.
Families and therapists usually call us when the person already uses a wheelchair and the seating plan asks for a Geo-Matt PRT, not a mattress pad and not a gel cushion. If the care team has asked for an in-bed Span surface, we already stock PressureGuard Custom Care and Span-Care mattresses and will quote those separately.
- Wheelchair seats 16, 18, or 20 inches wide on the 3 inch PRT
- Wider bariatric seats 22 to 30 inches on the 4 inch PRT
- Users who want a lower profile for transfers and hand-rim propulsion
Construction and how it works

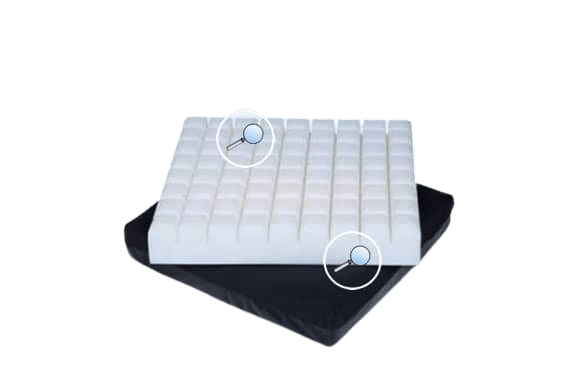

The Geo-Matt PRT is a non-powered seat cushion. Span cuts the core from high-density foam and segments the top into individually responsive cells. Those cells are the same Geo-Matt geometry used across the family. Ring-of-Air channels help move heat and moisture away from the skin.
The retail cover has an anti-slip top and a non-skid bottom. Span also offers a Soft Skin sleeve and a vinyl and nylon fabric cover for protection from incontinence. The bottom of the anti-slip cover has a sewn sleeve for Span's molded Sling-Fill base. That insert is sold separately. It fills the hammock in a fabric sling seat and gives the cushion a flat, rigid foundation.
Span America Geo-Matt PRT specifications
These figures are for the Geo-Matt PRT in the PRT and BPRT codes on this page. They are not the Geo-Matt overlay sheet and not the 4 inch Geo-Matt cushion sheet. The specification tab holds the stored values.
Span lists a 3 inch height and a 250 lb weight limit on the standard sizes. Bariatric sizes are 4 inches high with a 500 lb limit. The cushion is non-powered. Span lists an 18-month warranty. Anti-slip covers use the -96 suffix. Fire-barrier versions are ordered by changing that suffix to -29.
Size options
Use Choose Cushion Size. Match the cushion width to the wheelchair seat width. The default on this page is 18 in W x 16 in L x 3 in H (PRT1816-96-1).
- 16 in W x 16 in L x 3 in H (PRT1616-96-1)
- 18 in W x 16 in L x 3 in H (PRT1816-96-1)
- 18 in W x 18 in L x 3 in H (PRT1818-96-1)
- 20 in W x 16 in L x 3 in H (PRT2016-96-1)
- 20 in W x 18 in L x 3 in H (PRT2018-96-1)
- 22 in W x 18 in L x 4 in H bariatric (BPRT2218-96-1)
- 24 in W x 18 in L x 4 in H bariatric (BPRT2418-96-1)
- 26 in W x 20 in L x 4 in H bariatric (BPRT2620-96-1)
- 28 in W x 20 in L x 4 in H bariatric (BPRT2820-96-1)
- 30 in W x 20 in L x 4 in H bariatric (BPRT3020-96-1)
Soft Skin and vinyl-nylon 18 by 16 inch covers, and six-packs for facilities, are quoted with the room. Ask us if the seating plan names those covers.
Delivery in Brampton and the GTA
Westin's own team can deliver this cushion across Brampton and the Greater Toronto Area, on its own or with a bed or lift setup. We have three stores in the Brampton and Toronto area if you would rather see a cushion first. For a scheduled drop-off, call (905) 451-7743 and we will book the next date that works.
This is a small carton. The Canada-wide free ground-shipping offer on smaller goods can apply when it ships without a bed or a lift. If it travels with a hospital bed, the bed is oversized and White-Glove Delivery is described on the shipping policy. Any charge is confirmed on your order.
Which wheelchairs this cushion fits
Span publishes the Geo-Matt PRT in wheelchair seat widths of 16, 18, 20, 22, 24, 26, 28, and 30 inches. Choose the width that matches the seat sling or seat pan. Span does not name a wheelchair brand or model. Tell us the measured seat width and we will lock the matching code.
Anti-slip covers with the -96 suffix have a sewn sleeve for Span's molded Sling-Fill base. Span writes that the insert fills the gap created by a fabric sling and creates a flat, rigid foundation. The insert is one size and is not included with the cushion. Ask us to add Sling-Fill (2SFB) to the quote when the chair has a hammocked sling seat.
If the person also needs help standing from the chair, we already sell the Handicare ReTurn. If the room also needs a Span sleep surface, see the Span America Advantage and ask us for the PressureGuard Custom Care or Span-Care mattress we already stock. Browse hospital beds and medical mattresses when the seating plan is only part of the room.
Service and warranty
When something on the cushion needs work, you call the shop that sold it. Westin Healthcare has a service and repairs department.
Span America manufacturer warranty
Span lists an 18-month warranty on the Geo-Matt PRT. We handle the warranty claim with you. Ask us if an extended warranty is offered for your order.
Frequently asked questions
What is the Geo-Matt PRT?
It is Span America's 3 inch high-density wheelchair seat cushion with a Geo-Matt segmented top, Ring-of-Air channels, and a 250 lb weight limit on the standard sizes. Bariatric sizes are 4 inches high and rated at 500 lb.
Is this a mattress overlay?
No. The Geo-Matt PRT is a seat cushion for a wheelchair. The Geo-Matt overlay is a separate mattress pad in bed sizes such as 33 by 72 inches. Ask us for the overlay if the clinician named that product.
How is the PRT different from the Geo-Matt 4 inch cushion?
The PRT is high-density foam at 3 inches (4 inches on bariatric sizes) with a 250 or 500 lb rating and many seat widths. The Geo-Matt 4 inch cushion is medium-density foam, 18 by 16 inches only, with a 200 lb rating. They do not share part numbers.
Does this cushion need a pump?
No. The Geo-Matt PRT is non-powered foam. There is no pump to plug in.
What is the weight rating?
Span lists 250 lb on the 3 inch sizes and 500 lb on the 4 inch bariatric sizes. Tell us the person's weight when you order.
What sizes can I get?
Standard: 16 by 16, 18 by 16, 18 by 18, 20 by 16, and 20 by 18 inches, all 3 inches high. Bariatric: 22 by 18, 24 by 18, 26 by 20, 28 by 20, and 30 by 20 inches, all 4 inches high. The default on this page is 18 by 16 inches (PRT1816-96-1).
Which wheelchair does it fit?
Match the cushion width to the wheelchair seat width. Span publishes those eight widths and does not name a chair brand. Measure the seat and we will pick the code.
What is Ring-of-Air?
It is Span's channel cut around the foam cells. Span writes that it helps reduce heat and moisture at the skin.
Can I add a Sling-Fill base?
Yes. The anti-slip cover has a sleeve for Span's molded Sling-Fill insert (2SFB). Span sells the insert separately. Ask us to add it when the wheelchair seat is a fabric sling that hammocks.
What is the warranty?
Span lists an 18-month warranty on the Geo-Matt PRT. Westin Healthcare processes the warranty work.
What is included?
You get the Span America Geo-Matt PRT in the size you pick, with the anti-slip cover on the -96 codes. The wheelchair, the Sling-Fill insert, and any bed or mattress are sold separately.
Specifications
| Model | Geo-Matt PRT therapeutic seat cushion (not Geo-Matt overlay, not Geo-Matt 4 in cushion) |
|---|---|
| Brands | Span America |
| Warranty | 18 Months |
| Weight Capacity | 250 lb on 3 in sizes; 500 lb on 4 in bariatric sizes |
| Construction | High-density foam with Geo-Matt segmented cells and Ring-of-Air channels |
| Standard Sizes | 16x16, 18x16, 18x18, 20x16, 20x18 in |
| Cover | Anti-slip top and non-skid bottom on -96 codes; Soft Skin or vinyl/nylon also offered |
| Therapy Class | Non-powered high-density foam seat cushion |
| Intended Use | Therapeutic wheelchair seat cushion |
| Power | None. Non-powered. |
| HCPCS (US) | E2603 fabric-cover versions; E2604 for 22 in or wider |
| Standard Height | 3 in |
| Bariatric Height | 4 in |
| Bariatric Sizes | 22x18, 24x18, 26x20, 28x20, 30x20 in |
| Sling-Fill Sleeve | Sewn sleeve on -96 covers for molded Sling-Fill base (not included) |
