Description
The Pride Jazzy EVO 614HD is Pride Mobility's JEVO614HD full-size mid-wheel power chair. Westin Healthcare sells it and delivers it for homes in Brampton and the Greater Toronto Area. It is the 450 lb sister of the EVO 614. It does not fold.
Pride rates the chair at 450 lbs (204 kg) and up to 4.88 mph (7.8 km/h). Range is up to 13 miles (20.9 km) at 450 lbs, or 21.5 miles (34.6 km) at 200 lbs, on a pair of 12-volt NF-22 sealed lead-acid batteries. The turning radius is 22 inches.
Who this chair is for
This chair is for a person who needs a full-size mid-wheel power chair at Pride's 450 lb rating, fits a Pride high-back from 18 to 24 inches, and wants 13.75 inch drive wheels for indoor halls and outdoor thresholds. Families usually call us when the 300 lb EVO 614 is too small in the rating, or when a folding carbon chair cannot carry the day.
If you want the 300 lb EVO 614 with the same 13.75 inch wheels, start with the Pride Jazzy EVO 614. If you want a 22 inch narrow base and a lithium pack, see the Pride Jazzy EVO 613 Li. The 614HD is not a folding travel chair.
- A 450 lb mid-wheel rating
- A 22 inch turning radius and 13.75 inch perforated drive wheels
- NF-22 batteries and a 5-amp off-board charger
Range, speed, and batteries
The Pride Jazzy EVO 614HD travels up to 13 miles (20.9 km) per charge at 450 lbs, or up to 21.5 miles (34.6 km) at 200 lbs. Pride's footnotes say range changes with user weight, terrain, battery type, battery condition, and tire pressure. Plan a shorter day than the headline figure if the person is near 450 lbs or the route is not flat.
Top speed is up to 4.88 mph (7.8 km/h). Batteries are two 12-volt NF-22 sealed lead-acid packs, 36 lbs each. The charger is 5-amp off-board. This factory pack is not lithium.
Portability and transport
The EVO 614HD does not fold. Pride lists 25.4 inches wide and 40.5 inches long. The heaviest piece is the 125.7 lb base. The high-back seat is 57.8 lbs. Total weight with seat and both batteries is 255.5 lbs. Plan on a van, a lift, or an accessible vehicle if it has to travel, not a car trunk.

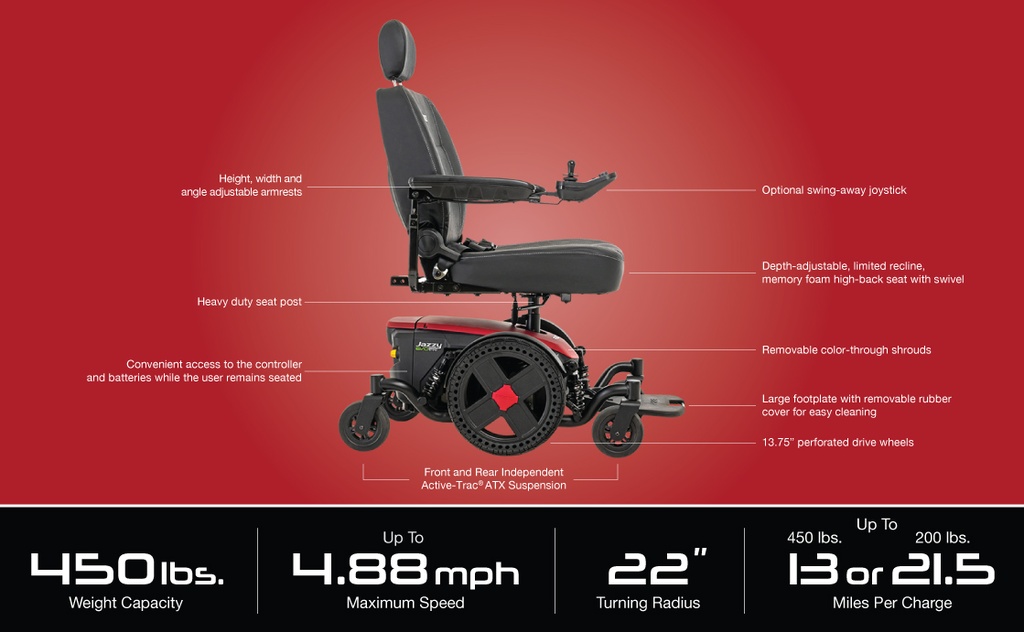

Pride Jazzy EVO 614HD specifications
These figures are for Pride model JEVO614HD, as printed on Pride's specification table, the 061226 brochure, and the Pride Canada card. The specification tab holds the stored values. Pride Canada's shop SKU on that card is JZEVO614HD1001.
Weight capacity 450 lbs (204 kg). Top speed up to 4.88 mph (7.8 km/h). Turning radius 22 inches. Width 25.4 inches on Pride's US brochure (Pride Canada's widget also prints 25.75 inches). Length 40.5 inches. Ground clearance 3 inches. Drive wheels 13.75 inch perforated. Front and rear casters 6 inch solid. Two in-line HD motors. Full independent front and rear Active-Trac ATX. Electronics 60A Dynamic Linx with a speed dial.
Pride sells a depth-adjustable, limited-recline memory foam high-back with a headrest and a heavy-duty swivel seat post. Seat sizes on the brochure are 18 by 18-20, 20 by 18-20, 22 by 20-22, and 24 by 22-24 inches. Seat-to-floor is 22 to 24 inches. Maximum seat 24 by 24. Pride does not list a power elevating seat on this model. Ask us which size to order. There is no colour or seat picker on the template yet.
Colours Pride sells are matte Black, White, Red, Iceberg Blue, Robin's Egg Blue, and Sugar Plum. Shrouds are removable colour-through pieces.
Do not mix these numbers with the EVO 614 (300 lb, 4.4 mph / 7 km/h, seats 16 to 20) or with the older non-EVO Jazzy 614 HD.
Warranty for a Canadian purchaser follows Pride Canada's card and the current standard-power insert: 5-year limited on the frame, 2-year limited on electronics and drive motors, and 13-month limited on batteries. Pride's US brochure still prints 13 months on electronics and drivetrain.
Jazzy EVO 614HD or Jazzy EVO 614
The EVO 614HD is Pride's 450 lb chair with seats up to 24 by 24 inches and a 4.88 mph top speed. The EVO 614 is Pride's 300 lb chair with 16, 18, or 20 inch seats and a 4.4 mph / 7 km/h top speed. Both use 13.75 inch perforated drive wheels, a 22 inch turn, and NF-22 batteries. If you want a 22 inch narrow base and lithium, see the EVO 613 Li.
Funding help for a power wheelchair in Ontario
Ontario's Assistive Devices Program (ADP) can fund 75% of the cost of a power wheelchair when the need is long-term and the chair is prescribed through an assessment by an ADP-registered occupational therapist or physiotherapist, and some income-support programs cover the full cost. Not every chair qualifies, so talk to us before you buy. March of Dimes Canada, Veterans Affairs Canada (VAC), and community programs can also help. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through.
Delivery and setup in Brampton and the GTA
Westin's own team delivers and sets up this power chair across Brampton and the Greater Toronto Area. We bring it in, assemble it, and show you the joystick and charger before we leave.
We have three stores in the Brampton and Toronto area if you would rather see a chair first. For a scheduled in-home setup, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service; purchased chairs are delivered and set up on a scheduled date.
This power chair is oversized. The Canada-wide free ground-shipping offer on smaller goods does not apply. If the chair is going outside the GTA, ask us for a freight quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.
Related mobility products from Westin
- Pride Jazzy EVO 614, the 300 lb sister with the same 13.75 inch wheels
- Pride Jazzy EVO 613 Li, the 22 inch narrow base with a lithium pack
- Pride Jazzy Air 2, if you want a 12 inch seat elevator
Service and warranty
When something on the chair needs work, you call the shop that sold it, not a US parts desk. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.
Pride manufacturer warranty
Pride Canada's EVO 614HD card and the current standard-power insert for a Canadian purchaser are 5-year limited on the frame, 2-year limited on electronics and drive motors, and 13-month limited on batteries. Pride's US brochure prints 13 months on electronics and drivetrain. We handle the warranty claim with you. Ask us if an extended warranty is offered for your order.
Frequently asked questions
What Is The Weight Capacity Of The EVO 614HD?
The Pride Jazzy EVO 614HD is rated at 450 lbs (204 kg). Stay at or under that rating. The 300 lb sister is the EVO 614.
How Far Will The EVO 614HD Go On One Charge?
The Pride Jazzy EVO 614HD travels up to 13 miles (20.9 km) at 450 lbs and up to 21.5 miles (34.6 km) at 200 lbs on the NF-22 pair. Pride's footnotes say range changes with weight, terrain, and battery condition.
What Batteries And Charger Does It Use?
The Pride Jazzy EVO 614HD uses two 12-volt NF-22 sealed lead-acid batteries, 36 lbs each, and a 5-amp off-board charger. This factory pack is not lithium.
What Is The Indoor Turning Radius?
The Pride Jazzy EVO 614HD has a 22 inch turning radius. Pride's US brochure prints the base 25.4 inches wide. Measure the narrowest doorway before you buy.
What Seat Sizes Can I Order?
Pride sells the EVO 614HD high-back in 18 by 18-20, 20 by 18-20, 22 by 20-22, and 24 by 22-24 inches, up to a 24 by 24 maximum. Ask us which size you need before we order.
Who Drives The EVO 614HD?
The person in the chair, using the in-line Dynamic Linx joystick. A companion does not push this chair the way they would push a transport chair. Engage the brakes and power down before sitting or standing.
Will It Fold Into A Car Trunk?
No. The Pride Jazzy EVO 614HD is a full-size mid-wheel base. The heaviest piece is the 125.7 lb base. Moving the whole chair usually means a van, a lift, or an accessible vehicle.
How Is This Different From The EVO 614?
The Pride Jazzy EVO 614HD is 450 lbs with seats up to 24 by 24 inches and a 4.88 mph top speed. The EVO 614 is 300 lbs with 16, 18, or 20 inch seats and a 4.4 mph top speed. Both use 13.75 inch drive wheels and NF-22 batteries.
What Is The Warranty?
For a Canadian purchaser Pride's current insert is 5-year limited on the frame, 2-year limited on electronics and drive motors, and 13-month limited on batteries. Westin Healthcare processes the claim.
Can Funding Help With This Chair In Ontario?
Some Ontario routes can help with mobility equipment. Eligibility depends on the person's situation and assessment. Call (905) 451-7743 or use the funding page before you buy.
Can I Rent A Power Chair Before I Buy?
Westin Healthcare rents some mobility equipment. Ask us whether a power chair can go out as a rental for your dates. Purchased chairs are delivered on a scheduled date.
Specifications
| Colors | Black, White, Red, Iceberg Blue, Robin's Egg Blue, Sugar Plum (matte) |
|---|---|
| Seat Height | 22"-24" seat-to-floor |
| Brands | Pride |
| Warranty | 5-year frame; 2-year electronics and motors in Canada; 13-month batteries |
| Weight Capacity | 450 lbs (204 kg) |
| Caster Size | 6" solid front and rear |
| Compatible Batteries | (2) 12-volt NF-22 SLA, 36 lbs each |
| Drive Terrain Type | Mid-Wheel Drive, two in-line HD motors |
| Driving Range | Up to 13 mi (20.9 km) at 450 lb; 21.5 mi (34.6 km) at 200 lb |
| Foldable | No |
| Ground Clearance | 3" |
| Product Weight | 255.5 lbs with seat and batteries; base 125.7 lbs; seat 57.8 lbs |
| Top Speed | Up to 4.88 mph (7.8 km/h) |
| Turning Radius | 22" |
| Wheel Size | 13.75" perforated drive |
| Wheelchair Type | Standard Power Chair (heavy duty) |
| Overall Length | 40.5" |
| Overall Width | 25.4" (US brochure); 25.75" on Pride Canada widget |
| Battery Charger | 5-amp off-board |
| Drivetrain | Two motor, in-line, HD, mid-wheel |
