Description

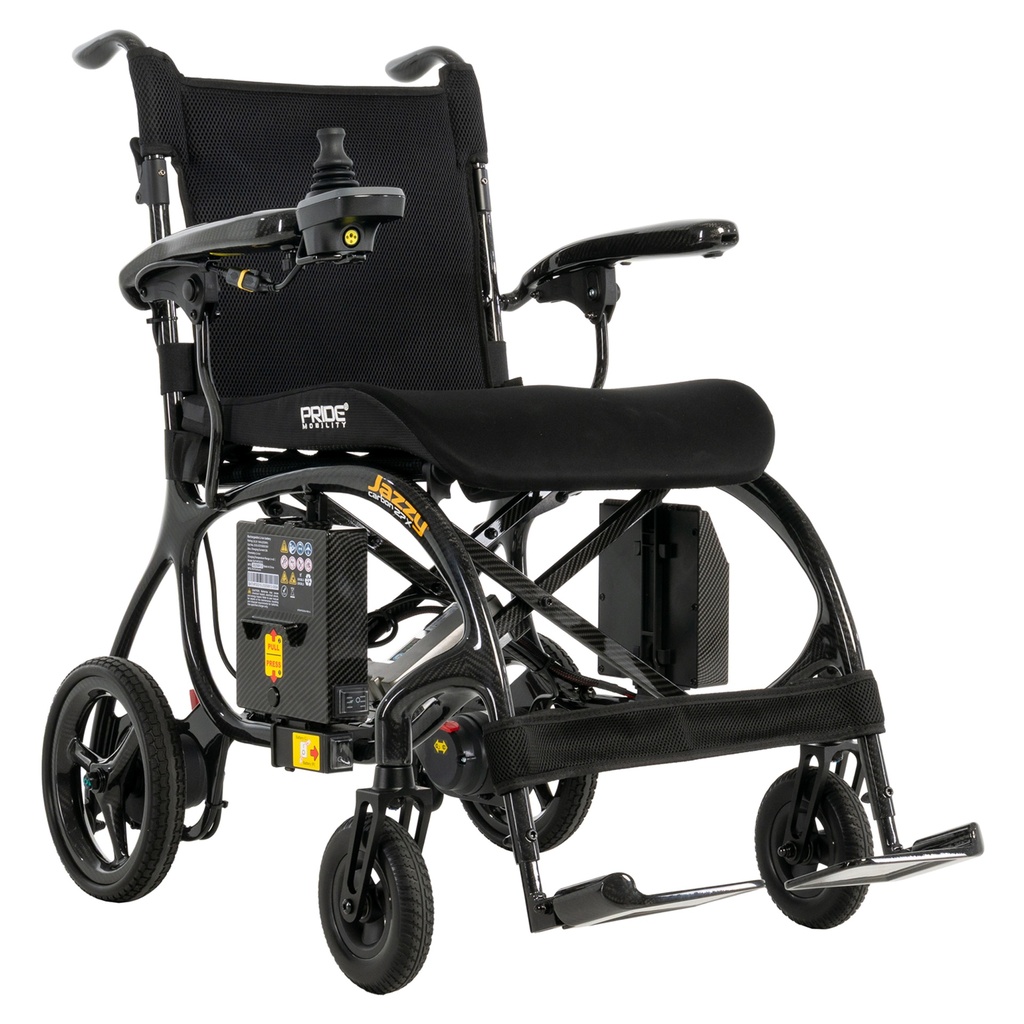

The Pride Jazzy Carbon 27X is Pride Mobility's JAZZY CARBON 27X folding power wheelchair. Westin Healthcare sells it and delivers it for homes in Brampton and the Greater Toronto Area. It is a carbon fibre travel chair that folds vertically on an X-frame. The person drives with the joystick.
Pride lists a 275 lb (125 kg) rating, speeds up to 3.7 mph (6.0 km/h), a 35.4 inch turning radius, and up to 8 miles (12.9 km) per charge on the 24V 10Ah lithium pack. The chair weighs 27.5 lbs without the battery. Pride weighs that pack at 3.5 lbs.
Who this chair is for
This chair is for a person who fits Pride's 18 by 18 inch sling, stays at or under the 275 lb rating, and wants a folder that stands up in a trunk the way a manual wheelchair does. Families usually call us when a strap-fold chair is still too wide once it is down, or when they want the 18 inch seat instead of the Carbon 27's 17 inch pan.
If you want a 300 lb rating and a 12 Ah pack on a strap fold, start with the Pride Jazzy Carbon 27. If you need a 400 lb rating, see the Pride Jazzy Carbon HD. The 27X is not a take-apart Go Chair.
- An X-frame that folds vertically to 12 inches wide
- A 27.5 lb carbon fibre frame without the battery
- A 10 Ah lithium pack Pride describes as airline-compliant, with the airline still to confirm
Range, speed, and batteries
The Pride Jazzy Carbon 27X travels up to 8 miles (12.9 km) per charge on the 24V 10Ah lithium pack. Pride's footnotes say range changes with user weight, terrain, battery charge, battery condition, and tire condition, and that the number can move 10 percent either way. Plan a shorter day than 13 km if the person is near 275 lbs or the route is not flat.
Top speed is up to 3.7 mph (6.0 km/h). The charger is a 3.5-amp off-board unit. Charge the pack with the charger Pride supplies. Pride catalogs a second 10 Ah airline-compliant pack as an add-on.
Portability and transport

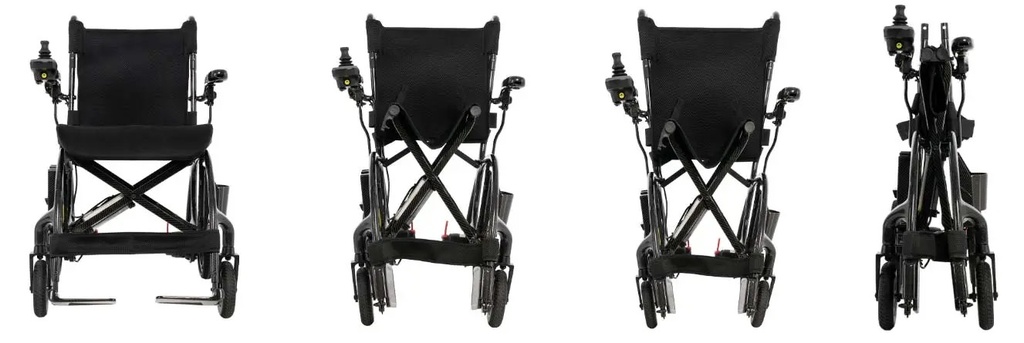

Pride's X-frame lets the Carbon 27X fold vertically, nearly flat, with collapsible back handles. Folded size on the brochure is 34 inches long, 12 inches wide, and 30 inches high. A latch locks the frame open or closed. Flip-up carbon fibre arms and adjustable footrests come with the chair. It does not take apart into five pieces.
Pride prints the 10 Ah lithium pack as airline-compliant and still says transport on a commercial aircraft is subject to federal regulations and airline policy. Consult the airline before you fly. Pride does not print a watt-hour figure on this chair's spec table, so we do not invent one.
Pride Jazzy Carbon 27X specifications
These figures are for Pride model JAZZY CARBON 27X, as printed on Pride's specification table, the 061626 brochure, and the Pride Canada card. The specification tab holds the stored values.

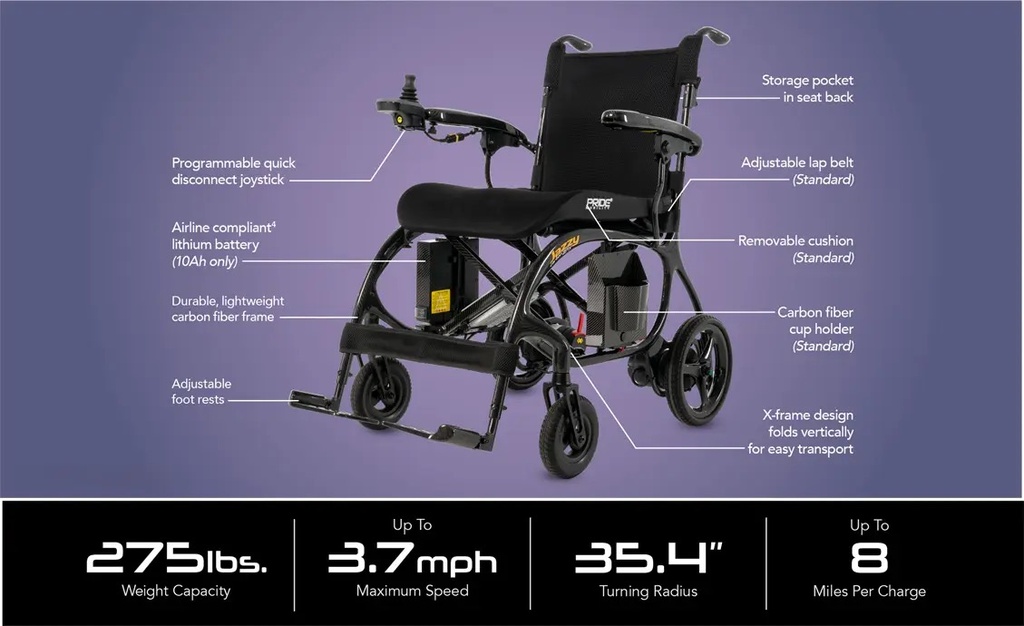

Weight capacity 275 lbs (125 kg). Top speed up to 3.7 mph (6.0 km/h). Turning radius 35.4 inches. Length 41 inches. Width 23 inches. Ground clearance 3 inches. Seat-to-ground 19.7 inches. Front wheels 7 inches. Rear wheels 10 inches. Motor 24V 150W. Brakes regenerative and electromechanical.
Seat 18 by 18 inches, padded back, sling seat, removable cushion, storage pocket on the back. Colour Pride sells is Black. Standard items include the cushion, an adjustable lap belt, a carbon fibre cup holder, and a programmable quick-disconnect joystick.
Do not mix these numbers with the Carbon 27 (300 lb, 12 Ah, 17x17, strap fold) or with the original Jazzy Carbon.
Warranty on Pride's US brochure is 5-year limited on the frame and 13-month limited on electronics, drivetrain, and battery. Pride Canada's card prints a lifetime limited term on the frame and 1-year limited terms on electronics, drive motors, and batteries. Ask us which insert ships with your chair.
Jazzy Carbon 27X or Jazzy Carbon 27
The Carbon 27X is Pride's 275 lb X-frame chair. It folds upright to a 12 inch packed width and uses a 10 Ah pack and an 18 by 18 inch sling. The Carbon 27 is Pride's 300 lb strap-fold chair with a 12 Ah pack and a 17 by 17 inch pan. Pick the fold shape and the seat first, then the capacity.
Funding help for a power wheelchair in Ontario
Ontario's Assistive Devices Program (ADP) can fund 75% of the cost of a power wheelchair when the need is long-term and the chair is prescribed through an assessment by an ADP-registered occupational therapist or physiotherapist, and some income-support programs cover the full cost. Not every chair qualifies, so talk to us before you buy. March of Dimes Canada, Veterans Affairs Canada (VAC), and community programs can also help. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through.
Delivery and setup in Brampton and the GTA
Westin's own team delivers and sets up this power wheelchair across Brampton and the Greater Toronto Area. We bring it in, unfold the X-frame, and show you the joystick, the latch, and the charger before we leave.
We have three stores in the Brampton and Toronto area if you would rather see a chair first. For a scheduled in-home setup, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service; purchased chairs are delivered and set up on a scheduled date.
This power wheelchair folds for a car trunk. If it is going outside the GTA, ask us for a freight quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.
Related mobility products from Westin
- Pride Jazzy Carbon 27, the 300 lb strap-fold sister
- Pride Jazzy Carbon HD, the 400 lb carbon folder
- Pride Jazzy Ultra Light, Pride's 33 lb Jazzy folder
Service and warranty
When something on the chair needs work, you call the shop that set it up, not a US parts desk. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.
Pride manufacturer warranty
Pride's Carbon 27X US brochure prints a 5-year limited term on the frame and 13-month limited terms on electronics, drivetrain, and battery for the original purchaser. Pride Canada's card prints a lifetime limited term on the frame and 1-year limited terms on electronics, drive motors, and batteries. Wear items sit outside that term. Gradual battery wear from storage, cold, or heavy use is outside the battery term. We handle the warranty claim with you. Ask us if an extended warranty is offered for your order.
Frequently asked questions
How Does The Jazzy Carbon 27X Fold?
The Pride Jazzy Carbon 27X uses an X-frame that folds vertically, nearly flat, like a manual wheelchair. Pride's folded size is 34 inches long, 12 inches wide, and 30 inches high. A latch locks the frame open or closed.
How Much Does The Jazzy Carbon 27X Weigh?
The Pride Jazzy Carbon 27X weighs 27.5 lbs without the battery. Pride lists the 10 Ah pack at 3.5 lbs, for about 31 lbs with the battery on.
How Far Will The Jazzy Carbon 27X Go On One Charge?
The Pride Jazzy Carbon 27X travels up to 8 miles (12.9 km) per charge on the 24V 10Ah lithium pack. Pride's footnotes say range changes with weight, terrain, and battery condition.
Is The Jazzy Carbon 27X Airline Approved?
Pride prints the Jazzy Carbon 27X 10 Ah lithium pack as airline-compliant and still says you must consult the airline before the flight. Pride's airline note applies to the 10 Ah pack only.
What Seat Size Does The Carbon 27X Use?
The Pride Jazzy Carbon 27X uses an 18 by 18 inch padded back and sling with a removable cushion. Seat-to-ground is 19.7 inches.
What Is The Weight Capacity?
The Pride Jazzy Carbon 27X is rated at 275 lbs (125 kg). Stay at or under that rating. The Carbon 27 and Carbon HD are the 300 lb and 400 lb carbon folders.
What Colour Can I Order?
Pride sells the Jazzy Carbon 27X in Black.
How Is This Different From The Carbon 27?
The Pride Jazzy Carbon 27X is a 275 lb X-frame vertical folder with an 18 by 18 inch sling and a 10 Ah pack. The Carbon 27 is a 300 lb strap-fold chair with a 17 by 17 inch pan and a 12 Ah pack.
What Is The Warranty?
Pride's US Carbon 27X brochure prints 5 years on the frame and 13 months on electronics, drivetrain, and battery. Pride Canada's card prints a lifetime limited frame term and 1-year limited electronics, motors, and batteries. Westin Healthcare processes the claim.
Can Funding Help With This Chair In Ontario?
Some Ontario routes can help with mobility equipment. Eligibility depends on the person's situation and assessment. Call (905) 451-7743 or use the funding page before you buy.
Can I Rent A Power Wheelchair Before I Buy?
Westin Healthcare rents some power wheelchairs. The live rental page is a different chair. Ask us whether a Carbon 27X can go out as a rental for your dates. Purchased chairs are delivered on a scheduled date.
Specifications
| Colors | Black |
|---|---|
| Seat Height | 19.7" seat-to-ground |
| Brands | Pride |
| Warranty | US brochure 5-yr frame / 13-mo electronics, drivetrain, battery; CA card lifetime frame / 1-yr electronics |
| Weight Capacity | 275 lbs (125 kg) |
| Caster Size | 7" front |
| Compatible Batteries | 24V 10Ah lithium, 3.5 lbs |
| Drive Terrain Type | 24V 150W motor |
| Driving Range | Up to 8 miles (12.9 km) per charge |
| Foldable | Yes (X-frame vertical fold; does not disassemble) |
| Ground Clearance | 3" |
| Product Weight | 27.5 lbs without battery; 3.5 lb 10 Ah pack; about 31 lbs with battery |
| Top Speed | Up to 3.7 mph (6.0 km/h) |
| Turning Radius | 35.4" |
| Wheel Size | 10" rear |
| Wheelchair Type | Folding travel power wheelchair |
| Overall Length | 41" |
| Overall Width | 23" |
| Battery Charger | 3.5-amp off-board |
| Drivetrain | 24V 150W |
