Description

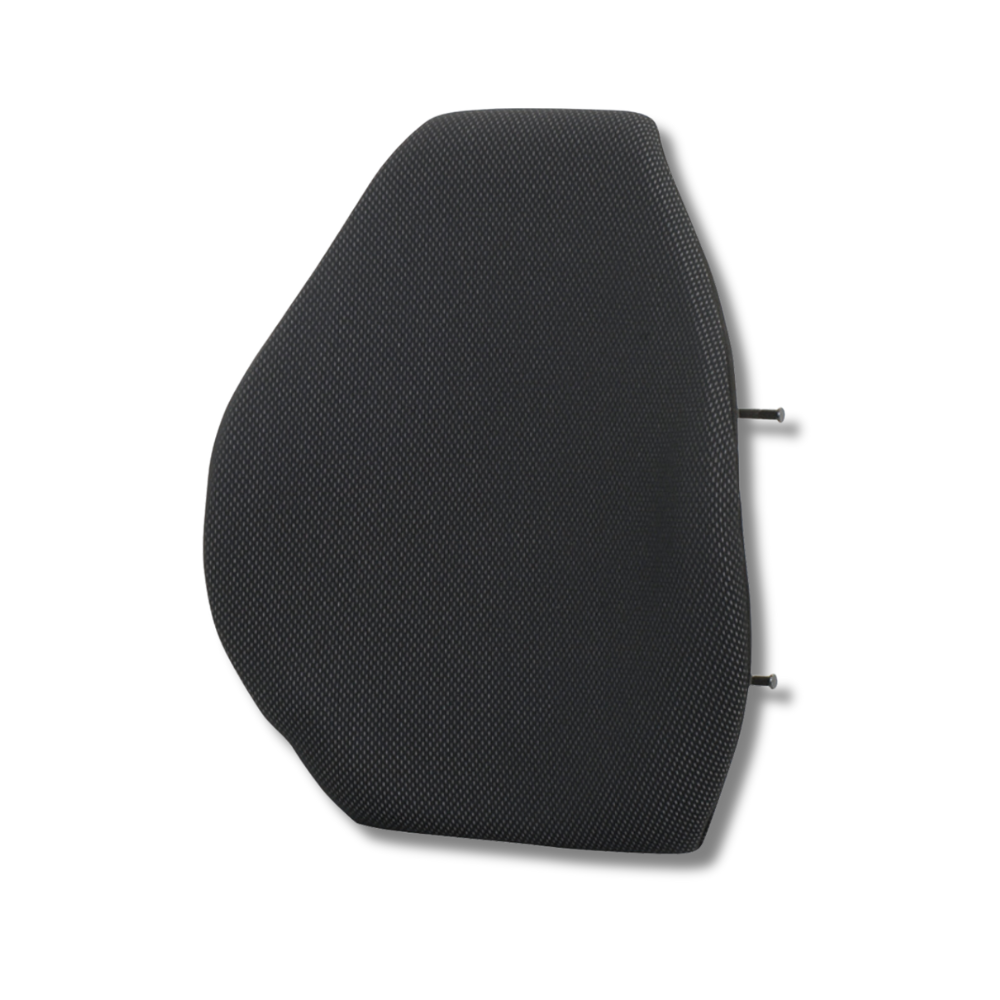

The Invacare Matrx Elite Back is Invacare and Motion Concepts' 3 in (76 mm) contour wheelchair back support with Easy Set hardware and a 300 lb (136 kg) rating. Westin Healthcare sells it and fits it for homes in Brampton and the Greater Toronto Area. It is the standard Elite. It is not the Elite TR tilt back and it is not the newer E2.
Motion Concepts lists Elite widths from 12-20 in (30-51 cm) and heights of 10, 12, 14, 16, 18, and 20 in (25-51 cm). Westin sells the Elite as a family order. We order the width and height after a seating check. The printed factory prefix is PBE.
Who this back support is for
This wheelchair back support is for a person who stays at or under 300 lb, uses a manual wheelchair with 3/4 in, 7/8 in, or 1 in back canes, and wants a light 3 in contour rather than a deep 6 in shell. Families usually call us when the sling back has gone slack and they still want a back the person can live with every day.
If the chair tilts or reclines and you want SuperSoft foam across the shoulders, see the Matrx Elite TR. If you want Ripple Foam and the newer E2 hardware, see the Matrx E2.
- 3 in contour and a 1.7 lb (0.8 kg) and up shell
- Easy Set hardware that adjusts with the person seated
- 300 lb rating on standard PBE sizes
Fit, contour, and hardware
Match the Elite width to the trunk, not only to the seat sling. Motion Concepts mounting pins let a standard Elite sit on a chair the same width or 1 in wider. Optional extended pins reach a chair up to 2 in wider.
Easy Set clamps 1 in (25 mm) canes with no insert. 7/8 in (22 mm) and 3/4 in (19 mm) canes use the plastic inserts in the kit. Depth is 2 in in front of or behind the canes. Angle is a 40 degree range (+/- 20 degrees). The 14 in height is only listed up to 18 in wide.
Foam, cover, and care
The Invacare Matrx Elite Back uses oversized foam and a movable lumbar pad behind the main pad. The outer cover is moisture-resistant, breathable mesh (Meshtex). Motion Concepts says to wipe light soil with a 0.1% chlorine solution, rinse, and dry. For a badly soiled cover, remove the foam and machine-wash the cover at 80 C (176 F). Do not put the foam in the washer. Tumble dry not over 50 C (122 F) and not longer than 10 minutes. Do not use phenols, alcohols, bleaches, or abrasives.
Invacare Matrx Elite Back specifications
These figures are for the Invacare Matrx Elite Back (PBE) as printed on Motion Concepts' Elite sell sheet and user manual. The specification tab holds the stored values. A stored SE0001214 code is the Elite TR row, not this Elite.
Contour 3 in (76 mm). Capacity 300 lb (136 kg). Shell weight 1.7 lb (0.8 kg) and up. Hardware fits 3/4 in, 7/8 in, and 1 in canes. Warranty 2 years on materials and workmanship for the original purchaser, excluding punctures, tears, burns, and the removable cover.
Elite, Elite TR, or E2
Elite is the light 3 in PBE. The Elite TR adds SuperSoft foam and full shoulder support for tilt and recline. The Elite Deep is the 6 in contour (this shop's 18 x 18 is EDB1818). The Matrx E2 is the newer Elite series with Ripple Foam.
Foam back support, gel cushions, and air cushions
The Invacare Matrx Elite Back is a foam wheelchair back support for posture. A seat cushion is a different product. If the seating therapist wants a gel seat, see the JAY Ion. If they want an air seat, see the ROHO High Profile. Motion Concepts designed Elite for orientation in the chair, not as a seat cushion.
Funding help for a wheelchair cushion or back support in Ontario
This cushion or back support is an ADP positioning device category item. Ontario's Assistive Devices Program (ADP) can fund 75% of the cost of positioning devices such as cushions and back supports when they are prescribed through an assessment by an ADP-registered occupational therapist or physiotherapist with an eligible mobility device, and some income-support programs cover the full cost. Not every product qualifies, so talk to us before you buy. March of Dimes Canada, Veterans Affairs Canada (VAC), and community programs can also help. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through.
Delivery and setup in Brampton and the GTA
Westin's own team delivers and fits this back support across Brampton and the Greater Toronto Area. We bring it in, mount it on the wheelchair canes, and show you the Easy Set adjustments before we leave.
We have three stores in the Brampton and Toronto area if you would rather see a wheelchair back support first. For a scheduled in-home setup, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service; purchased seating is delivered and fitted on a scheduled date.
If the back support is going outside the GTA, ask us for a freight quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.
Related wheelchair back supports from Westin
- Invacare Matrx Elite TR, the SuperSoft tilt and recline Elite
- Invacare Matrx E2, the newer Ripple Foam Elite series
- Invacare Matrx Elite Deep 18 x 18, the 6 in contour Elite
Service and warranty
When something on the back support needs work, you call the shop that fitted it, not a distant parts desk. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.
Invacare Matrx manufacturer warranty
Invacare and Motion Concepts warrant the original purchaser 2 years on materials and workmanship. The term does not cover punctures, tears, burns, or the removable cover. We handle the warranty claim with you. Ask us if an extended warranty is offered for your order.
Frequently asked questions
Is the Matrx Elite Back the Same as the Elite TR?
No. The Invacare Matrx Elite Back is the standard 3 in PBE. The Elite TR is a different Motion Concepts model with SuperSoft foam and full shoulder support for tilt and recline chairs.
What Size Wheelchair Cushion Do I Need?
A seat cushion is sized to the seat sling. The Invacare Matrx Elite Back is sized to the trunk and the cane width. Motion Concepts lists Elite from 12-20 in wide. We confirm both the cushion and the back with you or the seating therapist before we order.
How Do I Choose Between Gel, Foam, and Air Cushions?
The Invacare Matrx Elite Back is a foam back, not a seat cushion. Gel and air products such as the JAY Ion and the ROHO High Profile are seat cushions. Ask the seating therapist which seat the skin and posture need; the back is a separate choice.
Does ADP Cover Wheelchair Cushions?
Some Ontario routes can help with a wheelchair cushion or back support when an assessment supports it. Eligibility depends on the person's situation. Call (905) 451-7743 or use the funding page before you buy.
What Cane Diameter Does the Elite Fit?
The Invacare Matrx Elite Back Easy Set hardware fits 3/4 in (19 mm), 7/8 in (22 mm), and 1 in (25 mm) back canes. The kit includes the 3/4 in and 7/8 in inserts.
How Much Does the Matrx Elite Back Weigh?
Motion Concepts prints the Invacare Matrx Elite Back at 1.7 lb (0.8 kg) and up. The exact figure depends on width and height.
What Is the Weight Capacity of the Elite Back?
The standard Invacare Matrx Elite Back is rated at 300 lb (136 kg). Heavy-duty Elite sizes are a different Motion Concepts model at 500 lb.
Can I Adjust the Elite While Seated?
Yes. Motion Concepts Easy Set on the Invacare Matrx Elite Back is designed so height, depth, angle, and rotation can be set with the person in the chair.
How Do I Clean the Elite Cover?
Motion Concepts says to wipe the Invacare Matrx Elite Back cover with a 0.1% chlorine solution for light soil. For heavy soil, remove the foam and wash the cover at 80 C. Do not machine-wash the foam.
What Is the Elite Warranty?
Invacare and Motion Concepts warrant the Invacare Matrx Elite Back for 2 years on materials and workmanship for the original purchaser. Punctures, tears, burns, and the removable cover are excluded.
Specifications
| Brands | Invacare |
|---|---|
| Warranty | 2 years materials and workmanship; excludes punctures, tears, burns, removable cover |
| Weight Capacity | 300 lb (136 kg) standard PBE |
| Product Weight | 1.7 lb (0.8 kg) and up |
| Backrest Type | Foam positioning back, 3 in contour |
| Laterals | Extra Large, Large, Medium, Small |
| Contour Depth | 3 in (76 mm) |
| Headrest Compatibility | Adapter on medium, large, and HD; optional on 12 in wide |
| Hardware Compatibility | 3/4 in (19 mm), 7/8 in (22 mm), and 1 in (25 mm) back canes |
| Upholstery | Moisture-resistant breathable mesh (Meshtex) |
| ADP Device Code | SEB1M0025 (Elite Back). SE0001214 is Elite TR, not this PBE |
| Invacare Model | PBE Elite 3 in contour; family listing, size ordered after seating check |
Documents
- Brochure Matrx Elite Back Sell Sheet
- User Manual Matrx Elite User Manual
- Order Form Matrx Backs Canadian Order Form
