Description

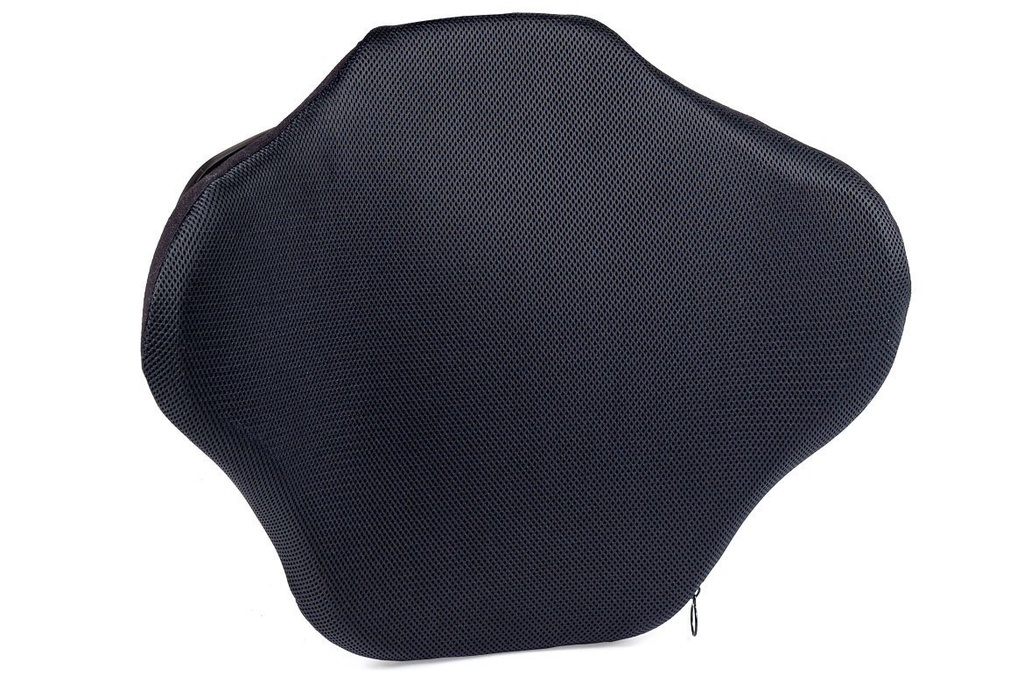

The Lunar Basic Mid Support backrest is Future Mobility's mid-height foam wheelchair back support for aggressive lateral support and more complex positioning. Westin Healthcare fits it in Brampton and across the Greater Toronto Area after a seating check on the chair.
This is the Lunar Basic mid-back height (14 to 18 in). It is not the full or low Lunar Basic, and it is not Lunar Heavy Duty.
Who this back support is for
The Lunar Basic Mid Support backrest is for a person whose seating therapist wants a modular aluminum back in the mid-height band, with no, basic, or ultra laterals. Future Mobility designed Lunar Basic for users who need aggressive lateral support and complex positioning.
A seating therapist should confirm the height and the lateral style. Westin does not give clinical positioning advice. If you have questions about posture or transfers, ask the therapist who assessed you, or call us and we will book that conversation.
Hardware, laterals, and fit

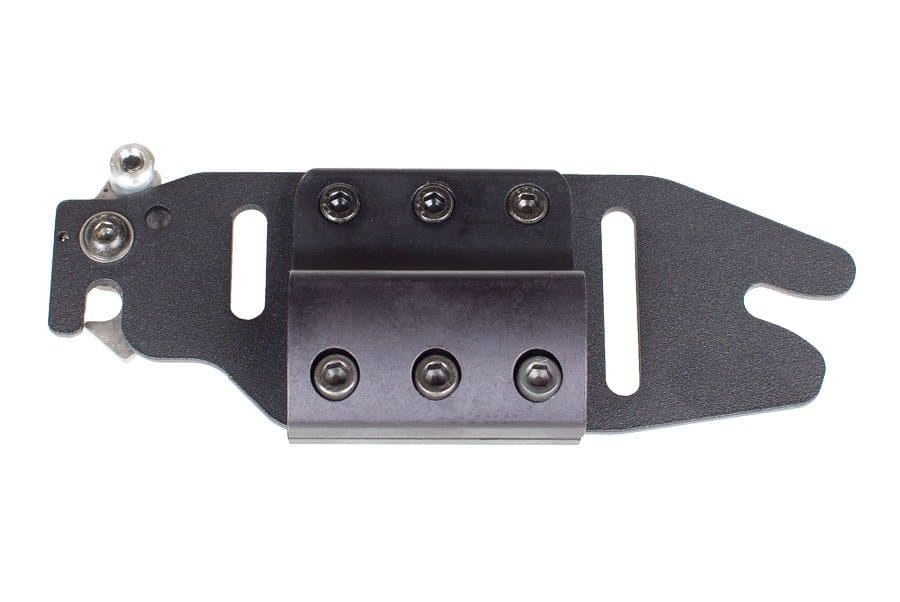

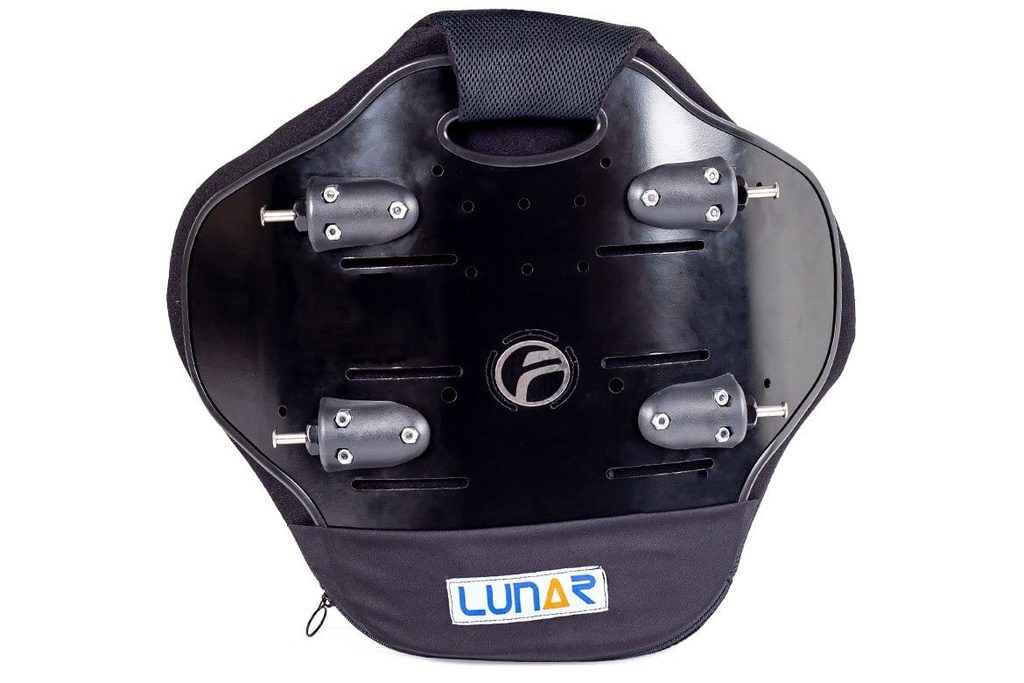

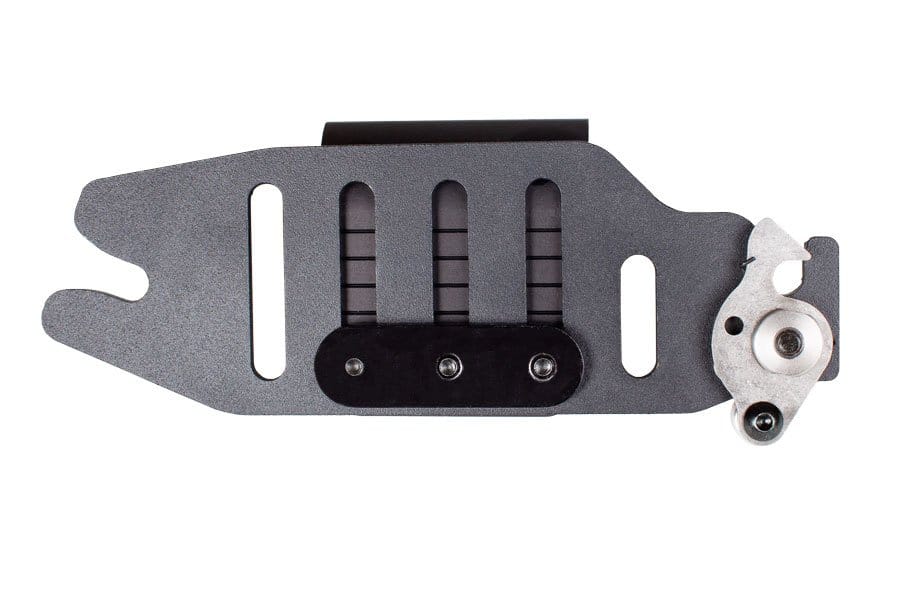

The shell is lightweight aluminum with replaceable foam. Pins take up to a 2 in (5 cm) seat-width difference. Height, depth, and recline angle adjust on the hardware. Lower latch levers release the back.
Hardware on the Future Mobility card fits 3/4 in, 7/8 in, and 1 in canes. Use Model Choice for No Lateral, Basic Lateral, or Ultra Lateral. Optional add-on pads: fixed, height-adjustable, fixed-offset, and adjustable swing-away.
- Mid-back heights 14, 16, and 18 in (36, 41, and 46 cm)
- Widths 14, 16, 18, and 20 in (36 to 51 cm)
- Cover colours: black, navy blue, burgundy, royal blue, dark green
Lunar Basic Mid Support specifications
These figures are from Future Mobility's July 2025 Lunar Basic brochure and the live Canada card. The specification tab holds the stored values.
Product weight 5.9 lb (2.7 kg) at 18 in W x 18 in H Basic. User weight 250 lb (113 kg). Warranty 3 years limited on the back, 90 days on the cover, and 1 year on hardware.
Sizes, colours, and laterals
Use Choose Cushion Size for the width by height pair. Use Colors for the cover. Use Model Choice for the lateral style. The stored Width and Back Height values already describe this mid band (14-20 in by 14-18 in).
Mid, Full, Low, or HD
Stay here for the 14 to 18 in Lunar Basic. The Lunar Basic Full Support is the 20 to 24 in shell. The Lunar Basic Low Support is the 10 to 12 in shell. The Lunar Heavy Duty Mid Support is the 500 lb mid shell from 22 in wide. The Lunar Slim is the lighter 350 lb slim shell when range of motion is the priority.
Funding help for a wheelchair cushion or back support in Ontario
This cushion or back support is an ADP positioning device category item. Ontario's Assistive Devices Program (ADP) can fund 75% of the cost of positioning devices such as cushions and back supports when they are prescribed through an assessment by an ADP-registered occupational therapist or physiotherapist with an eligible mobility device, and some income-support programs cover the full cost. Not every product qualifies, so talk to us before you buy. March of Dimes Canada, Veterans Affairs Canada (VAC), and community programs can also help. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through.
Delivery and setup in Brampton and the GTA
Westin's own team delivers and fits this back support across Brampton and the Greater Toronto Area. We bring it in, mount it on the wheelchair canes, and show you the quick-release latches before we leave.
We have three stores in the Brampton and Toronto area if you would rather see a wheelchair back support first. For a scheduled in-home setup, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service; purchased seating is delivered and set up on a scheduled date.
If the back support is going outside the GTA, ask us for a shipping quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.
Related wheelchair back supports from Westin
- Lunar Basic Full Support, the 20 to 24 in Lunar Basic
- Lunar Basic Low Support, the 10 to 12 in Lunar Basic
- Lunar Heavy Duty Mid Support, the 500 lb mid shell
Service and warranty
When something on the back support needs work, you call the shop that set it up, not a distant parts desk. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.
Future Mobility manufacturer warranty
Future Mobility prints 3 years limited on the Lunar Basic back, 90 days on the cover, and 1 year on the hardware, for the original purchaser. We handle the warranty claim with you. Ask us if an extended warranty is offered for your order.
Frequently asked questions
What Size Wheelchair Backrest Do I Need?
A wheelchair back support is ordered by seat width and back height, not by clothing size. Measure the wheelchair seat width and how high the shell should sit on the back canes, then use Choose Cushion Size for the matching width by height. A seating therapist should confirm the size before you order.
What Is A Wheelchair Back Support?
A wheelchair back support mounts to the rear canes and holds the trunk. The Lunar Basic Mid Support backrest is a rigid aluminum shell with foam and optional laterals. It is not a seat cushion.
Does ADP Cover Wheelchair Cushions?
Ontario's Assistive Devices Program can help with a wheelchair cushion or back support after an ADP-registered therapist assessment, when the seating is required with an eligible mobility device. Eligibility depends on the person and the device. Call (905) 451-7743 or use the funding page before you buy.
What Is The Weight Capacity Of The Lunar Basic Mid Support?
The Lunar Basic Mid Support backrest is rated at 250 lb (113 kg) on Future Mobility's current brochure. The Lunar Heavy Duty Mid Support is the 500 lb (227 kg) sibling.
How Much Does The Lunar Basic Mid Support Weigh?
The Lunar Basic backrest weighs 5.9 lb (2.7 kg) at the 18 in by 18 in Basic size Future Mobility prints.
What Tubing Does The Lunar Basic Fit?
The Lunar Basic Mid Support backrest hardware fits 3/4 in, 7/8 in, and 1 in wheelchair canes on the Future Mobility card.
Can I Remove The Lunar Basic For Transport?
The Lunar Basic Mid Support backrest uses quick-release lower latch levers so the shell can come off the cane clamps.
Is Mid Support The Same As Full Support?
The Lunar Basic Mid Support backrest is the 14 to 18 in height. The Lunar Basic Full Support is the 20 to 24 in height. They share the same 250 lb rating and the same three lateral styles.
What Comes With The Lunar Basic Mid Support?
The Lunar Basic Mid Support backrest is ordered as the aluminum shell, foam, cover, and cane-clamp hardware for the size and lateral style you pick. Optional swing-away or offset laterals are extras.
Specifications
| Colors | Black, DARK GREEN, NAVY BLUE, ROYAL BLUE, BURGUNDY |
|---|---|
| Brands | Future Mobility |
| Warranty | 3 yr limited back; 1 yr hardware; 90 day cover |
| Weight Capacity | 250 lb (113 kg) |
| Product Weight | 5.9 lb (2.7 kg) at 18 in W x 18 in H Basic |
| Hardware | Fits 3/4, 7/8, and 1 in tubing |
| Classification | Aggressive lateral support and complex positioning (Future Mobility Lunar Basic) |
| Width | 14, 16, 18, 20 in (36-51 cm) as sold |
| ADP Device Code | SEBFM3015 / SEBFM3030 / SEBFM3045 by lateral; confirm on current ADP list |
| Manufacturer Model | Lunar Basic Mid Support (MBS*) |
| Lateral Styles | No lateral, basic lateral, ultra lateral |
Documents
- Brochure Lunar Basic Back Brochure
- User Manual Future Mobility Backrests User Manual
- Order Form Lunar Basic and HD Back Order Form
