Description

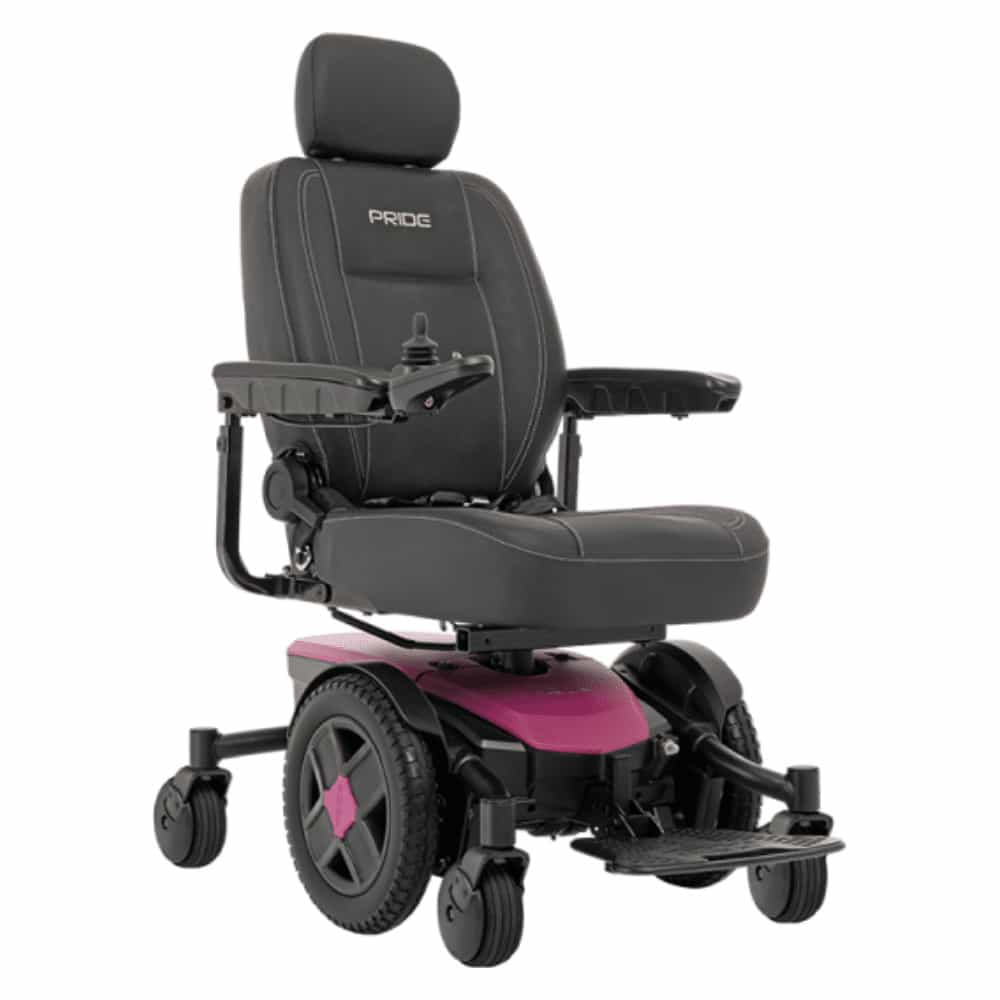

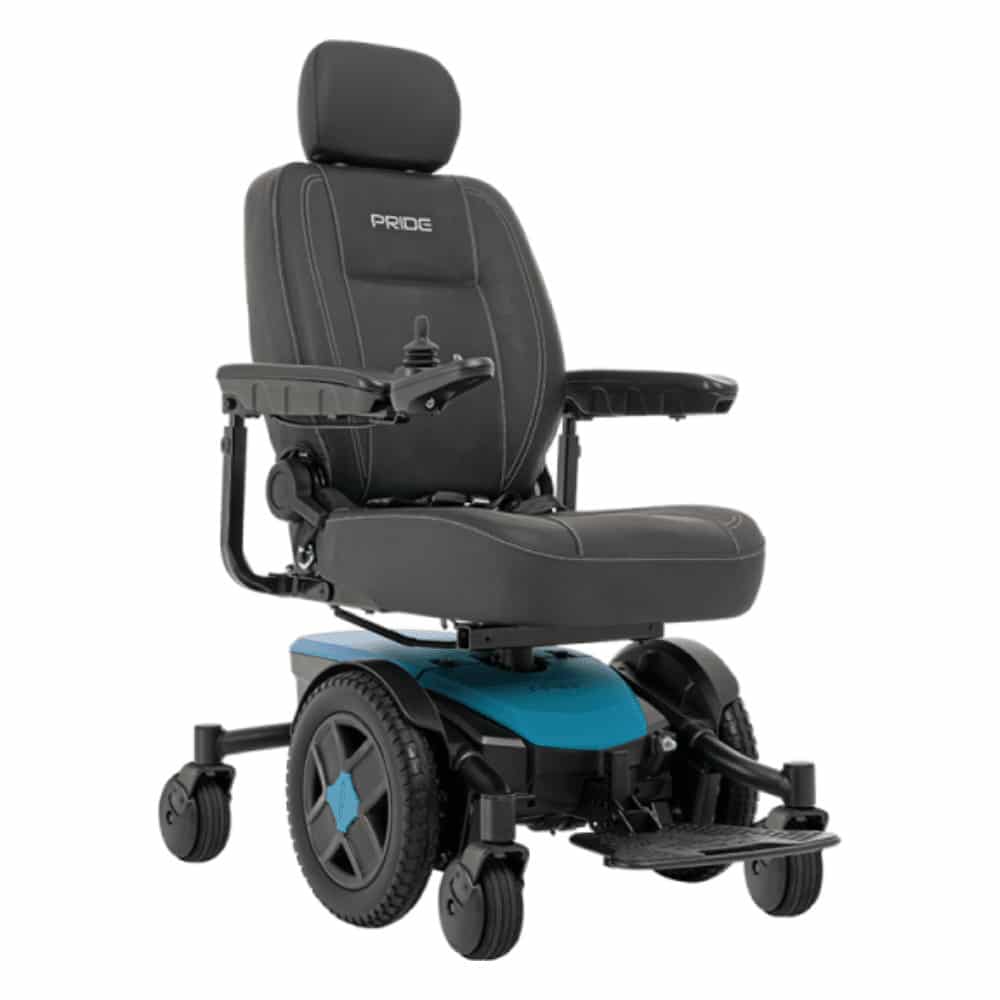

The Pride Jazzy EVO 613 is a full-size mid-wheel power chair with a 22 inch base, a 22 inch turning radius, and 13 inch solid drive wheels. Westin Healthcare sells it and delivers it for homes in Brampton and the Greater Toronto Area.
Pride Canada's current catalog card is titled Jazzy EVO 613 Li. The chassis is not retired. Pride still offers the two 12-volt U-1 sealed packs and the single 25.6V 32.4Ah lithium iron phosphate pack on that card. The current catalog-named page is the Pride Jazzy EVO 613 Li.
Pride rates the chair at 300 lbs and up to 5.1 mph (8.2 km/h). Use Choose Batteries for the two 12-volt U-1 sealed lead-acid packs or the lithium iron phosphate pack. Both use a 3.5-amp off-board charger.
Who this chair is for
This chair is for a person who needs a narrow full-size mid-wheel power chair for indoor doors and outdoor thresholds, fits Pride's 16, 18, or 20 inch seat, and is within the 300 lb rating. Families usually call us when a 25 inch chair is too wide for the hallway, or when they want the lithium pack for a lighter total weight.
If you want the 13.75 inch perforated drive wheels and NF-22 batteries of the wider EVO 614, start with the Pride Jazzy EVO 614. If you want a 12 inch seat elevator, see the Pride Jazzy Air 2. The EVO 613 is not a folding travel chair.
- Narrow 22 inch mid-wheel base
- U-1 or lithium battery choice
- Up to 5.1 mph and a 22 inch turning radius
Design and build
Pride builds the EVO 613 on Mid-Wheel 6: 13 inch solid centre drive wheels with 5 inch solid casters front and rear. Two in-line motors drive the chair. Active-Trac ATX suspension is how Pride describes the ride over uneven indoor and outdoor surfaces.
The high-back seat is memory foam with a single seat post that swivels. Armrests change height, width, and angle. The foot platform flips up and changes height, angle, and depth. The standard control is a 40-amp PG GC3 joystick on an in-line mount. Shrouds are removable matte colour-through pieces.
The chair does not fold. Pride lists 22 inches wide and 41 inches long with the footrest (35 inches without). Plan on a van, a lift, or an accessible vehicle if it has to travel. Pride's brochure also notes the lithium pack is not airline approved.
Pride Jazzy EVO 613 specifications
These figures are for the Jazzy EVO 613 series (Pride models JEVO613-SLA and JEVO613-LI) sold here. The specification tab holds the stored values. Pride lists a 300 lb capacity, up to 5.1 mph, a 22 inch turning radius, 3 inch ground clearance at mid-frame, 13 inch solid drive wheels, and 5 inch casters.
On U-1 batteries Pride's brochure lists up to 14 miles at 300 lbs and 17.1 miles at 200 lbs, with a total weight of 189 lbs. On the lithium pack the same brochure lists up to 17.6 miles at 300 lbs and 21 miles at 200 lbs, with a total weight of 160.5 lbs. The lithium box is 25.6V and 32.4Ah. The charger is 3.5 amp off-board. Seat-to-floor on the high-back is 19.75 to 21.25 inches. The heaviest piece Pride prints is the 94 lb base.
Do not mix these numbers with the EVO 614. That chair is 25.4 inches wide, uses NF-22 batteries, and lists 7 km/h.
Warranty for a Canadian purchaser follows Pride's current insert and the Canada EVO 613 brochure: 5-year limited on the frame, 2-year limited on electronics and drive motors, 13-month limited on U-1 batteries, and 3-year limited on the lithium pack.
Colour, seat, battery, and accessory options
Use Choose Color to set the matte shroud: Red, Iceberg Blue, Black, Sugarplum, Robin's Egg, or White.
Use Choose Batteries for U1 batteries or Li-ion batteries. That is the Pride SLA versus lithium choice.
Choose Seat Size
- 16"W x 16"-18"D
- 18"W x 18"-20"D (standard)
- 20"W x 18"-20"D
- 16"W x 16"-18"D High Back with Solid Seat Pan
- 18"W x 18"-20"D High Back with Solid Seat Pan
Use Choose Legrest to keep the centre-mount foot platform or to add Pride swing-away or elevating leg rests. Use Joystick Mounting Brackets for in-line left or right, or a swing-away mount. Use Accessories, Back-Mounted Accessories, and Additional Lap Belts for Pride parts such as a weather cover, rear basket, or a longer lap belt. Ask us which parts you need before you tick every line.
Jazzy EVO 613 or Jazzy EVO 613 Li
Pride now catalogs this series in Canada as the Jazzy EVO 613 Li. Lithium is the name on the card. The U-1 pair is still a Pride factory pack. This page is the existing Westin listing for the same series. It is not a discontinued chassis.
Funding help for a power wheelchair in Ontario
Ontario's Assistive Devices Program (ADP) can fund 75% of the cost of a power wheelchair when the need is long-term and the chair is prescribed through an assessment by an ADP-registered occupational therapist or physiotherapist, and some income-support programs cover the full cost. Not every chair qualifies, so talk to us before you buy. March of Dimes Canada, Veterans Affairs Canada (VAC), and community programs can also help. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through.
Delivery and setup in Brampton and the GTA
Westin's own team delivers and sets up this power chair across Brampton and the Greater Toronto Area. We bring it in, assemble it, and show you the joystick and charger before we leave.
We have three stores in the Brampton and Toronto area if you would rather see a chair first. For a scheduled in-home setup, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service; purchased chairs are delivered and set up on a scheduled date.
This power chair is oversized. The Canada-wide free ground-shipping offer on smaller goods does not apply. If the chair is going outside the GTA, ask us for a freight quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.
Related mobility products from Westin
- Pride Jazzy EVO 613 Li, Pride Canada's current catalog name for this series
- Pride Jazzy EVO 614, the wider sister with 13.75 inch drive wheels
- Pride Jazzy EVO 614HD, the 450 lb mid-wheel Jazzy
Service and warranty
When something on the chair needs work, you call the shop that sold it, not a US parts desk. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.
Pride manufacturer warranty
Pride's current standard-power insert for a Canadian purchaser is 5-year limited on the frame and 2-year limited on electronics and drive motors. U-1 batteries are 13-month limited. The lithium pack is 3-year limited on the Pride Canada EVO 613 brochure. We handle the warranty claim with you. Ask us if an extended warranty is offered for your order.
Frequently asked questions
Is The EVO 613 Discontinued?
The Pride Jazzy EVO 613 chassis is still current. Pride Canada's shop card is now titled Jazzy EVO 613 Li and still sells lithium or U-1. This page stays up as the existing Westin series listing.
What Range Does The EVO 613 Have?
On U-1 batteries Pride lists up to 14 miles at 300 lbs and 17.1 miles at 200 lbs. On the lithium pack Pride lists up to 17.6 miles at 300 lbs and 21 miles at 200 lbs. Range changes with rider weight, terrain, and battery condition.
What Is The Difference Between U-1 And Lithium?
U-1 is a pair of 12-volt sealed lead-acid batteries, 23.5 lbs each, for a 189 lb total chair. Lithium is one 25.6V 32.4Ah iron phosphate box at 18.5 lbs, for a 160.5 lb total. Both charge on the 3.5-amp off-board charger. Pride's brochure says the lithium pack is not airline approved.
What Is The Indoor Turning Radius?
Pride lists 22 inches, and the base is 22 inches wide. That is the figure Pride uses for doorways and kitchens. Measure the narrowest doorway before you buy.
What Seat Sizes Can I Order?
Use Choose Seat Size for 16, 18, or 20 inch, with the matching depth range Pride prints for each width. Measure seated hip width and leave a little room on each side.
Who Drives The EVO 613?
The person in the chair, using the joystick. A companion does not push this chair the way they would push a transport chair. Engage the brakes and power down before sitting or standing.
Will It Fold Into A Car Trunk?
No. This is a full-size mid-wheel base. Pride lists 22 inches wide and 41 inches long with the footrest. The heaviest piece is the 94 lb base. Moving the whole chair usually means a van, a lift, or an accessible vehicle.
What Is The Weight Capacity?
Pride lists 300 lbs. Stay at or under that rating on both battery choices.
How Is This Different From The EVO 614?
The EVO 613 is 22 inches wide with 13 inch drive wheels, 5 inch casters, and a U-1 or lithium choice. The EVO 614 is 25.4 inches wide with 13.75 inch perforated drive wheels, 6 inch casters, and NF-22 batteries. The 613 also lists a higher top speed, 5.1 mph versus 4.4 mph.
What Is The Warranty?
For a Canadian purchaser: 5-year limited on the frame, 2-year limited on electronics and drive motors, 13-month limited on U-1 batteries, and 3-year limited on the lithium pack. Westin Healthcare processes the claim.
Can Funding Help With This Chair In Ontario?
Some Ontario routes can help with mobility equipment. Eligibility depends on the person's situation and assessment. Call (905) 451-7743 or use the funding page before you buy.
Can I Rent A Power Chair Before I Buy?
Westin Healthcare rents some mobility equipment. Ask us whether a power chair can go out as a rental for your dates. Purchased chairs are delivered on a scheduled date.
Specifications
| Colors | Black, Red, Iceberg Blue, Robin's Egg, Sugar Plum, White (matte) |
|---|---|
| Seat Height | 19.75"-21.25" seat-to-floor |
| Seat Width | 18" |
| Seat Depth | 18" |
| Brands | Pride |
| Warranty | 5-year frame; 2-year electronics and motors in Canada; 13-month U-1; 3-year lithium |
| Weight Capacity | 300 lbs |
| Caster Size | 5" solid |
| Compatible Batteries | (2) 12V U-1 SLA or (1) 25.6V 32.4Ah lithium iron phosphate |
| Drive Terrain Type | Mid-Wheel Drive |
| Driving Range | SLA up to 14 mi at 300 lb; Li up to 17.6 mi at 300 lb |
| Foldable | No |
| Ground Clearance | 3" at mid-frame; 2.5" at motor |
| Legrest Footrest Type | Center Mount |
| Product Weight | 189 lbs with U-1; 160.5 lbs with lithium |
| Top Speed | Up to 5.1 mph (8.2 km/h) |
| Turning Radius | 22" |
| Wheel Size | 13" solid drive |
| Wheelchair Type | Standard Power Chair |
| Overall Length | 41" with footrest; 35" without |
| Overall Width | 22" |
| Battery Charger | 3.5-amp off-board |
| Drivetrain | Two motor, in-line, mid-wheel |
Documents
- Brochure Pride Jazzy EVO 613 Li Specifications Sheet
- Brochure Pride Jazzy EVO 613 Brochure
- Brochure Pride Jazzy EVO 613 Series Specifications
- User Manual Pride Jazzy EVO 613 Li Owner Manual
- User Manual Pride Jazzy EVO Series Owner Manual
- Warranty Manual Pride Standard Power Warranty Insert
