Description

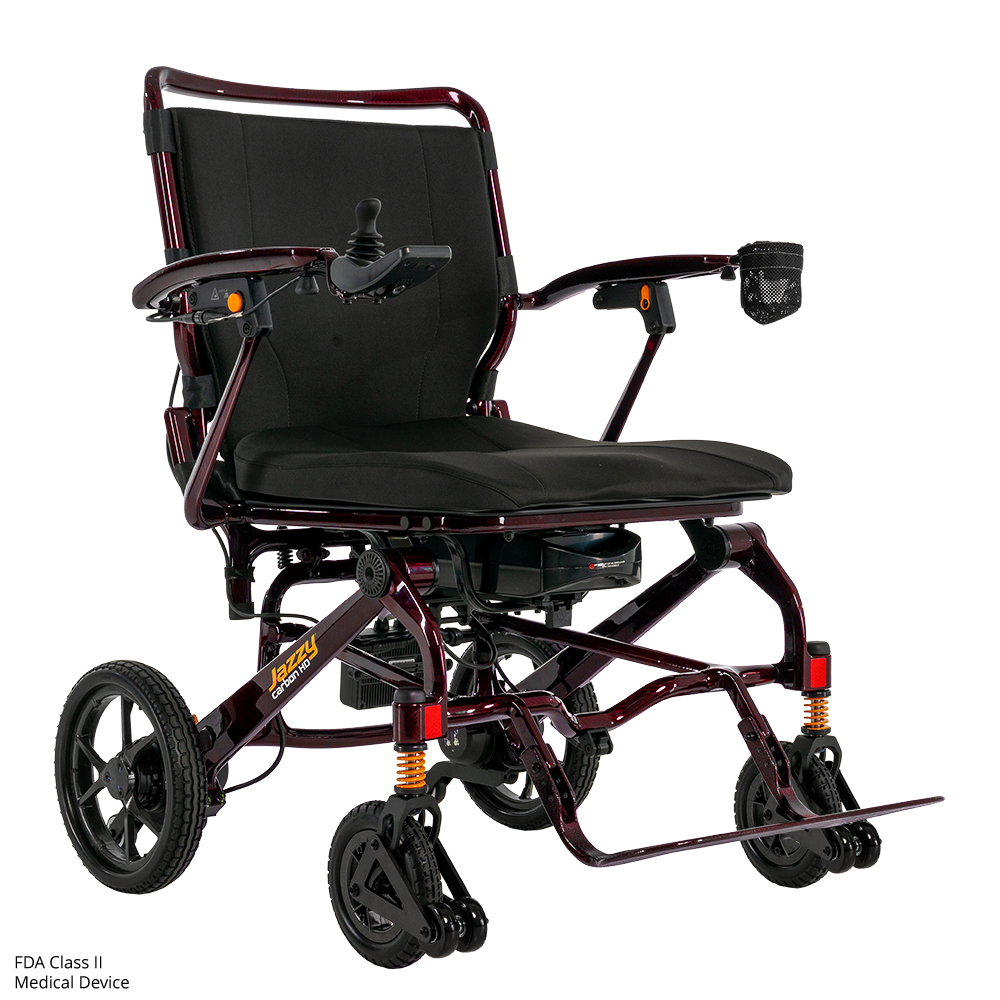

The Pride Jazzy Carbon HD is Pride Mobility's JAZZY CARBON HD folding power wheelchair. Westin Healthcare sells it and delivers it for homes in Brampton and the Greater Toronto Area. It is a carbon fibre travel chair that folds in one piece. The person drives with the joystick.
Pride lists a 400 lb (181 kg) rating, speeds up to 3.7 mph (6.0 km/h), a 36.4 inch turning radius, and up to 12.4 miles (20.0 km) per charge on the standard 20 Ah lithium pack. The chair weighs 32.2 lbs without the battery and 39.7 lbs with it.
Who this chair is for
This chair is for a person who fits Pride's 20 by 20 inch seat, stays at or under the 400 lb rating, and still wants a folder one person can lift into a trunk. Families usually call us when a 300 lb carbon chair is too small in the seat or the rating, but a full-size mid-wheel base is too heavy to load.
If you want a lighter 300 lb folder, start with the Pride Jazzy Carbon 27. If you want a full-size 450 lb mid-wheel chair, see the Pride Jazzy EVO 614HD. The Carbon HD is not a take-apart Go Chair.
- A 400 lb rating on a 32.2 lb carbon fibre frame
- A 20 by 20 inch seat and an extra-wide foot platform
- A 20 Ah lithium pack for range, with a 12 Ah airline pack as a Pride add-on
Range, speed, and batteries
The Pride Jazzy Carbon HD travels up to 12.4 miles (20.0 km) per charge on the standard 20 Ah lithium box. Pride's footnotes say range changes with user weight, terrain, battery charge, battery condition, and tire condition, and that the number can move 10 percent either way. Plan a shorter day than 20 km if the person is near 400 lbs or the route is not flat.
Top speed is up to 3.7 mph (6.0 km/h). The charger is a 2-amp off-board unit. Pride's brochure prints the standard 20 Ah pack as non-airline compliant. The airline-compliant add-on Pride lists is a 12 Ah pack. Ask us which pack you need before you fly.
Portability and transport

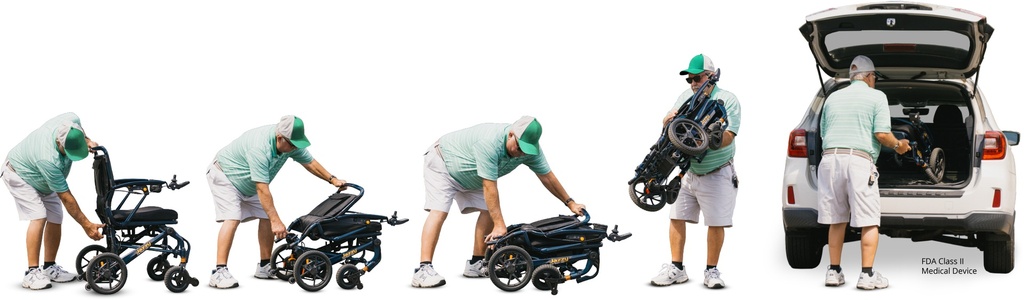

Pride folds the Carbon HD as one piece and locks it. Folded size on the brochure is 31.3 inches long, 26.4 inches wide, and 13 inches high. Flip-up carbon fibre arms come with the chair. It does not take apart into five pieces. The joystick disconnects for the trip.
Pride still says transport on a commercial aircraft is subject to federal regulations and airline policy. Consult the airline before you fly. Do not treat the standard 20 Ah pack as the airline pack. If you need Pride's airline-compliant accessory, that is the additional 12 Ah battery.
Pride Jazzy Carbon HD specifications
These figures are for Pride model JAZZY CARBON HD, as printed on Pride's specification table, the 061526 brochure, and the Pride Canada card. The specification tab holds the stored values.
Weight capacity 400 lbs (181 kg). Top speed up to 3.7 mph (6.0 km/h). Turning radius 36.4 inches. Length 36.81 inches. Width 26.4 inches. Ground clearance 1 inch at the motor. Front wheels 6.5 inches. Rear wheels 10.6 inches. Full front and rear suspension. Motors 24V 250W brushless. Brakes regenerative and electromechanical.
Seat 20 by 20 inches, padded back, solid seat pan, removable cushion, storage pocket on the back. Extra-wide adjustable foot platform 17.25 inches wide by 5.9 inches deep. LCD joystick with digital display, USB-C port, and puddle light. Mesh cup holder, cushion, and adjustable lap belt are standard. Colours Pride sells are Black Cherry and Night Sky.
Do not mix these numbers with the Carbon 27 (300 lb, 12 Ah, 17x17) or with the EVO 614HD (450 lb full-size mid-wheel).
Warranty on Pride's US brochure is 5 years on the frame and 1-year limited on electronics, drivetrain, and battery. Pride Canada's card prints a lifetime limited term on the frame and 1-year limited terms on electronics, drive motors, and batteries. Ask us which insert ships with your chair.
Jazzy Carbon HD or Jazzy Carbon 27
The Carbon HD is Pride's 400 lb, 20 by 20 inch folder with front and rear suspension and a 20 Ah pack. The Carbon 27 is Pride's 300 lb, 17 by 17 inch folder with front suspension only and a 12 Ah pack. If you want the upright X-frame fold, see the Carbon 27X.
Funding help for a power wheelchair in Ontario
Ontario's Assistive Devices Program (ADP) can fund 75% of the cost of a power wheelchair when the need is long-term and the chair is prescribed through an assessment by an ADP-registered occupational therapist or physiotherapist, and some income-support programs cover the full cost. Not every chair qualifies, so talk to us before you buy. March of Dimes Canada, Veterans Affairs Canada (VAC), and community programs can also help. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through.
Delivery and setup in Brampton and the GTA
Westin's own team delivers and sets up this power wheelchair across Brampton and the Greater Toronto Area. We bring it in, unfold it, and show you the joystick, the fold latch, and the charger before we leave.
We have three stores in the Brampton and Toronto area if you would rather see a chair first. For a scheduled in-home setup, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service; purchased chairs are delivered and set up on a scheduled date.
This power wheelchair folds for a car trunk. If it is going outside the GTA, ask us for a freight quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.
Related mobility products from Westin
- Pride Jazzy Carbon 27, the 300 lb carbon folder
- Pride Jazzy Carbon 27X, the X-frame vertical folder
- Pride Jazzy EVO 614HD, the 450 lb full-size mid-wheel Jazzy
Service and warranty
When something on the chair needs work, you call the shop that set it up, not a US parts desk. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.
Pride manufacturer warranty
Pride's Carbon HD US brochure prints 5 years on the frame and 1-year limited terms on electronics, drivetrain, and battery for the original purchaser. Pride Canada's card prints a lifetime limited term on the frame and 1-year limited terms on electronics, drive motors, and batteries. Wear items sit outside that term. Gradual battery wear from storage, cold, or heavy use is outside the battery term. We handle the warranty claim with you. Ask us if an extended warranty is offered for your order.
Frequently asked questions
What Is The Weight Capacity Of The Jazzy Carbon HD?
The Pride Jazzy Carbon HD is rated at 400 lbs (181 kg). Stay at or under that rating. The seat Pride sells is 20 by 20 inches.
How Much Does The Jazzy Carbon HD Weigh?
The Pride Jazzy Carbon HD weighs 32.2 lbs without the battery and 39.7 lbs with the 7.5 lb 20 Ah pack.
How Far Will The Jazzy Carbon HD Go On One Charge?
The Pride Jazzy Carbon HD travels up to 12.4 miles (20.0 km) per charge on the standard 20 Ah lithium pack. Pride's footnotes say range changes with weight, terrain, and battery condition.
Is The Jazzy Carbon HD Airline Approved?
Pride's Carbon HD brochure prints the standard 20 Ah pack as non-airline compliant. The airline-compliant accessory Pride lists is a 12 Ah pack. Pride still says you must consult the airline before the flight.
Does The Jazzy Carbon HD Fold?
The Pride Jazzy Carbon HD folds as one piece and locks. Pride's folded size is 31.3 by 26.4 by 13 inches. It does not take apart like a Go Chair.
What Battery And Charger Does It Use?
The Pride Jazzy Carbon HD uses a 20 Ah lithium battery box that Pride weighs at 7.5 lbs, with a 2-amp off-board charger. A 12 Ah airline-compliant pack is a Pride add-on.
What Colours Can I Order?
Pride sells the Jazzy Carbon HD in Black Cherry and Night Sky. Ask us which colour we can put on your order.
How Is This Different From The EVO 614HD?
The Pride Jazzy Carbon HD is a 400 lb folding travel chair that weighs 32.2 lbs without the battery. The EVO 614HD is a 450 lb full-size mid-wheel chair with a 125.7 lb base. They solve different transport problems.
What Is The Warranty?
Pride's US Carbon HD brochure prints 5 years on the frame and 1 year on electronics, drivetrain, and battery. Pride Canada's card prints a lifetime limited frame term and 1-year limited electronics, motors, and batteries. Westin Healthcare processes the claim.
Can Funding Help With This Chair In Ontario?
Some Ontario routes can help with mobility equipment. Eligibility depends on the person's situation and assessment. Call (905) 451-7743 or use the funding page before you buy.
Can I Rent A Power Wheelchair Before I Buy?
Westin Healthcare rents some power wheelchairs. The live rental page is a different chair. Ask us whether a Carbon HD can go out as a rental for your dates. Purchased chairs are delivered on a scheduled date.
Specifications
| Colors | Black Cherry, Night Sky |
|---|---|
| Brands | Pride |
| Warranty | US brochure 5-yr frame / 1-yr electronics, drivetrain, battery; CA card lifetime frame / 1-yr electronics |
| Weight Capacity | 400 lbs (181 kg) |
| Caster Size | 6.5" front |
| Compatible Batteries | Lithium box 20 Ah (non-airline); 7.5 lbs; 12 Ah airline pack is an add-on |
| Drive Terrain Type | 24V 250W brushless motors; full front and rear suspension |
| Driving Range | Up to 12.4 miles (20.0 km) per charge |
| Foldable | Yes (one-piece fold that locks; does not disassemble) |
| Ground Clearance | 1" at motor |
| Product Weight | 32.2 lbs without battery; 39.7 lbs with 7.5 lb 20 Ah pack |
| Top Speed | Up to 3.7 mph (6.0 km/h) |
| Turning Radius | 36.4" |
| Wheel Size | 10.6" rear |
| Wheelchair Type | Folding travel power wheelchair |
| Overall Length | 36.81" |
| Overall Width | 26.4" |
| Battery Charger | 2-amp off-board |
| Drivetrain | 24V 250W brushless |
