Description

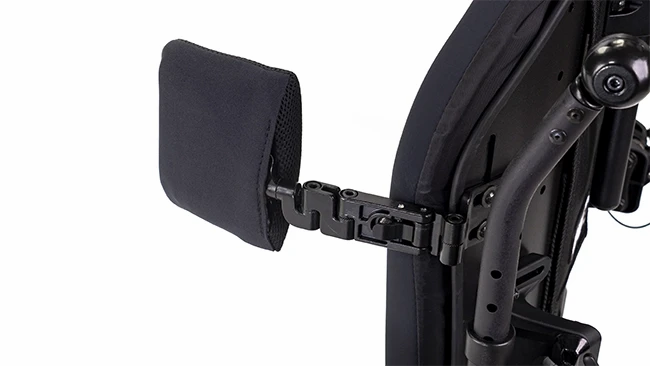

The JAY Swing-Away Lateral Thoracic Supports line is Sunrise Medical's add-on trunk pad family for Brampton and the Greater Toronto Area. Sunrise writes it for riders who lean to one side and respond to extra lateral depth beyond a JAY back shell. The standard pad is 8.25 inches wide and 0.7 lbs (0.32 kg) each. The rotational pad is 10 inches wide and 1 lb (0.45 kg) each. This is a quote-only positioning accessory. It is configured with the wheelchair through the ADP assessment, not sold as a last-minute cart extra.
Which backs this fits

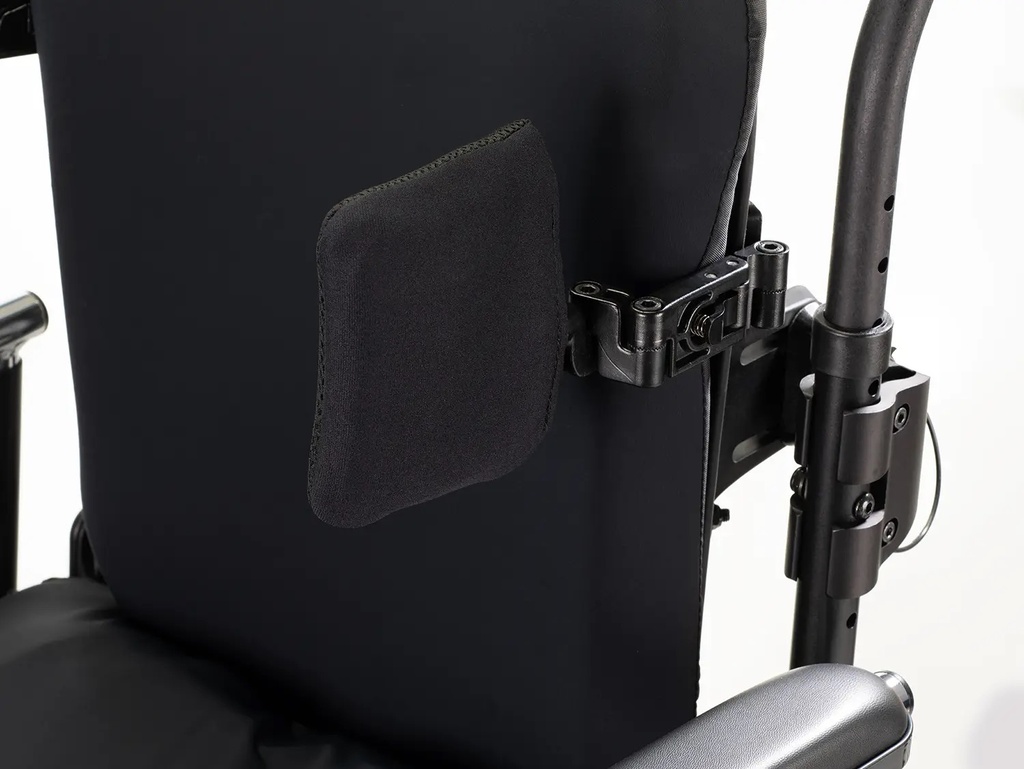

Sunrise mounts these laterals internally or externally on a JAY back shell. They are ordered on the J3 and J3 Plus forms. Confirm the back model with Westin before you order. Use them when a JAY J3 Back needs more lateral depth than the shell contour. The JAY Encompass Back already includes three-piece swing-away laterals, so ask the therapist which path is correct.
- Standard swing-away, 8.25 in wide, 0.7 lb each
- Rotational swing-away, 10 in wide, 1 lb each, third plane of angle
- Two pivot points, 100 mm (3.9 in) of adjustment
JAY Swing-Away Lateral Thoracic Supports specifications
These figures are from Sunrise Medical's current Canada card. The specification tab holds the stored values. We do not invent a pad-size picker on this page.
Height 1.75 inches. Depth 0.7 inches. Standard width 8.25 inches, 0.7 lbs each. Rotational width 10 inches, 1 lb each. Construction: steel. Mount: internal or external on the shell. Standard cover: 3DX. Stretch, premium leatherette, or reverse Dartex covers are available through JAY Your Way.
No dedicated lateral owner's manual is linked on the live card. Sunrise notes that Canadian terms can follow provincial funding rules. Ask us for the insert that ships with your order.
Delivery and setup in Brampton and the GTA
Westin's own team delivers this positioning support across Brampton and the Greater Toronto Area. We bring it in, mount it on the JAY back, and show you the swing-away lock before we leave.
We have three stores in the Brampton and Toronto area if you would rather see a sample first. For a scheduled in-home visit, call (905) 451-7743. Inside Toronto and the GTA, White-Glove Delivery is described on the shipping policy. Any charge is confirmed on your order.
Related JAY positioning from Westin
Warranty
When something on this support needs work, you call the shop that fitted it. Westin Healthcare has a service and repairs department.
Sunrise Medical JAY warranty
Sunrise does not publish a dedicated lateral owner's manual on the live card. Canadian terms can follow provincial funding rules. We handle the claim on units we sold. Ask us for the insert that ships with your order.
Frequently asked questions
Do I Need Standard Or Rotational Laterals?

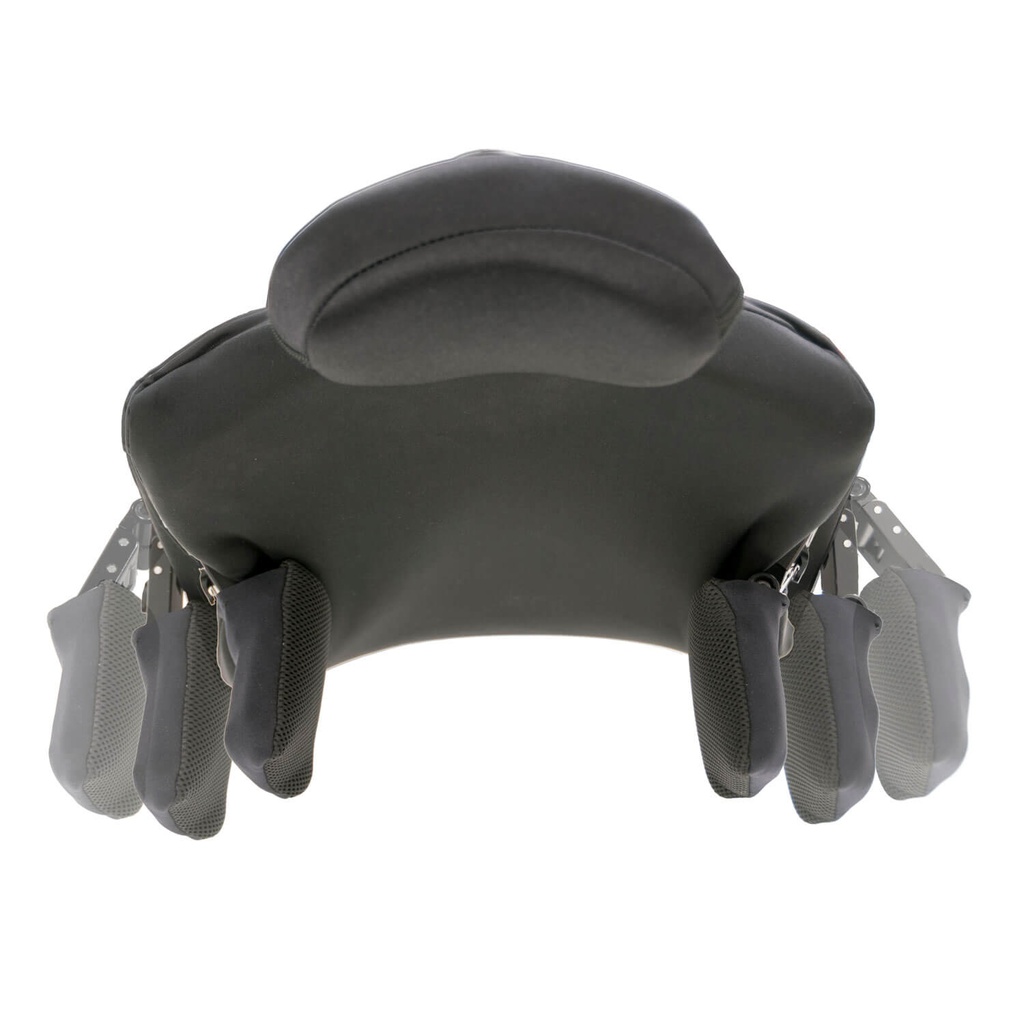

JAY standard swing-away laterals add depth where they sit on the shell. JAY rotational laterals add a third plane so the pad can follow a curved trunk. A seating therapist names the style.
Will These Fit A J3 Back?
JAY Swing-Away Lateral Thoracic Supports mount on a JAY back shell and are ordered on the J3 and J3 Plus forms. Westin confirms the shell before we order.
How Much Adjustment Is There?

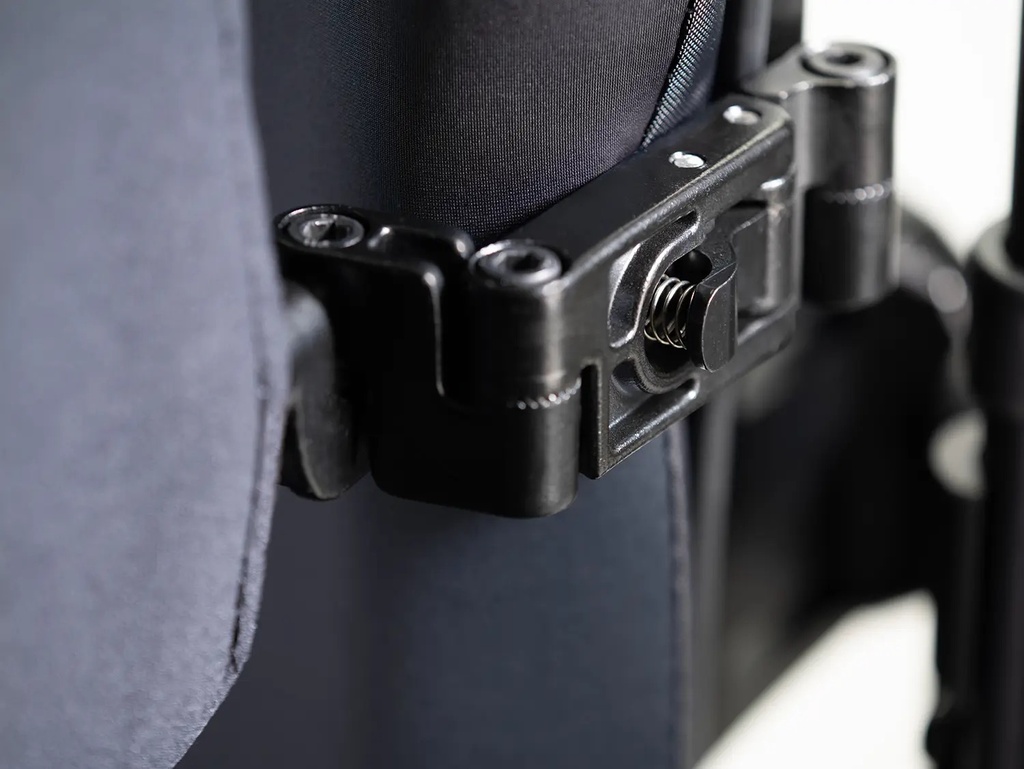

The JAY laterals use two pivot points with interlocking teeth and 100 mm (3.9 in) of adjustment on the current card.
Is This Ordered Through ADP?
JAY Swing-Away Lateral Thoracic Supports are configured with the wheelchair through the ADP assessment when the person qualifies. Talk to us before you buy. Call (905) 451-7743 or use the funding page.
What Covers Can I Order?
JAY laterals ship with a 3DX cover. Stretch, premium leatherette, or reverse Dartex covers are available through JAY Your Way.
Can I See One In Brampton?
Westin Healthcare can show JAY positioning in the Brampton and Toronto stores and deliver across the GTA. Call (905) 451-7743.
Specifications
| Brands | JAY |
|---|---|
| Product Weight | Standard 0.7 lb each; Rotational 1 lb each |
| Product Type | Swing-away lateral thoracic pads for a JAY back |
| Mount | Internal or external on a JAY back shell |
| Product Height | 1.75" |
| Adjustment | Two pivot points; 100 mm (3.9") |
| Product Width | Standard 8.25"; Rotational 10" |
| Product Depth | 0.7" |
| Contact Surface | 3DX standard; stretch, leatherette, reverse Dartex via JAY Your Way |
