Description

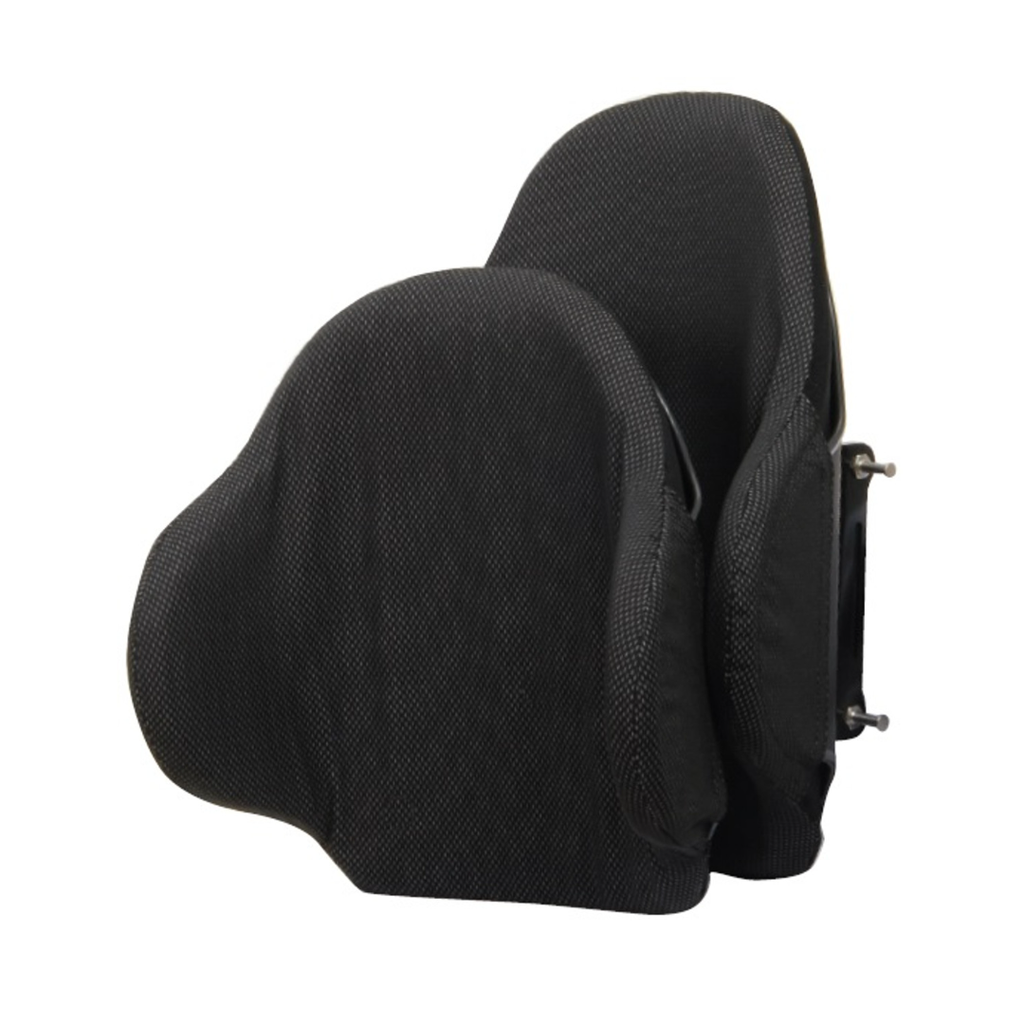

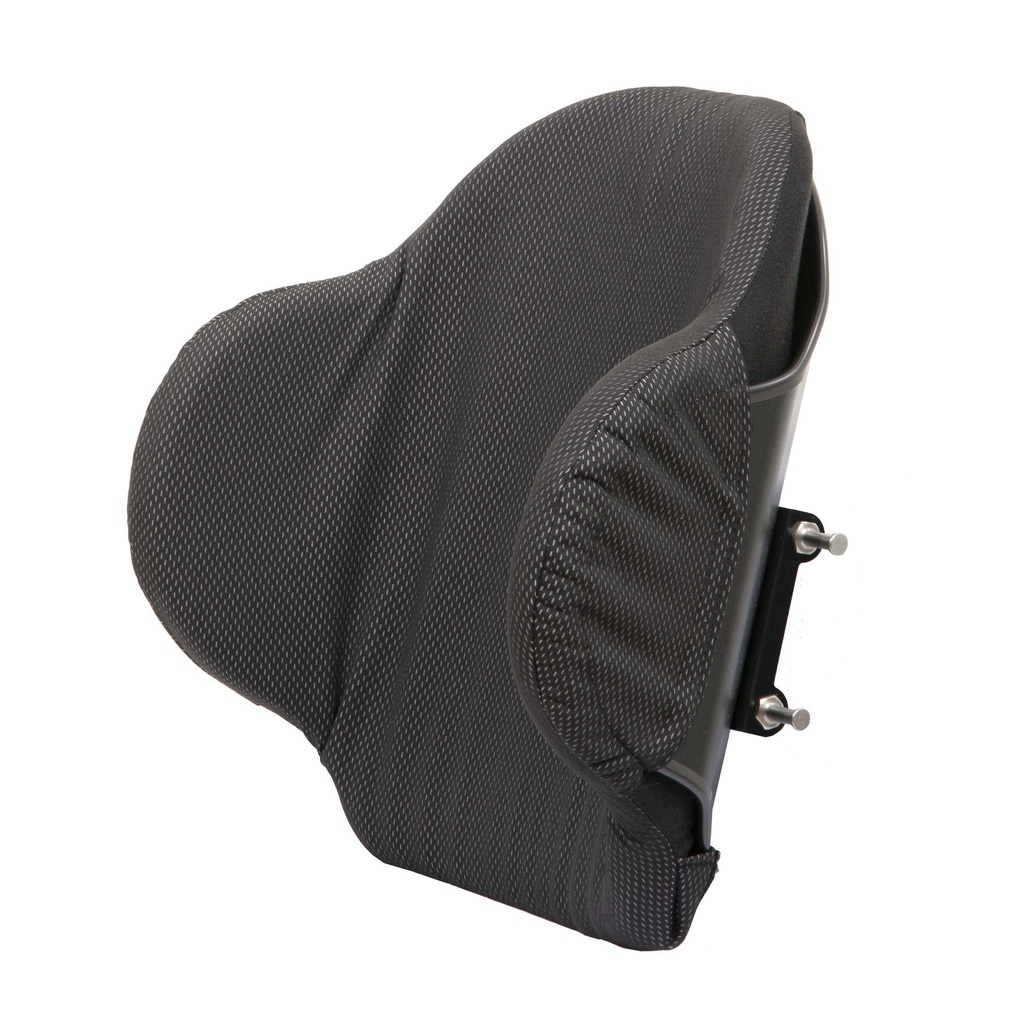

The Invacare Matrx E2 Deep Back 16 x 18 is Invacare and Motion Concepts' 6 in contour E2 in factory size E2D1618, with Ripple Foam, EasySet hardware, and a 300 lb (136 kg) rating. Westin Healthcare sells this size and fits it for homes in Brampton and the Greater Toronto Area. It is the 16 in wide by 18 in high E2 Deep. It is not the 3 in E2 and it is not a full size picker.
Motion Concepts prints E2D1618 as fits-width 15-18 in (38-46 cm) and fits-length 18 in (46 cm). Other E2 Deep sizes exist at the factory. Westin sells the 16 x 18 here.
Who this back support is for
This wheelchair back support is for a person who stays at or under 300 lb, whose chair is about 15-18 in between the canes, and who wants the newer E2 series in a 6 in contour rather than the 3 in E2. Families usually call us when they want Ripple Foam and more midline wrap than a standard contour gives.
If you want the 3 in E2 in 18 in and 20 in heights, see the Matrx E2. If you want the older 6 in Elite in 18 x 18, see the Elite Deep 18 x 18.
- 6 in contour, factory size E2D1618
- Ripple Foam and EasySet (standard on 18 in high)
- Meshtex cover; headrest interface included
Fit, contour, and hardware
The Invacare Matrx E2 Deep 16 x 18 uses EasySet pins that fit a chair 1 in narrower or 2 in wider than the 16 in back. Hardware fits 3/4 in, 7/8 in, and 1 in canes. Angle is a 40 degree range. Depth is 2 in in front of or behind the canes. Motion Concepts includes a headrest interface on E2 backs 14 in and higher, so this 18 in high Deep includes it.
Foam, cover, and care
Ripple Foam on the Invacare Matrx E2 Deep uses airflow channels, a rippled top, and a solid HR backing, with extra immersion in the spinal relief area. The Meshtex cover is moisture-resistant and overlaps the shell. Optional Protect Startex slipcovers apply to selected 16/18/20 in sizes. Remove the foam before any machine wash of the cover.
Invacare Matrx E2 Deep specifications
These figures are for factory E2D1618 on Motion Concepts' E2 sheet and Canadian order form. The specification tab holds the stored values. A stored SE0001775 / SE0001776 pair is the standard-contour E2, not this Deep.
Contour 6 in. Size 16 in wide x 18 in high. Fits wheelchair width 15-18 in. Capacity 300 lb (136 kg). Warranty 2 years on materials and workmanship for the original purchaser, excluding punctures, tears, burns, and the removable cover. Motion Concepts does not print a unit weight on the E2 sheet.
E2 Deep, E2, or Elite Deep
Westin's E2 Deep here is the 16 x 18. The Matrx E2 is the 3 in contour in 18 in and 20 in heights. The Elite Deep 18 x 18 is the older 6 in Elite in a wider 18 in shell. The Matrx MAC Hug is the adjustable-contour back.
Foam back support, gel cushions, and air cushions
The Invacare Matrx E2 Deep is a foam wheelchair back support. A gel or air seat cushion is a different product. See the JAY Ion or the ROHO High Profile when the seating therapist is choosing the seat.
Funding help for a wheelchair cushion or back support in Ontario
This cushion or back support is an ADP positioning device category item. Ontario's Assistive Devices Program (ADP) can fund 75% of the cost of positioning devices such as cushions and back supports when they are prescribed through an assessment by an ADP-registered occupational therapist or physiotherapist with an eligible mobility device, and some income-support programs cover the full cost. Not every product qualifies, so talk to us before you buy. March of Dimes Canada, Veterans Affairs Canada (VAC), and community programs can also help. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through.
Delivery and setup in Brampton and the GTA
Westin's own team delivers and fits this back support across Brampton and the Greater Toronto Area. We bring it in, mount it on the wheelchair canes, and show you the EasySet adjustments before we leave.
We have three stores in the Brampton and Toronto area if you would rather see a wheelchair back support first. For a scheduled in-home setup, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service; purchased seating is delivered and fitted on a scheduled date.
If the back support is going outside the GTA, ask us for a freight quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.
Related wheelchair back supports from Westin
- Invacare Matrx E2, the 3 in E2 in 18 and 20 in heights
- Invacare Matrx Elite Deep 18 x 18, the older 6 in Elite
- Invacare Matrx MAC Hug, the adjustable-contour Matrx back
Service and warranty
When something on the back support needs work, you call the shop that fitted it, not a distant parts desk. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.
Invacare Matrx manufacturer warranty
Invacare and Motion Concepts warrant the original purchaser 2 years on materials and workmanship. The term does not cover punctures, tears, burns, or the removable cover. We handle the warranty claim with you. Ask us if an extended warranty is offered for your order.
Frequently asked questions
Is This the 16 x 18 E2 Deep?
Yes. The Invacare Matrx E2 Deep sold here is factory E2D1618: 16 in wide, 18 in high, 6 in contour, fits a 15-18 in wheelchair width. Other E2 Deep sizes can be ordered through the shop.
How Is E2 Deep Different From the 3 in E2?
The Invacare Matrx E2 Deep uses a 6 in contour. The standard E2 uses a 3 in contour. Westin's E2 Deep here is the 16 x 18 only.
What Size Wheelchair Cushion Do I Need?
Size the seat cushion to the sling. This Invacare Matrx E2 Deep is a 16 x 18 back for a 15-18 in cane width. We confirm the cushion and the back with you or the seating therapist.
How Do I Choose Between Gel, Foam, and Air Cushions?
The Invacare Matrx E2 Deep is a foam back, not a seat cushion. Gel and air seats such as the JAY Ion and the ROHO High Profile are chosen separately with the seating therapist.
Does ADP Cover Wheelchair Cushions?
Some Ontario routes can help with a wheelchair cushion or back support when an assessment supports it. Eligibility depends on the person's situation. Call (905) 451-7743 or use the funding page before you buy.
What Cane Diameter Does the E2 Deep Fit?
The Invacare Matrx E2 Deep EasySet hardware fits 3/4 in, 7/8 in, and 1 in back canes.
What Is the Weight Capacity of the E2 Deep?
The Invacare Matrx E2 Deep 16 x 18 is rated at 300 lb (136 kg).
Does the 16 x 18 Include a Headrest Mount?
Yes. Motion Concepts includes a headrest interface on E2 backs 14 in and higher, which includes this 18 in high Deep. The headrest pad is separate.
What Is Ripple Foam?
On the Invacare Matrx E2 Deep, Ripple Foam is Motion Concepts' rippled HR pad with airflow channels and a solid backing. The maker designed it for temperature and humidity control and for immersion at the spine.
What Is the E2 Deep Warranty?
Invacare and Motion Concepts warrant the Invacare Matrx E2 Deep for 2 years on materials and workmanship for the original purchaser. Punctures, tears, burns, and the removable cover are excluded.
Specifications
| Brands | Invacare |
|---|---|
| Warranty | 2 years materials and workmanship; excludes punctures, tears, burns, removable cover |
| Weight Capacity | 300 lb (136 kg) |
| Backrest Type | Foam positioning back, 6 in E2 Deep contour |
| Laterals | Extra Large, Large, Medium, Small |
| Height Options | 18 in sold here only; family 6-20 in exists at factory |
| Cover Material | Moisture-resistant breathable Meshtex |
| Width Options | 16 in sold here only; family 14-20 in exists at factory |
| Fits Wheelchair Widths | 15-18 in for E2D1618 |
| Contour Depth Options | Two depths for midline support |
| Foam Technology | Ripple Foam; airflow channels and solid HR backing |
| Optional Slipcover | Matrx Protect Slipcover with welded seams |
| ADP Device Code (18"-20" Back Height ) | SE0001778 |
| ADP Device Code (6"-16" Back Height ) | SE0001777 is not this 18 in high SKU |
| Contour Depth | 6 in E2 Deep (E2D); not the 3 in E2S |
| Hardware Compatibility | 3/4 in, 7/8 in, and 1 in canes; EasySet on 18 in high |
| ADP Device Code | SE0001778 (18 and 20 in high E2D). SE0001777 is 6-16 in high Deep |
| Invacare Model | E2D1618 Elite E2 Deep 16 x 18 |
