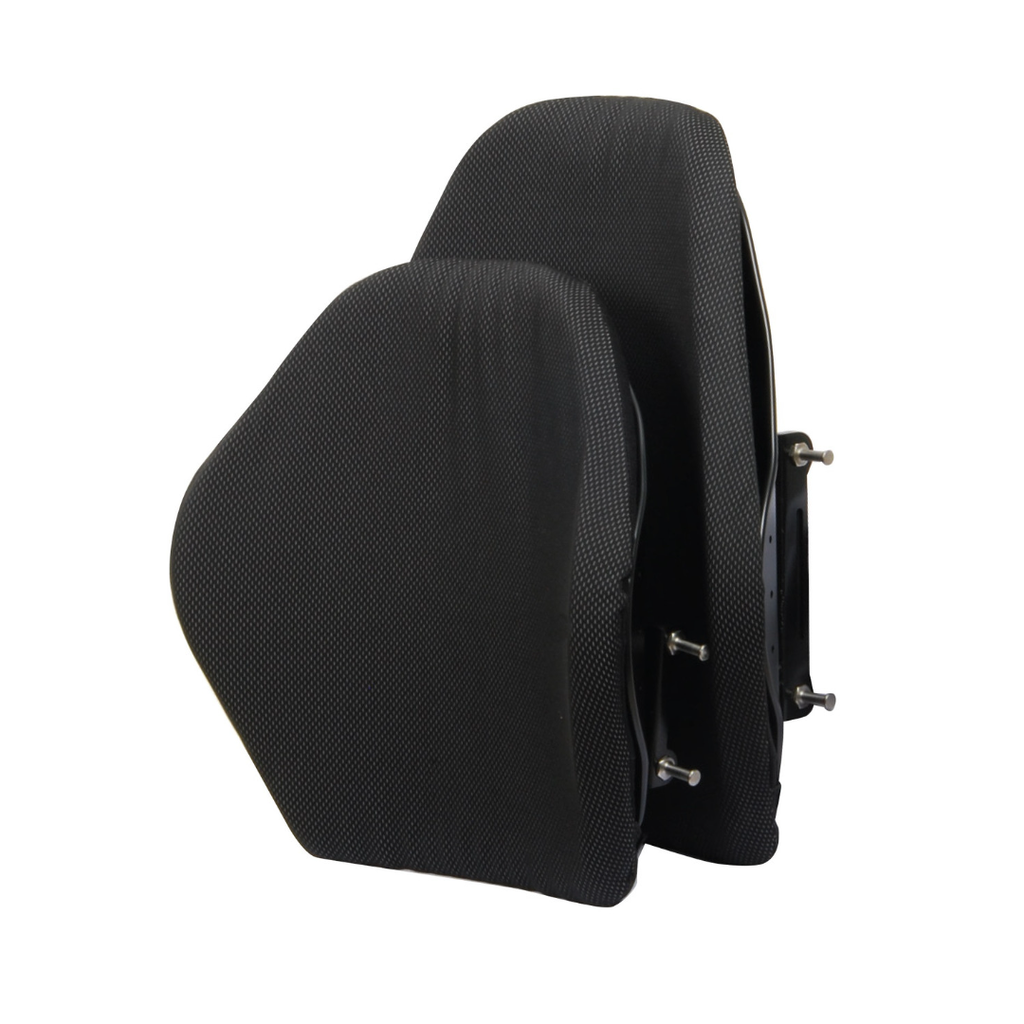

Invacare Matrx E2 Back 18 in and 20 in Standard Contour (SE0001776)

The Invacare Matrx E2 Back is Invacare and Motion Concepts' newer Elite-series wheelchair back support with Ripple Foam, EasySet hardware, and a 300 lb (136 kg) rating. Westin Healthcare sells the 18 in and 20 in high standard-contour sizes and fits them for homes in Brampton and the Greater Toronto Area. It is the E2S 3 in contour. It is not the 6 in E2 Deep and it is not the older PBE Elite.

The sizes we sell here are factory E2S1418, E2S1420, E2S1618, E2S1620, E2S1818, E2S1820, E2S2018, and E2S2020: widths 14, 16, 18, and 20 in (36-51 cm) and heights 18 and 20 in (46-51 cm). Use Back Width and Back Height to pick those. Shorter 6-16 in E2 heights are a different Westin page.

Who this back support is for

This wheelchair back support is for a person who stays at or under 300 lb and wants the newer Matrx Elite series: Ripple Foam, a notched sacral cutout, and EasySet pins that still adjust with the person seated. It suits a standard 3 in contour, not a 6 in deep wrap.

If you want the older 3 in Elite, see the Matrx Elite. If you want the 6 in E2 in 16 x 18, see the Matrx E2 Deep 16 x 18.

• Ripple Foam with airflow channels and a solid HR backing
• EasySet hardware on these 18 in and 20 in heights
• Meshtex cover; optional Protect slipcover on selected sizes

Fit, contour, and hardware

The Invacare Matrx E2 sold here is the 3 in standard contour. EasySet (standard on 18 in and 20 in highs) fits a chair 1 in narrower or 2 in wider than the back. Hardware fits 3/4 in, 7/8 in, and 1 in canes. Angle is a 40 degree range. Depth is 2 in in front of or behind the canes. Rotation can be set with the person seated.

A 14 in E2S sits on chairs 13-16 in wide. A 16 in sits on 15-18 in. An 18 in sits on 17-20 in. A 20 in sits on 19-22 in. Headrest interface is included on 14 in and higher, so every 18 in and 20 in size includes it.

Foam, cover, and care

Motion Concepts Ripple Foam uses airflow channels for temperature and humidity, a rippled top for immersion, and a solid HR backing. Extra immersion sits in the spinal relief area. The Meshtex cover is moisture-resistant and breathable and overlaps the shell. Optional Matrx Protect is a Startex slipcover with welded seams on 16, 18, and 20 in widths by 16, 18, and 20 in heights.

Follow the Elite-family care line unless the E2 manual on the order says otherwise: wipe light soil, rinse, and dry. Remove the foam before any machine wash of the cover.

Invacare Matrx E2 Back specifications

These figures are for the E2S 18 in and 20 in high sizes on Motion Concepts' E2 sell sheet and Canadian order form. The specification tab holds the stored values. A stored 6-16 in height range belongs to the shorter E2 page, not these SKUs.

Contour 3 in. Capacity 300 lb (136 kg). Widths 14, 16, 18, and 20 in. Heights 18 and 20 in. Warranty 2 years on materials and workmanship for the original purchaser, excluding punctures, tears, burns, and the removable cover. Motion Concepts does not print a unit weight on the E2 sheet.

Width and height

Use Back Width to pick 14, 16, 18, or 20 in and Back Height to pick 18 or 20 in. A 14 in height is not one of the factory SKUs we stock here. Ask us about the shorter E2 range if you need 6-16 in high.

E2, Elite, or E2 Deep

E2 is the newer Elite series with Ripple Foam. The Matrx Elite is the older 3 in PBE. The E2 Deep 16 x 18 is the 6 in contour in one size. The Matrx MAC Hug is the adjustable-contour back for mild asymmetry.

Foam back support, gel cushions, and air cushions

The Invacare Matrx E2 Back is a foam wheelchair back support. A gel or air seat cushion is a different product. See the JAY Ion or the ROHO High Profile when the seating therapist is choosing the seat. The E2 does not replace a pressure-management seat cushion.

Funding help for a wheelchair cushion or back support in Ontario

This cushion or back support is an ADP positioning device category item. Ontario's Assistive Devices Program (ADP) can fund 75% of the cost of positioning devices such as cushions and back supports when they are prescribed through an assessment by an ADP-registered occupational therapist or physiotherapist with an eligible mobility device, and some income-support programs cover the full cost. Not every product qualifies, so talk to us before you buy. March of Dimes Canada, Veterans Affairs Canada (VAC), and community programs can also help. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through.

Delivery and setup in Brampton and the GTA

Westin's own team delivers and fits this back support across Brampton and the Greater Toronto Area. We bring it in, mount it on the wheelchair canes, and show you the EasySet adjustments before we leave.

We have three stores in the Brampton and Toronto area if you would rather see a wheelchair back support first. For a scheduled in-home setup, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service; purchased seating is delivered and fitted on a scheduled date.

If the back support is going outside the GTA, ask us for a freight quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.

Related wheelchair back supports from Westin

• Invacare Matrx E2 Deep 16 x 18, the 6 in E2 in one size
• Invacare Matrx Elite, the older 3 in Elite
• Invacare Matrx MAC Hug, the adjustable-contour Matrx back

Service and warranty

When something on the back support needs work, you call the shop that fitted it, not a distant parts desk. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.

Invacare Matrx manufacturer warranty

Invacare and Motion Concepts warrant the original purchaser 2 years on materials and workmanship. The term does not cover punctures, tears, burns, or the removable cover. We handle the warranty claim with you. Ask us if an extended warranty is offered for your order.

Frequently asked questions

Is the Matrx E2 the Same as the Elite Back?

No. The Invacare Matrx E2 Back is Motion Concepts' newer Elite series with Ripple Foam and updated pins. The Matrx Elite is the older PBE 3 in back. Both are current.

What Heights Are on This E2 Page?

This Invacare Matrx E2 page is 18 in and 20 in high in 14, 16, 18, and 20 in widths. Shorter 6-16 in E2 heights are a different Westin page.

What Size Wheelchair Cushion Do I Need?

Size the seat cushion to the sling. Size the Invacare Matrx E2 Back to the trunk. Use Back Width and Back Height, then match the fit band (a 16 in E2 sits on a 15-18 in chair).

How Do I Choose Between Gel, Foam, and Air Cushions?

The Invacare Matrx E2 Back is a foam back, not a seat cushion. Gel and air seats such as the JAY Ion and the ROHO High Profile are chosen separately with the seating therapist.

Does ADP Cover Wheelchair Cushions?

Some Ontario routes can help with a wheelchair cushion or back support when an assessment supports it. Eligibility depends on the person's situation. Call (905) 451-7743 or use the funding page before you buy.

What Is Ripple Foam?

On the Invacare Matrx E2 Back, Motion Concepts Ripple Foam is a rippled HR pad with airflow channels and a solid backing. The maker designed it for temperature and humidity control and for immersion at the spine. It is not a gel or air seat cushion.

What Cane Diameter Does the E2 Fit?

The Invacare Matrx E2 EasySet hardware fits 3/4 in, 7/8 in, and 1 in back canes. Inserts for 3/4 in and 7/8 in are included.

What Is the Weight Capacity of the E2?

The Invacare Matrx E2 Back is rated at 300 lb (136 kg) on the official sheet.

Does the E2 Include a Headrest Mount?

Yes. Motion Concepts includes a headrest interface on E2 backs 14 in and higher. Every size on this 18 in and 20 in page includes it. The headrest pad is separate.

What Is the E2 Warranty?

Invacare and Motion Concepts warrant the Invacare Matrx E2 Back for 2 years on materials and workmanship for the original purchaser. Punctures, tears, burns, and the removable cover are excluded.
