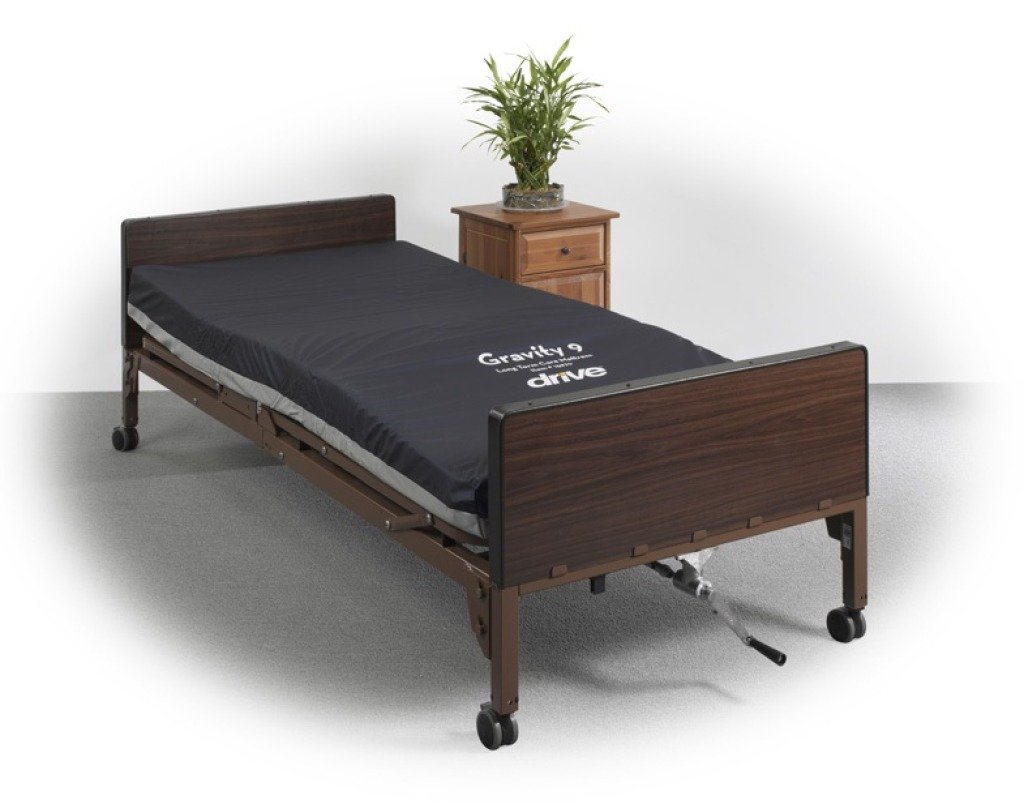

Gravity 9 Mattress Long Term Care

The Drive Gravity 9 is Drive Medical's premium long-term-care foam mattress, sold as the Gravity 9 Premium Long Term Care Pressure Redistribution Mattress. Westin Healthcare sells it, delivers it, and sets it on the bed for homes in Brampton and the Greater Toronto Area. It is the top Gravity foam surface: a full open-cell memory-foam top, a sloped channel-cut heel, and a 450 lb Drive rating, in 36-, 39-, and 42-inch widths.

This is a foam mattress, not an air system. There is no pump and no motor. Drive lists the family at 6 inches thick. The cover is a removable multi-stretch polyurethane surface. Drive's current Gravity 9 sheet lists a 15-year limited foam warranty and a 3-year cover warranty.

Who this mattress is for

This mattress is for a person who needs more immersion than Gravity 7 or Gravity 8, still without a pump. The memory-foam top is the difference. Families usually pick it as the top foam choice on a Drive Delta 1000 or a Drive Delta 15235, or they pick the 42-inch SKU for a Drive 15300LW 42-inch bariatric bed.

Choose Gravity 9 when the therapist has asked for a memory-foam pressure-redistribution surface. If a die-cut foam top is enough, the Gravity 8 is the step down. If the person needs a self-adjusting air/foam surface, see the Drive Balanced Aire. If they need 48 inches, Gravity 9 is the wrong width.

• Home care on a 36-inch hospital bed when a memory-foam top is what was asked for
• A 39-inch deck, including some Twin XL consumer bases, using Drive SKU G9-39X80X6
• A 42-inch Drive bariatric deck using 15970-4280 or 15970-4284

Construction and how it works

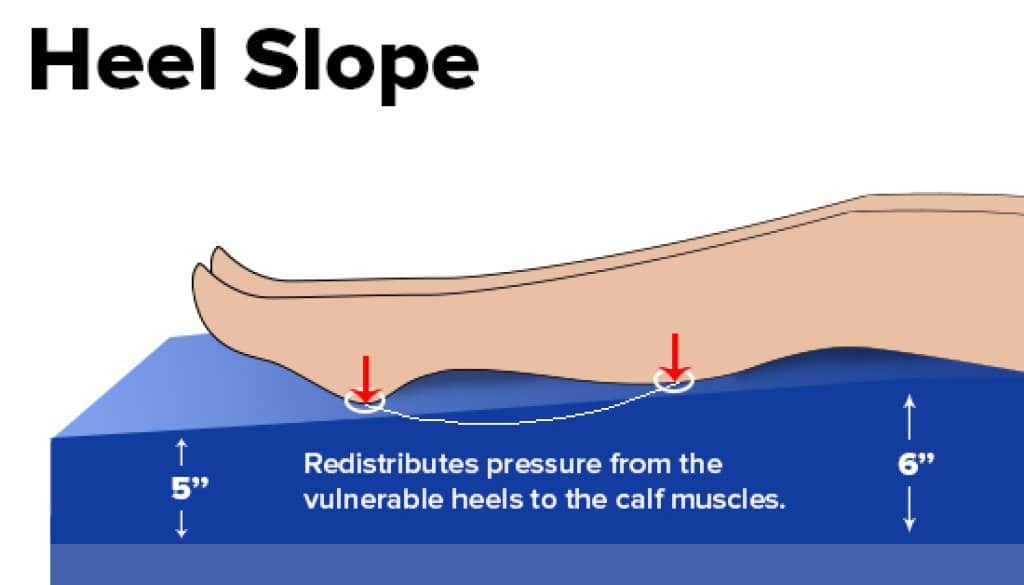

Gravity 9 is Drive's premium Gravity foam mattress. The full top layer is open-cell, visco-elastic memory foam. Drive's words are that this layer "improves immersion and pressure redistribution." The heel section is sloped, with a channel-cut foam centre. High-density foam perimeters stiffen the edges. The bottom layer has full-length horizontal articulation cuts so the foam can bend when the bed moves.

The cover is removable multi-stretch polyurethane. Drive lists it as fluid resistant, low shear, and vapor permeable. Drive's Gravity series manual says to wipe the cover, not to launder it, and not to open the zipper while you clean. Raised rails, when you pick 15977, are an elevated foam perimeter, not metal bed rails.

Gravity 9 specifications

These figures are for the Drive Gravity 9 family we sell. The specification tab holds the stored values. Drive's current sheet lists a 450 lb weight capacity and a 6-inch height. Official widths on this picker are 36, 39, and 42 inches. Official lengths are 76, 80, and 84 inches, depending on the SKU.

Drive's current Gravity 9 sheet lists a 15-year limited foam warranty and a 3-year cover warranty for the original purchaser. That sheet does not print a shorter foam term for 42-inch widths. The mattress meets flammability standards CFR 1632 and CFR 1633. Replacement covers include 15970C, 15977C, 15984C, and 15996C.

Choose Mattress Size

Use Choose Mattress Size to set the Drive SKU. The picker lists:

• 36"W x 76"L x 6"H (15996)
• 36"W x 80"L x 6"H (15970)
• 36"W x 80"L x 6"H (15977) - WITH RAISED RAILS
• 36"W x 84"L x 6"H (15984)
• 42"W x 80"L x 6"H (15970-4280)
• 42"W x 84"L x 6"H (15970-4284)
• 39"W x 80"L x 6"H (G9-39X80X6)

Match width and length to the sleep deck. 15970 is the usual 36 x 80 homecare size. 15970-4280 is the 42-inch match for the Drive 15300LW. Drive also lists 15970-4280-RR, a 42-inch raised-rail SKU; we do not offer that option on this picker. Call (905) 451-7743 if that is the SKU the therapist wrote down.

Funding help for a therapeutic mattress in Ontario

Ontario's Assistive Devices Program (ADP) does not cover hospital beds or mattresses, so plan around other routes. Funding that may help instead: ODSP, March of Dimes Canada, Veterans Affairs Canada (VAC), hardship funding programs, and community programs. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through before you buy.

Delivery and setup in Brampton and the GTA

Westin's own team delivers and sets up this mattress across Brampton and the Greater Toronto Area. We bring it in, place it on the bed, and check the fit before we leave.

We have three stores in the Brampton and Toronto area if you would rather see a mattress first. For a scheduled in-home setup, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service; purchased mattresses are delivered and set up on a scheduled date.

Hospital mattresses are oversized. The Canada-wide free ground-shipping offer on smaller goods does not apply. If the mattress is going outside the GTA, ask us for a freight quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.

Which Westin beds this mattress fits

A 36 x 80 Gravity 9 fits the Drive Delta 1000, the Drive Delta 15235, and the Drive SoLite Pro. A 42 x 80 Gravity 9 fits the Drive 15300LW 42-inch bariatric bed. A 39 x 80 Gravity 9 is the Twin XL conversation; ask us if you are pairing it with a Harmony 3. It does not fit a 48- or 54-inch deck.

Service and warranty

When something on the mattress needs work, you call the shop that delivered it, not a US parts desk. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.

Drive manufacturer warranty

Drive's current Gravity 9 spec sheet covers the original purchaser with a 15-year limited foam warranty and a 3-year cover warranty. Drive's Gravity series manual also asks for a wipe-clean cover, a check every three months, and a compression test: foam compressed beyond 25 percent is a warranty replacement condition. We handle the claim with you.

Frequently asked questions

How is Gravity 9 different from Gravity 8?

Gravity 9 has a full open-cell memory-foam top and a 450 lb Drive rating. Gravity 8 has a die-cut foam top and a 400 lb rating. Both are quiet foam mattresses with a sloped, channel-cut heel. Gravity 9 is also the Gravity model Drive currently lists in 39-inch and 42-inch widths.

How is Gravity 9 different from an alternating-pressure mattress?

Gravity 9 is foam. The memory-foam top lets the person sink in. An alternating-pressure mattress uses a pump to move air through cells on a cycle. There is no pump and no motor noise on Gravity 9.

How do I clean the Gravity 9 cover?

Drive's Gravity series manual says to wipe the top and bottom covers with warm water and a mild detergent, or with a recommended disinfectant. For the stretch top, Drive recommends a quaternary cleaner. Do not open the zipper while you clean. Do not launder or autoclave the cover.

What is the weight rating on Gravity 9?

Drive lists 450 lbs for the Gravity 9 family, including the 42-inch SKUs. If the person is near that limit on a wider bed, ask us about ShearCare 1500 or a Drive bariatric foam mattress.

What size Gravity 9 fits a standard hospital bed?

A 36 x 80 deck takes 15970, or 15977 with the elevated foam perimeter. A 42 x 80 Drive bariatric deck takes 15970-4280. A 39 x 80 deck takes G9-39X80X6. Measure the deck before you pick Choose Mattress Size.

Does Gravity 9 have a pump or make noise?

No. It is a foam mattress. There is nothing to plug in and nothing to cycle.

What is the warranty on the Gravity 9 mattress?

Drive's current Gravity 9 sheet lists a 15-year limited foam warranty and a 3-year cover warranty for the original purchaser. That sheet does not print a shorter foam term for 42-inch widths. Westin Healthcare processes the warranty work.

Can funding help pay for this mattress in Ontario?

Several Ontario funding routes can help with a therapeutic support surface. Eligibility depends on the person's situation and assessment. Call (905) 451-7743 and we will point you to the right route before anyone starts paperwork.

Can I rent a mattress like this before I buy?

Westin Healthcare rents hospital beds with a therapeutic medical mattress included. See current packages on the hospital bed rentals page. If you later buy a Gravity 9, ask about the Rental to Purchase First Month Credit program so we can apply the program rules.

What is included with the Gravity 9?

You get the Drive Gravity 9 foam mattress in the SKU you pick under Choose Mattress Size. Metal bed rails, a pump, and the bed frame are sold on the bed pages, not in this carton.

Does Gravity 9 come in 48-inch or 54-inch widths?

No. Drive's current Gravity 9 list stops at 42 inches. For 48 inches see the ShearCare 1500 or the Drive 15310. For 54 inches see the Drive 15312.
