Gravity 8 Mattress Long Term Care 15870

The Drive Gravity 8 is Drive Medical's deluxe long-term-care foam mattress, sold as the Gravity 8 Deluxe Long Term Care Pressure Redistribution Mattress. Westin Healthcare sells it, delivers it, and sets it on the bed for homes in Brampton and the Greater Toronto Area. It sits between the Gravity 7 and the Gravity 9: still a quiet three-layer foam surface, with a sloped, channel-cut heel and a 400 lb Drive rating.

This is a foam mattress, not an air system. There is no pump and no motor. Drive lists the family at 6 inches thick in 36-inch widths. The cover is a removable stretch surface with a fluid-resistant nylon top and a waterproof vinyl bottom. Drive's current Gravity 8 sheet lists a 10-year limited foam warranty and a 3-year cover warranty.

Who this mattress is for

This mattress is for a person who needs more heel offloading than Gravity 7, on a 36-inch hospital bed, without moving to a powered air system. Families usually pick it as the middle Choose Mattress step on a Drive Delta 1000, a Drive Delta 15235, or a Drive SoLite Pro.

Choose Gravity 8 when the therapist has asked for a zoned foam mattress with a sloped heel. If 350 lbs and a visco heel section are enough, start with Gravity 7. If the person needs a full memory-foam top or a 450 lb rating, see Gravity 9. If they need a 42-inch deck, Gravity 8 is the wrong width; Gravity 9 has a 42-inch SKU.

• Home care on a 36-inch hospital bed when heel protection is part of the care plan
• Long-term care when a 400 lb foam replacement is what the facility asked for
• Anyone who wants a quiet foam surface with a firmer edge for transfers

Construction and how it works

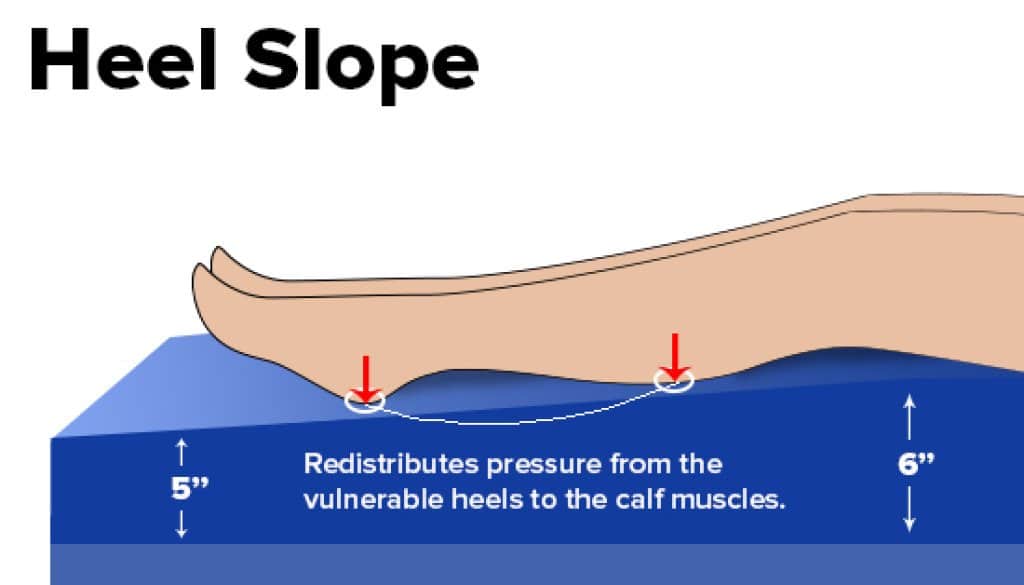

Gravity 8 is a three-layer latex-free foam mattress. The full-width top layer is die-cut for zoned pressure redistribution. The heel section is sloped, with a channel-cut foam centre, so the heel sits lower than the calf. Drive's words are that this "offloads pressure from vulnerable heels." That is a construction claim, not a promise that a wound will heal.

The bottom layer has full-length horizontal articulation cuts so the foam can bend when the bed head or foot moves. High-density foam perimeters stiffen the edges. The cover stretches, resists fluid, and is vapor permeable. It zips off. Drive's Gravity series manual says to wipe the cover, not to launder it, and not to open the zipper while you clean.

SKU 15888 is the 80-inch mattress with an elevated foam perimeter. That perimeter is not a metal bed rail.

Gravity 8 specifications

These figures are for the Drive Gravity 8 family we sell. The specification tab holds the stored values. Drive's current sheet lists a 400 lb weight capacity, a 6-inch height, and three foam layers. Official lengths are 76, 80, and 84 inches. Official width is 36 inches. Official raised-rail SKU is 15888, 36 x 80 only.

Drive's current Gravity 8 sheet lists a 10-year limited foam warranty and a 3-year cover warranty for the original purchaser. The spec table prints fire rating CFR 16 Part 1633; the feature bullets also name CFR 1632. Replacement covers are Drive parts 15870C, 15884C, 15886C, and 15888C.

Choose Mattress Size

Use Choose Mattress Size to set the Drive SKU. The picker lists:

• 36"W x 76"L x 6"H (15886)
• 36"W x 80"L x 6"H (15870), the usual match for an 80-inch hospital-bed deck
• 36"W x 84"L x 6"H (15884)
• 36"W x 80"L x 6"H (15888) WITH RAISED RAILS

Match the mattress length to the sleep deck. Drive does not currently list a 76-inch or 84-inch Gravity 8 with raised rails. If you need an elevated perimeter on those lengths, call (905) 451-7743 before you order.

Funding help for a therapeutic mattress in Ontario

Ontario's Assistive Devices Program (ADP) does not cover hospital beds or mattresses, so plan around other routes. Funding that may help instead: ODSP, March of Dimes Canada, Veterans Affairs Canada (VAC), hardship funding programs, and community programs. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through before you buy.

Delivery and setup in Brampton and the GTA

Westin's own team delivers and sets up this mattress across Brampton and the Greater Toronto Area. We bring it in, place it on the bed, and check the fit before we leave.

We have three stores in the Brampton and Toronto area if you would rather see a mattress first. For a scheduled in-home setup, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service; purchased mattresses are delivered and set up on a scheduled date.

Hospital mattresses are oversized. The Canada-wide free ground-shipping offer on smaller goods does not apply. If the mattress is going outside the GTA, ask us for a freight quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.

Which Westin beds this mattress fits

Gravity 8 in 36 x 80 belongs on a standard Drive homecare deck. It is a Choose Mattress option on the Drive Delta 1000, the Drive Delta 15235, and the Drive SoLite Pro. A 36 x 84 Gravity 8 fits those frames after a deck extension. It does not fit a 42-, 48-, or 54-inch bariatric bed.

Service and warranty

When something on the mattress needs work, you call the shop that delivered it, not a US parts desk. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.

Drive manufacturer warranty

Drive's current Gravity 8 spec sheet covers the original purchaser with a 10-year limited foam warranty and a 3-year cover warranty. Drive's Gravity series manual also asks for a wipe-clean cover, a check every three months, and a compression test: foam compressed beyond 25 percent is a warranty replacement condition. We handle the claim with you.

Frequently asked questions

How is Gravity 8 different from Gravity 7?

Both are three-layer Drive foam mattresses with a wipe-clean stretch cover. Gravity 8 adds a sloped, channel-cut heel and a 400 lb Drive rating. Gravity 7 uses a visco foam heel section and is rated 350 lbs. Gravity 8's current foam warranty is 10 years; Gravity 7's is 7 years.

How is Gravity 8 different from an alternating-pressure mattress?

Gravity 8 is foam. The surface stays still. An alternating-pressure mattress uses a pump to move air through cells on a cycle. There is no pump and no motor noise on Gravity 8.

How do I clean the Gravity 8 cover?

Drive's Gravity series manual says to wipe the top and bottom covers with warm water and a mild detergent, or with a recommended disinfectant. For the stretch top, Drive recommends a quaternary cleaner. Do not open the zipper while you clean. Do not launder or autoclave the cover. Let it air dry out of direct sun.

What is the weight rating on Gravity 8?

Drive's current sheet lists 400 lbs. If the person is near that limit, or you need a wider deck, ask us about Gravity 9 in 42 inches or a Drive bariatric foam mattress.

What size Gravity 8 fits a standard hospital bed?

Most Drive homecare beds we sell have a 36 x 80 sleep deck, which takes SKU 15870, or 15888 if you want the elevated foam perimeter. Use 15886 on a 76-inch deck and 15884 on an 84-inch deck.

Does Gravity 8 have a pump or make noise?

No. It is a foam mattress. There is nothing to plug in and nothing to cycle.

What is the warranty on the Gravity 8 mattress?

Drive's current Gravity 8 sheet lists a 10-year limited foam warranty and a 3-year cover warranty for the original purchaser. Westin Healthcare processes the warranty work.

Can funding help pay for this mattress in Ontario?

Several Ontario funding routes can help with a therapeutic support surface. Eligibility depends on the person's situation and assessment. Call (905) 451-7743 and we will point you to the right route before anyone starts paperwork.

Can I rent a mattress like this before I buy?

Westin Healthcare rents hospital beds with a therapeutic medical mattress included. See current packages on the hospital bed rentals page. If you later buy a Gravity 8, ask about the Rental to Purchase First Month Credit program so we can apply the program rules.

What is included with the Gravity 8?

You get the Drive Gravity 8 foam mattress in the SKU you pick under Choose Mattress Size. Metal bed rails, a pump, and the bed frame are sold on the bed pages, not in this carton.

Does the raised-rail option replace metal side rails?

No. 15888 is an elevated foam perimeter on the 80-inch mattress. Metal half rails or full rails bolt to the bed frame and are chosen on the bed page.
