Description

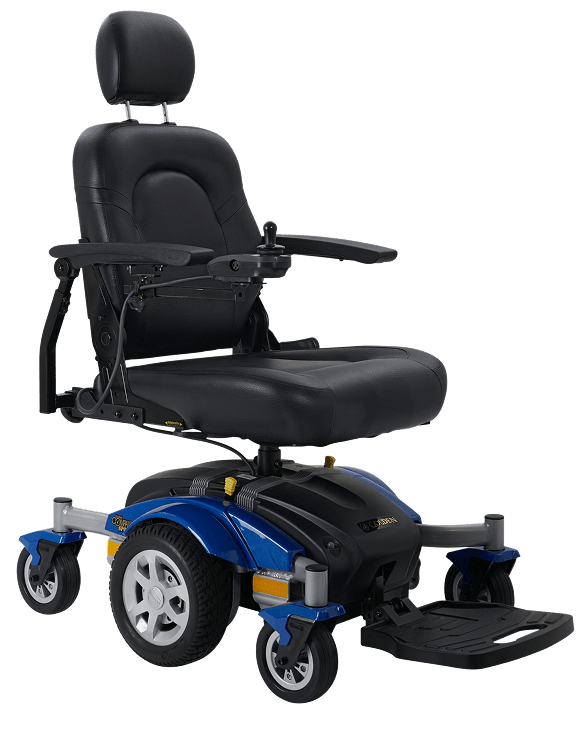

The Golden Compass Sport is Golden Technologies' GP605 center-wheel power wheelchair. Westin Healthcare sells it and delivers it for homes in Brampton and the Greater Toronto Area. The person drives with the Dynamic LiNX joystick.
Golden lists a 300 lb (136 kg) rating, speeds up to 4 mph (6.4 km/h), a 24 inch (61 cm) turning radius, and up to 24 miles (38.6 km) per charge on the standard U1 pair. Optional 50 Ah batteries raise that figure to 34 miles (54.7 km). The assembled chair weighs 179 lbs (81.2 kg).
Who this chair is for
This chair is for a person who wants a full-size center-wheel indoor and outdoor chair, fits a 16, 18, 20, or 22 inch captain seat, and stays at or under the 300 lb rating. Families usually call us when a folding travel chair feels too light for daily outdoor use, or when they want Golden's articulating chassis that keeps all six wheels on the ground.
If you need a 450 lb rating and a 20 inch turn, start with the Golden Compass HD. If you want a chair that folds into a trunk, see the Golden Ally or the Buzzaround CarryOn power wheelchair. The Compass Sport is not a travel folder.
- Center-wheel drive with a springless articulating chassis
- Captain seats Golden sells in 16, 18, 20, and 22 inch widths
- 24 miles (38.6 km) on U1 batteries, or 34 miles (54.7 km) on optional 50 Ah packs
Range, speed, and batteries
The Golden Compass Sport travels up to 24 miles (38.6 km) per charge on the standard pair of U1 batteries. Golden's optional 50 Ah batteries raise that figure to 34 miles (54.7 km). Both printed ranges are at 200 lbs. Heavier riders, hills, and cold weather shorten the day.
Top speed is up to 4 mph (6.4 km/h). The charger is off-board. The controller is a Dynamic LiNX 40 Amp unit with Dynamic Load Compensation. Each U1 pack weighs 22 lbs (10.0 kg). Each 50 Ah pack weighs 30 lbs (13.6 kg). Ask us which battery pair we can put on your order.
Portability and transport
The Compass Sport is a full-size power base. Golden's exclusive fold-flat seat hinge lets the captain seat fold down for a van or a larger trunk. The chair does not fold like a Cricket or an Ally, and it does not take apart like a LiteRider Envy. The heaviest pieces are the 97 lb (44.0 kg) base and the 40 lb (18.1 kg) seat with arms.
The U1 and 50 Ah packs are sealed lead-acid. Golden does not print those packs as airline-friendly. This is a home-and-community chair, not a flight chair.
Golden Compass Sport specifications
These figures are for Golden model GP605, as printed on Golden Canada's SHT-GP605-CAN-0326 sell sheet. The specification tab holds the stored values.
Weight capacity 300 lbs (136 kg). Maximum incline 6 degrees. Top speed up to 4 mph (6.4 km/h). Turning radius 24 inches (61 cm). Length 39.5 inches (100 cm). Width 24 inches (61 cm) outside the tires. Height to the top of the back 40 to 42 inches. Height to the headrest 47 to 52.5 inches. Seat-to-ground 19 to 21 inches in three 1 inch steps. Ground clearance 3.25 inches (8.3 cm). Center drive 10 inches. Casters 6 inches. Flat-free tires. Center-wheel drive.
Standard captain seat 18 by 18/20 inches, back 23 inches, with headrest 30.5 to 34.5 inches, black vinyl. Golden also sells 16, 18, 20, and 22 inch widths by 16, 18, or 20 inch depths. Padded flip-up arm supports. Arms height, width, and angle adjustable. Footrest height 2.5 to 4.5 inches and angle 0 to 10 degrees. Colours Golden sells are Red and Blue.
Do not mix these numbers with the Compass HD (450 lb, NF-22, 20 inch turn, 12 miles at max capacity).
Warranty on the Canada sell sheet is lifetime on the frame, 13 months on the drive train, 13 months on electronics, and 12 months on the batteries. That lifetime frame term matches Golden Canada's power-chair warranty insert for GP605.
Compass Sport or Compass HD
The Compass Sport is Golden's 300 lb, 24 inch-turn center-wheel chair with U1 batteries and a lifetime frame term. The Compass HD is Golden's 450 lb, 20 inch-turn sister with NF-22 batteries and a 5-year frame term. They share the articulating chassis. Pick Sport for the lighter daily chair and the longer printed range. Pick HD for the 450 lb rating and the wider captain seats up to 24 inches.
Funding help for a power wheelchair in Ontario
Ontario's Assistive Devices Program (ADP) can fund 75% of the cost of a power wheelchair when the need is long-term and the chair is prescribed through an assessment by an ADP-registered occupational therapist or physiotherapist, and some income-support programs cover the full cost. Not every chair qualifies, so talk to us before you buy. March of Dimes Canada, Veterans Affairs Canada (VAC), and community programs can also help. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through.
Delivery and setup in Brampton and the GTA
Westin's own team delivers and sets up this power wheelchair across Brampton and the Greater Toronto Area. We bring it in, fit the captain seat, and show you the LiNX joystick, the freewheel levers, and the charger before we leave.
We have three stores in the Brampton and Toronto area if you would rather see a chair first. For a scheduled in-home setup, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service; purchased chairs are delivered and set up on a scheduled date.
This power wheelchair is a full-size base. If it is going outside the GTA, ask us for a freight quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.
Related mobility products from Westin
- Golden Compass HD, the 450 lb center-wheel sister
- Golden BuzzAbout GP-164, the compact take-apart captain
- Golden Ally, the 330 lb folding travel chair
Service and warranty
When something on the chair needs work, you call the shop that set it up, not a distant parts desk. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.
Golden manufacturer warranty
Golden Canada's Compass Sport sell sheet prints a lifetime limited term on the frame, 13 months on the drive train, 13 months on electronics, and 12 months on the batteries for the original purchaser. Wear items such as tires and shrouds sit outside that term. Gradual battery wear from storage, cold, or heavy use is outside the battery term. We handle the warranty claim with you. Ask us if an extended warranty is offered for your order.
Frequently asked questions
How Far Will The Compass Sport Go On One Charge?
The Golden Compass Sport travels up to 24 miles (38.6 km) per charge on the standard U1 pair, or up to 34 miles (54.7 km) on optional 50 Ah batteries. Golden's footnote says those figures are at 200 lbs and change with weight, terrain, and battery type.
Is The Compass Sport A Mid-Wheel Chair?
The Golden Compass Sport is a center-wheel drive chair. Golden's springless articulating chassis is built to keep all six wheels on the ground over thresholds and mild outdoor surfaces.
What Seat Widths Can I Order?
Golden sells the Compass Sport captain seat in 16, 18, 20, and 22 inch widths, with 16, 18, or 20 inch depths. The standard printed seat is 18 by 18/20 inches. Ask us which width we can put on your order.
What Is The Weight Capacity?
The Golden Compass Sport is rated at 300 lbs (136 kg). Stay at or under that rating. The 450 lb chair in this line is the Compass HD.
Does The Compass Sport Fold For Travel?
The Golden Compass Sport does not fold like a Cricket or an Ally. Golden's fold-flat seat hinge lets the captain seat fold down on a full-size base. It is not a travel folder and it is not airline lithium.
What Is The Turning Radius?
The Golden Compass Sport has a 24 inch (61 cm) turning radius on Golden Canada's sell sheet. That is the figure we use, not the older 19.5 inch marketing line on the product card.
What Colours Can I Order?
Golden sells the Compass Sport in Red and Blue solid colour shrouds. Ask us which colour we can put on your order.
How Is This Different From The Compass HD?
The Golden Compass Sport is the 300 lb, 24 inch-turn, U1 chair with a lifetime frame term. The Compass HD is the 450 lb, 20 inch-turn, NF-22 chair with a 5-year frame term. They share the articulating chassis and are separate Golden models.
What Is The Warranty?
Golden Canada's Compass Sport sell sheet prints a lifetime limited frame term, 13 months on the drive train, 13 months on electronics, and 12 months on the batteries. Westin Healthcare processes the claim.
Can Funding Help With This Chair In Ontario?
Some Ontario routes can help with mobility equipment. Eligibility depends on the person's situation and assessment. Call (905) 451-7743 or use the funding page before you buy.
Can I Rent A Power Wheelchair Before I Buy?
Westin Healthcare rents some power wheelchairs. The live rental page is a different chair. Ask us whether a Compass Sport can go out as a rental for your dates. Purchased chairs are delivered on a scheduled date.
Specifications
| Colors | Red, Blue |
|---|---|
| Brands | Golden Technologies |
| Warranty | Lifetime frame; 13-mo drive train and electronics; 12-mo batteries (CA sell sheet) |
| Weight Capacity | 300 lbs (136 kg) |
| Caster Size | 6" |
| Compatible Batteries | 2 x U1 standard (22 lbs each); optional 50 Ah (30 lbs each) |
| Drive Terrain Type | Center-wheel drive, springless articulating chassis |
| Driving Range | Up to 24 miles (38.6 km) on U1; up to 34 miles (54.7 km) on 50 Ah, at 200 lbs |
| Foldable | No (fold-flat seat hinge only; full-size base) |
| Ground Clearance | 3.25" |
| Product Weight | 179 lbs assembled; base 97 lbs; seat with arms 40 lbs |
| Top Speed | Up to 4 mph (6.4 km/h) |
| Turning Radius | 24" |
| Wheel Size | 10" center |
| Wheelchair Type | Standard center-wheel power wheelchair |
| Overall Length | 39.5" |
| Overall Width | 24" outside tires |
| Model Number | GP605 |
| Battery Charger | Off-board |
| Drivetrain | Dynamic LiNX 40 Amp, center-wheel |
