Description
The Geo-Matrix Silverback Max is Blake Medical's gel wheelchair back support with a full-face gel layer and a spinal insert, sold here in the Active contour. Westin Healthcare fits it in Brampton and across the Greater Toronto Area after a seating check on the chair. Ontario lists Silverback Max 16, 18, and 20 inch Active as SE0001109.
This is the Max, not the lighter Silverback Prime. The MXA size codes are Max Active. Active contour depth is 2.5 inches (63.5 mm).
Who this back support is for
The Geo-Matrix Silverback Max is a wheelchair back support Blake Medical indicates for extra skin protection and vibration dampening on a power chair, including long periods in tilt. Blake says the spinal gel insert is there for the high-risk area along the spine when the chair tilts or reclines, and that the Max is especially useful when the spine has an over-curvature (kyphosis). The Silverback line is rated 250 lb (113 kg).
A seating therapist should confirm the width, height, and contour. This page does not give clinical positioning advice. If you have questions about wounds, posture, or hardware on a specific chair, ask the therapist who assessed you, or call us and we will book that conversation.
Fit, contour, and hardware
A wheelchair back support should match the chair, not a clothing size. Measure the back canes and the width the person needs. Blake's standard Max matrix uses widths 14, 16, 18, 20, and 22 inches, heights Standard 16 in, Tall 18 in, and Extra-Tall 20 in, plus custom. Active contour is 2.5 in deep. Deep is 4 in. Extra Deep is 6 in. This page is the Active contour.
Use Choose Width and Choose Height for the 16, 18, or 20 inch sizes we stock as standard. The order code is style, width, height, contour: Max Active examples look like MXA-1818. Blake prints 27 standard size configurations and will cut custom height and width.
The quick-release hardware uses a rubber grip around the back canes, a clamp, and a locking catch. Blake prints 45 degrees of angle adjustment and 2 inches of depth adjustment, and says a 16 inch back can sit on an 18 inch chair with 1.5 inch pins. We set the hardware on the chair at delivery.
- Foam and gel thickness 2 in (5.1 cm)

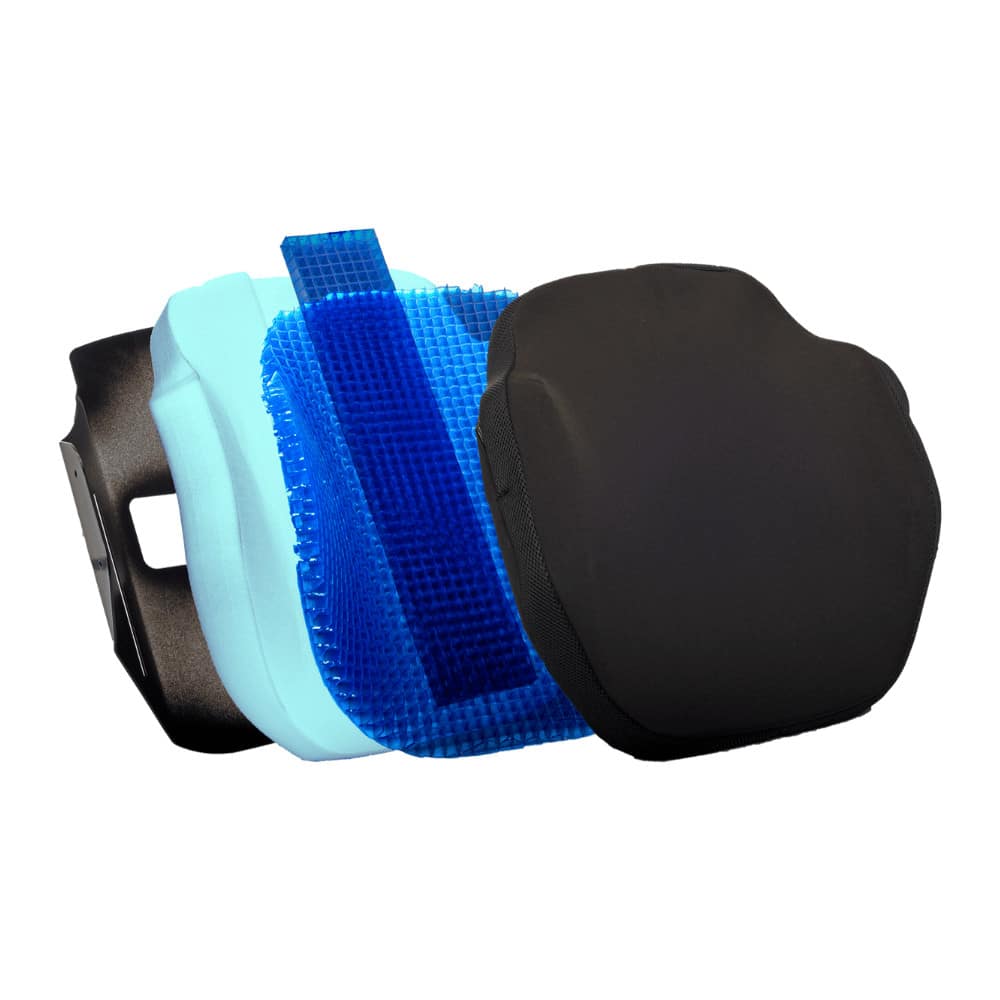

- 1.25 in foam, 3.75 in wide blue gel spinal insert, full pillow-top face
- Weight capacity 250 lb (113 kg)
Gel, cover, and care
The Geo-Matrix Silverback Max is a wheelchair back support with an aluminum shell, high-density foam, a full-height spinal gel insert, and an extra gel layer across the face. Blake's gel is a mineral-oil dry-polymer solid. Blake says it stays in place on a vertical surface and moves with the body in upright or full tilt.
The standard cover is ultra-stretchy breathable fabric. Wipeable fabric is a Blake extra. Follow the cover-care card that ships with the back. Do not use bleach on Geo-Matrix gel.
Geo-Matrix Silverback Max specifications
These figures are from Blake Medical's current Max card and the hosted Silverback brochure. The specification tab holds the stored values.
Thickness 2 in (5.1 cm) foam and gel. Spinal insert 3.75 in wide, full height. Active contour 2.5 in (63.5 mm). Weight capacity 250 lb (113 kg). 27 standard configurations. Custom height and width available. Quick-release hardware with 45 degree angle and 2 in depth travel. Warranty on the live card: 2 years on the backrest, shell, and hardware; 1 year on the cover.
Silverback Max or Silverback Prime
Stay here if you want the Geo-Matrix Silverback Max with the extra gel layer and the Active contour. The Geo-Matrix Silverback Prime Backrest is the lighter sibling: spinal gel insert only, 2.5 in foam-and-gel thickness, same 250 lb rating. Pair a Max with the Geo-Matrix Platinum Cushion or the Geo-Matrix Silver Gel Cushion when the seating therapist wants gel on the seat as well.
A seating therapist should pick Max or Prime. We will not choose it from a web form.
Funding help for a wheelchair cushion or back support in Ontario
This cushion or back support is an ADP positioning device category item. Ontario's Assistive Devices Program (ADP) can fund 75% of the cost of positioning devices such as cushions and back supports when they are prescribed through an assessment by an ADP-registered occupational therapist or physiotherapist with an eligible mobility device, and some income-support programs cover the full cost. Not every product qualifies, so talk to us before you buy. March of Dimes Canada, Veterans Affairs Canada (VAC), and community programs can also help. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through.
Delivery and setup in Brampton and the GTA
Westin's own team delivers and sets up this back support across Brampton and the Greater Toronto Area. We bring it in, fit the hardware on the canes, set the angle and depth, and show you the quick-release catch before we leave.
We have three stores in the Brampton and Toronto area if you would rather see a wheelchair back support first. For a scheduled in-home setup, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service; purchased backs are delivered and set up on a scheduled date.
If the back is going outside the GTA, ask us for a shipping quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.
Related seating from Westin
- Geo-Matrix Silverback Prime Backrest, the lighter spinal-insert sibling
- Geo-Matrix Platinum Cushion, foam and Blue gel on the seat
- Geo-Matrix Silver Gel Cushion, three-layer all-gel on the seat
Service and warranty
When something on the back needs work, you call the shop that set it up, not a distant parts desk. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.
Blake Medical manufacturer warranty
Blake Medical's current Silverback Max card prints a 2-year limited warranty on the backrest, shell, and hardware, and a 1-year limited warranty on the cover. We handle the warranty claim with you. Ask us if an extended warranty is offered for your order.
Frequently asked questions
How Do I Choose A Wheelchair Back Support?
The Geo-Matrix Silverback Max is the extra-gel wheelchair back support Blake points at power and tilt chairs. The Silverback Prime is the lighter spinal-insert sibling. A seating therapist should pick the contour (Active, Deep, or Extra Deep) and the height after seeing the person in the chair.
What Size Wheelchair Cushion Do I Need?
A wheelchair cushion is a separate product from this back. Measure the seat for a cushion and the back canes for this Max. Use Choose Width and Choose Height for the 16, 18, or 20 inch Active sizes we stock, then ask us if you need 14 in, 22 in, or a custom cut.
How Do I Choose Between Gel, Foam, And Air Cushions?
The Geo-Matrix Silverback Max is a gel wheelchair back support, not a seat cushion. For the seat, gel, foam, and air are different jobs. Ask the seating therapist which seat medium fits the assessment, then pair it with this back if the therapist wants Max.
Does ADP Cover Wheelchair Cushions?
Ontario's Assistive Devices Program can help with a wheelchair cushion or back support after an ADP-registered therapist assessment, when the seating is required with an eligible mobility device. Eligibility depends on the person and the device. Call (905) 451-7743 or use the funding page before you buy.
Is The Silverback Max The Same As The Prime?
The Geo-Matrix Silverback Max adds a full-face gel layer on top of the spinal insert. The Silverback Prime uses the spinal insert only and is the lighter option. Both are rated 250 lb (113 kg). They are separate Blake models.
What Does SE0001109 Mean?
SE0001109 is the Ontario seating code reprints print for Silverback Max 16, 18, and 20 inch Active. Deep and Extra Deep Max use different codes. Ask us which contour is on your order before any funding paperwork starts.
What Is The Weight Capacity Of The Silverback Max?
The Geo-Matrix Silverback line is rated 250 lb (113 kg) at all degrees on Blake Medical's current Prime card and the hosted backs brochure. Stay at or under that rating.
Will The Hardware Fit My Chair?
Blake Medical says the Silverback quick-release hardware fits on any chair, with a rubber grip on the canes and optional 1.5 inch pins so a 16 inch back can sit on an 18 inch chair. We confirm the canes at setup. Ask us if the chair uses an unusual tube size.
What Comes With The Silverback Max?
The Geo-Matrix Silverback Max is ordered as the aluminum shell, foam and gel, cover, and quick-release hardware for the width and height you pick. Westin Healthcare delivers and sets it up across Brampton and the GTA.
Specifications
| Style | M - Max, Active contour (MXA) |
|---|---|
| Brands | Blake |
| Warranty | 2-year limited backrest, shell, hardware; 1-year limited cover |
| Weight Capacity | 250 lb (113 kg) at all degrees (Silverback line) |
| Height Options | Standard 16 in, Tall 18 in, Extra-Tall 20 in; custom height available |
| Covers | Ultra-stretchy breathable fabric; wipeable fabric extra |
| Spinal Insert | 1.25 in foam; 3.75 in wide blue gel insert, full height; full pillow-top face |
| Thickness | 2 in (5.1 cm) foam and gel |
| Contour Options | A - Active (2.5"), D - Deep (4"), XD - Extra Deep (6") |
| Width Options | Blake standard 14, 16, 18, 20, 22 in plus custom; pickers 16/18/20 |
| Hardware | Quick-release; 45 deg angle; 2 in depth; rubber grip on canes; 1.5 in pins optional |
| SKU | MXA-1416 through MXA-2220 (Max Active width x height) |
| ADP Device Code | SE0001109 (Max Active 16/18/20; confirm current ADP list) |
| Contour | Active 2.5 in (63.5 mm). Deep 4 in and Extra Deep 6 in exist on Blake, not this SKU set |
