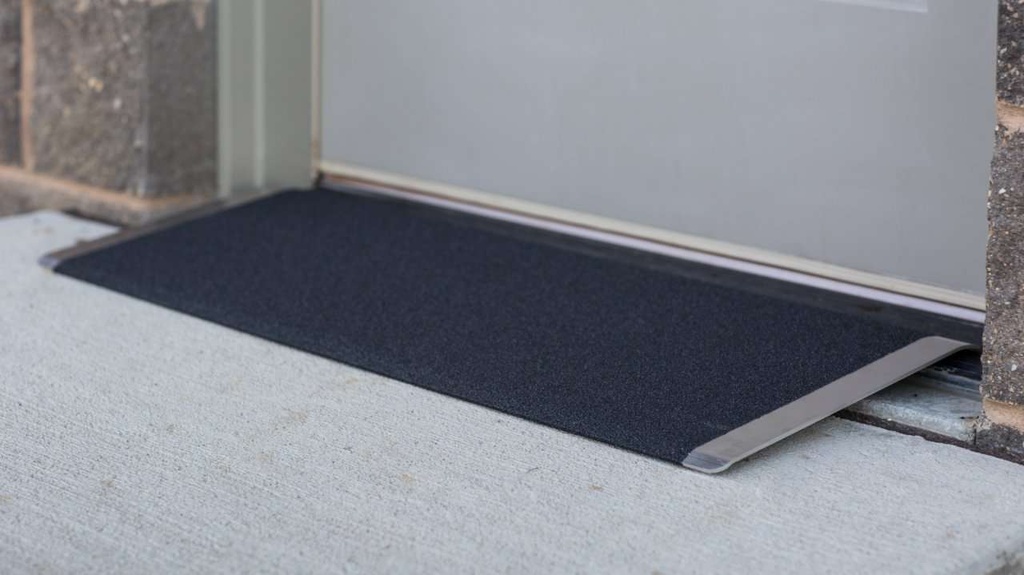

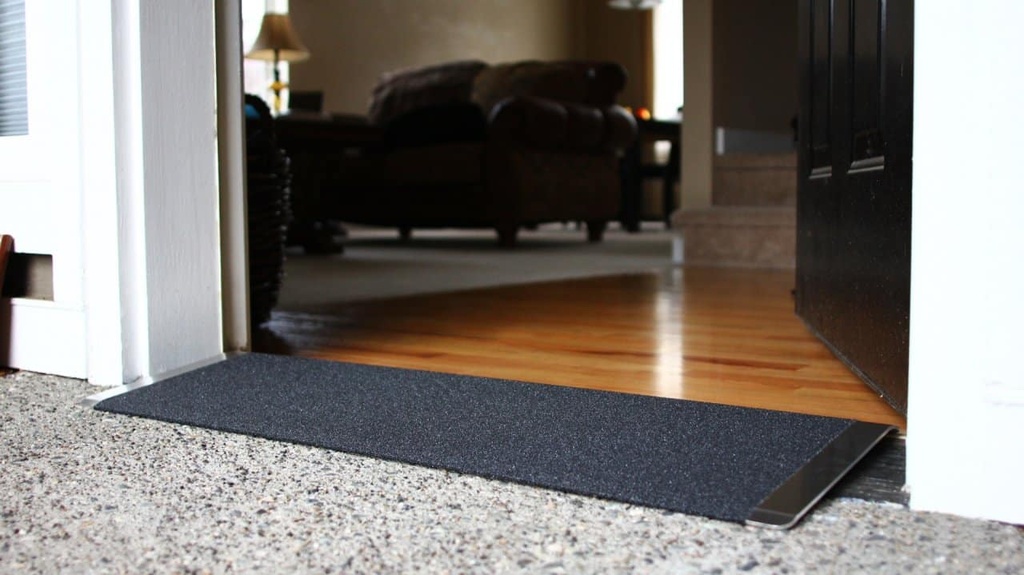

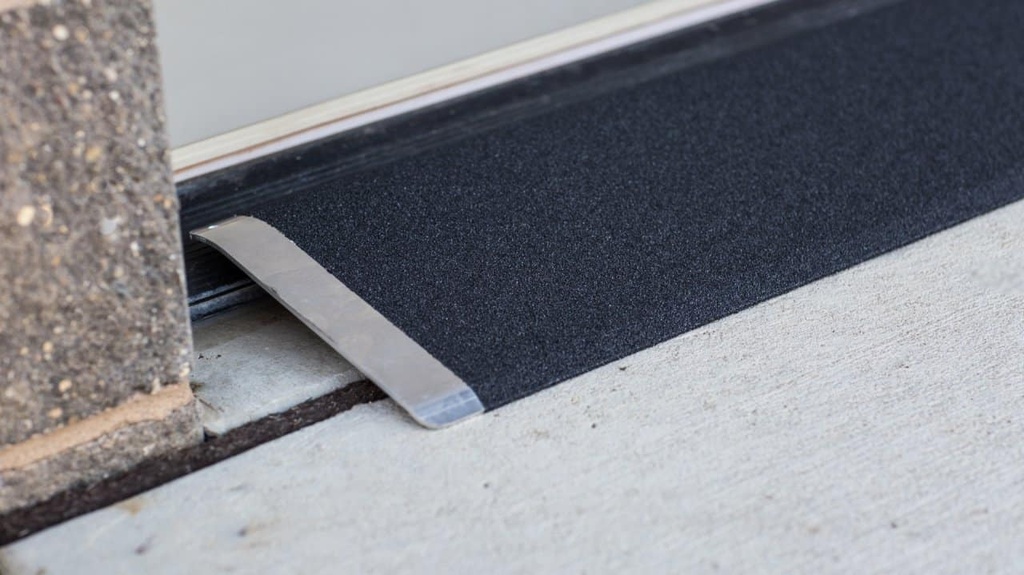

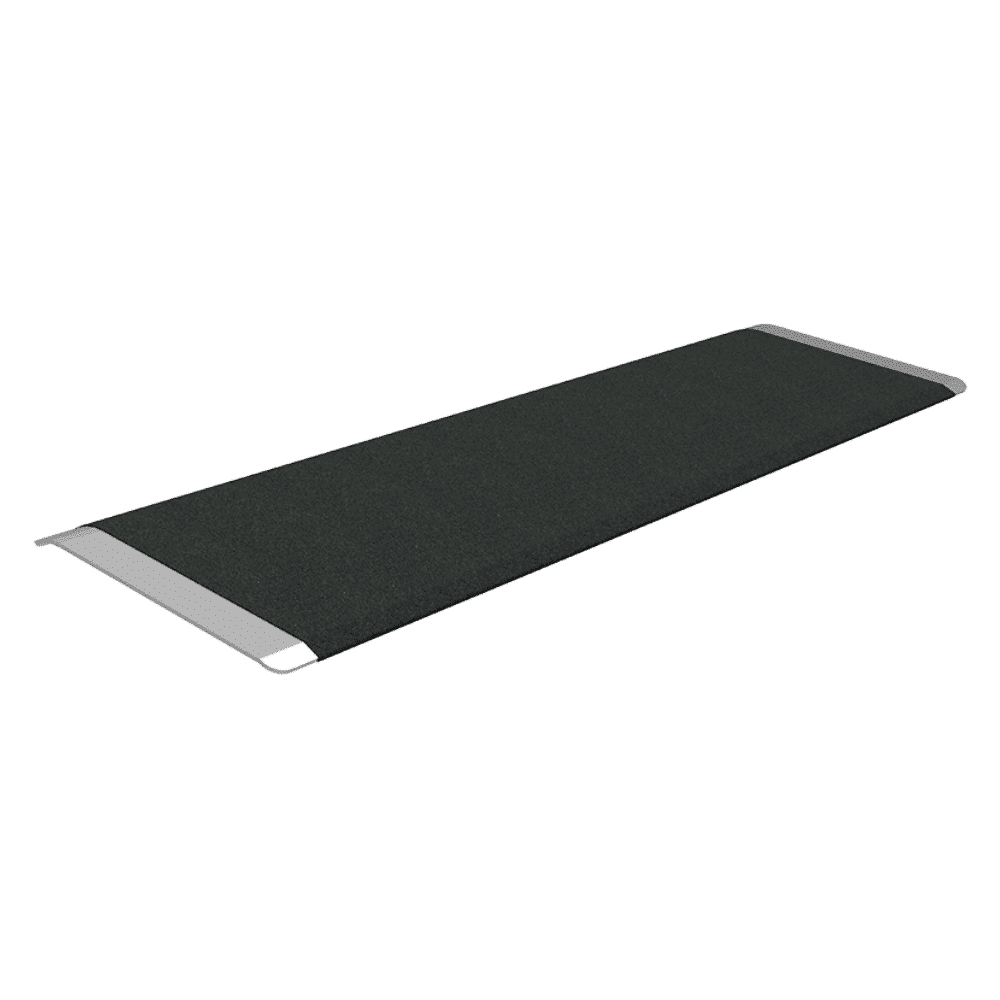

EZ-Access Transitions Angled Entry Plate

The EZ-Access Transitions Angled Entry Plate is a one-piece formed aluminum threshold plate. Westin Healthcare sells it and delivers it for homes in Brampton and the Greater Toronto Area. Official SKUs are TAEP 08, TAEP 10, and TAEP 12. It is not the Transitions Angled Entry Ramp and it is not the rubber Angled Entry Mat.

EZ-ACCESS rates every size at 700 lb (318 kg). The plate is 32 in (81 cm) wide. Usable height runs up to 1.312 in on the 8 in plate, 1.625 in on the 10 in plate, and 2 in on the 12 in plate. Use Select Plate Size for 8-in, 10-in, or 12-in.

Who this plate is for

This threshold plate is for a low, fairly even sill that needs a smooth lip, not adjustable legs. Families usually call us when a doorway has a short rise, when they want a plate they can set down with no assembly, or when the Angled Entry Ramp is more ramp than they need.

If the rise is uneven or higher than 2 in, start with the EZ-Access Transitions Angled Entry Ramp. For a straight sill inside a TMER window, see the Transitions Modular Entry Ramp. For a one-piece rubber lip, see the Rubber Angled Entry Mat.

• Low thresholds up to 2 in, depending on length
• A 32 in wide formed plate with no legs and no moving parts
• Indoor or outdoor sills where applied tread is enough

Surface and setup

The Angled Entry Plate is high-strength formed aluminum with a black applied slip-resistant tread. It will not rust or corrode. There is no assembly. Set the plate on the sill. EZ-ACCESS pre-drills slots and includes screws for a wood surface. Stay inside the incline limit in the mobility device owner's guide.

EZ-Access Transitions Angled Entry Plate specifications

These figures are from the current EZ-ACCESS TAEP card.

Capacity 700 lb (318 kg) on every size. Width 32 in (81 cm). TAEP 08: 8 in long, up to 1.312 in usable height, 3.5 lb (1.6 kg). TAEP 10: 10 in long, up to 1.625 in, 4.25 lb (1.9 kg). TAEP 12: 12 in long, up to 2 in, 5 lb (2.3 kg). Plate-only height 0.695 in on every size. Lifetime warranty for the original purchaser.

Choosing a size

Use Select Plate Size for Angled Entry Plate 8-in, 10-in, or 12-in. Pick the length whose usable height covers the rise you measured. If the sill is uneven or taller than 2 in, switch to the Angled Entry Ramp.

Plate, ramp, or modular threshold

This plate is a formed lip with applied tread and no legs. The Angled Entry Ramp is a 36 in wide aluminum ramp with adjustable swivel feet for higher or uneven sills. The Modular Entry Ramp is the hooked-section TMER kit. A suitcase or trifold ramp is for a step or a vehicle, not a doorway plate.

Delivery and setup in Brampton and the GTA

Westin's own team delivers this threshold plate across Brampton and the Greater Toronto Area. We can set it on the sill you measured and show you the anchor slots.

We have three stores in the Brampton and Toronto area if you would rather see the plate first. For a scheduled drop-off, call (905) 451-7743. Purchased plates are delivered on a scheduled date.

For delivery outside the GTA, shipping is described on the shipping policy. Any charge is confirmed on your order.

Related ramps from Westin

• EZ-Access Transitions Angled Entry Ramp, the adjustable-leg threshold ramp (TAER)
• EZ-Access Transitions Modular Entry Ramp, the seven-kit aluminum threshold
• Rubber Angled Entry Mat, the recycled-rubber lip for lower rises

Service and warranty

When something on the plate needs work, you call the shop that supplied it. Westin Healthcare has a service and repairs department.

EZ-ACCESS manufacturer warranty

EZ-ACCESS covers the Transitions Angled Entry Plate for the original purchaser under its lifetime warranty. The printed sheet calls that term Lifetime Limited. The warranty is not transferable. We handle the warranty claim with you.

Frequently asked questions

Is This The Same As The Angled Entry Ramp?

No. The EZ-Access Transitions Angled Entry Plate is a one-piece formed plate, SKUs TAEP 08, TAEP 10, and TAEP 12, 32 in wide, with no legs. The Angled Entry Ramp is TAER 12, 24, and 36, 36 in wide, with adjustable swivel feet.

What Size Plate Do I Need?

For the EZ-Access Transitions Angled Entry Plate, measure the rise and pick TAEP 08, 10, or 12 so the usable height covers that number. The 8 in plate covers up to 1.312 in. The 10 in plate covers up to 1.625 in. The 12 in plate covers up to 2 in.

Does The Plate Need Assembly?

No. The EZ-Access Transitions Angled Entry Plate is a one-piece design. Set it on the sill. There are no legs and no moving parts.

How Do You Keep The Plate From Moving?

The EZ-Access Transitions Angled Entry Plate has pre-drilled slots. EZ-ACCESS includes screws for a wood surface. Use those slots, or ask us about fasteners for another surface.

What Is The Weight Capacity?

The EZ-Access Transitions Angled Entry Plate is rated at 700 lb (318 kg) on TAEP 08, TAEP 10, and TAEP 12. Stay at or under that rating, and stay inside the rating of the device that will use the plate.

How Much Does Each Size Weigh?

EZ-ACCESS lists the Angled Entry Plate at 3.5 lb (1.6 kg) for TAEP 08, 4.25 lb (1.9 kg) for TAEP 10, and 5 lb (2.3 kg) for TAEP 12.

Is The Tread Extruded Or Applied?

The EZ-Access Transitions Angled Entry Plate uses a black applied tread. The Angled Entry Ramp uses an extruded tread. They are different surfaces on different products.

What Warranty Does It Carry?

The EZ-Access Transitions Angled Entry Plate carries the EZ-ACCESS lifetime warranty for the original purchaser. Westin Healthcare handles the claim with you.
