Drive Single Fold Wheelchair Scooter Ramp

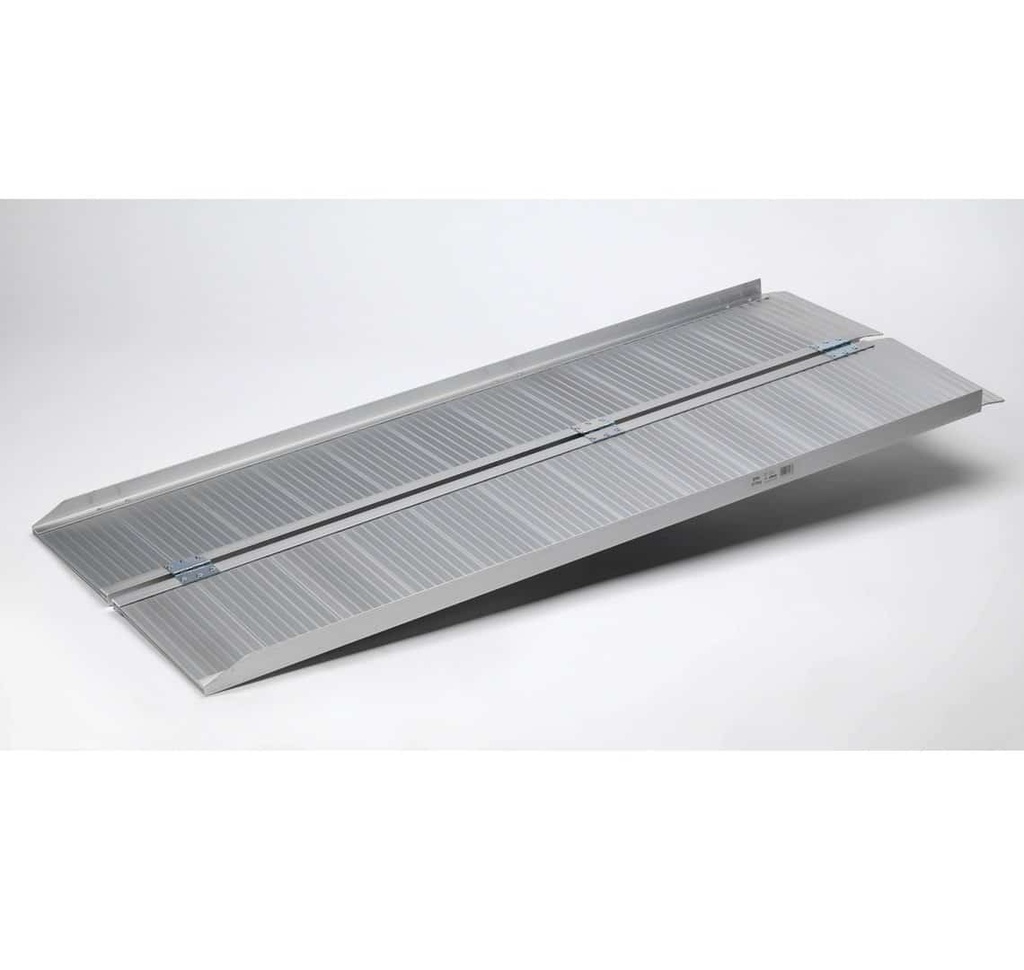

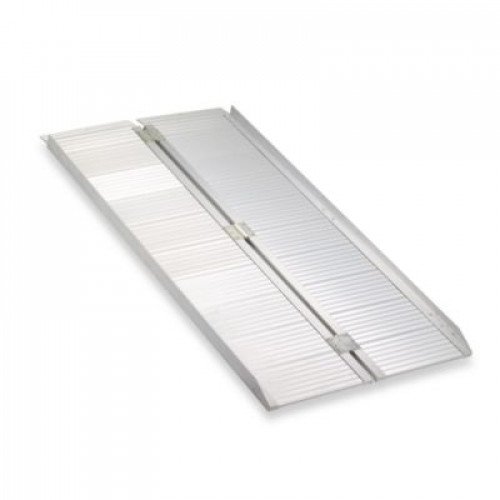

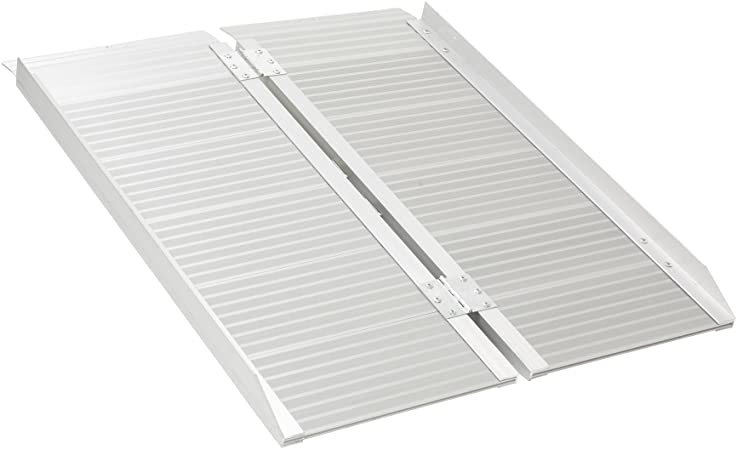

The Drive wheelchair ramp sold here is the Drive Medical single-fold wheelchair and scooter ramp: a 2 to 6 ft portable ramp with a 600 lb (272 kg) rating, a 28.5 in (72 cm) overall width, a carry bag, and a perforated surface. Westin Healthcare delivers it across Brampton and the Greater Toronto Area.

Drive still sells this family new as Wheelchair/Scooter Ramps, SKUs STDS1093 (2 ft), STDS1094 (3 ft), STDS1095 (4 ft), STDS1096 (5 ft), and STDS1097 (6 ft). It is a single fold, not a multifold and not an EZ-ACCESS suitcase. It is a lightweight portable aid for a short height change, not a modular building ramp.

Who this ramp is for

This scooter ramp and wheelchair ramp is for a household that wants a 600 lb (272 kg) single fold, a carry bag, and a perforated deck that lets water drain. Families usually call us when the rise is short and they want a simpler, lighter fold than an 800 lb EZ-ACCESS suitcase.

If you want an 800 lb extruded suitcase in 2 to 8 ft, see the EZ-Access Suitcase Singlefold Ramp. If you want an 800 lb suitcase that splits, see the EZ-Access Suitcase Singlefold AS Ramp. If you need 7 to 10 ft in a three-fold pack, see the EZ-Access Suitcase Trifold AS Ramp.

• 2, 3, 4, 5, or 6 ft length, 28.5 in (72 cm) overall width
• 600 lb (272 kg) rating as Drive prints it
• Single fold, perforated slots, carry bag included

Length, slope, and surface

Use Size to pick 2 ft, 3 ft, 4 ft, 5 ft, or 6 Feet. Drive does not print a per-length rise table on the current shop card. Stay inside the slope the wheelchair or scooter maker allows. A common public starting point is the 1:12 ADA Standard, and you should confirm the ratio with local codes.

The walking surface is perforated so water does not sit on the deck. Drive does not print a wet-ice promise. Sweep the ramp before you use it if dirt or slush is on it.

Folding and portability

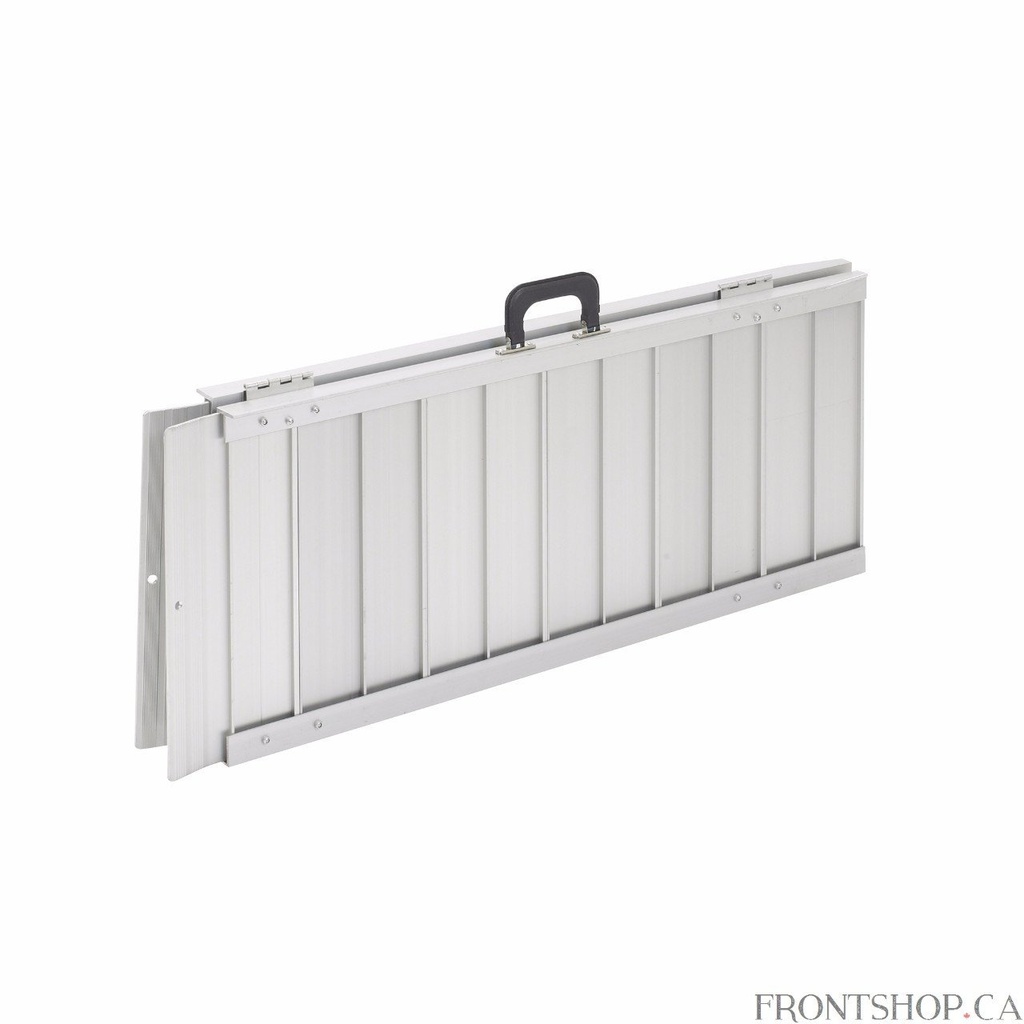

The Drive ramp is a single fold with a carry handle and a bag. It stays one piece. Drive does not print official per-length weights on the current shop card, so we do not invent them here. We can put the length you pick on a scale at the store if the lift matters.

Drive Single Fold Wheelchair Scooter Ramp specifications

These figures are for Drive Medical STDS1093 through STDS1097 as printed on the current Drive Canada and US shop family page.

Weight capacity 600 lb (272 kg). Overall width 28.5 in (72 cm). Lengths 2, 3, 4, 5, and 6 ft. Single fold. Carry bag included. Perforated slots. Drive's shop card does not print a usable-width number or a per-length weight. Warranty on the live Westin card and on Drive dealer cards is limited lifetime; Drive's own shop table is garbled, so ask us to confirm the card on your invoice.

Ramp length

Use Size to pick 2 ft (STDS1093), 3 ft (STDS1094), 4 ft (STDS1095), 5 ft (STDS1096), or 6 Feet (STDS1097). Replacement bags exist as STDS1094-B, STDS1095-B, and STDS1097-B if you need a spare.

Drive single fold or EZ-ACCESS suitcase

The Drive single fold is a 600 lb (272 kg) perforated ramp with a bag, in 2 to 6 ft. The EZ-ACCESS Singlefold is an 800 lb (363 kg) extruded suitcase that goes to 8 ft. The EZ-ACCESS Singlefold AS is an 800 lb applied-surface suitcase that splits. Choose Drive if the bag and the drain slots matter more than the extra capacity. Choose EZ-ACCESS if you want 800 lb and a published per-length weight table.

Funding help for a wheelchair ramp in Ontario

Ontario's Assistive Devices Program (ADP) does not fund ramps, so plan around other routes. The March of Dimes Canada Home and Vehicle Modification Program is the main Ontario funding source for home accessibility changes like ramps, and Veterans Affairs Canada (VAC), the Ontario Renovates program in some municipalities, extended health plans, and community organizations can also help. A ramp may also qualify as a home accessibility or medical expense on a Canadian tax return in some situations. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through.

Delivery and setup in Brampton and the GTA

Westin's own team delivers this ramp across Brampton and the Greater Toronto Area. We bring it in, show you how it folds and how to place it, and walk through the maker's use notes before we leave.

We have three stores in the Brampton and Toronto area if you would rather see a ramp first. For a scheduled in-home drop-off, call (905) 451-7743 and we will book the next date that works. Purchased ramps are delivered on a scheduled date.

This portable ramp is larger than small parcel goods. The Canada-wide free ground-shipping offer on smaller goods does not apply. If the ramp is going outside the GTA, ask us for a freight quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.

Related portable ramps from Westin

• EZ-Access Suitcase Singlefold Ramp, the 800 lb extruded suitcase
• EZ-Access Suitcase Singlefold AS Ramp, the 800 lb suitcase that splits
• EZ-Access Suitcase Trifold AS Ramp, the 5 to 10 ft three-fold

Service and warranty

When something on the ramp needs work, you call the shop that set it up, not a distant parts desk. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.

Drive manufacturer warranty

Drive dealer cards and the current Westin description print a limited lifetime warranty on this single-fold ramp. Drive's live shop table does not print a clean warranty line. We handle the claim with you and will read the card that ships with your unit. Ask us if an extended warranty is offered for your order.

Frequently asked questions

What Length of Ramp Do I Need?

The Drive Single Fold Wheelchair Scooter Ramp comes in 2, 3, 4, 5, and 6 ft. Drive does not print a rise table on the current shop card. Measure the rise, then stay inside the slope the wheelchair or scooter maker allows.

How Steep Can a Wheelchair Ramp Be?

Drive does not print a slope ratio for the STDS1093 family. A common public starting point is the 1:12 ADA Standard. Confirm the ratio with local codes and with the wheelchair or scooter maker.

Do I Need a Permit for a Wheelchair Ramp in Ontario?

A permanent or semi-permanent exterior wheelchair ramp in Ontario can need a municipal building permit. A portable single-fold ramp used as a temporary aid is a different question. Check with the local building department before you treat this ramp as a fixed entry.

What Is the Difference Between a Suitcase Ramp and a Drive Single Fold?

The Drive Single Fold Wheelchair Scooter Ramp is a 600 lb (272 kg) perforated fold with a bag, in 2 to 6 ft. An EZ-ACCESS suitcase ramp is an 800 lb (363 kg) aluminum suitcase with a published per-length weight table and, on the AS and trifold lines, a split carry.

What Is the Weight Capacity of the Drive Wheelchair Ramp?

The Drive Single Fold Wheelchair Scooter Ramp is rated at 600 lb (272 kg) on Drive's current shop card, including the rider and the device.

Can I Use This Ramp With a Mobility Scooter?

Drive prints the STDS1093 family for a wheelchair or scooter moving from one surface to another. Stay at or under 600 lb (272 kg) and stay inside the scooter maker's own slope limit.

Does the Drive Ramp Come With a Carry Bag?

The Drive Single Fold Wheelchair Scooter Ramp includes a carry bag on the current Drive shop card. Spare bags exist as STDS1094-B, STDS1095-B, and STDS1097-B.

Does Funding Cover a Wheelchair Ramp in Ontario?

Depending on the person's situation and assessment, funding support may be available for mobility equipment in Ontario. Westin Healthcare's staff work with funding programs every week and can point you to the right route. Visit our funding page or call (905) 451-7743 before you buy.

How Wide Is the Drive Wheelchair Ramp?

The Drive Single Fold Wheelchair Scooter Ramp is 28.5 in (72 cm) overall on Drive's current shop card. Drive does not print a separate inside-width number on that card.

Are There Handrails for This Ramp?

The Drive Single Fold Wheelchair Scooter Ramp does not take handrails. If you need a portable ramp with handrails, see the EZ-Access Gateway 3G Solid Surface Ramp.

Is This a Multifold Ramp?

The Drive STDS1093 family is a single fold. It is not a trifold or multifold. For a three-fold 5 to 10 ft pack, see the EZ-Access Suitcase Trifold AS Ramp.
