Drive Premium Guard Gel Overlay

The Drive Premium Guard is Drive Medical's gel-and-foam overlay, sold as the Premium Guard Gel Overlay. Westin Healthcare sells it, delivers it, and straps it onto the mattress for homes in Brampton and the Greater Toronto Area. Official SKUs are 14893 (34 x 76 x 3.5, 300 lbs) and 14901 (42 x 76 x 3.5, 500 lbs). HCPCS E0185.

This is a gel overlay, not a mattress replacement. It sits on top of an existing hospital-bed mattress and holds on with four elastic corner straps. Drive lists 15 full-length gel bladders, a convoluted foam topper, and an 18-month warranty on foam and cover. Length is 76 inches, not 80.

Who this overlay is for

This overlay is for a person who already has a hospital-bed mattress and has been asked to add a gel surface on top. The 34-inch overlay sits on a standard 36-inch mattress on a Drive Delta 1000 or a Drive Delta 15235. The 42-inch overlay sits on a 42-inch mattress on the Drive 15300LW.

Choose Premium Guard when the therapist has asked for a gel overlay, not a new mattress. If the mattress underneath is worn out, replace the mattress first. A Gravity 7 or Gravity 8 is a replacement foam, not an overlay. Do not put this overlay on an alternating-pressure air mattress unless the therapist has said that pairing is safe.

• Home care when the current 36-inch mattress is still sound and a gel top is what was asked for
• A 42-inch bariatric mattress that needs a gel layer, using 14901
• Anyone who wants a surface that straps on and can come off for cleaning

Construction and how it works

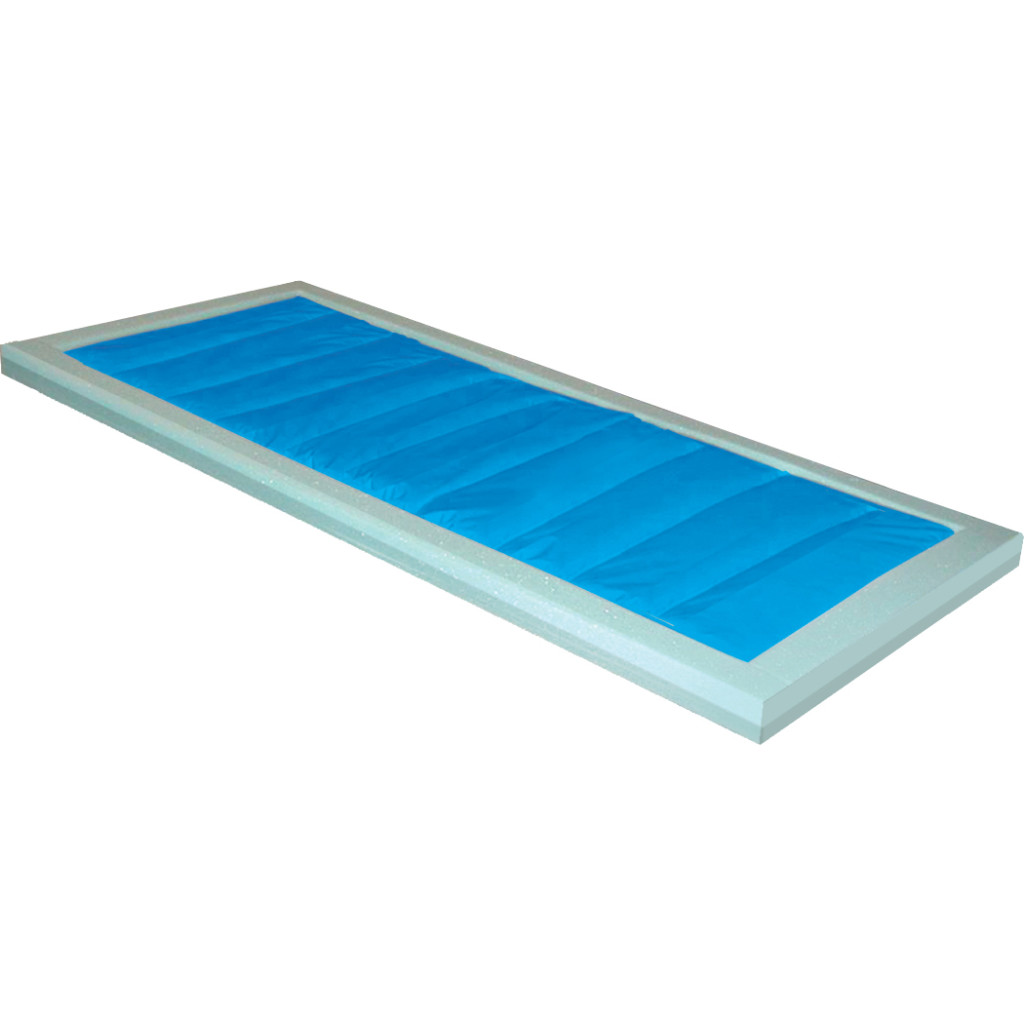

Drive lists 15 gel bladders that cover the entire patient contact area "for the prevention and treatment of pressure ulcers." Those are Drive's words. The bladders run head to toe so the gel is less likely to pit or leave a hole under one spot. The gel is aqueous and non-toxic, with polystyrene beads to limit migration.

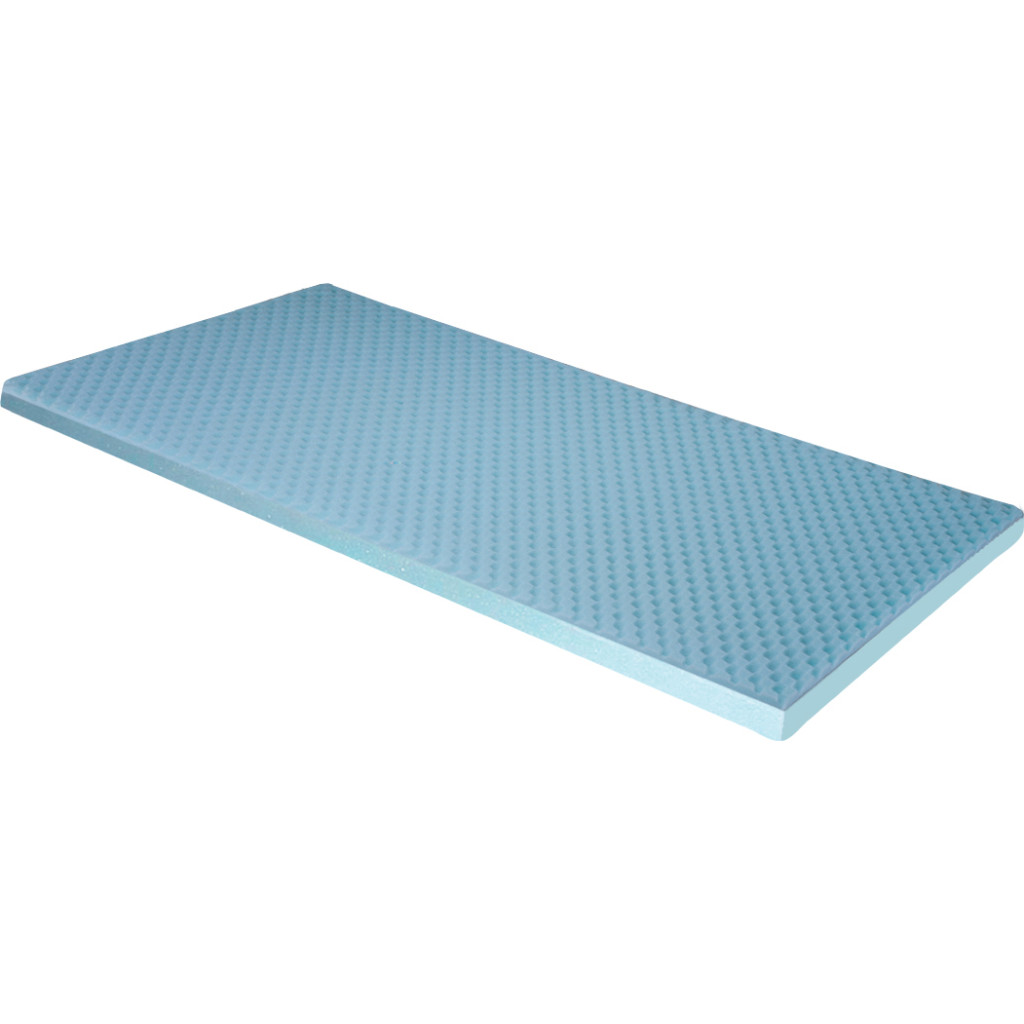

A convoluted foam topper sits over the bladders. Four elastic corner straps hold the overlay on the mattress. The top cover is urethane-coated nylon, water resistant and vapor permeable. The base is vinyl, stain resistant and waterproof. Fire standard on the Drive sheet is TB117, not CFR 1633.

Premium Guard specifications

These figures are for the two Drive SKUs we sell. The specification tab holds the stored values. 14893 is 34 x 76 x 3.5 inches and 300 lbs on the 14893 card. 14901 is 42 x 76 x 3.5 inches and 500 lbs on the 14901 card. The family sheet prints the range 300-500 lbs and an 18-month foam and cover warranty.

76 inches is shorter than an 80-inch hospital mattress. The overlay should sit centred, with the straps on the four corners of the mattress underneath. It will not cover the last few inches of an 80-inch deck by itself.

Choose Size

Use Choose Size to pick the Drive SKU:

• 34" W x 76" L x 3.5" H, Drive 14893, 300 lbs, for a standard 36-inch mattress
• 42" W x 76" L x 3.5" H, Drive 14901, 500 lbs, for a 42-inch mattress

There is no 36 x 80 overlay SKU and no 48-inch overlay on this card. If the mattress underneath is 48 or 54 inches, call (905) 451-7743 before you order.

Funding help for a therapeutic mattress in Ontario

Ontario's Assistive Devices Program (ADP) does not cover hospital beds or mattresses, so plan around other routes. Funding that may help instead: ODSP, March of Dimes Canada, Veterans Affairs Canada (VAC), hardship funding programs, and community programs. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through before you buy.

Delivery and setup in Brampton and the GTA

Westin's own team delivers and sets up this overlay across Brampton and the Greater Toronto Area. We bring it in, place it on the mattress, and check the straps before we leave.

We have three stores in the Brampton and Toronto area if you would rather see the overlay first. For a scheduled in-home setup, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service; purchased overlays are delivered and set up on a scheduled date.

This overlay ships smaller than a full mattress, but we still treat it as a scheduled medical delivery inside the GTA. White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.

Which Westin beds this overlay fits

The 34-inch overlay straps onto the mattress of a Drive Delta 1000 or a Drive Delta 15235. The 42-inch overlay straps onto the mattress of a Drive 15300LW. It does not replace those mattresses. Pair it with a sound Gravity 7 or a Drive 15301, not with a collapsed foam core.

Service and warranty

When something on the overlay needs work, you call the shop that delivered it, not a US parts desk. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.

Drive manufacturer warranty

Drive's current Premium Guard sheet covers the original purchaser with an 18-month warranty on the foam and an 18-month warranty on the cover. We handle the claim with you.

Frequently asked questions

Does this overlay replace my hospital mattress?

No. It straps onto a mattress that is already on the bed. If the mattress underneath is worn, replace the mattress. This overlay is 3.5 inches thick and 76 inches long.

How is a gel overlay different from Gravity foam?

Gravity 7 and Gravity 8 are full replacement mattresses. Premium Guard is a gel-and-foam pad that sits on top. Drive lists 15 gel bladders for pressure redistribution. The overlay does not have Gravity's three-layer foam core or Gravity's 7- to 10-year foam warranty.

How do I clean the Premium Guard cover?

Drive lists a water-resistant, vapor-permeable nylon top and a waterproof vinyl base. Wipe both with a mild detergent and let them dry. Do not machine-wash the gel bladders. A replacement cover is Drive 14893C.

What is the weight rating?

Drive's 14893 card lists 300 lbs. Drive's 14901 card lists 500 lbs. The family sheet prints the range 300-500 lbs. Use the number for the size you pick.

Why is it 76 inches long, not 80?

That is the official Drive length for both SKUs. Centre the overlay on an 80-inch mattress and use the four corner straps. The last few inches of the mattress will show.

Does this overlay have a pump or make noise?

No. The gel is static. There is nothing to plug in.

What is the warranty on Premium Guard?

Drive lists 18 months on the foam and 18 months on the cover for the original purchaser. Westin Healthcare processes the warranty work.

Can funding help pay for this overlay in Ontario?

Several Ontario funding routes can help with a therapeutic support surface. Eligibility depends on the person's situation and assessment. Call (905) 451-7743 and we will point you to the right route before anyone starts paperwork.

Can I rent an overlay before I buy?

Westin Healthcare rents hospital beds with a therapeutic mattress included. A gel overlay is not automatically part of that package. Call (905) 451-7743 and we will tell you what we can put in the home this week.

What is included with the Premium Guard?

You get the Drive gel overlay in the size you pick under Choose Size, with four elastic corner straps. The mattress underneath is sold separately.

Can I use this on a 48-inch or 54-inch mattress?

Drive's current card lists 34 x 76 and 42 x 76 only. Do not stretch a 42-inch overlay across a 48- or 54-inch mattress. Call us and we will look for a better match.
