Description

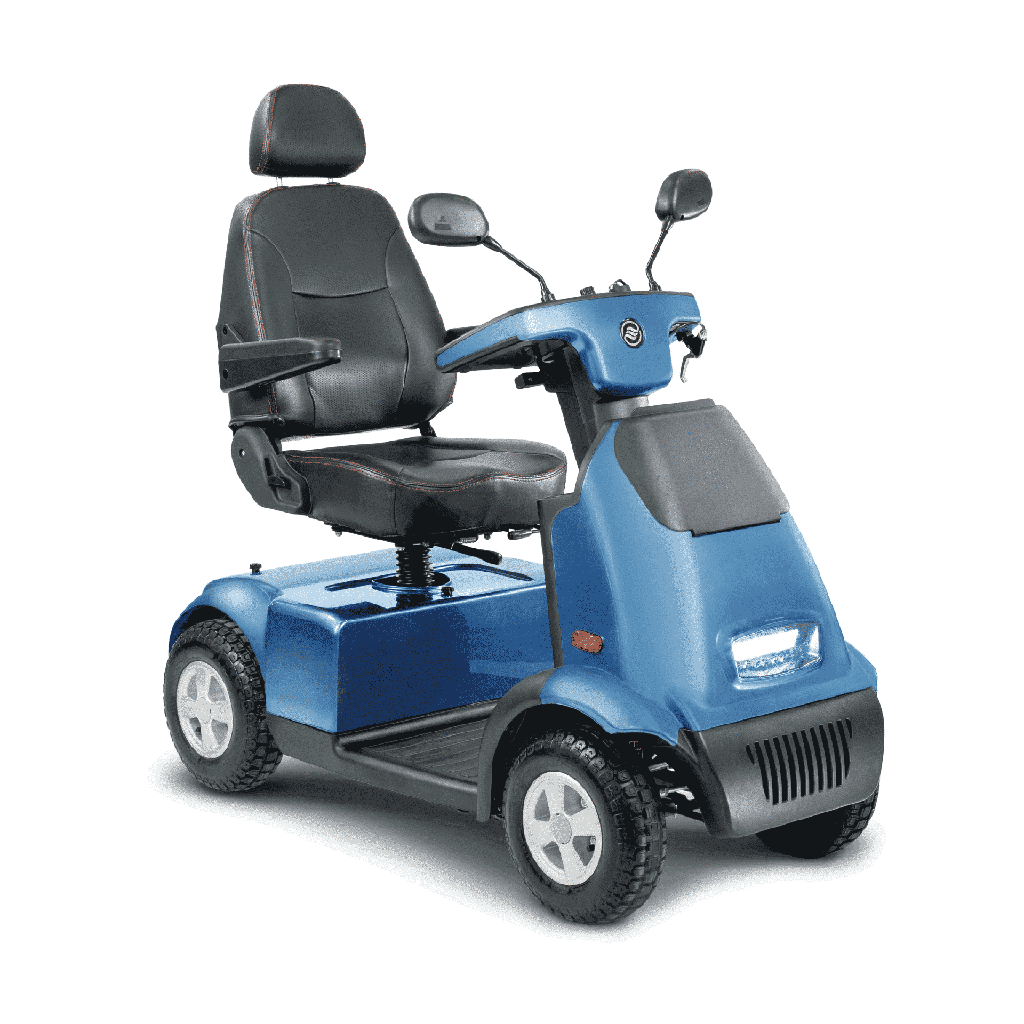

The Afiscooter C4+ scooter is Afikim's 4-wheel mid-size outdoor and indoor scooter. Westin Healthcare sells it and delivers it for homes in Brampton and the Greater Toronto Area.
Afikim rates the C4+ at 150 kg (330 lb), 10-15 km/h (6.2-9.3 mph), and 40-45 km (25-28 miles) on the official table. Ground clearance is 10 cm (4 in). The turning radius is 170 cm (67 in). This is the more planted C-line scooter, not the 3-wheel C3+ and not the heavier S-line.
Who this scooter is for
This 4 wheel mobility scooter is for a person who wants a mid-size Afikim for sidewalks, shops, and outdoor paths, and who wants four-wheel stability on an 18 inch seat and a 330 lb rating. Families usually call us when a 3-wheel C3+ feels light on uneven pavement, but an S4+ is more scooter than they need.
If you want the same C-line ride with a tighter turn, see the Afiscooter C3+. If you need 450 lb, 5 inches of clearance, or golf tyres, start with the Afiscooter S4+. The C4+ is not a folding travel scooter and it does not go in a car trunk.
- 4-wheel mid-size, 67 inch turning radius
- 150 kg (330 lb) rating and an 18 inch seat
- Indoor and outdoor Class B use as Afikim states it
Range, speed, and batteries
Afikim lists a travel range of 40-45 km (25-28 miles) for the C4+. The C+ manual says that under normal conditions the C-line can travel about 40 km (27 miles) before a recharge, and that slopes, rough ground, and kerbs shorten that figure. Top speed is 10-15 km/h (6.2-9.3 mph). The upper number is limited by the country you ride in.
The C4+ takes two 12 V sealed gel batteries, up to 85 Ah. Use Choose Batteries to pick Group 22 Gel 55 AH or Group 24 Gel 74 AH. The 8 Amp charger plugs into the right side of the tiller. Charge overnight at the end of the day. After a long time in storage, Afikim asks for at least 24 hours on charge before you drive. Batteries are not in the base price.
Portability and transport
The Afiscooter C4+ is a full-size mid-size scooter, not an airline or car-trunk scooter. Without batteries Afikim lists 95 kg (209 lb). The C+ manual lists the power unit at 25 kg (55 lb) if the scooter is taken apart, the seat at about 21 kg (46 lb), and each battery at least 14 kg (31 lb). The tiller folds. Official folded width is 80 cm (31 in). That fold is for storage, not for lifting the scooter into a sedan.
Plan on Westin delivery, a van or pickup, or a scooter lift. Afikim says the C4+ is not intended as a seat in a motor vehicle.
Afiscooter C4+ scooter specifications
These figures are for the Afiscooter C4+ as printed on Afikim's current C4 table and the C+ user manual. The specification tab holds the stored values.
Weight capacity 150 kg (330 lb). Top speed 10-15 km/h (6.2-9.3 mph). Range 40-45 km (25-28 miles) on the official table. Length 137 cm (54 in). Width 67 cm (26 in). Height 128 cm (50 in) without canopy, 163 cm (65 in) with canopy. Ground clearance 10 cm (4 in). Turning radius 170 cm (67 in). Seat width 46 cm (18 in). Tyres pneumatic 4.10/3.50-6" front and rear. Motor 950 W rear-wheel, 24 V. Controller SD 120 A. Charger 8 Amp. Climbing angle 9 deg (16%). Lockable front compartment on the C4+.
Colour, tyres, batteries, and canopy
Use Colors to pick Blue, Red, Silver, or Grey. Use Tire Selection to choose pneumatic tyres or solid flat-free tyres. Use Choose Batteries for Group 22 or Group 24 gel packs. Use Accessories if you want the Afiscooter C windshield canopy. Afikim also lists a rear lock box, a 20 inch seat, and a crutch holder. Ask us if you need one of those.
C-line or S-line, 3-wheel or 4-wheel
The C-line is Afikim's mid-size indoor and outdoor pair. The S-line is the heavier outdoor pair. The C4+ is the 4-wheel C-line scooter. The Afiscooter C3+ is the 3-wheel sister with a 128 cm (50 in) turn for tighter indoor work. The Afiscooter S4+ keeps four wheels but steps up to a 1,400 W motor, 5 in of clearance, and a 450 lb rating. The Afiscooter S3+ is the 3-wheel outdoor S-line scooter.
Funding help for a mobility scooter in Ontario
Ontario's Assistive Devices Program (ADP) can fund 75% of the cost of a mobility scooter when the need is long-term and the scooter is prescribed through an assessment by an ADP-registered occupational therapist or physiotherapist, and some income-support programs cover the full cost. Not every scooter qualifies, so talk to us before you buy. March of Dimes Canada, Veterans Affairs Canada (VAC), and community programs can also help. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through.
Delivery and setup in Brampton and the GTA
Westin's own team delivers and sets up this scooter across Brampton and the Greater Toronto Area. We bring it in, assemble it, and show you the tiller, key, and charger before we leave.
We have three stores in the Brampton and Toronto area if you would rather see a scooter first. For a scheduled in-home setup, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service; purchased scooters are delivered and set up on a scheduled date.
This scooter is oversized. The Canada-wide free ground-shipping offer on smaller goods does not apply. If the scooter is going outside the GTA, ask us for a freight quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.
Related mobility scooters from Westin
- Afiscooter C3+ 3-Wheel Mid-Size Scooter
- Afiscooter S4+ 4-Wheel Outdoor Scooter
- Afiscooter S3+ 3-Wheel Outdoor Scooter
Service and warranty
When something on the scooter needs work, you call the shop that set it up, not a distant parts desk. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.
Afikim manufacturer warranty
Afikim states that every Afiscooter is covered for a minimum of one year, and that the local dealer policy applies in Canada. We handle the claim with you. Afikim describes batteries as wear items to replace about every 2-3 years, after about 300-400 full charge cycles, or when the distance on a charge becomes short.
Frequently asked questions
How far can a mobility scooter go?
The Afiscooter C4+ is listed by Afikim at 40-45 km (25-28 miles) on a charge. The C+ manual says about 40 km (27 miles) under normal conditions, and less on slopes, rough ground, or kerbs.
How long does a mobility scooter take to charge?
The Afiscooter C4+ uses the 8 Amp charger on the right side of the tiller. Afikim's routine is to charge overnight at the end of the day. After long storage, charge at least 24 hours before you drive.
Can I take a mobility scooter on a plane?
The Afiscooter C4+ is not an airline travel scooter. It is a 209 lb mid-size scooter without batteries, with two large 12 V gel batteries. Afikim does not publish an airline approval for this model.
Can I put a mobility scooter in a car?
The Afiscooter C4+ does not fit in a car trunk. Length is 137 cm (54 in) and width is 67 cm (26 in). Use Westin delivery, a van or pickup, or a scooter lift.
Can I use a mobility scooter in the rain?
The Afiscooter C4+ will operate in light rain showers. Afikim does not recommend extended use in heavy rain or snow. The optional windshield canopy adds cover from sun and light rain. It is not a sealed cabin.
Can I use a mobility scooter in winter?
The Afiscooter C4+ is rated to operate down to -30 C (-22 F). Afikim says do not store the batteries below 0 C, and that storage below 10 C reduces runtime. Keep the scooter dry and charge it indoors when you can.
What is the difference between 3-wheel and 4-wheel mobility scooters?
The Afiscooter C4+ is the 4-wheel C-line scooter with a 170 cm (67 in) turning radius and a more planted outdoor stance. The Afiscooter C3+ is the 3-wheel sister with a 128 cm (50 in) turn for tighter indoor work.
Does ADP cover scooters?
Ontario's Assistive Devices Program can fund a mobility scooter after an assessment by an ADP-registered occupational therapist or physiotherapist. Talk to Westin before you buy. The funding section above is the starting point.
Do I need a licence for a mobility scooter?
Afikim states that mobility scooters do not require a driving licence. Follow local sidewalk and path rules in Brampton and the GTA.
How often do mobility scooter batteries need replacing?
Afikim says to replace Afiscooter C4+ batteries about every 2-3 years, after about 300-400 full charge cycles, or when the distance on a charge becomes short.
Specifications
| Colors | Blue, Red, Silver, Grey |
|---|---|
| Seat Width | 18" |
| Seat Depth | 18" |
| Brands | Afikim |
| Warranty | Minimum 1 year; local dealer policy applies |
| Weight Capacity | 150 kg (330 lb) |
| Compatible Batteries | 2x 12V sealed gel, 85 Ah max; Group 22 or 24 |
| Drive Terrain Type | Rear Wheel Drive |
| Foldable | No; tiller folds, official folded width 80 cm (31") |
| Ground Clearance | 10 cm (4") |
| Top Speed | 10-15 km/h (6.2-9.3 mph) |
| Turning Radius | 170 cm (67") |
| Wheel Size | 4.10/3.50-6" pneumatic front and rear |
| Scooter Class | Mid-Size Scooter |
| Scooter Type | 4 Wheel Scooter |
| Scooter Weight | 95 kg (209 lb) without batteries |
| Overall Length | 137 cm (54") |
| Overall Width | 67 cm (26") |
| Battery Charger | 8 Amp off-board |
| Motor | 24V DC 950W rear-wheel |
| Incline Rating | 9 deg (16%) |
| Travel Range | 40-45 km (25-28 miles) official table |
