Invacare Standard Sling with Commode Opening

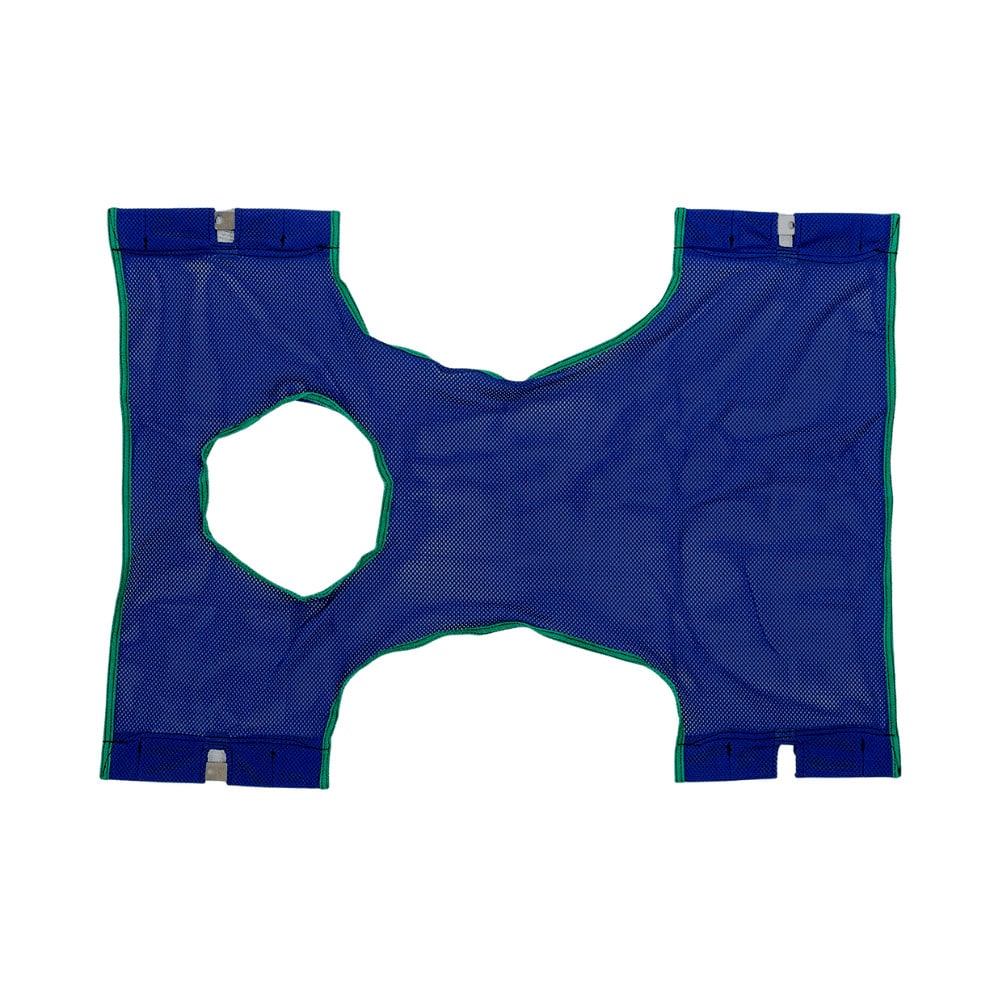

The Invacare Standard Sling 9047 is a one-piece mesh sling with a commode opening. It attaches with Invacare 9070 straps or 9071 chains, not with colour-coded loops. Invacare rates it at 450 lb. Westin Healthcare sells it in Brampton for homes that still run an Invacare 9805 or 9805P hydraulic lift.

This is not a Reliant loop sling. If your lift is the Invacare Reliant 450, use a Reliant one-piece sling such as the Invacare Divided Leg Sling or the Invacare Comfort Sling.

Who this sling is for

Invacare's Standard Series supports the person from shoulders to knees. The commode opening is for toileting on a 9805 / 9805P. The mesh has a brushed lining and can be used wet or dry. It is a one-size Standard article. This is not a sit-to-stand sling and not a ceiling-lift sling.

• Shoulder-to-knee support with a commode opening
• Homes that still have a 9805 or 9805P and a 9070 or 9071 kit
• Weighing, transferring, or toileting as Invacare describes for this style

Sizing

9047 is one size (Standard). Invacare-spec reprints print overall length 40.5 in, overall width 29 in, and 450 lb. Confirm that this Standard size is the right sling with a clinician or our staff before first use. There is no manufacturer junior-to-XL chart on this article.

Attachment and compatible lifts

Attachment is strap or chain. Four metal support bars sit in pockets on the sling. The 9070 strap kit or 9071 chain kit hooks through those bars. The short section of strap or chain goes to the back. The S-hook open end faces away from the person. Remove the metal bars before laundry and put them back before the next lift.

Invacare's shop card and Patient Slings manual name the 9805 and 9805P for this Standard Series. Westin does not list a 9805P page. Do not put 9047 on the Reliant 450 swivel bar. The Reliant uses one-piece loop slings. Shop other toileting styles in toileting slings.

Invacare Standard Sling 9047 specifications

These figures are from Invacare's 9047 shop card, Patient Slings manual 1023891-K, and matching Invacare-spec reprints. The specification tab holds the stored values.

SKU 9047. Polyester mesh with commode opening. Overall length 40.5 in. Overall width 29 in. Safe working load 450 lb. Four metal support bars plus 9070 or 9071. Colour on the shop card is blue.

Care and laundering

Remove the four metal support bars before you wash the sling. Invacare says wash regularly in water not over 180 F (82 C). Do not bleach. Air dry or dry at low temperature. Inspect after every wash. Put the bars back so the mounting hole sits in the centre opening of each pocket before the next lift. Follow the tag on the sling.

Delivery in Brampton and the GTA

Westin's own team can deliver this sling across Brampton and the Greater Toronto Area, on its own or with a lift visit. We have three stores in the Brampton and Toronto area if you would rather see a sling first. For a scheduled drop-off or a fitting, call (905) 451-7743 and we will book the next date that works.

This is a small carton. The Canada-wide free ground-shipping offer on smaller goods can apply when it ships without a lift. If it travels with a patient lift, the lift is oversized and White-Glove Delivery is described on the shipping policy. Any charge is confirmed on your order. 9070 straps or 9071 chains are a separate line if you do not already have them.

Warranty

When something on the sling needs work, you call the shop that sold it, not a US parts desk. Westin Healthcare has a service and repairs department.

Invacare manufacturer warranty

Invacare's Patient Slings manual covers the original purchaser for 1 year from the date of purchase. We handle the claim with you.

Frequently asked questions

Is this a loop sling?

No. 9047 uses Invacare 9070 straps or 9071 chains and four metal support bars.

Does it fit the Invacare Reliant 450?

No. Invacare's shop card names the 9805P for this Standard sling. The Reliant 450 takes one-piece loop slings such as R100 or the Comfort Sling.

What is the safe working load?

450 lb. Stay inside the lower of the sling and the 9805 / 9805P.

Do the straps come with the sling?

No. Invacare sells 9070 (straps) and 9071 (chains) as kits. Ask us if you already have a pair that matches this sling.

How do I wash it?

Remove the metal bars, wash at no more than 180 F (82 C), no bleach, air dry or low heat, then replace the bars. Follow the sling tag.

What size is 9047?

One size, Standard. Confirm with a clinician or our staff that a Standard mesh sling is the right article before first use.

What is the warranty?

Invacare covers the original purchaser for 1 year from the date of purchase.

Does funding cover a sling in Ontario?

Slings follow the funding path of the lift they are used with. Call (905) 451-7743 and we will check the lift and the sling together.
