Description
The Span America Geo-Mattress 350 is Span America's 6 inch prevention foam mattress for a 35 inch hospital or long-term care deck. Span America is a Savaria company. Westin Healthcare quotes it, delivers it, and sets it on the bed for homes and care sites in Brampton and the Greater Toronto Area.
This page is the Geo-Mattress 350 only. Span cuts it from a single layer of combustion-modified foam. The top is cross-cut so each cell can follow the person's shape and help redistribute pressure. Span lists a 350 lb weight limit, a 6 inch height, a 21 lb mattress weight, and three 35 inch widths: 75, 80, and 84 inches long. If a clinician has named Geo-Mattress Plus, Pro, Max, UltraMax, HC, or Atlas, ask us for that tier. Those are separate Span surfaces.
Who this mattress is for
This mattress is for a person on a 35 inch sleep deck who needs a wipeable, non-powered prevention foam and whose weight is within Span's 350 lb rating. Span writes it for heavier home care and for long-term care residents who need a 6 inch foam surface rather than the 5 inch Geo-Mattress HC.
Families and directors of care usually call us when the bed is a Span 35 inch Q-Series frame and the therapist has asked for a prevention foam, not a pump. If the care team has asked for air therapy, a convertible surface, or low air loss, we already stock Span PressureGuard Custom Care and Span-Care surfaces and will quote those instead.
- 35 inch decks such as the Span America Advantage (35 by 80 inches)
- Home care and long-term care rooms that need a 6 inch, 350 lb prevention foam
- Anyone replacing a worn foam on a 35 inch frame without adding a pump
Construction and how it works

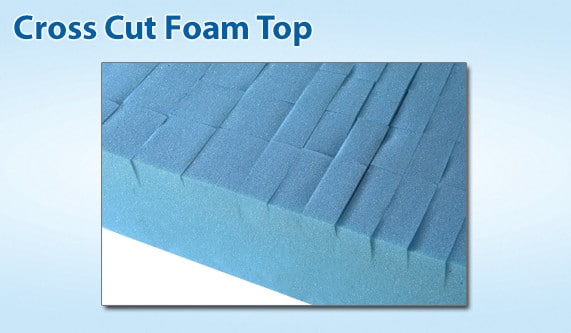

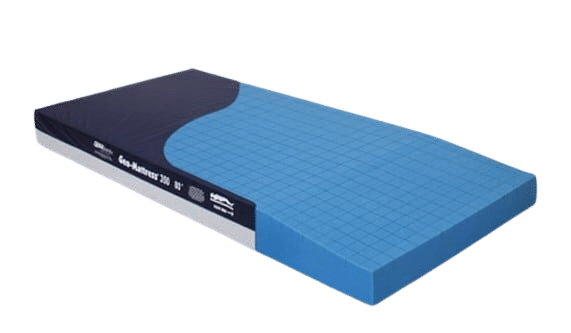

The Geo-Mattress 350 is a non-powered foam mattress. Span cuts the core from a single layer of combustion-modified foam and cross-cuts the top so the cells move on their own. That segmented top is the pressure-redistribution surface. There is no gel sheet and no pump.

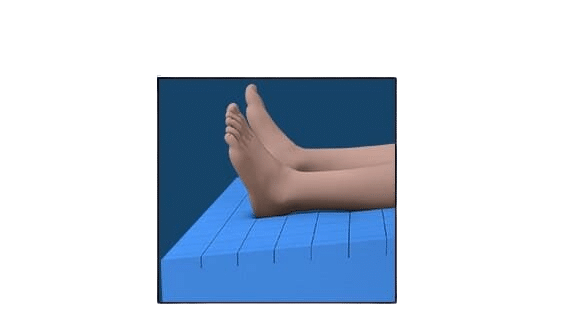

The cover is bacteriostatic, fire resistant, fluid-proof, tear resistant, cleanable, and replaceable. A pleated design ties the cover to the foam so the fabric is less likely to hammock across the cells. Span's Heel Slope tapers the foot end. Heels are the second most common site for pressure ulcers, after the sacrum. The slope spreads load over the lower leg and reduces pressure on the heel.
Span America Geo-Mattress 350 specifications
These figures are for the Geo-Mattress 350 in 67535-29, 68035-29, and 68435-29. They are not the HC, Plus, Pro, Max, UltraMax, or Atlas sheets. The specification tab holds the stored values.
Span lists a 350 lb weight limit, a 6 inch height, and a 21 lb mattress weight. Width is 35 inches. Lengths are 75, 80, and 84 inches. The mattress is non-powered. Span's catalog sheet lists a 5-year warranty, with 2 years prorated, in all care settings. Fire and life-safety markings on that sheet are NFPA 101 (ASTM E1590), Cal TB 117, and 16 CFR 1632 and 1633.
Size options
Use Choose Mattress Size. Every row is 35 inches wide and 6 inches high. The default on this page is 80 in L x 35 in W x 6 in H (68035-29).
- 75 in L x 35 in W x 6 in H (67535-29)
- 80 in L x 35 in W x 6 in H (68035-29)
- 84 in L x 35 in W x 6 in H (68435-29)
Span does not publish a 36, 39, 42, or wider Geo-Mattress 350. If the deck is the Span America Encore ReadyWide surface (36 to 42 inches), ask us for a Span surface in that width.
Funding help for a therapeutic mattress in Ontario
Ontario's Assistive Devices Program (ADP) does not cover hospital beds or mattresses, so plan around other routes. Funding that may help instead: March of Dimes Canada, Veterans Affairs Canada (VAC), and community programs. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through before you buy.
Delivery and setup in Brampton and the GTA
Westin's own team delivers and sets up this mattress across Brampton and the Greater Toronto Area. We bring it in, place it on the bed, and show you the cover and the heel slope before we leave.
We have three stores in the Brampton and Toronto area if you would rather see a mattress first. For a scheduled in-home setup, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service; purchased mattresses are delivered and set up on a scheduled date.
Hospital mattresses are oversized. The Canada-wide free ground-shipping offer on smaller goods does not apply. If the mattress is going outside the GTA, ask us for a freight quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.
Which beds this mattress fits

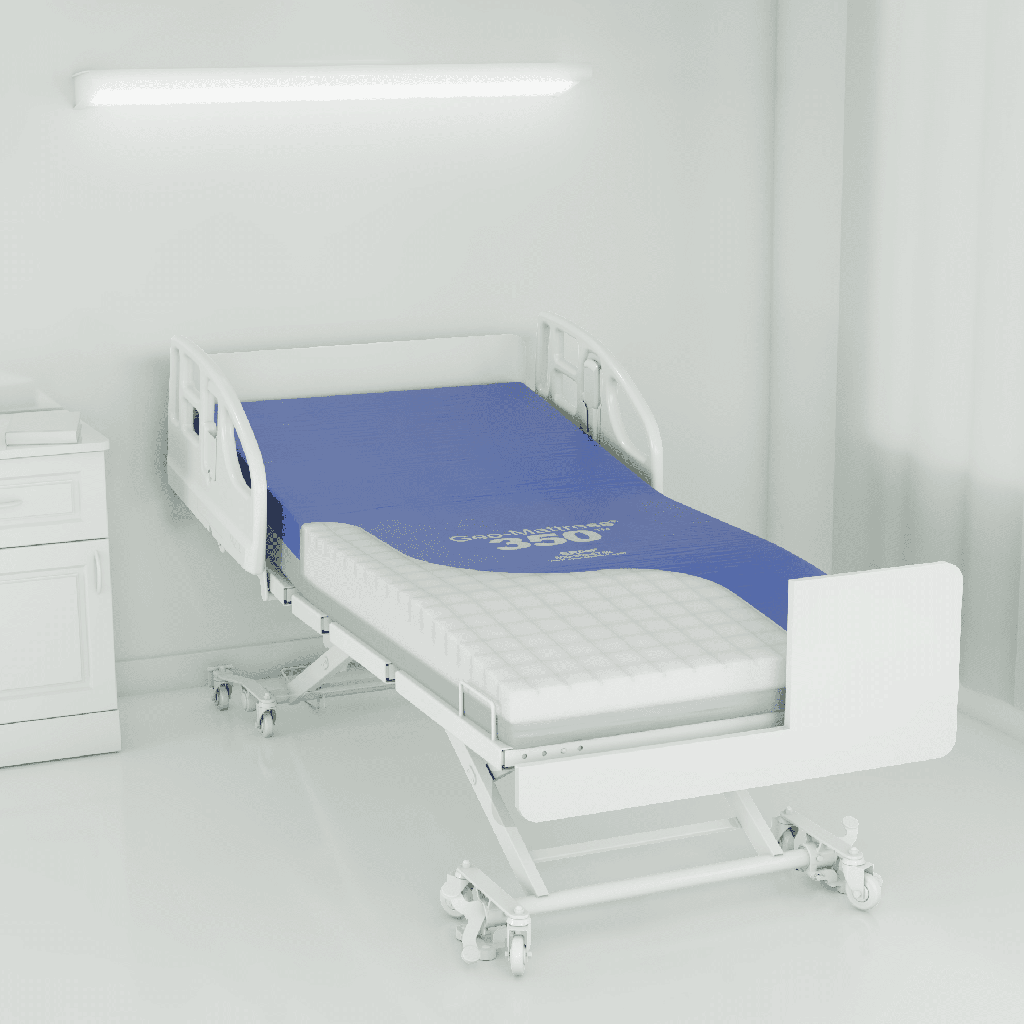

Span publishes the Geo-Mattress 350 in 35 inch width by 75, 80, or 84 inch length. That width matches Span America's 35 inch Q-Series sleep decks. The 80 inch 350 (68035-29) is the size for the Span America Advantage 35 by 80 inch deck. Span's bed manuals say to use a mattress that fits the frame and to keep it centred so the person cannot slip into a gap.
The 75 inch 350 is for a 35 by 75 inch deck. The 84 inch 350 is for a 35 by 84 inch deck. The Span America Encore expands from 36 to 42 inches, so we size a different Span surface for that platform. See all hospital beds if you are still choosing a frame, and all medical mattresses if you need a different therapy class.
When a clinician has asked for a Span air or convertible surface instead of this prevention foam, we already stock PressureGuard Custom Care Convertible LAL, non-powered Custom Care, and Span-Care Convertible. Ask us to add the matching width to the quote.
Service and warranty
When something on the mattress needs work, you call the shop that set it up. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.
Span America manufacturer warranty
Span lists a 5-year warranty on the Geo-Mattress 350, with 2 years prorated, in all care settings. We handle the warranty claim with you. Ask us if an extended warranty is offered for your order.
Frequently asked questions
What is the Geo-Mattress 350?
It is Span America's 6 inch, single-layer prevention foam mattress with a cross-cut top, a fluid-proof bacteriostatic cover, and a 350 lb weight limit. Span sells it in 35 inch width only, in 75, 80, and 84 inch lengths.
How is the 350 different from Geo-Mattress Plus, Pro, Max, HC, and Atlas?
The 350 is the 6 inch, 350 lb, single-layer prevention tier in 35 inch width. HC is the 5 inch, 250 lb boxed homecare foam. Plus is a dual-layer 400 lb surface. Pro is a zoned treatment foam with a 300 lb rating. Max is a three-tier 400 lb surface. Atlas is the bariatric Geo-Mattress. Ask us if the care team named one of those tiers.
Does this mattress need a pump?
No. The Geo-Mattress 350 is non-powered. There is no pump to plug in or to hear at night.
What is the weight rating?
Span lists a 350 lb weight limit on the Geo-Mattress 350. Tell us the person's weight when you order. For a higher rating, ask us about Atlas or another Span surface.
What sizes can I get?
35 inches wide by 75, 80, or 84 inches long, all 6 inches high. Codes are 67535-29, 68035-29, and 68435-29. The default on this page is 80 by 35 inches.
Which beds does the Geo-Mattress 350 fit?
It fits a 35 inch sleep deck in 75, 80, or 84 inch length. The 80 inch 350 matches the Span America Advantage 35 by 80 inch deck. Span's manuals say to keep the mattress centred on that frame.
How do I clean the cover?
Span specifies a bacteriostatic, fluid-proof, wipeable cover that is cleanable and replaceable. Wipe it with the disinfectant your clinician allows.
What is Heel Slope?
It is the tapered foot end on the Geo-Mattress 350. Span writes that heels are the second most common site for pressure ulcers, after the sacrum, and that the slope spreads load over the lower leg to reduce pressure on the heel.
What is the warranty?
Span lists a 5-year warranty, with 2 years prorated, in all care settings. Westin Healthcare processes the warranty work.
Can funding help pay for this mattress in Ontario?
Ontario's Assistive Devices Program does not cover hospital beds or mattresses. March of Dimes Canada, Veterans Affairs Canada, and community programs may still help, depending on the person. Call (905) 451-7743 or use the funding page before you buy.
What is included?
You get the Span America Geo-Mattress 350 in the size you pick, with the bacteriostatic cover on it. The bed frame is sold separately.
Specifications
| Model | Geo-Mattress 350 prevention foam mattress (not HC, Plus, Pro, Max, UltraMax, Atlas, or Wings) |
|---|---|
| Brands | Span America |
| Warranty | 5 years (2 years prorated), all care settings |
| Weight Capacity | 350 lb |
| Mattress Height | 6 in |
| Construction | Single layer of combustion-modified foam with a cross-cut segmented top |
| Cover | Bacteriostatic, fire resistant, fluid-proof, tear resistant, cleanable, replaceable; pleated, fully integrated |
| Certifications | NFPA 101 (Life Safety Code) - ASTM E1590; Cal TB 117; 16 CFR 1632 and 1633 |
| Mattress Weight | 21 lb |
| Therapy Class | Non-powered foam pressure redistribution (prevention) |
| Width | 35 in |
| Power | None. Non-powered. |
| Lengths | 75 in (67535-29), 80 in (68035-29), 84 in (68435-29) |
| Heel Feature | Heel Slope at the foot end (SPC card) |
| HCPCS (US) | EO184 (Group I) |
