Harmony True Low Air Loss Tri Therapy Mattress 14200

The Harmony True Low Air Loss Tri-Therapy system is Drive Medical's high-flow blower mattress. Westin Healthcare sells it, delivers it, and sets it up for homes in Brampton and the Greater Toronto Area. Drive's current item numbers are 14200N (36 inch), 14200N-42, and 14200N-48. This listing still stores SKU 14200.

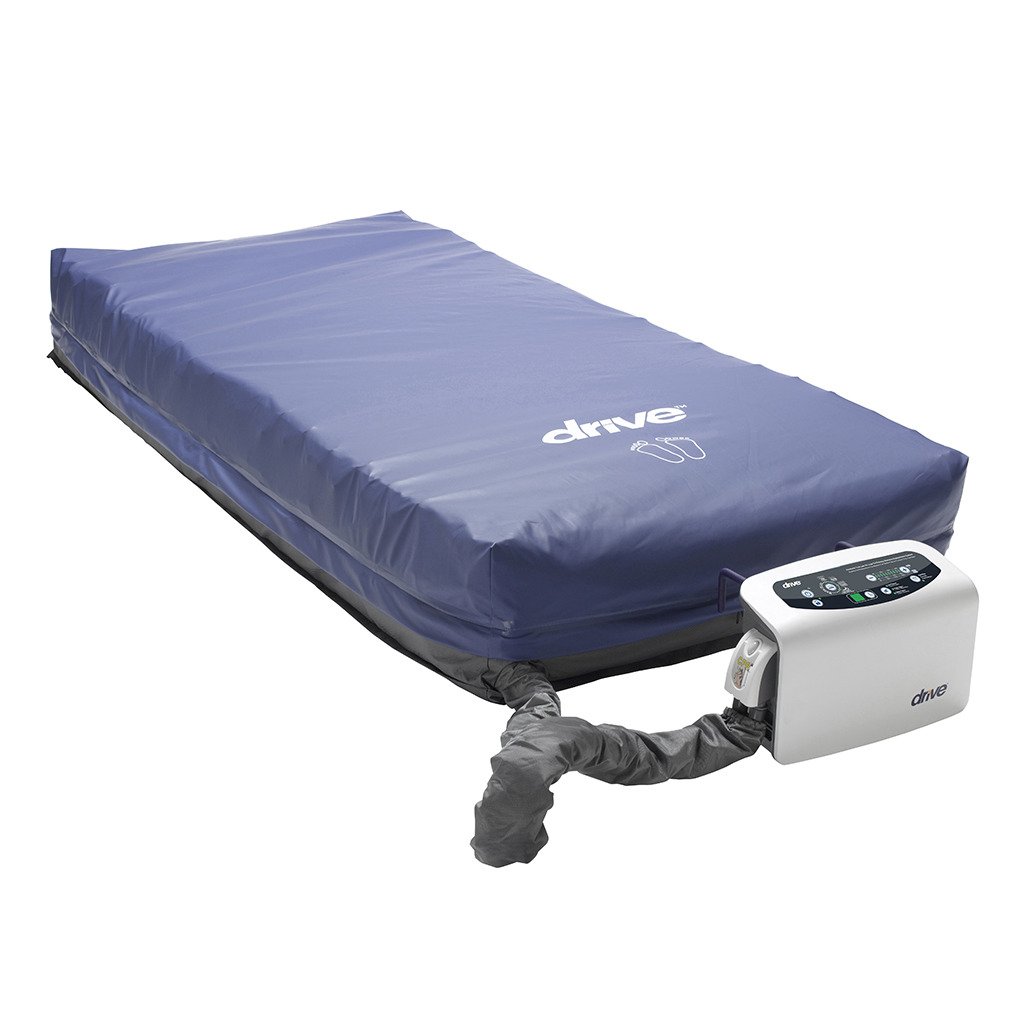

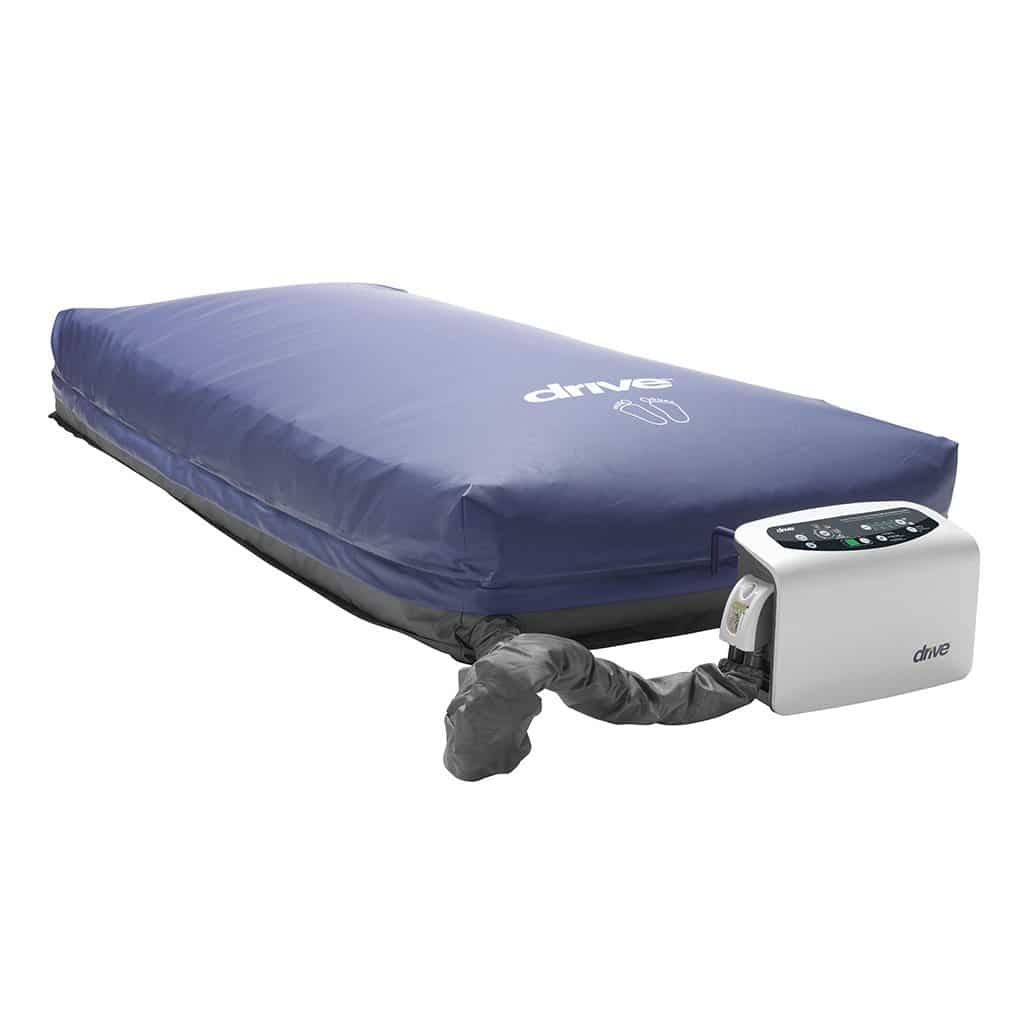

Drive designed the Harmony system to prevent, treat and heal pressure injuries in the home or long-term care setting. Twenty 8-inch air cells sit over a 2-inch foam base. The blower adds true low air loss, pulsation, and alternating pressure. Overall height is 10 inches.

Who this mattress is for

This mattress is for a person who needs a full replacement with true low air loss and three therapy modes, not a compressor-style micro low air loss surface. Families usually call us when a therapist has asked for a high-flow blower and selectable cycle times. The clinician who knows the person's skin still decides if this class is right.

If you want a quieter compressor with cell-on-cell and no blower, start with the Domus 4 or the Med Aire Plus. If you need Blake true low air loss on a 36-inch deck, see the Select Air Max. If the person needs 42 or 48 inches, use Choose Mattress Size on this page rather than stretching a 36-inch surface.

• Home or long-term care on a matching 36, 42, or 48-inch deck
• A therapist request for true low air loss plus pulsation and alternating pressure
• Anyone who needs a 2-inch foam base if the power fails

Construction and how it works

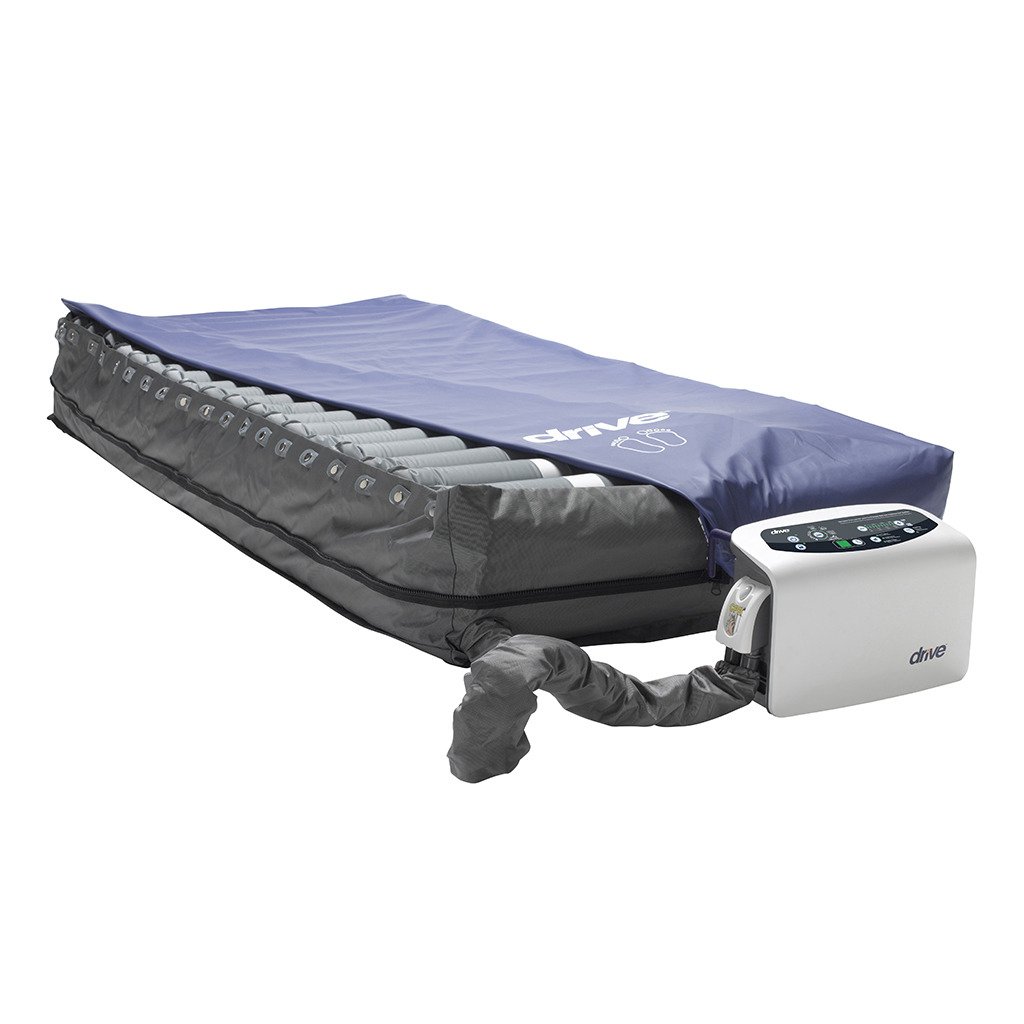

This is a mattress replacement. Twenty 8-inch cells sit on a 2-inch foam base. Alternating pressure moves load on a 5, 10, 15, or 20 minute cycle. Pulsation changes airflow up and down. True low air loss blows air under a vapour-permeable cover to help with heat and moisture. Head-end cells stay more static (pillow feature).

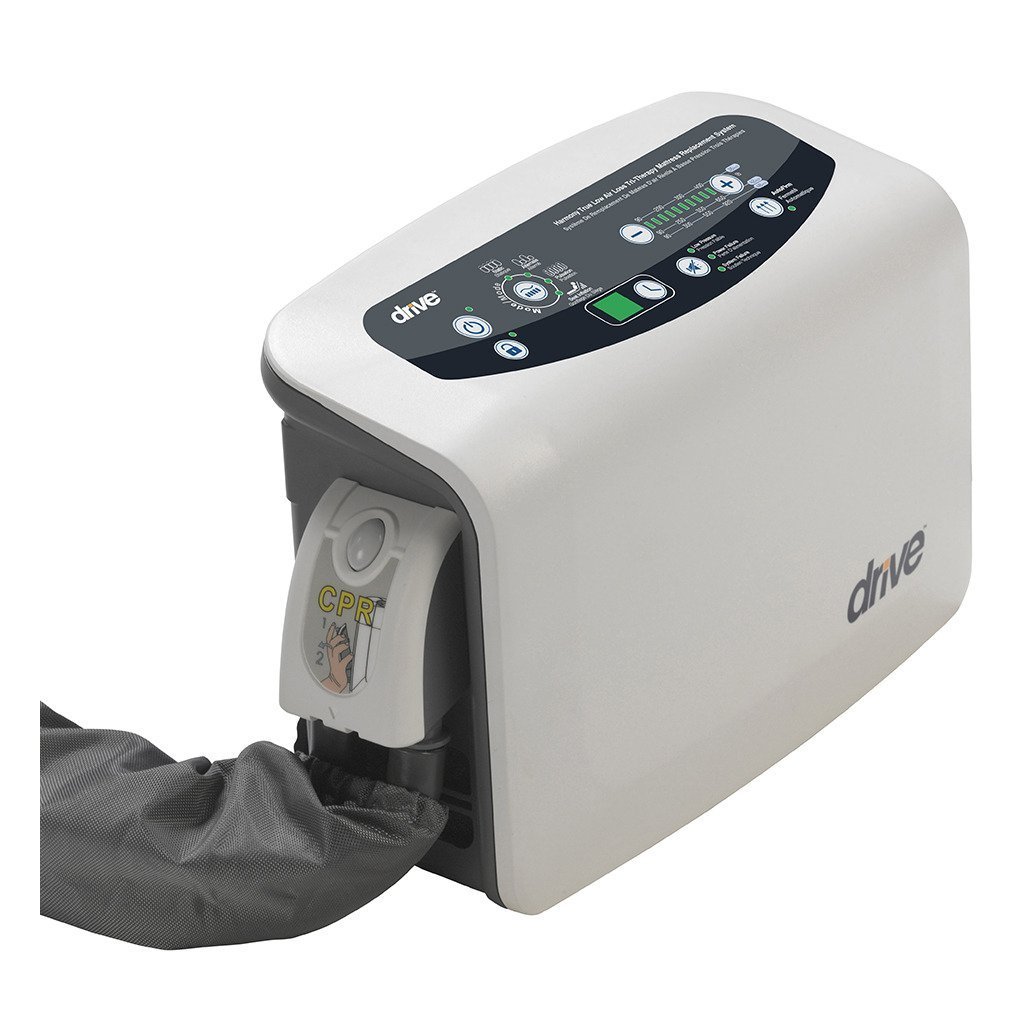

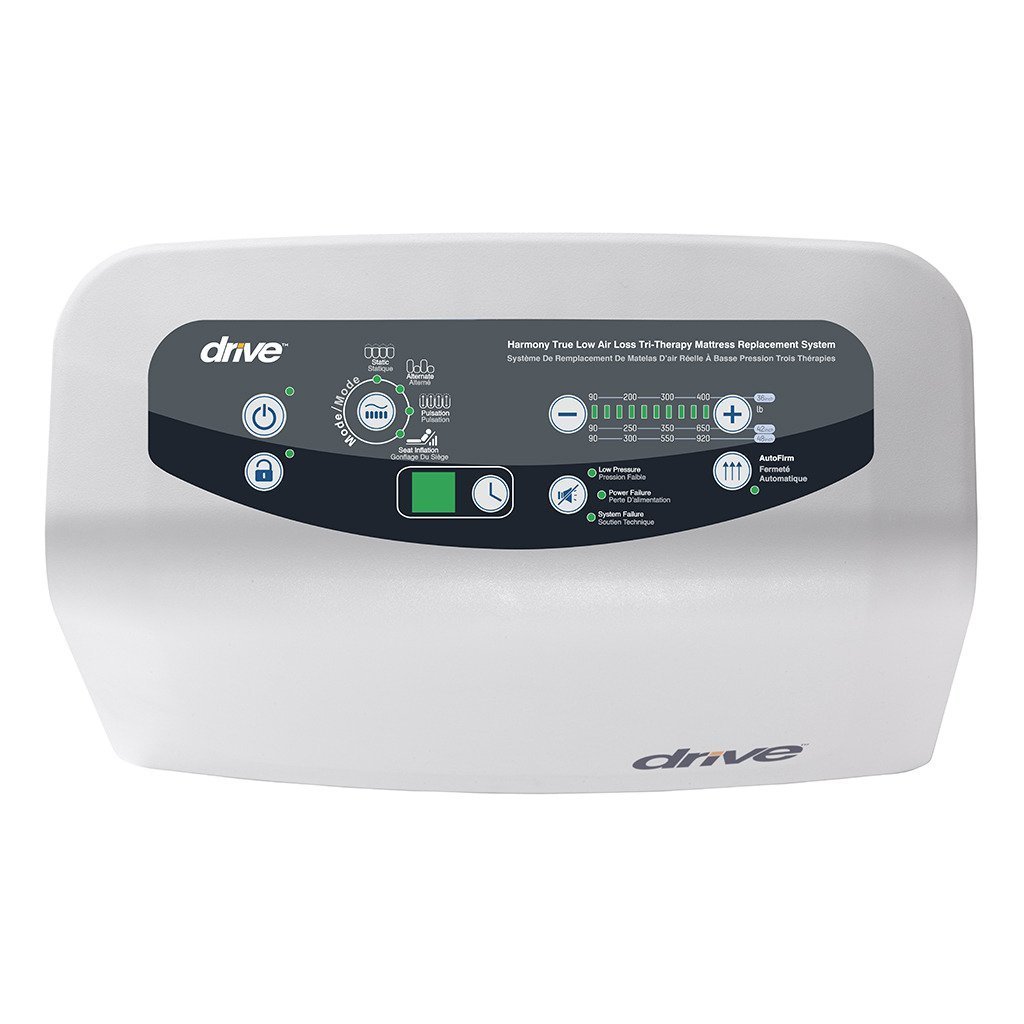

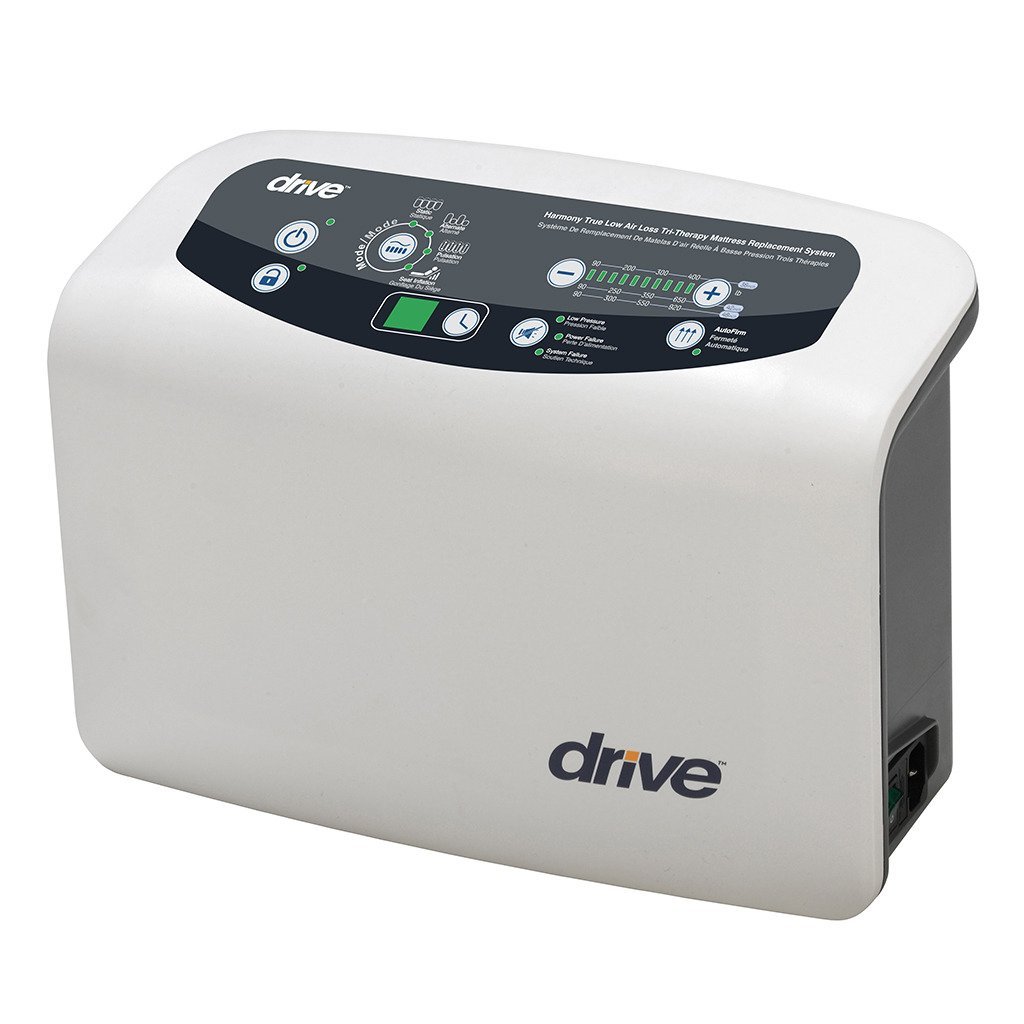

The digital control unit hangs on the footboard. Drive lists AutoFirm (cells fill in under two minutes), Seat Inflate, lock-out, and three diagnostic alarms for air pressure, the system, or power. A CPR valve dumps the air. A cable loop keeps the power cord off the floor. A carry bag is included. The current 14200N cover is a removable quilted four-way stretch polyurethane with an antimicrobial treatment that protects the cover, not the person.

Harmony True Low Air Loss specifications

These figures are for Westin SKU 14200, Drive's Harmony tri-therapy family. The specification tab holds the stored values. Drive's current 14200N pages list 36, 42, and 48 inches by 80 inches by 10 inches, a 2-year warranty, four cycle times, HCPCS E0277, and a high-flow true low air loss blower. Drive's 36-inch 14200N page says the system can accommodate patients up to 550 lbs. The 42-inch and 48-inch spec table still prints 400 lbs for the 36-inch width and does not print separate 42 or 48 capacities. Ask us to read the carton before we treat 550 lbs as the number for your order.

Warranty for the original purchaser is 2 years.

Choose Mattress Size

Use Choose Mattress Size to set the width. All three options are 80 inches long and 10 inches high.

• 36"W x 80"L x 10"H (Drive 14200N)
• 42"W x 80"L x 10"H (Drive 14200N-42)
• 48"W x 80"L x 10"H (Drive 14200N-48)

You get the 20-cell mattress, the digital blower, and the carry bag. The 42-inch surface belongs on a 42-inch deck such as the Drive 15300LW. The 48-inch surface belongs on a 48-inch deck such as the Drive 15302LW.

Funding help for a therapeutic mattress in Ontario

Ontario's Assistive Devices Program (ADP) does not cover hospital beds or mattresses, so plan around other routes. Funding that may help instead: ODSP, March of Dimes Canada, Veterans Affairs Canada (VAC), hardship funding programs, and community programs. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through before you buy.

Delivery and setup in Brampton and the GTA

Westin's own team delivers and sets up this mattress across Brampton and the Greater Toronto Area. We bring it in, place it on the bed, connect the control unit, and show you the pump before we leave.

We have three stores in the Brampton and Toronto area if you would rather see a mattress first. For a scheduled in-home setup, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service; purchased mattresses are delivered and set up on a scheduled date.

Hospital-bed mattresses are oversized. The Canada-wide free ground-shipping offer on smaller goods does not apply. If the mattress is going outside the GTA, ask us for a freight quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.

Which Westin beds this mattress fits

Match the width you pick to the sleep deck. A 36-inch Harmony sits on a 36-inch homecare bed. The wider sizes need a bariatric frame.

• Drive Delta 1000 for the 36-inch size
• Drive 15300LW 42-inch bariatric bed for the 42-inch size
• Drive 15302LW 48-inch bariatric bed for the 48-inch size

Service and warranty

When the blower or a cell needs work, you call the shop that set it up. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.

Drive manufacturer warranty

Drive's Harmony sheet covers the original purchaser for 2 years. We handle the warranty claim with you. Ask us if an extended warranty is offered for your order.

Frequently asked questions

How is Harmony different from Med Aire Plus?

Both are Drive replacements with alternating pressure. Harmony is a high-flow true low air loss blower with pulsation, a 10-inch height, and a 2-year warranty. Med Aire Plus is an 8 LPM digital compressor with cell-on-cell, an 8-inch height, and 18 months.

Is this an overlay or a replacement?

A replacement. The existing mattress comes off. Twenty 8-inch cells sit on a 2-inch foam base.

How do I clean the cover?

The quilted four-way stretch cover is removable, fluid-resistant, and vapour-permeable. Follow Drive's user instructions for wipe-down. Do not immerse the blower. Drive's antimicrobial treatment is there to protect the cover.

What is the weight rating?

Drive's current 36-inch 14200N page says up to 550 lbs. The 42-inch and 48-inch spec table still prints 400 lbs for the 36-inch width. Ask us to confirm the carton on your order before we treat either number as final.

What size bed does it fit?

Choose Mattress Size sets 36, 42, or 48 inches by 80 inches by 10 inches. Match the width to the bed deck. The 42-inch and 48-inch sizes are not for a 36-inch homecare frame.

How loud is the pump?

Drive does not print a decibel rating on the current Harmony sheet. The unit is a high-flow blower, not an 8 LPM compressor. If pump noise is the main concern, ask us about a compressor-style surface such as Domus 4.

What is the warranty?

2 years for the original purchaser on Drive's Harmony sheet. Westin Healthcare processes the claim.

Does funding cover this mattress in Ontario?

Some Ontario routes can help with a therapeutic support surface. Eligibility depends on the person's situation and assessment. Call (905) 451-7743 or use the funding page before you buy.

Can I rent a powered mattress before I buy?

Westin Healthcare rents hospital-bed packages that include a therapeutic mattress. See current packages on the hospital bed rentals page. Ask us whether this Harmony system can be added to a rental.

What happens if the power goes out?

A 2-inch foam base stays under the person if the blower stops. That is outage protection, not a second therapy mode.
