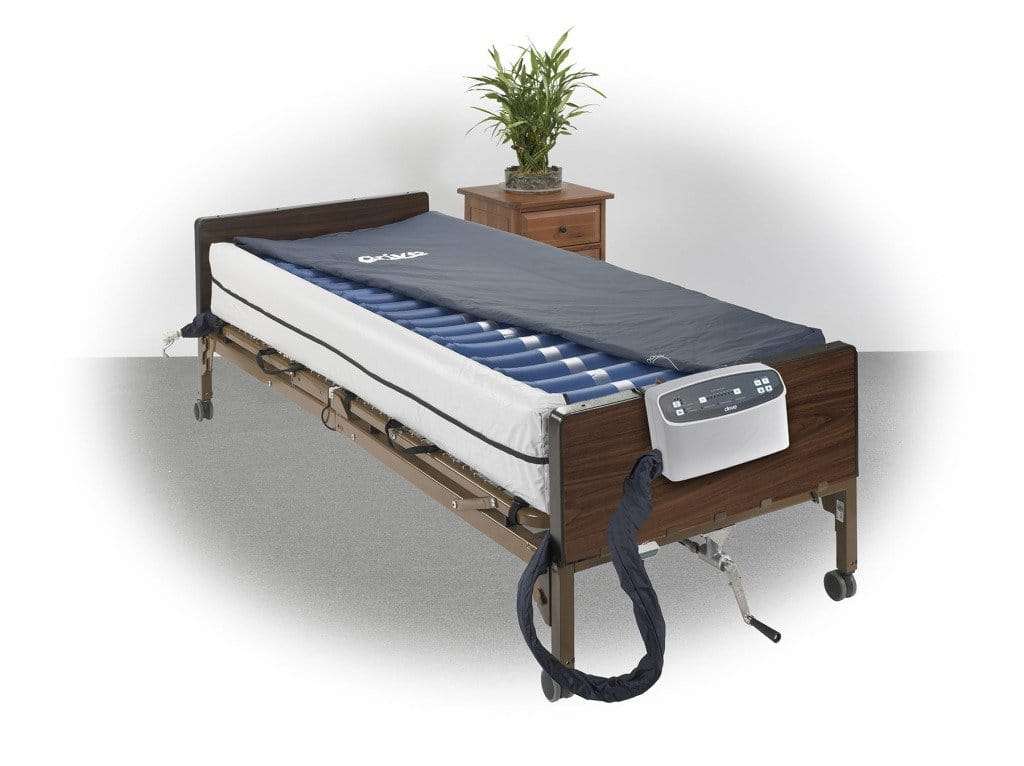

Med Aire Plus 8" Alternating Pressure and Low Air Loss Mattress System with 10" Defined Perimeter - 14029DP

The Med Aire Plus 14029DP is Drive Medical's 8-inch alternating-pressure and low-air-loss replacement with a 10-inch defined perimeter. Westin Healthcare sells it, delivers it, and sets it up for homes in Brampton and the Greater Toronto Area. It is the perimeter sibling of the Med Aire Plus 14029: same digital pump, with static tubing along the sides.

Drive lists a 450 lb weight capacity. The digital control unit (14029XP) runs at 8 litres per minute with cycle times of 10, 15, 20, and 25 minutes. Cell-on-cell air cells hold a lower chamber of air for up to 24 hours if the power goes out.

Who this mattress is for

This surface is for a person who needs a full replacement mattress, not an overlay, and whose clinician wants a raised static edge as well as alternating pressure and low air loss. Drive designed the 14029 series to prevent, treat and heal pressure ulcers in the home or long-term care setting. The 10-inch perimeter is Drive's wording for reducing falls or entrapment along the length of the mattress. It does not replace a clinician's bed-rail plan.

If you do not need the defined perimeter, the standard Med Aire Plus 14029 is the same pump and cell height. If 450 lbs is not enough, see the Med Aire Plus 42 Inch 14030.

• Home care on a 36-inch by 80-inch hospital bed
• A therapist request for alternating pressure, low air loss, and a defined perimeter
• Anyone within Drive's 450 lb rating who wants Auto-Firm and Seat Inflate on the pump

Construction and how it works

This is a mattress replacement. The old sleep surface comes off the deck and this system goes on. Alternating pressure moves air through 8-inch cells on a chosen cycle. Low air loss vents a little air for microclimate. Four cells at the head stay more static so the head is steady (pillow feature).

A 10-inch static perimeter tube runs the length of the mattress. The therapy cells inside are still 8 inches deep. Cell-on-cell construction keeps a lower chamber inflated so the person is less likely to bottom out if the pump stops, for up to 24 hours per Drive.

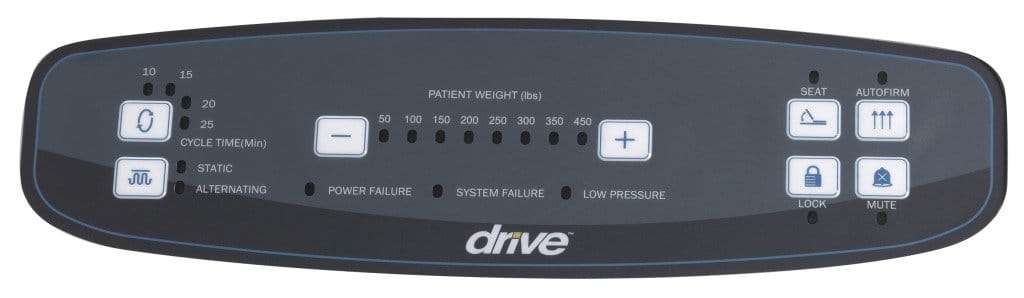

The 14029XP digital unit adds Auto-Firm, Seat Inflate, lock-out, and three diagnostic alarms (air pressure, system, power). The cover is a removable 4-way stretch PU: fluid-resistant, low-shear, and vapour-permeable. Cells disconnect for service. A CPR valve dumps the air. Tubing uses EZ Lock / Quick Release.

Med Aire Plus 14029DP specifications

These figures are for Westin SKU 14029DP. The specification tab holds the stored values. Drive's sheet lists 36 inches by 80 inches by 10 inches overall, a 450 lb capacity, and the 14029XP digital pump shared with 14029. That pump is rated 8 LPM with cycle times of 10, 15, 20, and 25 minutes. The owner manual prints a pressure range of 20 to 60 mmHg.

Warranty for the original purchaser is 18 months on the control unit and mattress.

Size and what is included

This listing is one size: 36 inches wide by 80 inches long by 10 inches at the perimeter. There is no size picker. You get the defined-perimeter mattress and the 14029XP digital control unit. Drive's 84-inch Plus is 14029-84 on the standard (no-perimeter) listing, not this SKU. A carry bag (14029B) and quick-fill pump (14427QF) are separate accessories.

Funding help for a therapeutic mattress in Ontario

Ontario's Assistive Devices Program (ADP) does not cover hospital beds or mattresses, so plan around other routes. Funding that may help instead: ODSP, March of Dimes Canada, Veterans Affairs Canada (VAC), hardship funding programs, and community programs. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through before you buy.

Delivery and setup in Brampton and the GTA

Westin's own team delivers and sets up this mattress across Brampton and the Greater Toronto Area. We bring it in, place it on the bed, connect the control unit, and show you the pump before we leave.

We have three stores in the Brampton and Toronto area if you would rather see a mattress first. For a scheduled in-home setup, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service; purchased mattresses are delivered and set up on a scheduled date.

Hospital-bed mattresses are oversized. The Canada-wide free ground-shipping offer on smaller goods does not apply. If the mattress is going outside the GTA, ask us for a freight quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.

Which Westin beds this mattress fits

The sleep surface is 36 inches by 80 inches. It belongs on a standard-width homecare bed.

• Drive Delta 1000, the 36-inch full-electric homecare bed
• Drive Delta 15235 hi-low, when the deck needs to go lower
• Drive 15005LP, another 36-inch low-height full-electric frame

Service and warranty

When the pump or a cell needs work, you call the shop that set it up, not a US parts desk. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.

Drive manufacturer warranty

Drive covers the original purchaser for 18 months on the 14029XP control unit and the 14029DP mattress. We handle the warranty claim with you. Ask us if an extended warranty is offered for your order.

Frequently asked questions

How is 14029DP different from the standard Med Aire Plus 14029?

Same digital pump, same 8-inch therapy cells, same 450 lb rating, same 18-month warranty. The DP adds a 10-inch static perimeter along the length. Drive's 84-inch option is on 14029, not on 14029DP.

What does alternating pressure plus low air loss mean?

Cells inflate and deflate on a 10-, 15-, 20-, or 25-minute cycle so the load moves. A little air vents for moisture control. That is not the same as a foam mattress, and it is not Drive's blower-based Harmony surface.

How do I clean the cover?

The 4-way stretch PU cover is removable, fluid-resistant, and vapour-permeable. Follow Drive's user manual for wipe-down and disinfectant. Do not immerse the control unit.

What is the weight rating?

Drive lists 450 lbs for 14029DP. If the person is near that limit, or you need a wider deck, use a Med Aire Plus bariatric width instead of stretching this surface.

What size bed does it fit?

36 inches by 80 inches. It is not a 42-inch or wider bariatric mattress.

How loud is the pump?

Drive does not print a decibel number on the 14029XP sheet. The digital unit hangs on the footboard and has a lock-out so settings are not changed by accident. If you need a printed 45 dB figure, that is on the PreserveTech Med-Aire Edge.

What happens if the power goes out?

Cell-on-cell chambers hold a lower layer of air. Drive states up to 24 hours of outage protection so the person is less likely to bottom out. The pump will not resume the cycle until power returns.

What is the warranty?

18 months on the control unit and mattress for the original purchaser. Westin Healthcare processes the claim.

Does funding cover this mattress in Ontario?

Some Ontario routes can help with a therapeutic support surface. Eligibility depends on the person's situation and assessment. Call (905) 451-7743 or use the funding page before you buy.

Can I rent a powered mattress before I buy?

Westin Healthcare rents hospital-bed packages that include a therapeutic mattress. See current packages on the hospital bed rentals page. Ask us whether this defined-perimeter system can be added to a rental.
