Med Aire Plus 8" Alternating Pressure and Low Air Loss Mattress System

The Med Aire Plus 14029 is Drive Medical's digital 8-inch alternating-pressure and low-air-loss replacement. Westin Healthcare sells it, delivers it, and sets it up for homes in Brampton and the Greater Toronto Area. It is the step-up from the analog Med Aire 14027, with a 450 lb rating and cell-on-cell cells that hold air in a power cut.

The 14029XP control unit is rated 8 litres per minute. Cycle times are 10, 15, 20, and 25 minutes. Drive's owner manual prints a 20 to 60 mmHg pressure range. Two lengths are on this listing: 36 by 80 and 36 by 84 (Drive 14029-84).

Who this mattress is for

This mattress is for a person on a 36-inch hospital bed who needs a full air replacement and whose clinician wants a digital pump with more than one cycle time. Drive designed the 14029 to prevent, treat and heal pressure ulcers in the home or long-term care setting. Suitability still belongs to the clinician who knows the person's skin.

If a simple analog 10-minute pump is enough, start with the Med Aire 14027. If you want a 10-inch defined perimeter, use the Med Aire Plus 14029DP. If the person needs more than 450 lbs or a wider deck, see the 42-inch Med Aire Plus 14030.

• Home care on a 36-inch by 80-inch or 84-inch hospital bed
• A therapist request for digital cycle times, Auto-Firm, and Seat Inflate
• Anyone within Drive's 450 lb rating who wants up to 24 hours of cell-on-cell hold if the power fails

Construction and how it works

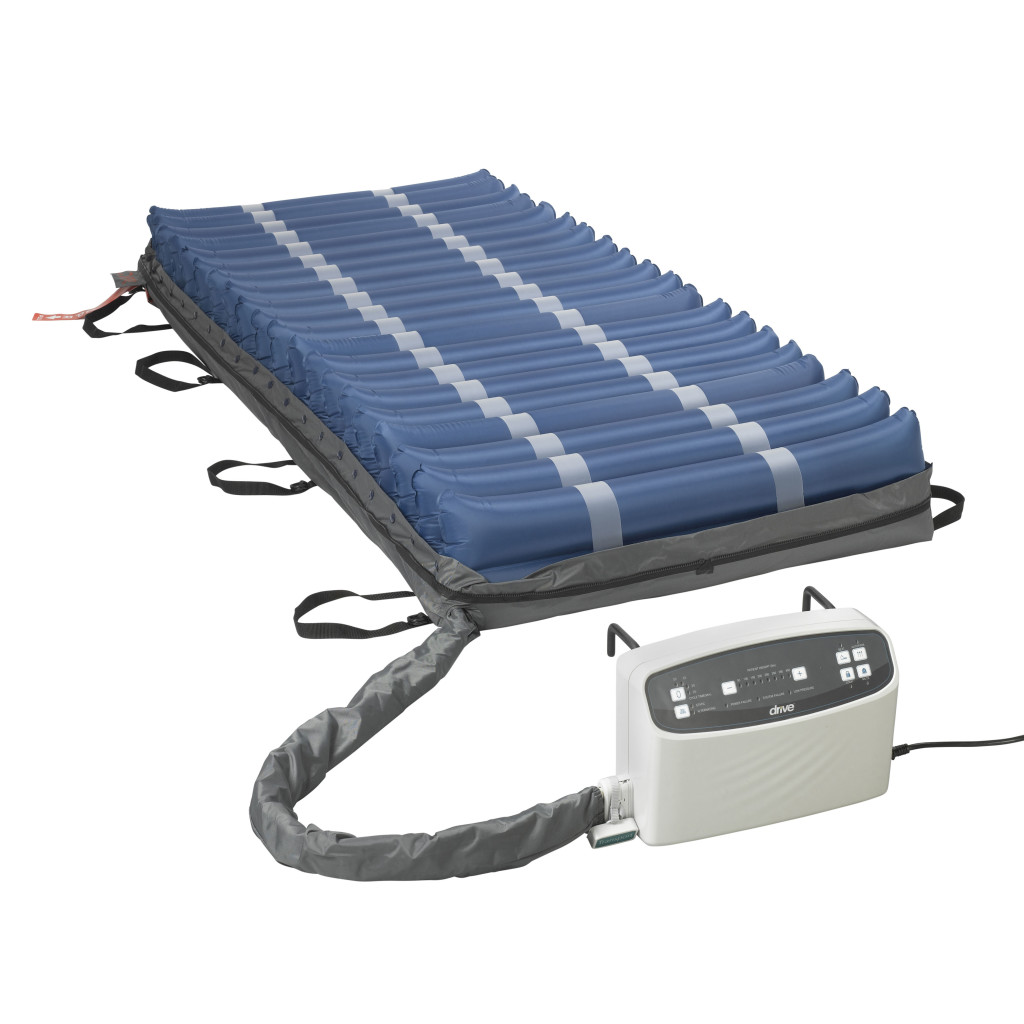

This is a mattress replacement. Twenty 8-inch cells sit on a static 4-inch cell-on-cell base. Alternating pressure moves the load on a chosen cycle. Low air loss vents a little air for microclimate. Head-end cells stay more static (pillow feature).

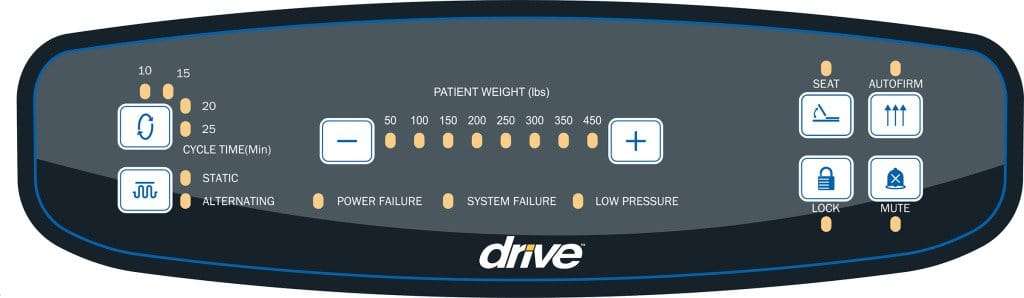

The lower chamber stays inflated if the pump stops. Drive states up to 24 hours of outage protection so the person is less likely to bottom out. The 14029XP digital unit adds Auto-Firm, Seat Inflate (about 10 mmHg extra for sitting), lock-out, and three diagnostic alarms for air pressure, the system, or power. Eight comfort weight levels sit on the plus and minus keys.

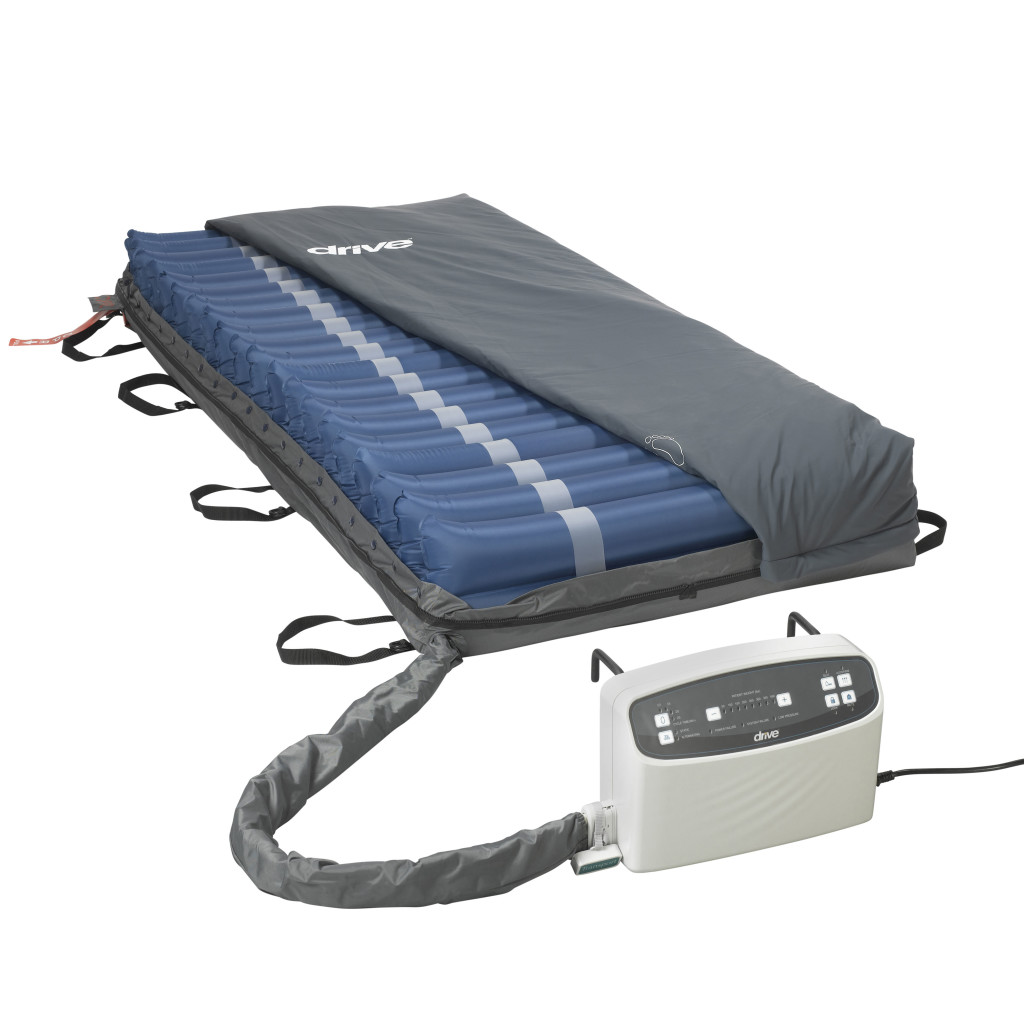

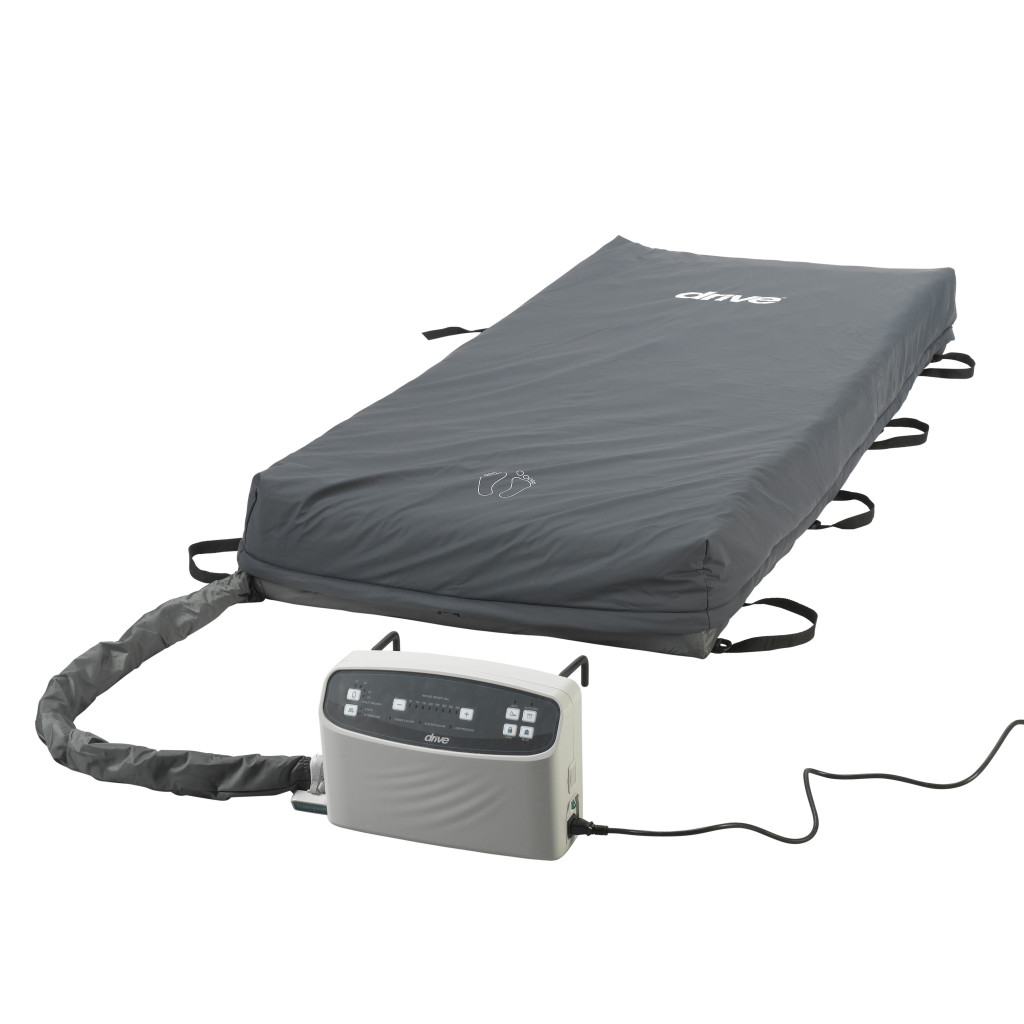

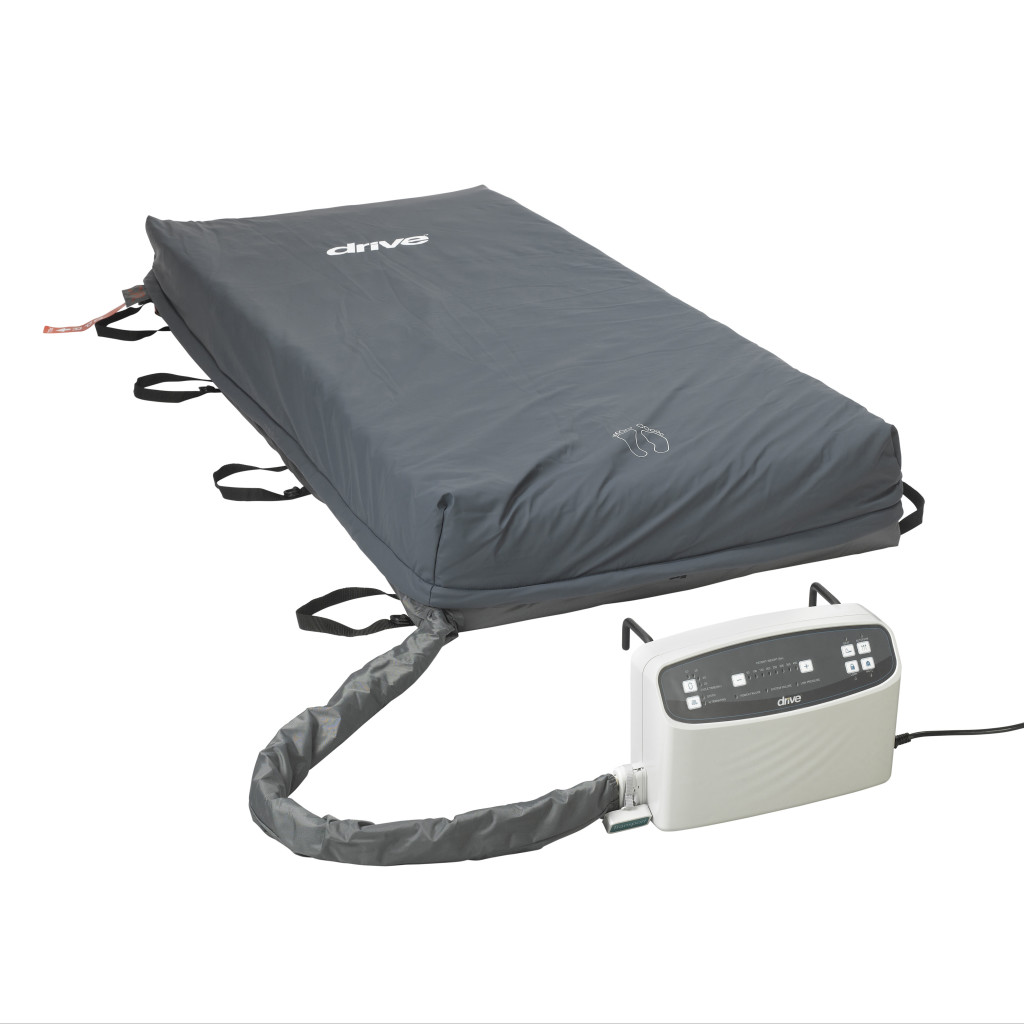

The cover is a removable 4-way stretch PU: fluid-resistant, low-shear, and vapour-permeable. Cells disconnect for service. A CPR valve dumps the air. Tubing uses EZ Lock / Quick Release. Drive's official video shows first fill can take about 40 minutes; the 14427QF quick-fill accessory fills faster and is sold separately.

Med Aire Plus 14029 specifications

These figures are for Westin SKU 14029 (80 inch) and the 14029-84 option on the size picker. The specification tab holds the stored values. Drive's sheet lists a 450 lb capacity, 8 LPM airflow, visual and audible alarms, cycle times of 10, 15, 20, and 25 minutes, and an 18-month limited warranty. The owner manual prints 20 to 60 mmHg.

Warranty for the original purchaser is 18 months on the control unit and mattress.

Mattress Size (Options)

Use Mattress Size (Options) to pick the length. Both options are 36 inches wide and 8 inches high.

• 36" (W) x 80" (L) x 8" (H), Drive 14029
• 36" (W) x 84" (L) x 8" (H), Drive 14029-84

Pick 84 inches only when the bed deck is extended to 84 inches. On a Drive Delta, that is the 15030EXTKIT. Ask us before you choose 84 if you are not sure the frame is extended. You get the mattress and the 14029XP digital control unit with either length.

Funding help for a therapeutic mattress in Ontario

Ontario's Assistive Devices Program (ADP) does not cover hospital beds or mattresses, so plan around other routes. Funding that may help instead: ODSP, March of Dimes Canada, Veterans Affairs Canada (VAC), hardship funding programs, and community programs. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through before you buy.

Delivery and setup in Brampton and the GTA

Westin's own team delivers and sets up this mattress across Brampton and the Greater Toronto Area. We bring it in, place it on the bed, connect the control unit, and show you the pump before we leave.

We have three stores in the Brampton and Toronto area if you would rather see a mattress first. For a scheduled in-home setup, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service; purchased mattresses are delivered and set up on a scheduled date.

Hospital-bed mattresses are oversized. The Canada-wide free ground-shipping offer on smaller goods does not apply. If the mattress is going outside the GTA, ask us for a freight quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.

Which Westin beds this mattress fits

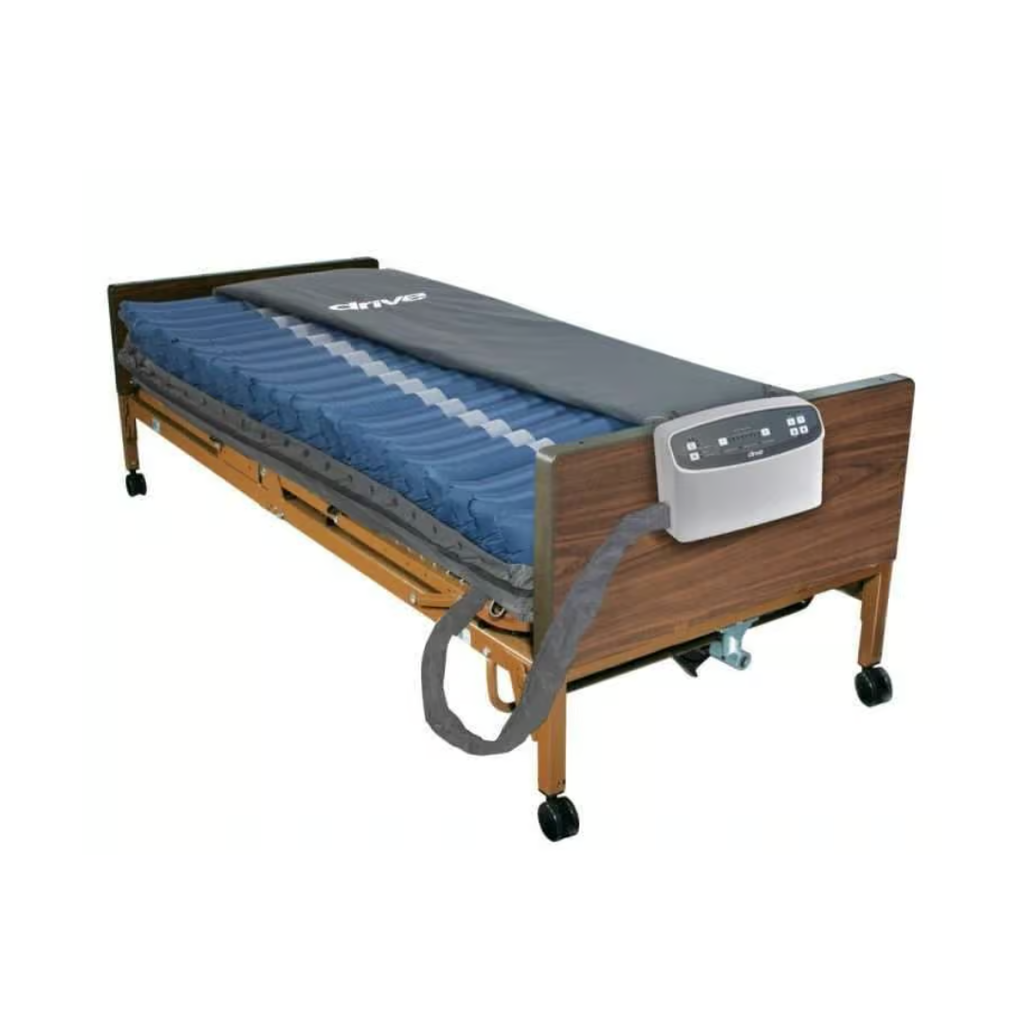

The 80-inch option fits a standard 36-inch by 80-inch homecare deck. The 84-inch option needs an 84-inch deck.

• Drive Delta 1000, 36 by 80, extendable to 84 with the Drive kit
• Drive Delta 15235 hi-low, the same deck width with a lower transfer height
• Drive 15005LP, another 36-inch full-electric frame

Service and warranty

When the pump or a cell needs work, you call the shop that set it up, not a US parts desk. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.

Drive manufacturer warranty

Drive covers the original purchaser for 18 months on the 14029XP control unit and the mattress. We handle the warranty claim with you. Ask us if an extended warranty is offered for your order.

Frequently asked questions

How is the Med Aire Plus different from the Med Aire 14027?

Same 8-inch replacement class and the same 8 LPM family of compressor. The Plus adds four cycle times, a 450 lb rating, cell-on-cell outage hold, Auto-Firm, Seat Inflate, lock-out, three diagnostic alarms, and 18 months instead of 12.

When do I pick 80 inches versus 84 inches?

Match the bed deck. Most homecare beds are 80 inches. Pick 84 inches only when the frame has the 4-inch extender on and you have a matching 84-inch length. The 84-inch Drive SKU is 14029-84.

How do I clean the cover?

The 4-way stretch PU cover is removable, fluid-resistant, and vapour-permeable. Follow Drive's user manual for wipe-down and disinfectant. Do not immerse the control unit.

What is the weight rating?

Drive lists 450 lbs for 14029 and 14029-84. Near that limit, or if you need more width, use a Med Aire Plus bariatric size.

How loud is the pump?

Drive does not print a decibel number on the 14029XP sheet. The unit hangs on the footboard. Lock-out stops accidental button presses at night.

What happens if the power goes out?

Cell-on-cell chambers keep a lower layer of air. Drive states up to 24 hours of outage protection. The cycle does not resume until power returns.

What is the warranty?

18 months on the control unit and mattress for the original purchaser. Westin Healthcare processes the claim.

Does funding cover this mattress in Ontario?

Some Ontario routes can help with a therapeutic support surface. Eligibility depends on the person's situation and assessment. Call (905) 451-7743 or use the funding page before you buy.

Can I rent a powered mattress before I buy?

Westin Healthcare rents hospital-bed packages that include a therapeutic mattress. See current packages on the hospital bed rentals page. Ask us whether this Plus system can be added to a rental.

Does the 14029 have a defined perimeter?

No. The standard 14029 does not. The defined-perimeter sibling is the 14029DP.
