Med Aire 5" Alternating Pressure and Low Air Loss Overlay System - 14025NS

The Med Aire 5 is Drive Medical's powered overlay. It sits on top of an existing foam or innerspring mattress and adds alternating pressure plus low air loss. Drive's current kit is 14025NS. Westin Healthcare sells it, delivers it, and sets it up for homes in Brampton and the Greater Toronto Area.

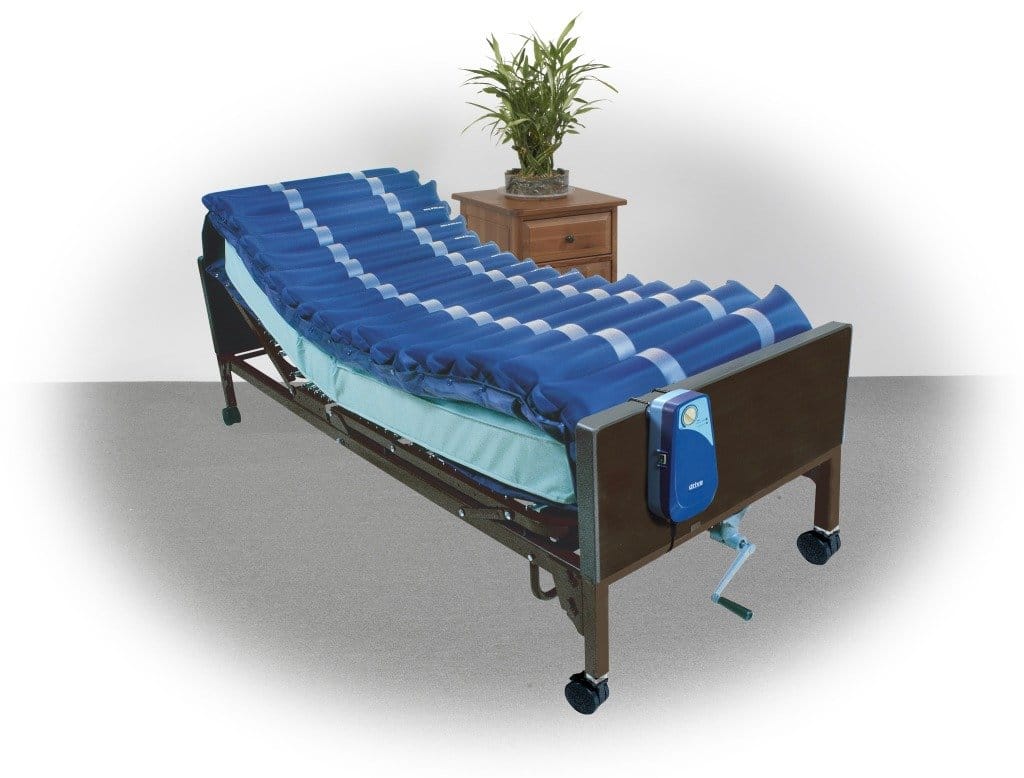

This is an overlay, not a full replacement mattress. Seventeen 5-inch air cells go on the mattress you already have. The control unit runs a 10-minute alternating cycle and can also hold a static surface. Drive lists a 350 lb weight capacity and a 24-month warranty on the overlay and control unit.

Who this mattress is for

This overlay is for a person who still has a usable hospital-bed mattress and needs a powered air surface on top of it. Families usually call us when a therapist has asked for alternating pressure or low air loss, and the existing mattress is still sound. Drive designed the 14025NS to prevent, treat and heal pressure injuries in the home or long-term care setting. Suitability still belongs to the clinician who knows the person's skin.

If you need a full replacement instead of a topper, start with the Med Aire 8 Inch 14027 or the foam-base Med Aire Assure 14530. If the person is near or over 350 lbs, this overlay is not the match.

• Home care, when the current 36-inch hospital mattress is staying on the bed
• A therapist request for alternating pressure and low air loss without replacing the whole surface
• Anyone within Drive's 350 lb rating who needs a 10-minute cycle and a static mode for transfers

Construction and how it works

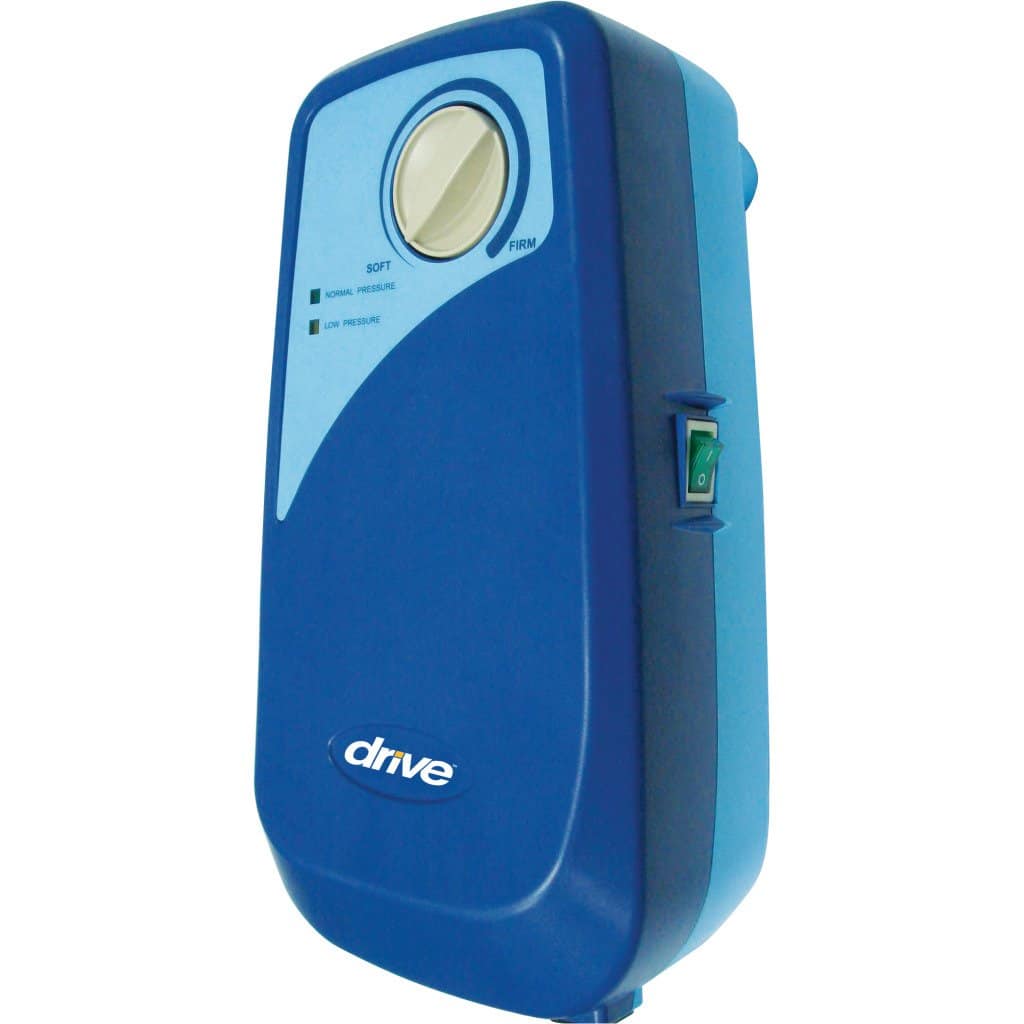

Alternating pressure means the cells inflate and deflate on a timer so the load on the skin moves. Low air loss means a little air vents through the surface to help with moisture and microclimate. Both run from one control unit hung on the footboard.

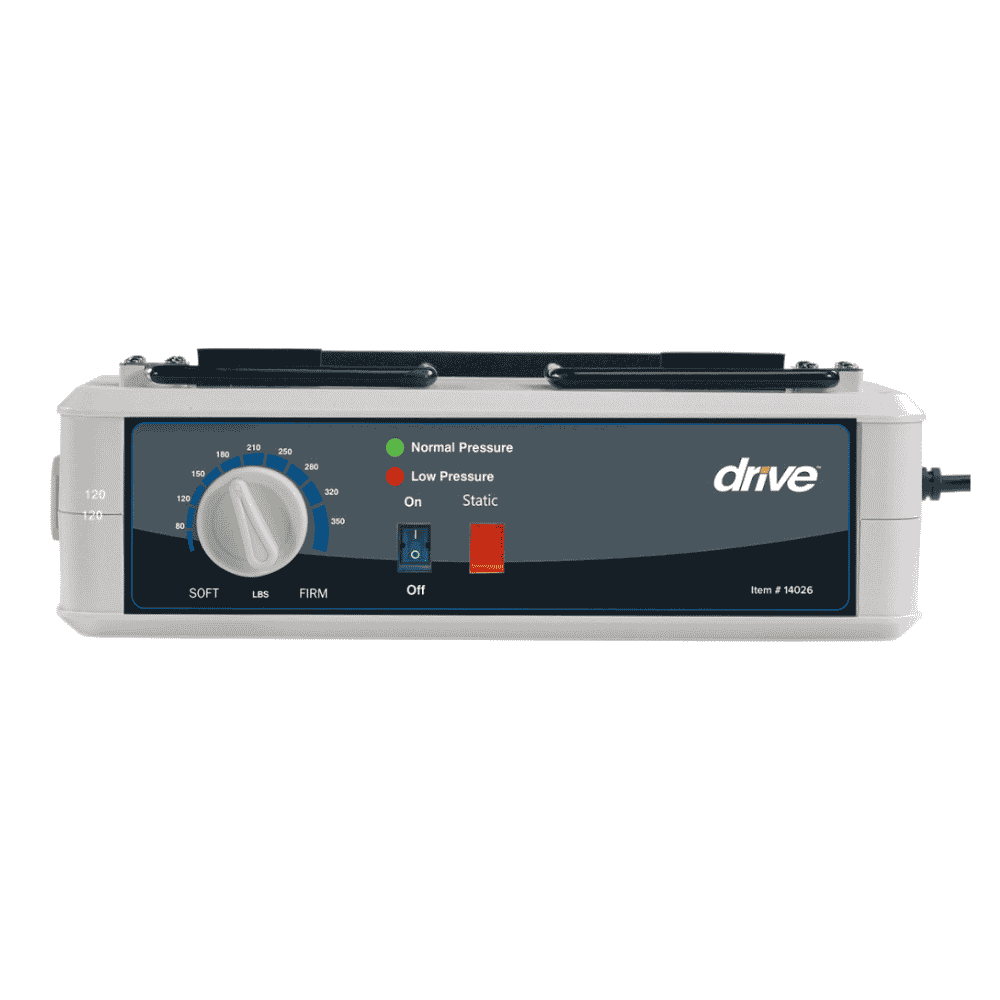

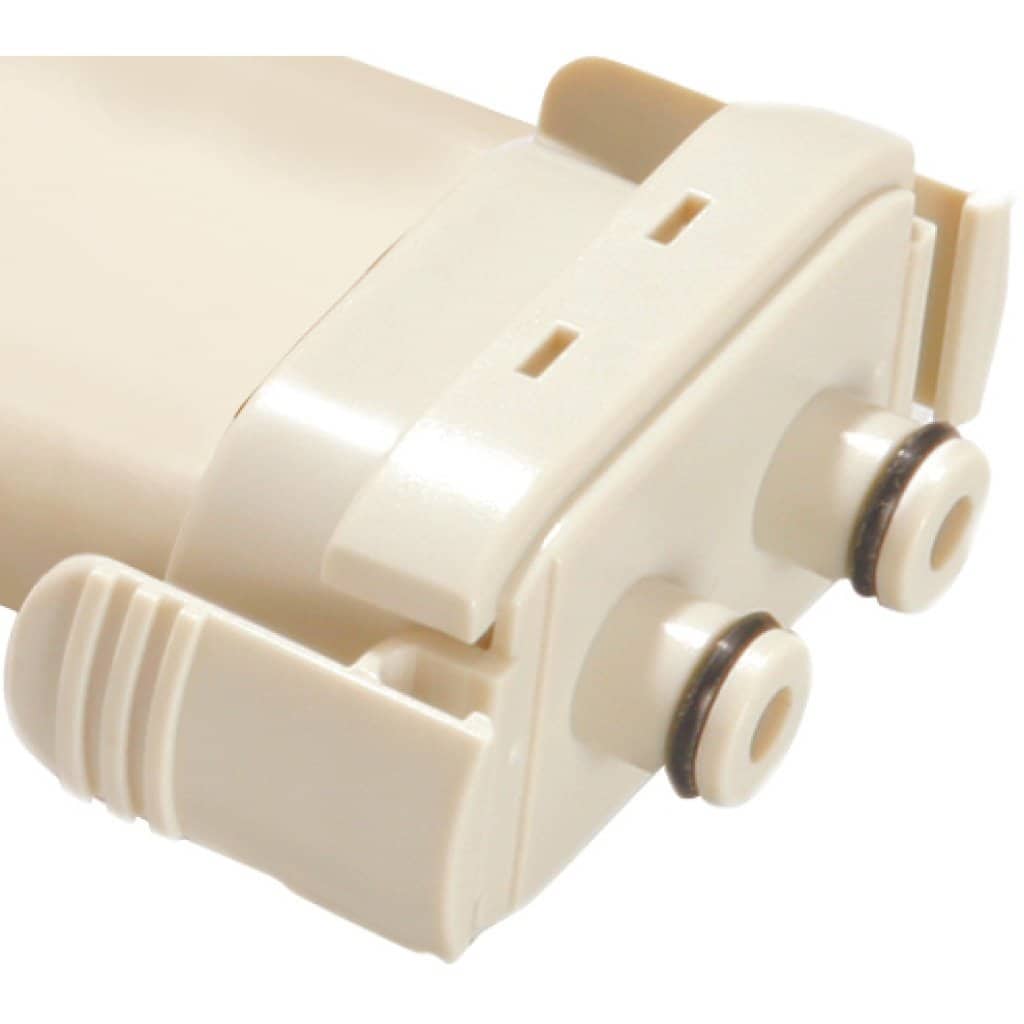

Seventeen individual 5-inch cells make up the overlay. The three cells at the head stay static so the head does not bob with the cycle. Drive calls that the pillow feature. A visual alarm lights when air pressure is low. The cover is removable nylon: fluid-resistant, low-shear, and vapour-permeable. Cells come off for service. A CPR valve dumps the air quickly. Tubing uses Drive's EZ Lock / Quick Release connector.

Place it on a standard foam or innerspring mattress. It does not replace that mattress.

Med Aire 5 overlay specifications

These figures are for Drive's current 14025NS overlay, the kit Westin lists with SKU 14025N. The specification tab holds the stored values. Drive's sheet lists a 350 lb weight capacity, 17 cells, a 10-minute alternating cycle with static mode, a visual low-pressure alarm, and a 24-month warranty.

The overlay is built for a 36-inch by 80-inch hospital bed. The cells are 5 inches deep. Drive's 2025 catalog also prints a 36 by 80 by 8 inch line for this SKU; the working number for therapy height is the 5-inch cell. Official Drive airflow (LPM) is not printed on the current sheet.

Warranty for the original purchaser is 24 months on the control unit and overlay.

Size and what is included

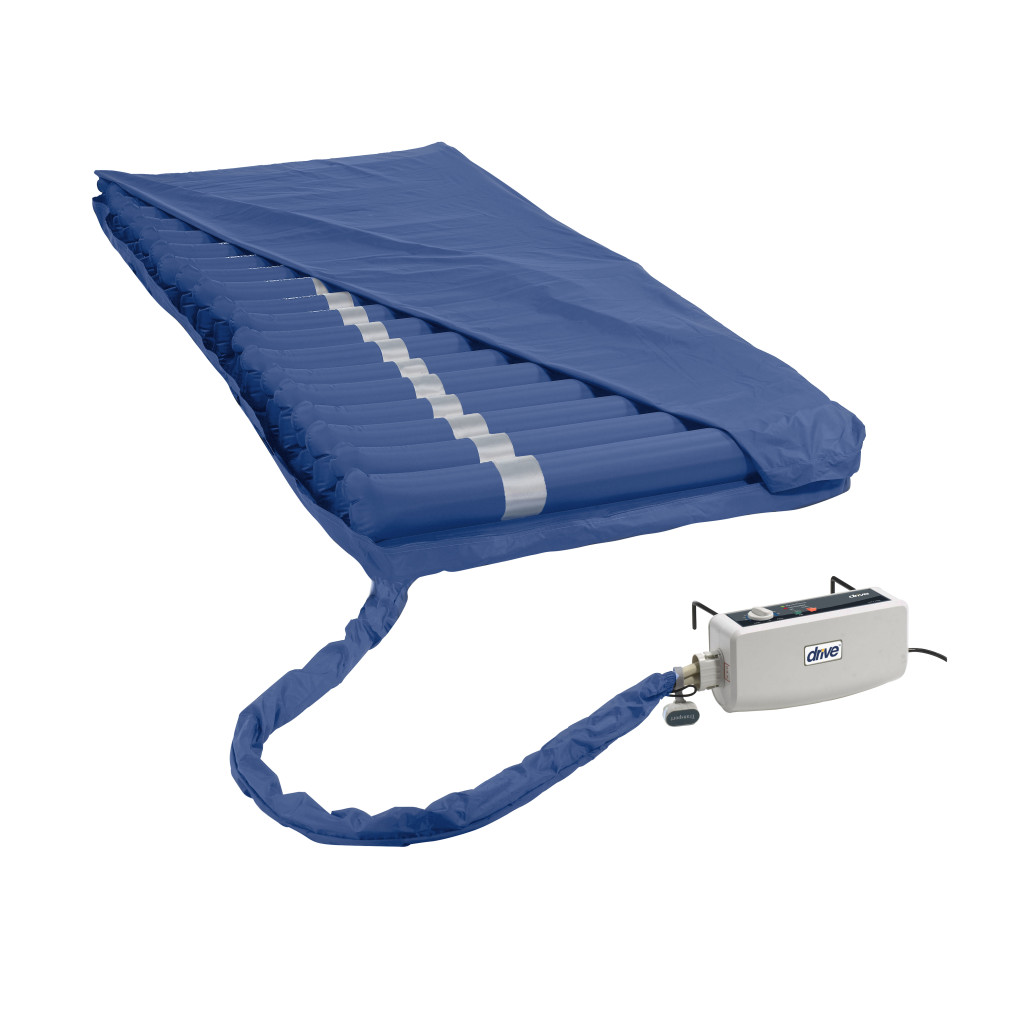

This listing is one size. There is no size picker. You get the 17-cell overlay and the analog control unit. It is meant for a 36-inch by 80-inch hospital-bed mattress. If the bed is 84 inches long, call us before you order. A quick-fill pump (Drive 14427QF) is a separate accessory, not in the carton.

Funding help for a therapeutic mattress in Ontario

Ontario's Assistive Devices Program (ADP) does not cover hospital beds or mattresses, so plan around other routes. Funding that may help instead: ODSP, March of Dimes Canada, Veterans Affairs Canada (VAC), hardship funding programs, and community programs. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through before you buy.

Delivery and setup in Brampton and the GTA

Westin's own team delivers and sets up this mattress across Brampton and the Greater Toronto Area. We bring it in, place it on the bed, connect the control unit, and show you the pump before we leave.

We have three stores in the Brampton and Toronto area if you would rather see a mattress first. For a scheduled in-home setup, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service; purchased mattresses are delivered and set up on a scheduled date.

Hospital-bed mattresses are oversized. The Canada-wide free ground-shipping offer on smaller goods does not apply. If the mattress is going outside the GTA, ask us for a freight quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.

Which Westin beds this mattress fits

The overlay is for a 36-inch by 80-inch hospital-bed mattress. It belongs on a standard-width homecare bed, not on a 42-inch or wider bariatric deck.

• Drive Delta 1000, the 36-inch full-electric homecare bed
• Drive Delta 15235 hi-low, the floor-lowering sibling of that bed
• Drive 15005LP, another 36-inch low-height full-electric frame

Service and warranty

When the pump or a cell needs work, you call the shop that set it up, not a US parts desk. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.

Drive manufacturer warranty

Drive's current sheet for 14025NS covers the original purchaser for 24 months on the control unit and overlay. We handle the warranty claim with you. Ask us if an extended warranty is offered for your order.

Frequently asked questions

Is the Med Aire 5 an overlay or a replacement mattress?

It is an overlay. It goes on top of a standard foam or innerspring mattress. It does not replace that mattress. Drive's full 8-inch replacement in this line is the Med Aire 14027.

How is alternating pressure different from a foam mattress?

A foam mattress stays still. This overlay's cells inflate and deflate on a 10-minute cycle so the load on the skin moves. Low air loss vents a little air to help with moisture. The three head cells stay static so the head is steady.

How do I clean the cover?

The nylon cover is removable, fluid-resistant, and vapour-permeable. Wipe it with the disinfectant listed in Drive's user instructions. Do not soak the control unit. Ask us if you want a replacement cover.

What is the weight rating?

Drive lists 350 lbs for 14025NS. If the person is near that limit, ask us about a higher-capacity Med Aire Plus surface instead of stretching this overlay.

What size bed does it fit?

It is built for a 36-inch by 80-inch hospital-bed mattress. It is not the 42-inch, 48-inch, 54-inch, or 60-inch bariatric size.

How loud is the pump?

Drive does not print a decibel rating on the current 14025NS sheet. The control unit hangs on the footboard. If pump sound is the main worry, ask us about the PreserveTech Med-Aire Edge, where Drive prints 45 dB.

What is the warranty?

Drive lists 24 months on the control unit and overlay for the original purchaser. Westin Healthcare processes the claim. Details are on our service and repairs page.

Does funding cover this overlay in Ontario?

Some Ontario routes can help with a therapeutic support surface. Eligibility depends on the person's situation and assessment. We do not name programs on this page. Call (905) 451-7743 or use the funding page before you buy.

Can I rent a powered mattress before I buy?

Westin Healthcare rents hospital-bed packages that include a therapeutic mattress. See current packages on the hospital bed rentals page. Ask us whether a powered overlay can be added to a rental. Same-day wording belongs to the rental service, not automatically to a purchased overlay.

What happens if the power goes out?

This overlay has no foam base and no cell-on-cell chamber. When the pump stops, the cells go soft. The person is then on the mattress underneath. If you need a surface that still holds shape in an outage, look at the Med Aire Assure or a Med Aire Plus with cell-on-cell cells.
