Description
The Drive 13067 overbed table is Drive Medical's non-tilt H-base table with a walnut wood-grain laminate top that stays flat. Westin Healthcare sells it, delivers it, and sets it up for homes in Brampton and the Greater Toronto Area. The top raises and lowers through infinite positions between 28 and 45 inches (71 and 114 cm) and locks when you release the handle.
Drive does not name a lift-chair model on the 13067 card. The H-base is the bed-side shape. Use Choose Base Finish Type for silver vein (13067) or chrome (13003). Height, capacity, and the walnut top stay the same.
Which beds and chairs this fits
This overbed table works with any bed, including the Drive Delta 1000, the Drive 15005LP low-height bed, and the Drive SoLite Pro homecare package. Drive does not limit 13067 to one frame. The H-base is 15.5 by 26.5 inches. It slides under the side of a hospital bed or a regular home bed so the 15 by 30 inch top sits over the mattress.
On a floor-low deck the 28 inch (71 cm) minimum can sit higher than the mattress. That is still a fit. The table is a surface for meals and small items, not a patient support. Drive does not publish a lift-chair list. The H-base will roll up to a chair. It will not wrap around the chair the way a U-base does.
Drive 13067 specifications
These figures are for Drive 13067 as printed on Drive's current spec sheet. The specification tab holds the stored values.

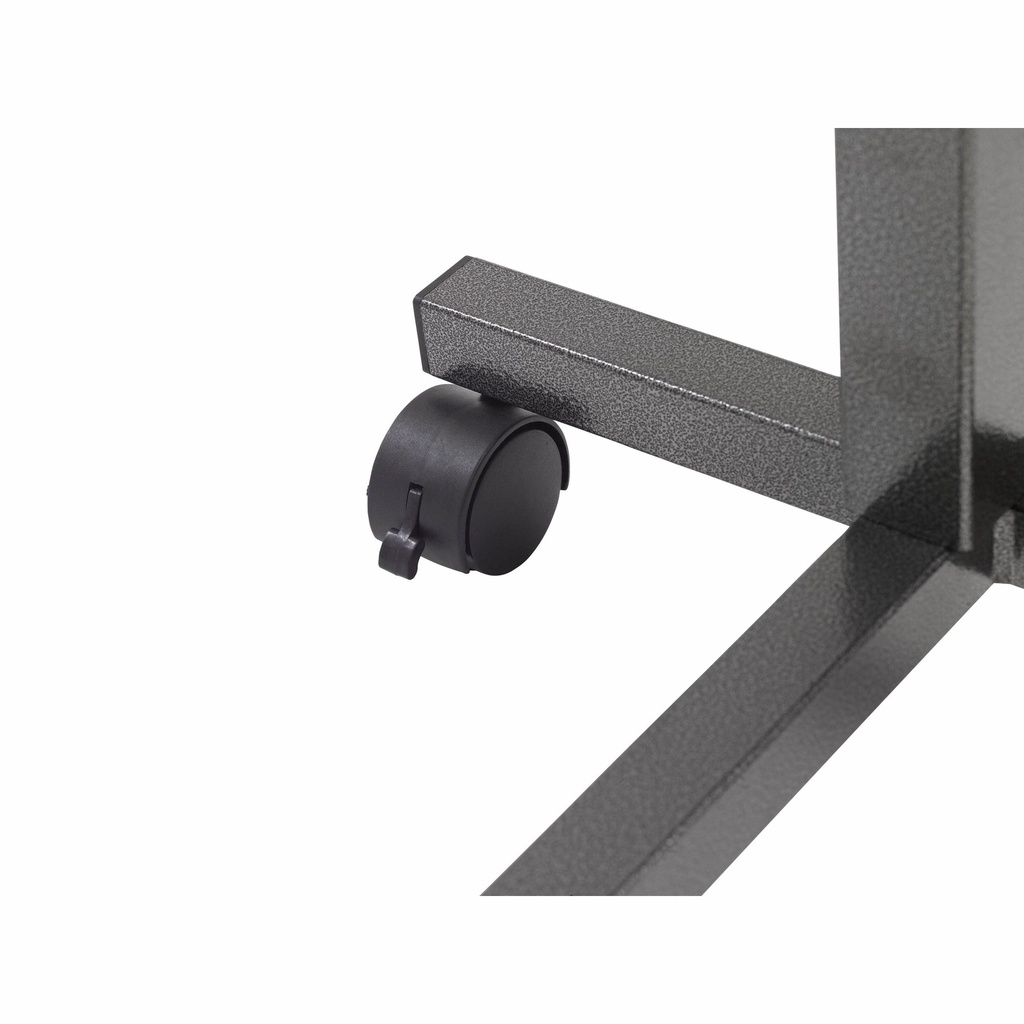

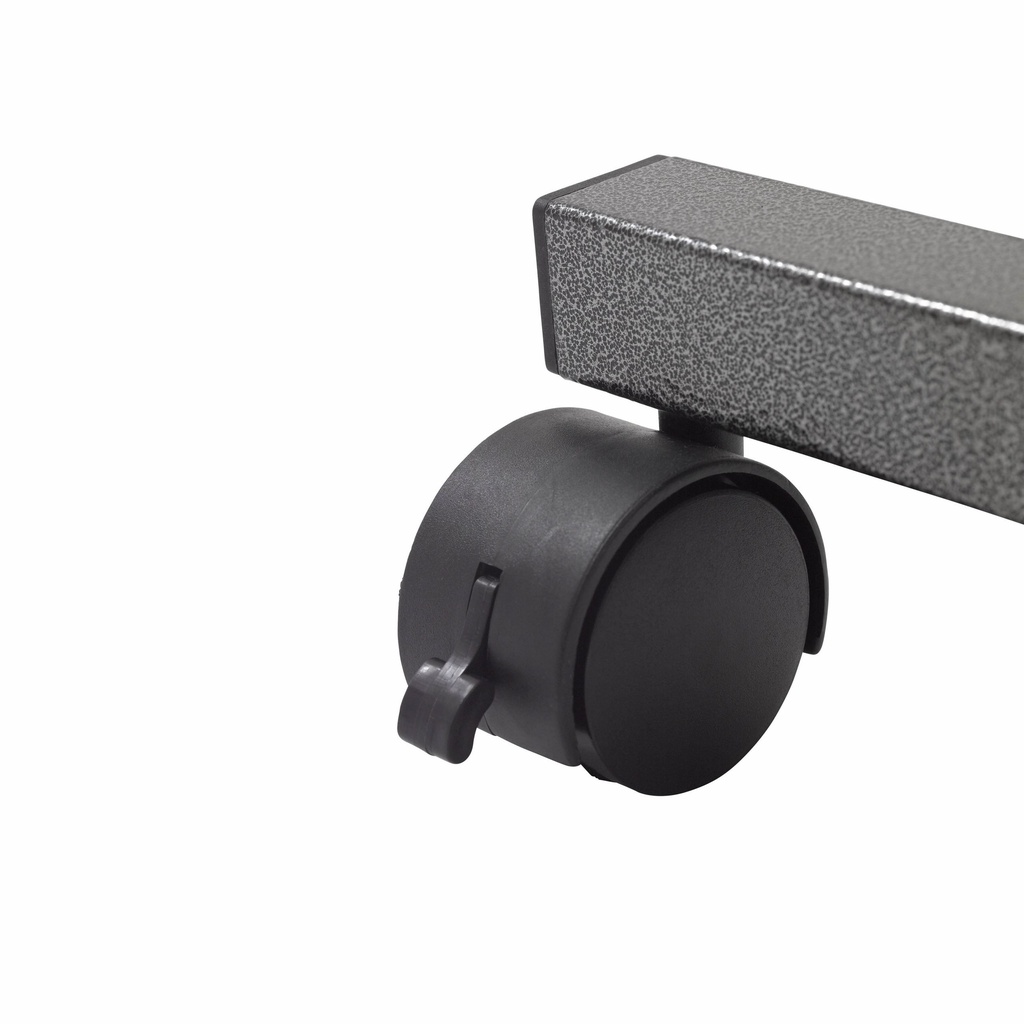

Walnut wood-grain low-pressure laminate, non-tilt. Infinite height 28 to 45 inches (71 to 114 cm). Raises with light upward pressure. Locks when you release the handle. H-base, 2 inch swivel casters. Drive's owner manual puts the two locking casters on the column end of the base. Weight capacity 40 lb (18 kg) on the current sheet. Base 15.5 by 26.5 inches. Product weight 21 lb (9.5 kg). Carton 24 lb. Limited Lifetime. Do not remove the bottom chrome screw marked Do Not Remove. Taking that screw out voids the warranty and can damage the spring.
Raise the top with light upward pressure under the top. Lower it by squeezing the trip lever toward the tabletop and guiding the column down. Do not push down on the end of the top opposite the lever. Drive's owner manual says the table is for reading, eating, or keeping small personal items close, not for a television, a computer monitor, or a coffee pot, and not a walker.
Base finish options
Use Choose Base Finish Type for the Drive finish you want.
- SILVER VEIN (13067) is the silver-vein H-base. Drive calls silver vein easier to maintain and less institutional than chrome.
- CHROME BASE (13003) is the same non-tilt table with a chrome-plated H-base. Height, capacity, and top size stay the same.
Tilt or non-tilt, H-base or U-base
13067 is a non-tilt laminate top on an H-base. Cups and plates stay level. If you want a top that angles 33 degrees, that is the Drive 13008 deluxe tilt table. If you want a mast that pivots toward a person in a chair, then folds, that is the Drive 13000.
H-base (this table, and the Drive 13069 plastic top) slides under a bed. U-base on the Drive 16005 and the 13000 is the open shape for a chair or wheelchair. Drive names wheelchair use only on the 13000 card. None of these tables is a Golden-branded lift-chair tray.
Delivery and setup in Brampton and the GTA
Westin's own team delivers and sets up this table across Brampton and the Greater Toronto Area. We bring it in, assemble it, and show you the height handle before we leave.
We have three stores in the Brampton and Toronto area if you would rather see a table first. For a scheduled in-home setup, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service; purchased tables are delivered and set up on a scheduled date.
If the table is going outside the GTA, ask us for a shipping quote. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.
Related overbed tables from Westin
- Drive 13069 Plastic Top Overbed Table, the spill-edge plastic H-base
- Drive 16005 U-Base Overbed Table, the 100 lb clinical U-base
- Drive 13000 Pivot and Tilt Overbed Table, the folding U-base Drive names for a wheelchair
Service and warranty
When a caster or the lift needs work, you call the shop that set it up, not a US parts desk. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.
Drive manufacturer warranty
Drive's 13003/13067 owner manual warrants the product free of defects in materials and workmanship for the life of the product for the original purchaser. It does not cover owner misuse, negligence, or normal wear, and it does not extend to non-durable parts such as casters and grips. Removing the bottom Do Not Remove screw voids the warranty. We handle the claim with you.
Frequently asked questions
Which Beds Does the 13067 Fit?
The Drive 13067 overbed table fits any bed. The H-base slides under a hospital frame or a home bed. Families here often pair it with the Delta 1000 or the 15005LP. Drive does not limit it to Drive beds.
Will It Work Beside a Lift Chair?
The Drive 13067 overbed table is an H-base. Drive does not name a lift-chair model. The base will roll up to a chair. If the person needs the top closer while seated, the Drive 13000 or the Drive 16005 U-base is the chair-side shape.
What Is the Weight Rating?
The Drive 13067 overbed table is rated 40 lb (18 kg) on Drive's current spec sheet. That is the load on the tabletop. Drive's owner manual says the table is for reading, eating, or keeping small personal items close. It is not for a television, a computer monitor, or a coffee pot, and it is not a walker.
What Is the Difference Between Silver Vein and Chrome?
The Drive 13067 overbed table is the silver-vein finish. Drive 13003 is the same non-tilt table with a chrome H-base. Height, capacity, and the walnut top do not change. Use Choose Base Finish Type to pick either one.
How Do I Change the Height?
The Drive 13067 overbed table raises with light upward pressure under the top. To lower it, squeeze the trip lever toward the tabletop and push the column down. Do not push down on the end of the top opposite the lever. The top locks when you release the handle, anywhere from 28 to 45 inches (71 to 114 cm).
Does the Top Tilt?
The Drive 13067 overbed table is a non-tilt top. The deluxe tilt model is Drive 13008, which tilts 33 degrees in either direction. The Drive 13000 pivots the mast and keeps the top flat.

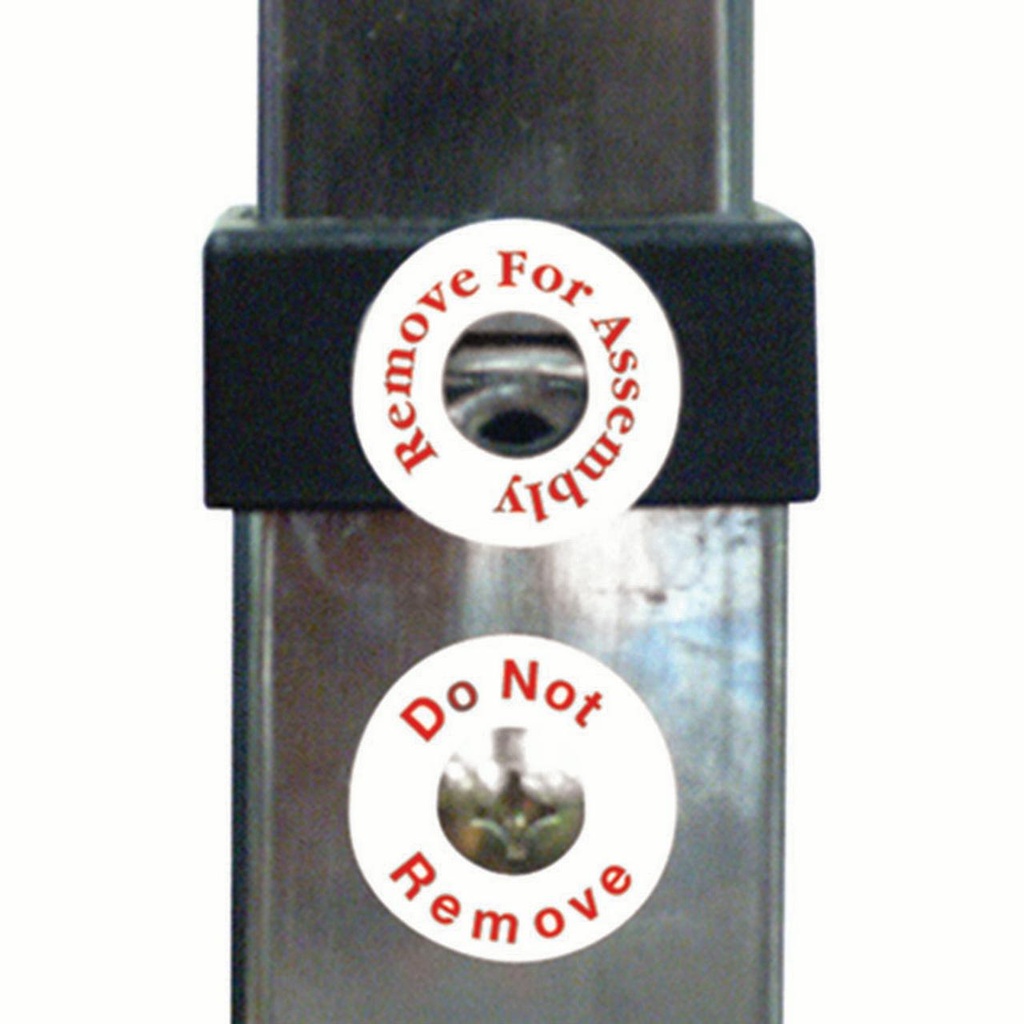

Can I Take Out the Screw at the Bottom of the Column?
No. Drive marks that chrome screw Do Not Remove on the 13067. It holds the spring. Removing it voids the warranty.
What Is the Warranty?
The Drive 13067 overbed table carries a limited lifetime term for the original purchaser on defects in materials and workmanship. Casters and grips are wear parts. Westin Healthcare processes the claim.
Specifications
| Model | Non-Tilt Overbed Table |
|---|---|
| Casters | 2" swivel casters for easy mobility |
| Brands | Drive |
| Warranty | Limited Lifetime (Drive 13003/13067 owner manual) |
| Weight Capacity | 40 lb (18 kg) current Drive sheet |
| Product Weight | 21 lb (9.5 kg) |
| Overall Length | 30" |
| Overall Width | 15" |
| Maximum Lift Height | 45" |
| Minimum Lift Height | 28" |
| Table Model | H Base Frame, Non-Tilt Table, Telescoping Table |
| Table Type | Bed Table |
| Carton Shipping Weight | 24 lbs |
| Finish | Silver vein (13067); chrome is Drive 13003 |
| Tabletop Dimensions | 15" (Width) x 30" (Length) |
| Base Dimensions | 15.5" D x 26.5" W H-base |
| Tabletop Height | 28"-45" (71-114 cm) |
| SKU | 13067 (silver vein); 13003 chrome sibling |
Documents
- Brochure Drive 13067 Non-Tilt Overbed Table Spec Sheet
