Description

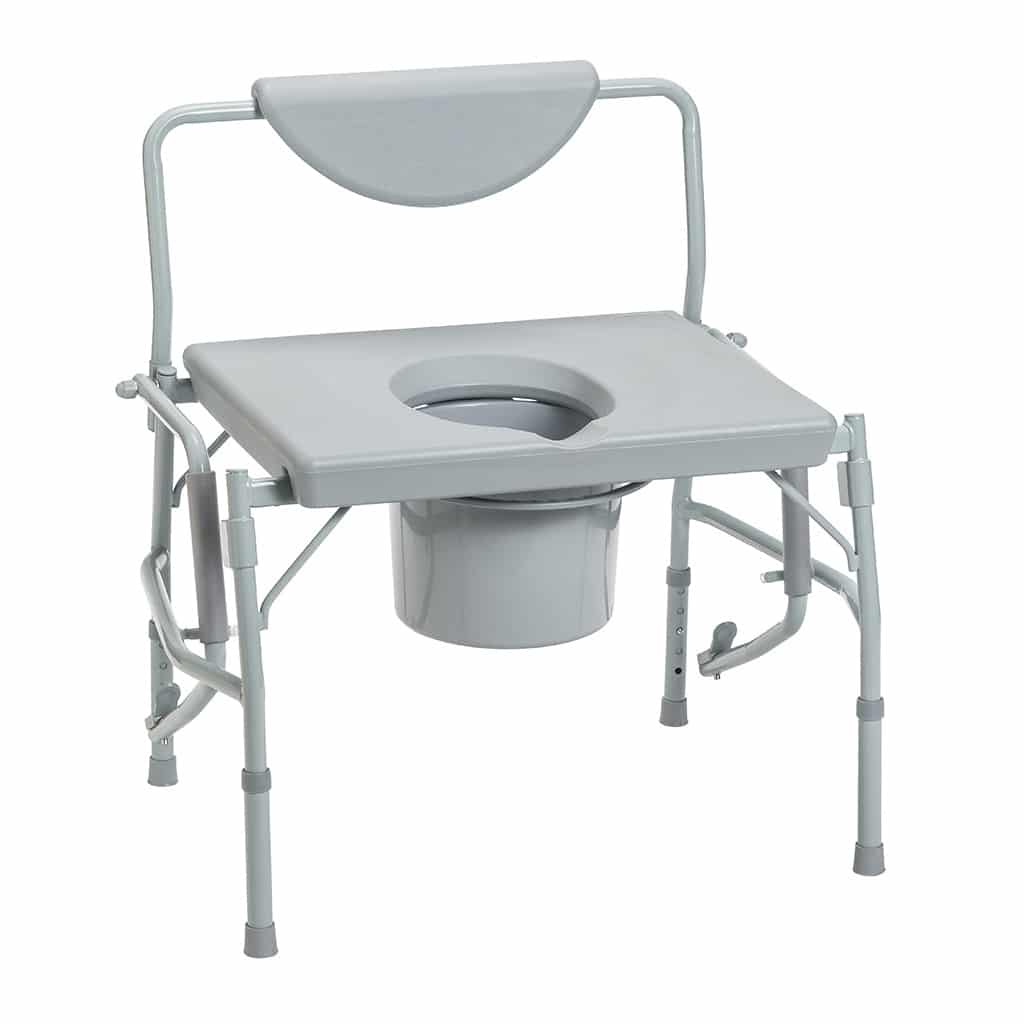

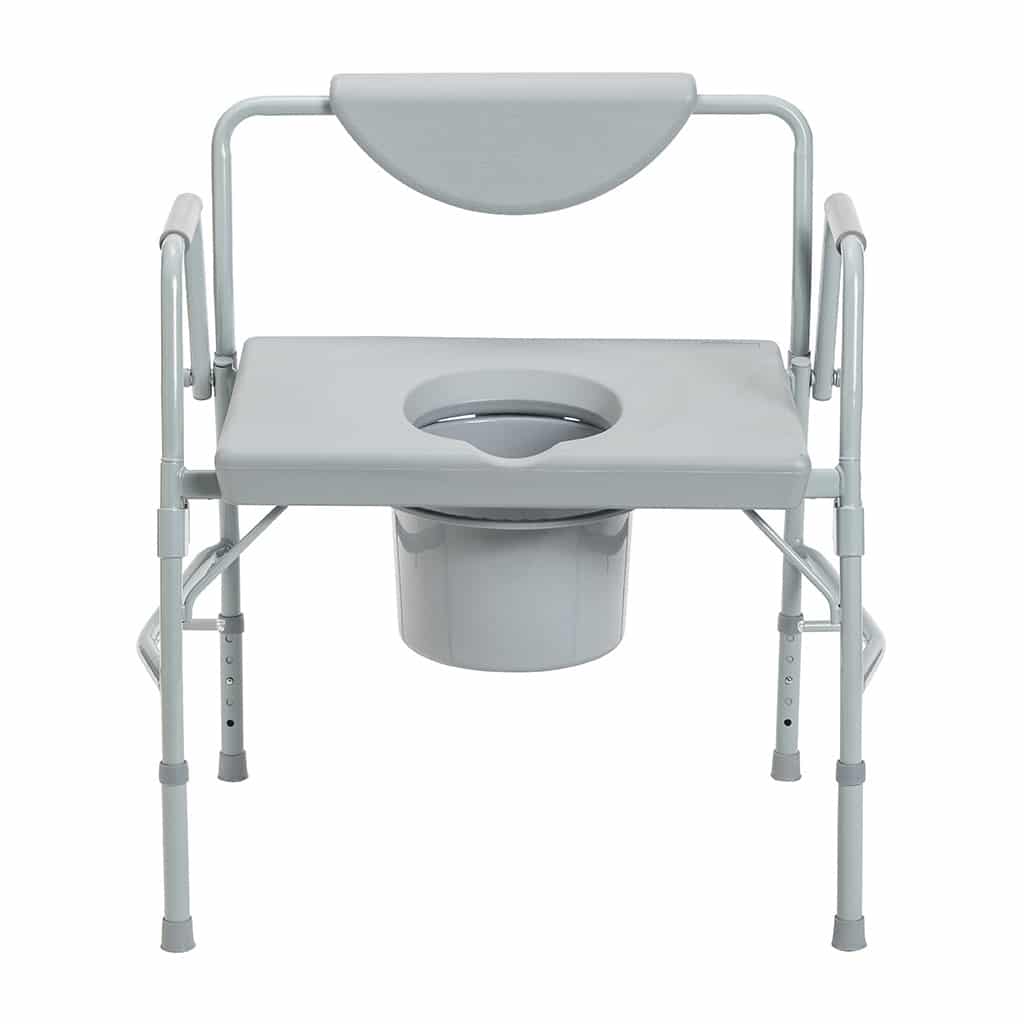

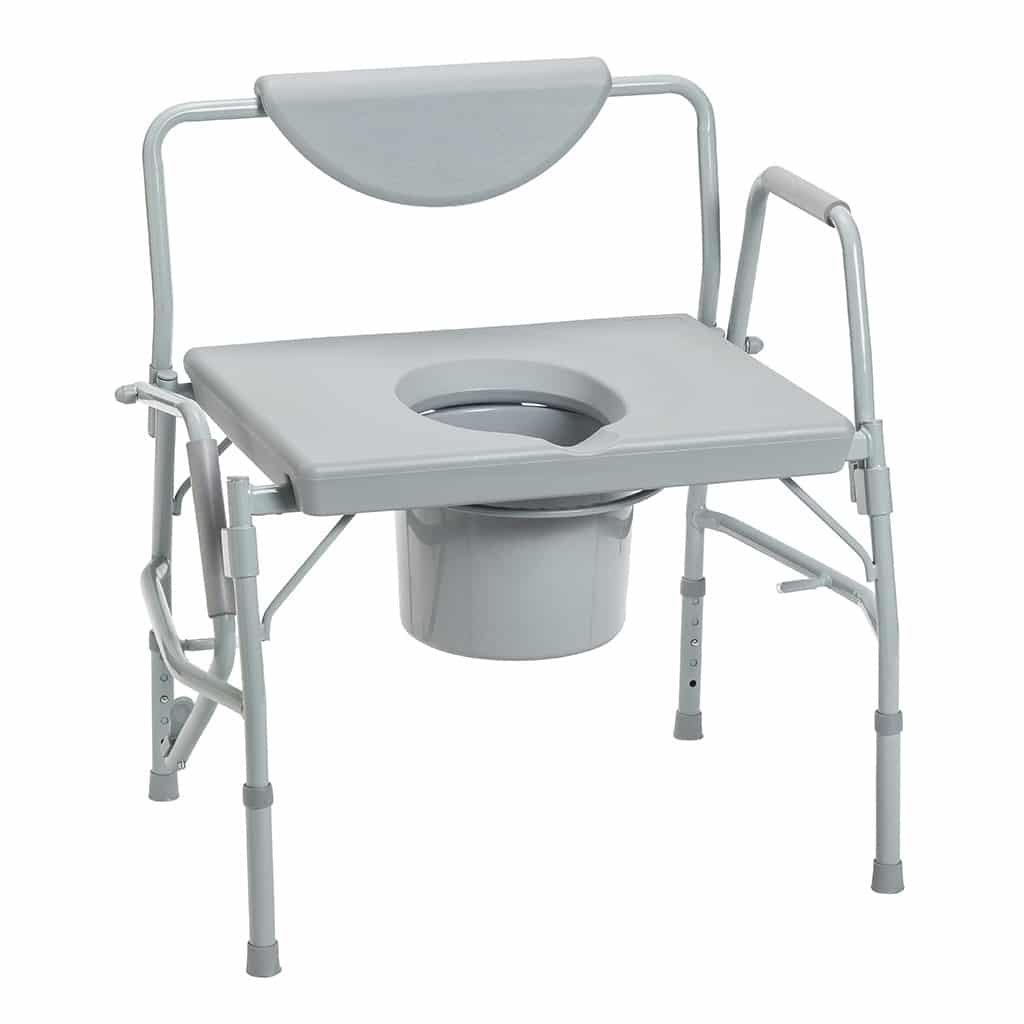

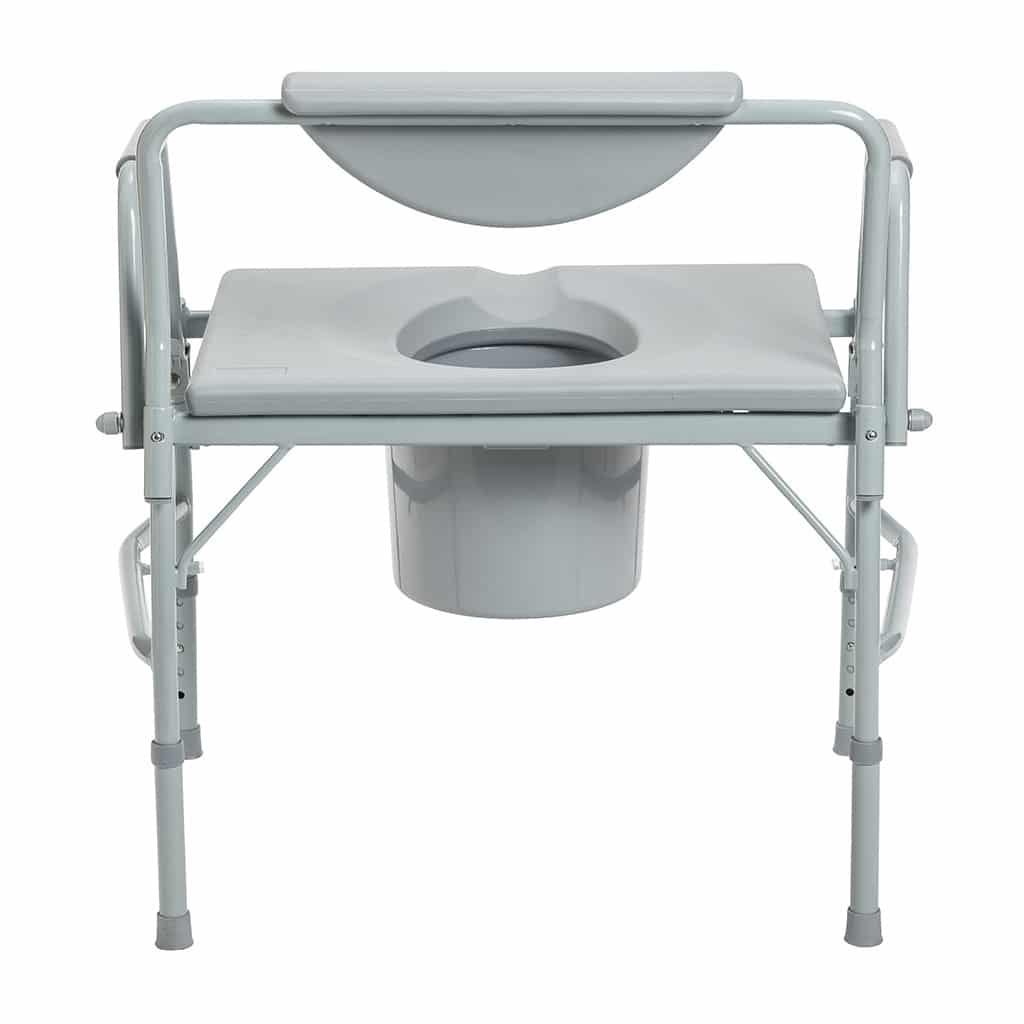

The Drive deluxe bariatric drop-arm commode is Drive Medical's 11135-1 chair for homes in Brampton and the Greater Toronto Area. One arm drops for a side transfer. Drive rates it at 1000 lb (454 kg).
This is the extra-wide drop-arm commode chair. The folding 650 lb sister is the Drive 11117N-1. 11135-1 does not fold. The seat is 23.25 by 18.5 in (59 by 47 cm).
Who this commode is for
This commode chair is for a person who wants a stationary extra-wide bedside commode, stays at or under Drive's 1000 lb rating, and needs one arm to drop for a lateral transfer. Families here usually call when a 650 lb folding frame is not enough width or capacity.
Drive writes that the easy-to-release arm "allows for safe lateral patient transfers to and from commode." That is Drive's sentence. Westin does not give medical advice.
- Drop arm for a side transfer
- Seat 23.25 by 18.5 in (59 by 47 cm)
- 1000 lb (454 kg) powder-coated steel frame

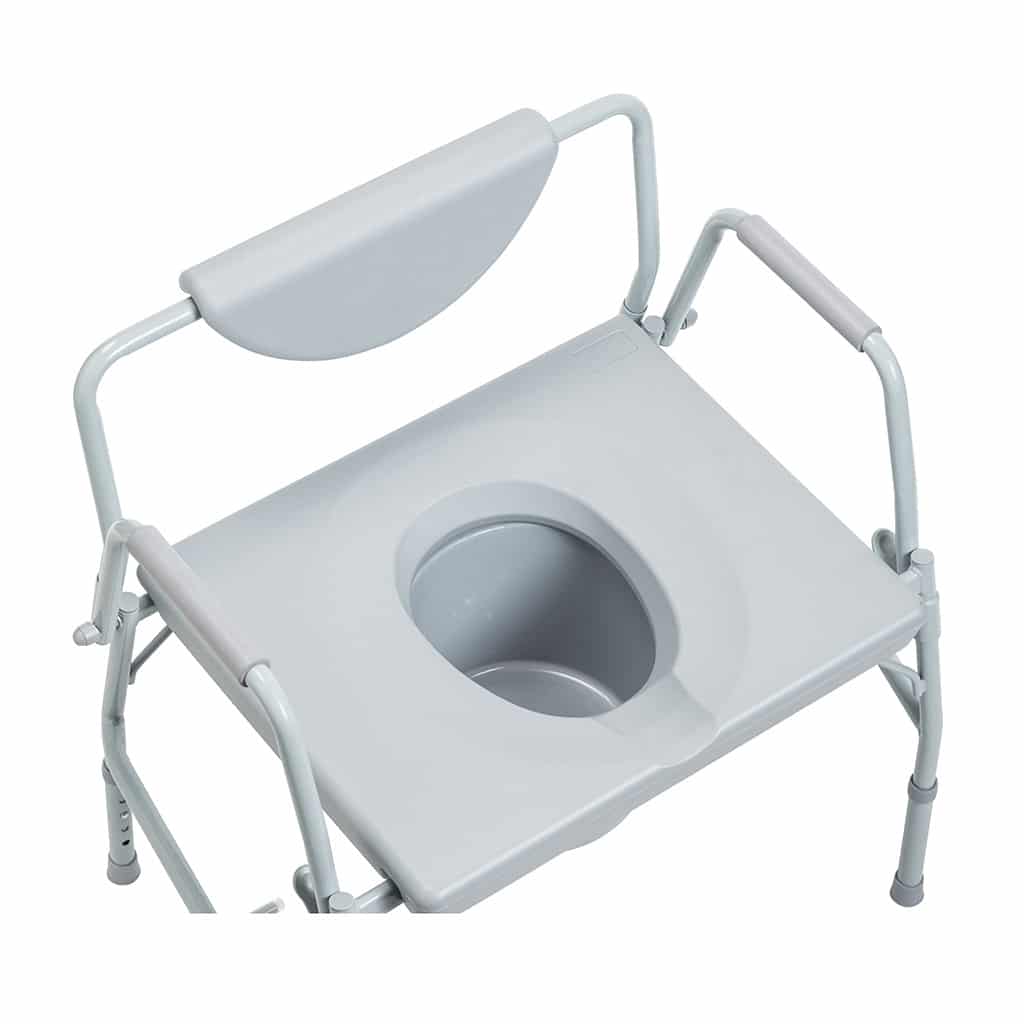

Drop arm, seat, and pail
The frame is heavy-duty gray powder-coated steel. Drive prints padded armrests and a large snap-on seat. Seat height runs 17.5 to 22 in (44 to 56 cm). Drive prints 26 in (66 cm) between the legs. Drive's compare chart prints 25.75 in (65 cm) between the arms and 26.25 in (67 cm) outside.
The kit is exact on this SKU: 12 qt (11.4 L) commode bucket and cover that remove from the front. The pail slides in from the front. Drive does not print a splash shield on 11135-1. Do not plan an over-toilet splash-guard setup from this sheet.
Drive Deluxe Bariatric Drop-Arm Commode specifications
These figures are from Drive's current 11135-1 sheet. The specification tab holds the stored values. Use the sheet when they fight.
Weight capacity 1000 lb (454 kg). Seat 23.25 in W by 18.5 in D (59 by 47 cm). Seat height 17.5 to 22 in (44 to 56 cm). Width between arms 25.75 in (65 cm). Outside width 26.25 in (67 cm). Width between legs 26 in (66 cm). Unit weight 21 lb (9.5 kg). Bucket 12 qt (11.4 L) with cover, front slide. No splash shield printed. Limited Lifetime warranty.
Drop-arm, folding, or bariatric commode
A bariatric drop-arm commode chair is 11135-1: extra-wide seat, 1000 lb, arm down for a side transfer. A bariatric folding commode chair is 11117N-1: 650 lb, folds, splash shield included. A standard drop-arm commode chair such as the Drive 11125KD-1 is the 300 lb hard-seat chair.
Stay on 11135-1 if the person needs the 23.25 in seat and the drop arm. Step to 11117N-1 if the chair has to fold and 650 lb is enough.
Funding help for bathroom safety equipment in Ontario
Ontario's Assistive Devices Program (ADP) does not fund bathroom safety equipment, so plan around other routes. Funding that may help instead: March of Dimes Canada's Home and Vehicle Modification Program, Veterans Affairs Canada (VAC), extended health plans, and community programs. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through before you buy.
Delivery and setup in Brampton and the GTA
Westin's own team delivers this bariatric drop-arm commode across Brampton and the Greater Toronto Area. We bring it in, set the leg height, and show you the drop-arm release and the front pail slide before we leave.
We have three stores in the Brampton and Toronto area if you would rather see the chair first. For a scheduled delivery, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service; purchased commodes are delivered on a scheduled date.
This is a mid-size carton. Ask us if the Canada-wide free ground-shipping offer applies to this chair. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.
Related bathroom safety products from Westin
- Drive Bariatric Folding Commode, the 650 lb folding frame
- Drive Deluxe Steel Drop-Arm Commode, the 300 lb drop-arm chair
- Drive Drop-Arm Steel Commode with Padded Seat, the padded 300 lb sister
Service and warranty
When something on the commode needs work, you call the shop that sold it. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.
Drive manufacturer warranty
Drive's 11135-1 sheet prints a Limited Lifetime term. We handle the warranty claim with you. Ask us if an extended warranty is offered for your order.
Frequently asked questions
What Is A Bariatric Drop-Arm Commode?
The Drive deluxe bariatric drop-arm commode 11135-1 is Drive's 1000 lb (454 kg) extra-wide chair with a release that lowers one arm for a side transfer. Drive writes that the arm is for lateral transfers to and from the commode.
Does The Drive 11135-1 Include A Splash Guard?
The Drive deluxe bariatric drop-arm commode 11135-1 ships with a 12 qt (11.4 L) bucket and cover that slide from the front. Drive does not print a splash shield on this SKU.
Does The Pail Come Out The Front Or The Back?
The Drive deluxe bariatric drop-arm commode 11135-1 pail slides in from the front. Drive prints that twice on the current sheet. It does not remove from behind.
What Is The Weight Capacity Of The Drive 11135-1?
The Drive deluxe bariatric drop-arm commode 11135-1 is rated at 1000 lb (454 kg) on Drive's current sheet. Stay at or under that rating.
How Wide Is The Seat?
The Drive deluxe bariatric drop-arm commode 11135-1 seat is 23.25 in W by 18.5 in D (59 by 47 cm). That is the extra-wide sitting surface in this family.
Does ADP Cover Commode Chairs?
Funding for bathroom safety equipment in Ontario depends on the person and the program. Talk to us before you buy. Call (905) 451-7743 or use the funding page and we will point you to the right path for your case.
What Is The Warranty On The Drive 11135-1?
The Drive deluxe bariatric drop-arm commode 11135-1 carries Drive's Limited Lifetime term as printed on the current sheet. Westin Healthcare processes the claim.
Does This Chair Fold?
The Drive deluxe bariatric drop-arm commode 11135-1 does not fold. For a folding bariatric commode chair, use the Drive 11117N-1.
Can I Use This Commode In The Shower?
The Drive deluxe bariatric drop-arm commode 11135-1 is a steel commode, not a shower commode. For a Drive chair that is built for the shower, see the Drive 11114KD-1.
Can I Rent A Bariatric Commode In The GTA?
Westin Healthcare rents bathroom safety equipment for short-term needs in the GTA. See the rentals hub and call (905) 451-7743 to check what is on the floor. A rental commode may be a different model than this 11135-1.
Specifications
| Height | 17.5" - 22" (44 cm - 56 cm) |
|---|---|
| Brands | Drive |
| Warranty | Limited Lifetime |
| Weight Capacity | 1000 lbs (454 kg) |
| Carton Shipping Weight | 26 lbs (11.8 kg) |
| Seat Dimensions | 23.25" (W) x 18.5" (D) (59 cm x 47 cm) |
| Commode Bucket | 12 qt (11.4 L) bucket and cover; slides in from the front |
| Width (Between Arms) | 25.75" (65 cm) |
| Width (Outside) | 26.25" (67 cm) |
| Arms | Padded armrests; easy-to-release drop arm |
| Width (Between Legs) | 26" (66 cm) |
| Splash shield | Not printed on the current Drive 11135-1 sheet |
