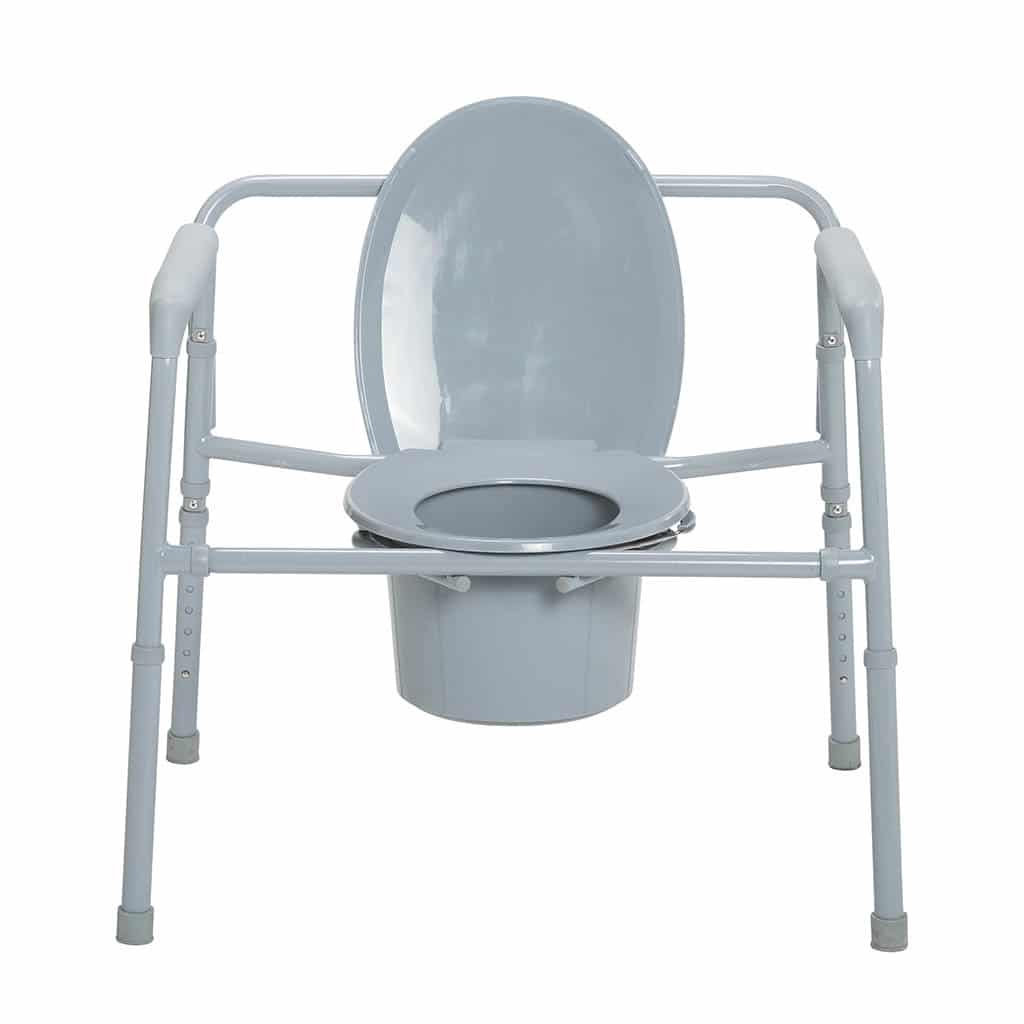

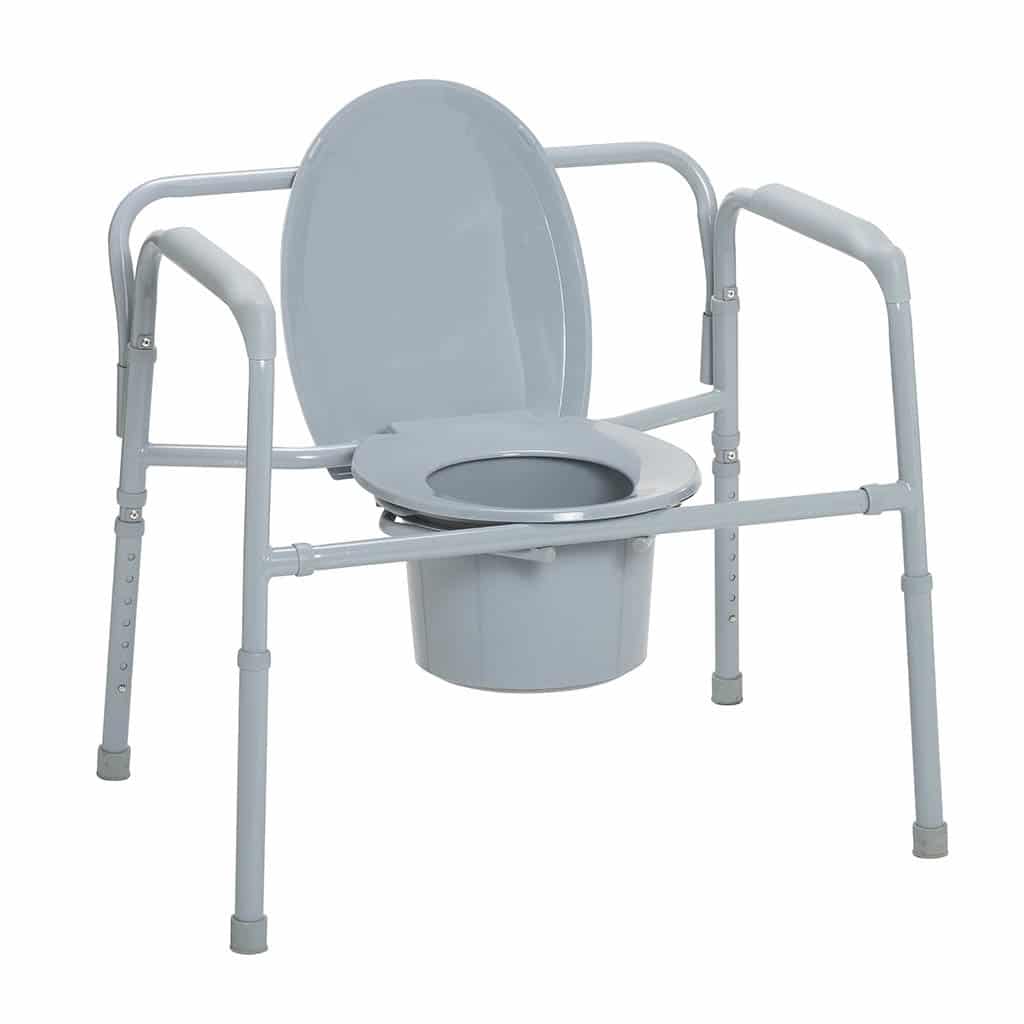

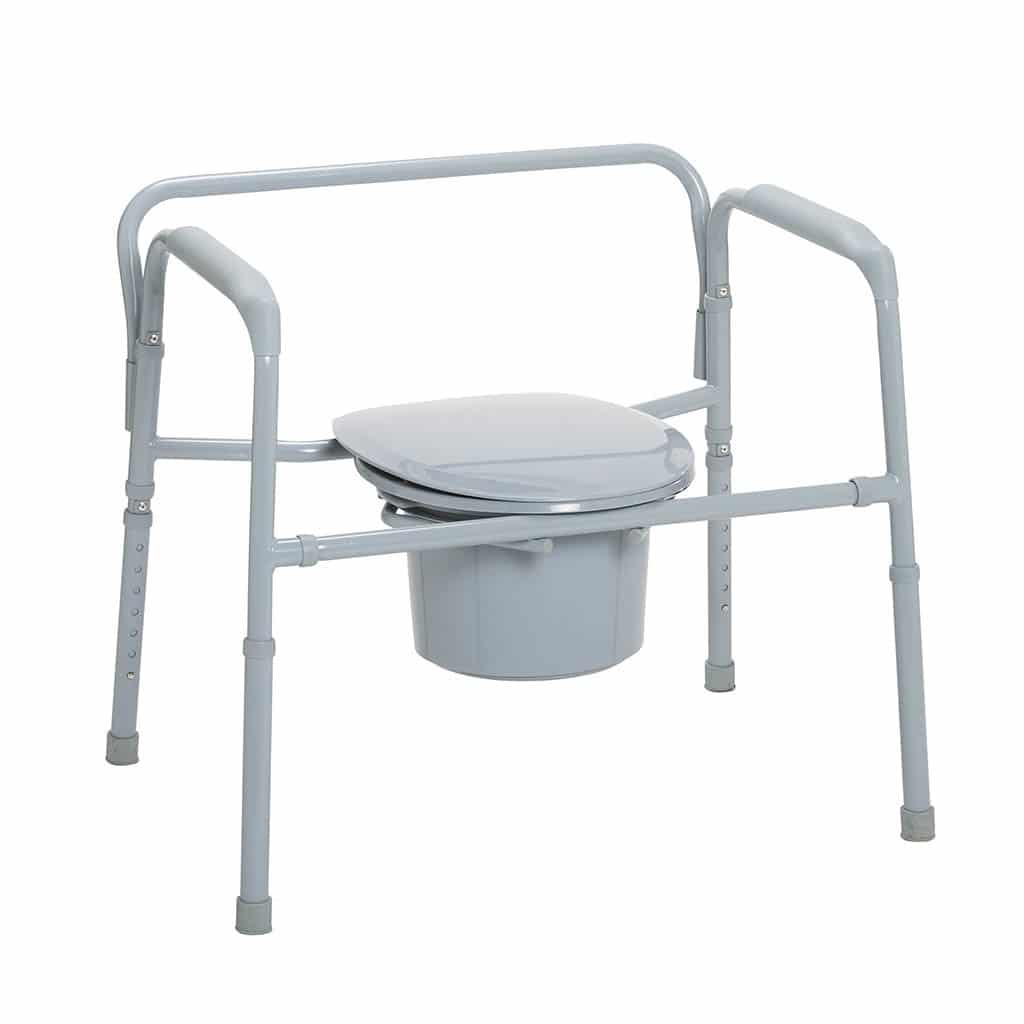

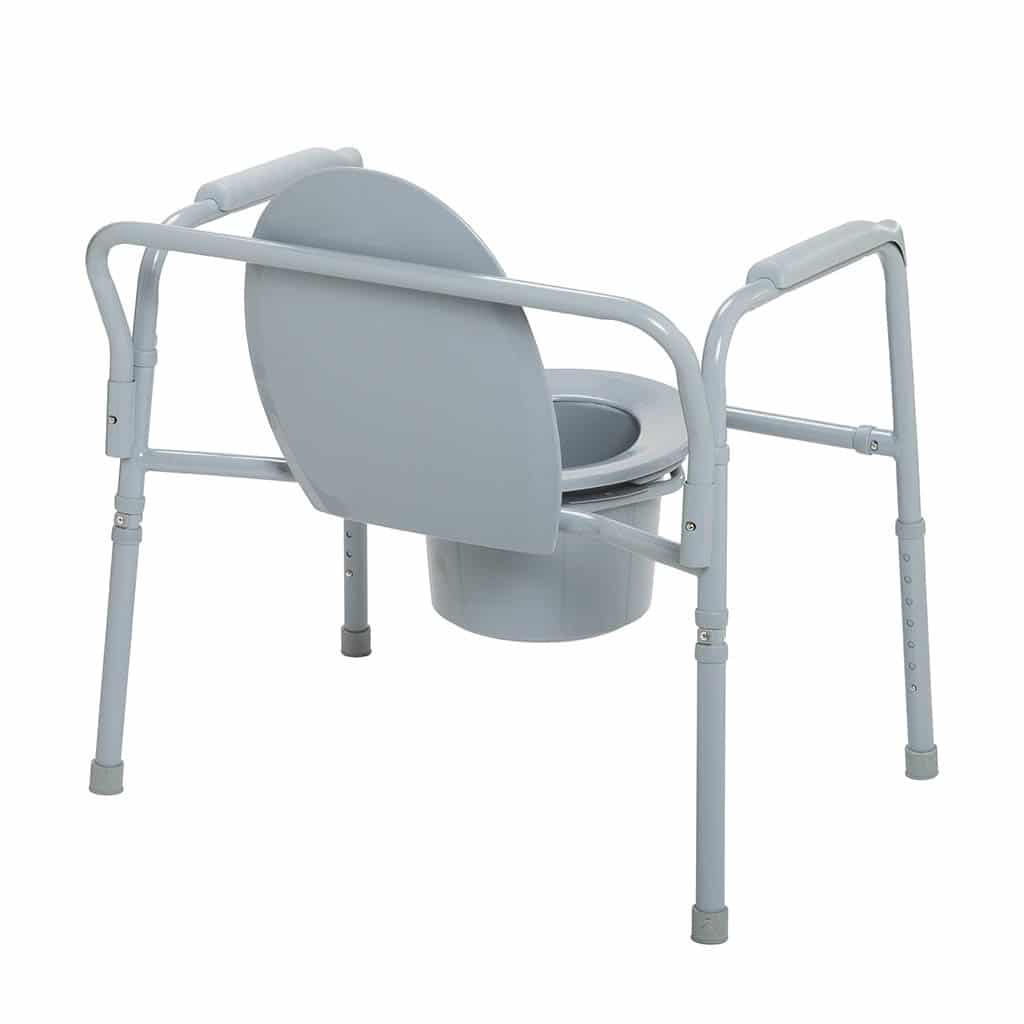

Drive Medical Bariatric Folding Commode 11117N-1

The Drive bariatric folding commode is Drive Medical's 11117N-1 chair for homes in Brampton and the Greater Toronto Area. It folds, and Drive rates it at 650 lb (295 kg).

This is the folding bariatric commode chair. The extra-wide drop-arm sister is the Drive 11135-1 at 1000 lb (454 kg). The sitting surface on 11117N-1 stays a 13.75 by 16.5 in (35 by 42 cm) deep seat. The extra capacity is in the frame and the 24 in (61 cm) space between the arms.

Who this commode is for

This commode chair is for a person who wants a folding bedside commode, stays at or under Drive's 650 lb rating, and needs the wider arm span. Families here usually call when a standard 350 lb folding chair is not the fit and the chair still has to fold.

Drive prints a removable tool-free back, plastic armrests, and a 12 qt bucket with handle, cover, and splash shield. Westin does not give medical advice.

• Folds for storage and transport
• 650 lb (295 kg) steel frame
• 12 qt (11.4 L) pail with handle, cover, and splash shield

Fold, seat, and pail

The frame is powder-coated welded steel. Drive prints tool-free assembly in three steps, a 16.5 in (42 cm) deep snap-on seat with lid, and a removable tool-free back. Seat height runs 15.5 to 22 in (39 to 56 cm). Drive prints 29.25 in (74 cm) between the legs. Drive's compare chart prints 24 in (61 cm) between the arms and 31.75 in (81 cm) outside.

The kit is exact on this SKU: 12 qt (11.4 L) bucket, carry handle, cover, and splash shield. Drive's knowledge-base splash-guard note says the chair can sit as a stand-alone commode or over an existing toilet. Over the toilet, take the bucket out and use the splash shield in its place.

Drive Bariatric Folding Commode specifications

These figures are from Drive's current 11117N-1 sheet. The specification tab holds the stored values. Use the sheet when they fight.

Weight capacity 650 lb (295 kg). Seat 13.75 in W by 16.5 in D (35 by 42 cm). Seat height 15.5 to 22 in (39 to 56 cm). Width between arms 24 in (61 cm). Outside width 31.75 in (81 cm). Width between legs 29.25 in (74 cm). Unit weight 19 lb (8.6 kg). Bucket 12 qt (11.4 L) with handle, cover, and splash shield. Snap-on seat and lid. Removable back. Limited Lifetime warranty.

Drop-arm, folding, or bariatric commode

A bariatric commode chair is the heavier Drive frame. 11117N-1 folds and stays at 650 lb. 11135-1 does not fold, drops an arm, and goes to 1000 lb with a 23.25 in (59 cm) wide seat. A standard folding commode chair such as the Drive 11148N-4 is the 350 lb 3-in-1. A standard drop-arm commode chair such as the Drive 11125KD-1 is the 300 lb side-transfer chair.

Stay on 11117N-1 if 650 lb and a fold are the fit. Step to 11135-1 if the person needs the extra-wide seat and the drop arm.

Funding help for bathroom safety equipment in Ontario

Ontario's Assistive Devices Program (ADP) does not fund bathroom safety equipment, so plan around other routes. Funding that may help instead: March of Dimes Canada's Home and Vehicle Modification Program, Veterans Affairs Canada (VAC), extended health plans, and community programs. Westin Healthcare's staff work with these programs every week and will point you to the right route for your situation. Visit our funding page or call (905) 451-7743 to talk it through before you buy.

Delivery and setup in Brampton and the GTA

Westin's own team delivers this bariatric folding commode across Brampton and the Greater Toronto Area. We bring it in, unfold it, set the leg height, and show you the bucket and splash shield before we leave.

We have three stores in the Brampton and Toronto area if you would rather see the chair first. For a scheduled delivery, call (905) 451-7743 and we will book the next date that works. Same-day delivery is offered through our hospital bed rental service; purchased commodes are delivered on a scheduled date.

This is a mid-size carton. The Canada-wide free ground-shipping offer on smaller goods can apply when it ships on its own. Inside Toronto and the GTA, White-Glove Delivery (bring-in, unwrap, test, take packaging away) is described on the shipping policy. Any charge is confirmed on your order.

Related bathroom safety products from Westin

• Drive Deluxe Bariatric Drop-Arm Commode, the 1000 lb extra-wide chair
• Drive Folding Steel Commode Deep Seat, the 350 lb folder
• Drive Deluxe Steel Drop-Arm Commode, the 300 lb drop-arm chair

Service and warranty

When something on the commode needs work, you call the shop that sold it. Westin Healthcare has a service and repairs department. Our technicians come to the home or workplace.

Drive manufacturer warranty

Drive's 11117N-1 sheet prints a Limited Lifetime term. We handle the warranty claim with you. Ask us if an extended warranty is offered for your order.

Frequently asked questions

What Makes This A Bariatric Commode?

The Drive bariatric folding commode 11117N-1 is Drive's 650 lb (295 kg) folding frame with 24 in (61 cm) between the arms. The seat itself is still 13.75 by 16.5 in (35 by 42 cm). The extra-wide sitting surface is on the Drive 11135-1.

What Is A 3-In-1 Commode?

The Drive bariatric folding commode 11117N-1 ships with a splash shield, so Drive's stand-alone or over-toilet note applies. Use the bucket beside the bed. Over a toilet, remove the bucket and use the splash shield.

What Size Pail Ships With The Drive 11117N-1?

The Drive bariatric folding commode 11117N-1 ships with a 12 qt (11.4 L) bucket, carry handle, cover, and splash shield.

What Is The Weight Capacity Of The Drive 11117N-1?

The Drive bariatric folding commode 11117N-1 is rated at 650 lb (295 kg) on Drive's current sheet. Stay at or under that rating.

Does The Back Come Off?

The Drive bariatric folding commode 11117N-1 has a removable tool-free back. Drive prints that line. It does not print a toilet-safety-frame setup beyond that removable back and the splash shield.

Does ADP Cover Commode Chairs?

Funding for bathroom safety equipment in Ontario depends on the person and the program. Talk to us before you buy. Call (905) 451-7743 or use the funding page and we will point you to the right path for your case.

What Is The Warranty On The Drive 11117N-1?

The Drive bariatric folding commode 11117N-1 carries Drive's Limited Lifetime term as printed on the current sheet. Westin Healthcare processes the claim.

Folding Or Drop-Arm Bariatric?

The Drive bariatric folding commode 11117N-1 folds and stays at 650 lb. The Drive 11135-1 is the 1000 lb drop-arm chair with the extra-wide seat. Pick the folder if the chair has to pack away. Pick the drop-arm if the transfer is from the side and the person needs the 23.25 in seat.

Can I Use This Commode In The Shower?

The Drive bariatric folding commode 11117N-1 is a steel commode, not a shower commode. For a Drive chair that is built for the shower, see the Drive 11114KD-1.

Can I Rent A Bariatric Commode In The GTA?

Westin Healthcare rents bathroom safety equipment for short-term needs in the GTA. See the rentals hub and call (905) 451-7743 to check what is on the floor. A rental commode may be a different model than this 11117N-1.
