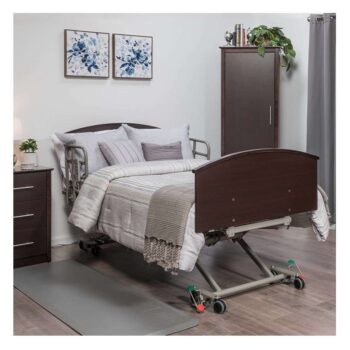

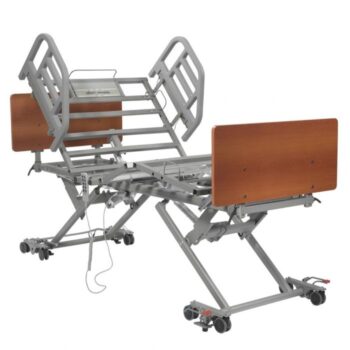

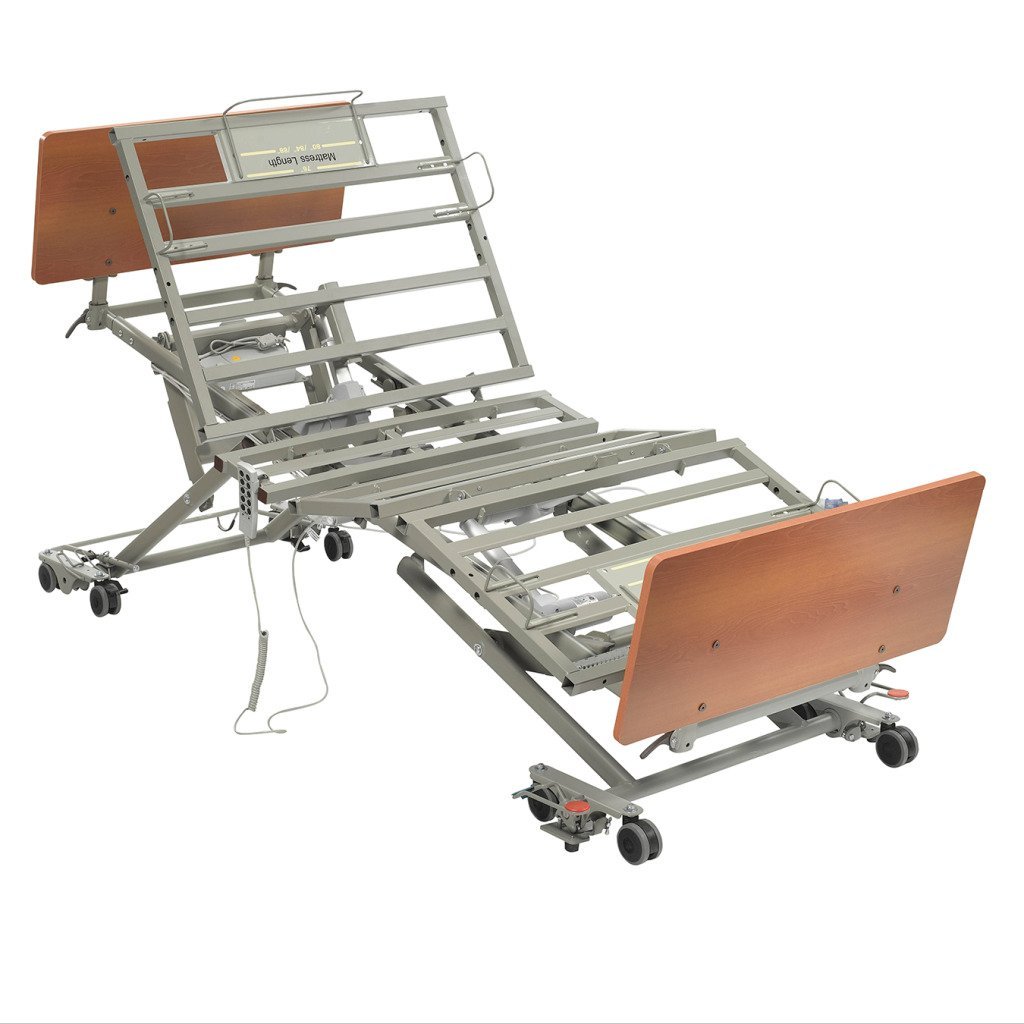

Primecare P703 Long Term Care Bed

The Primecare P703 Long Term Care Bed by Drive Medical is a low bed with a deck height range of 7″ to 30″. The bed can be configured to several sizes, up to 42″ wide and 84″ long, for a perfect patient fit. It is a full electric hospital bed with a weight capacity of up to 550 pounds, an 8-function hand pendant, auto-contour positioning, and an optional embedded Staff Control. The bed has three integrated frame lengths that can be adjusted between 76″, 80″, and 84″, and optional width extensions are adjustable from 39″ to 42″.

The Auto Contour feature provides optimal support and personalized positioning to maximize user comfort. Upgrading to a staff control panel will allow the Prime Care bed to achieve Trendelenburg, reverse Trendelenburg, and cardiac chair positioning. The P703 bed achieves one of the lowest bed height settings for deluxe homecare beds at just 7″. The low height setting makes transfers easier and safer and reduces concerns for user falls. The bed can rise to 30″, making attendant assistance much easier and more efficient.

The Primecare P703 Long Term Care Bed has many options and accessories available, including Staff Control with Trend/Reverse Trend and Cardiac Chair, an 88″ length Extension, Deluxe Assist Rails, Assist Bars, Bed ends in six styles and twelve wood grain laminate colors, Battery Back-up, Bed Transporter, Trapeze, and more. The recommended maximum patient weight is 500 lbs.

In summary, the Primecare P703 Long Term Care Bed by Drive Medical is a low bed that offers smooth operation and versatile positioning for maximum patient comfort. It is a full electric hospital bed with many options and accessories available to meet the needs of different users. With its low height setting, auto-contour feature, and optional staff control panel, the Primecare P703 Long Term Care Bed provides users with greater independence and improved comfort.

Primecare P703 Key Features

• 550 lbs. weight capacity, Resident Weight 500 lbs
• 7″ to 30″ height range
• Optional integrated width adjusts to 39″ – 42″ (Figure A)
• Integrated 76″, 80″ and 84″ sleep surface length (Figure B)
• Two way Red/Green color-coded floor lock system (Figure C)
• Eight (8) Function Handheld Pendant Control
• Auto Contour
• 4 DC Motors Synchronized Hi/Lo control system keeps bed level
• Four sealed bearings secured in the “G” track
• IV pole holders
• Extended Heel Lift
• Eight 3″ Heavy Duty casters roll at any height
• Fixed adjustable wall bumper (Figure D)

Primecare P703 Long Term Care Bed Options:

•  Staff Control with Trend/Reverse Trend and Cardiac Chair (Figure E)
•  88″ length Extension (Figure F)
•  Deluxe Assist Rails, Assist Bars
•  Bed ends Six styles and twelve wood grain laminate colors
•  Battery Back-up, Bed Transporter, Trapeze

Recommended maximum patient weight: 500 lbs.

Adjustable Length Bed:
Adjustable sleep surface length: 76″, 80″, or 84″. The mattress deck provides an adjustable mattress retainer to accommodate 3 mattress lengths.

Optional Expandable Width Bed:
The standard P703 is 36″ wide. Optional width-extender allows 39″ – 42″ for a wider mattress.

Head/Foot Boards:
Select head/footboard size at time of ordering. If you purchase the Width Extender P703WE and plan on setting the bed at 42″ width, you should be sure to order the 42″ wide bed ends.

Low Deck Height:
The P703 bed has an exceptional travel range from a very low deck height of 7″ up to 30″. Typically add 6″ or 8″ mattresses for overall height. (Adding a 6″ mattress range 13″ up to 36″)

Full-Electric:
Head, foot, and bed height operate with quiet electric actuator motors. Easy to use hand pendant and optional Staff Controls embedded in footboard with Trendelenburg & Reverse Trendelenburg and Cardiac Chair positioning.

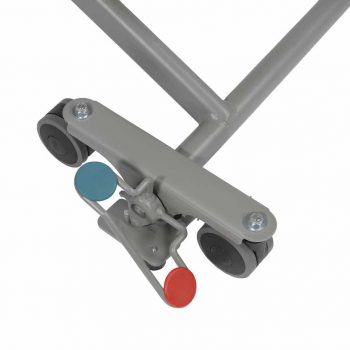

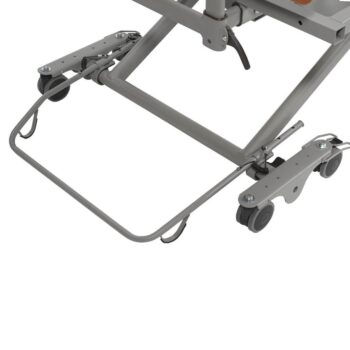

Locking Casters:
The P703 bed features a pedal-operated floor lock braking system. A two-way pedal floor lock system keeps the bed securely in place when engaged. Color-Coded, Braking System. Easily activate or deactivate the foot pedal brakes with minimal effort for added safety.

Roll at any height convenience, plus steer control provides easy maneuverability.

Auto Contour:
Synchronized Hi/Lo control system keeps bed level for resident comfort and positioning. The included Auto Contour feature automatically adjusts into recliner position for added comfort with the push of a button.
