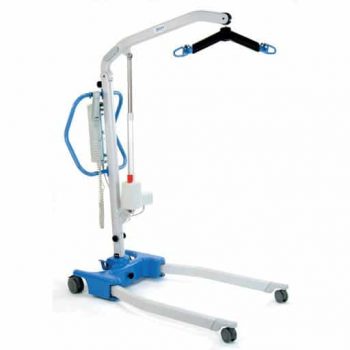

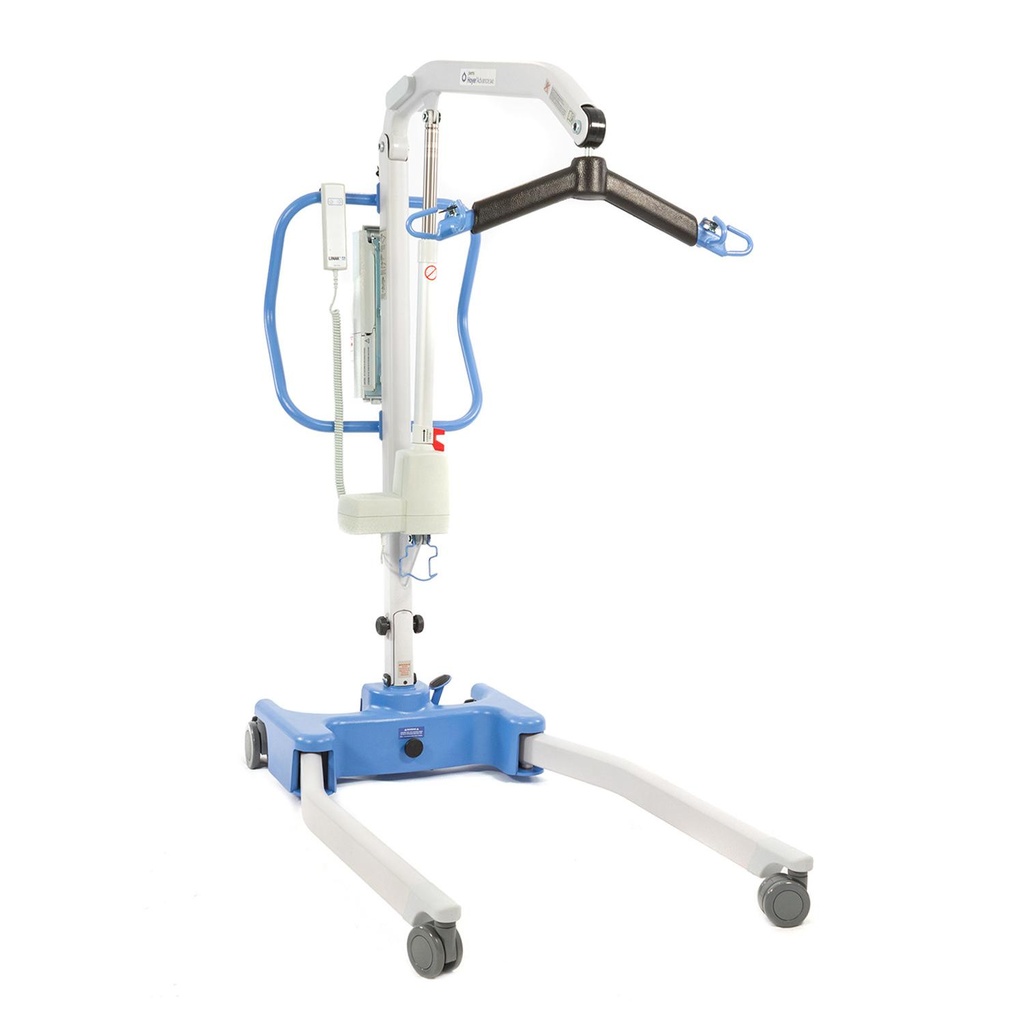

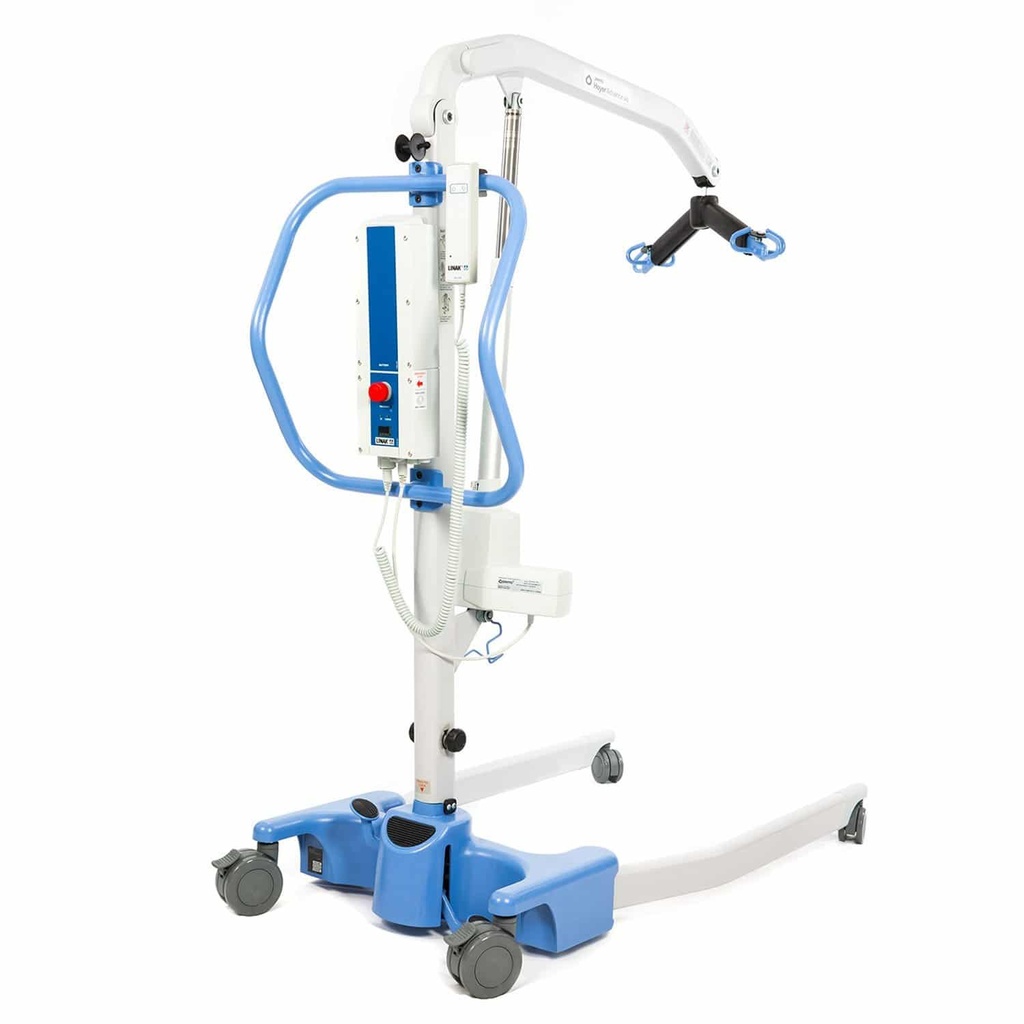

Hoyer Advance Electric Patient Lift
The Hoyer Advance is a versatile and reliable patient lift designed to make transfers easier and safer for both patients and caregivers. Whether you’re at home, in a nursing facility, or in a hospital setting, this lift can help you easily move patients from one location to another.
One of the standout features of the Hoyer Advance is its compact design, which makes it easy to maneuver in tight spaces. It also has a weight capacity of up to 340 pounds, making it suitable for a wide range of patients.
The lift comes with a range of safety features, including a mechanical down-release emergency stop button, an adjustable cradle that can be locked in place, and a non-slip footplate. Additionally, the lift’s low base height makes it easy to position patients in a variety of settings.
Another benefit of the Hoyer Advance is its ease of use. The lift comes with an ergonomic handle that makes it easy to operate, and it can be disassembled quickly for easy storage and transport. The lift’s four-point suspension system also ensures that patients are comfortable and secure during transfers.
Overall, the Hoyer Advance is an excellent choice for anyone looking for a reliable patient lift that is easy to use and packed with safety features. Whether you’re a caregiver or a patient, this lift can help make transfers safer and more comfortable.
Weight Capacity: 340-lbs weight capacity.
Lifting Range: 15.5″ – 66.5″
Warranty: One year for all parts and components.
Battery Powered: ADVANCE-E is capable of lifting from the floor, painless automobile transfers, and quick transfers to the toilet or bath.
Digital Scale Accessory: The Digital Scale accessory/option accurately weighs up to 440-lbs and includes a cradle. If you order a digital scale you will receive a second cradle for the lift.
Hoyer Advance Electric Patient Lift Features
- Lightweight, aluminum construction
- No-tools folding design allows for compact storage
- Intuitive Push Pad assists with initiating movement
- Swan Neck style legs allow Advance to get closer to the resident
Hoyer Advance Electric Patient Lift Specifications
Safe Working Load | 341 lbs |
Maximum Overall Length | 51.2 in. |
Minimum Overall Length | 49.2 in. |
Maximum Overall Height | 73.2 in. |
Minimal Overall Height | 53.5 in. |
Height | 17.7 in. |
Depth | 46.5 in. |
Width | 21.7 in. |
Spreader Bar: Maximum Height | 66.5 in. |
Spreader Bar: Minimum Height (usable) | 15.4 in. |
Height at Maximum Reach | 46.1 in. |
Reach at Maximum Height | 25.6 in. |
Reach at Minimum Height | 13.8 in. |
Maximum Reach* | 32.9 in. |
Turning Radius | 55.9 in. |
Legs Open: External Width | 39.4 in. |
Legs Open: Internal Width | 39.4 in. |
Legs Closed: External Width | 26.4 in. |
Legs Closed: Internal Width | 22.4 in. |
Overall Height of Legs | 4.5 in. |
Ground Clearance | 1.2 in. |
Front Twin Casters | 3 in. |
Rear Braked Casters | 4 in. |
* Reach = center of spreader bar to the front of the mast |
